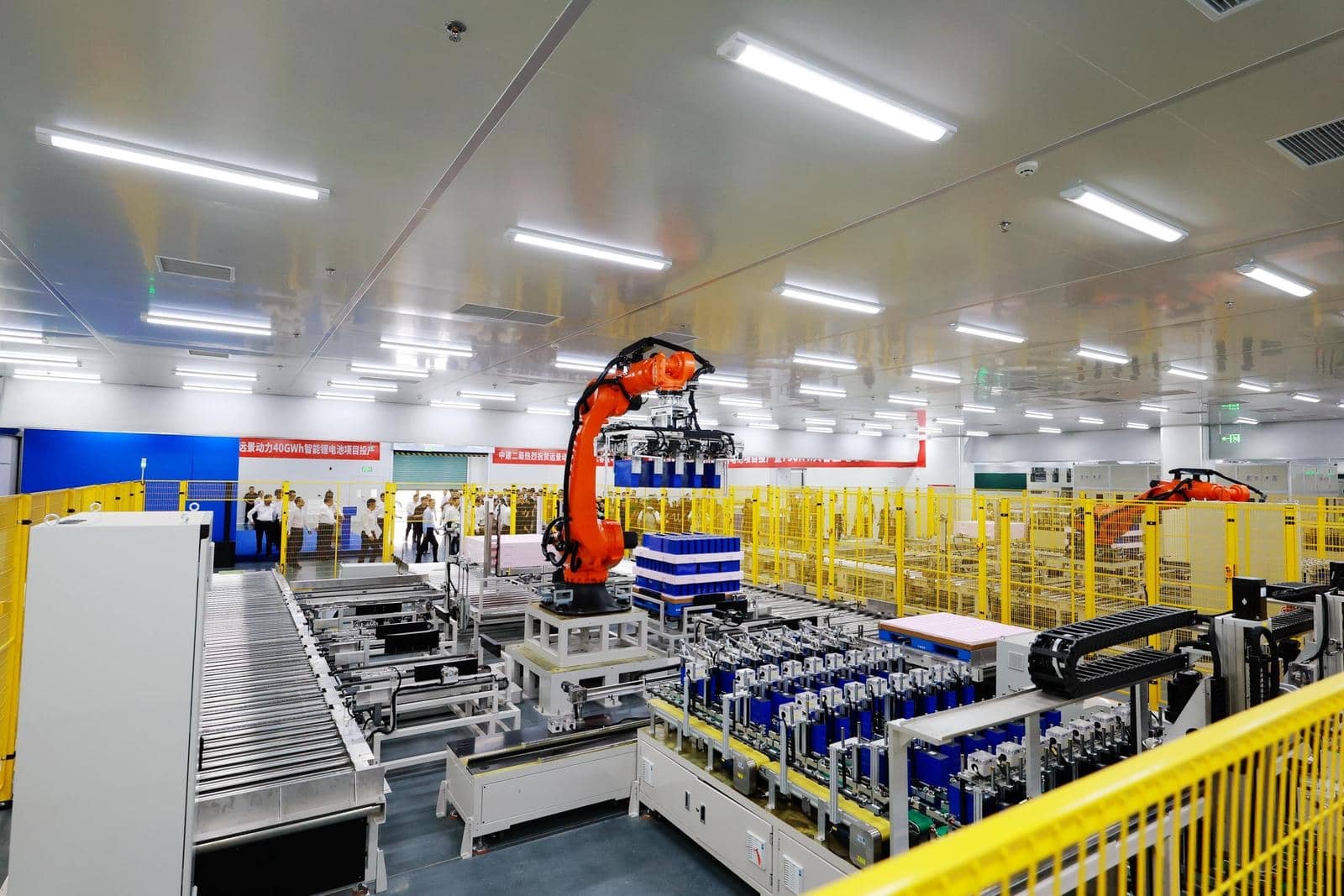

Understanding the Lithium Battery Cell Manufacturing Process

2026-08-28 | Calvin

Lithium battery cells are the backbone of modern energy storage, powering electric vehicles, consumer electronics, and renewable energy systems. The lithium-ion battery manufacturing process involves multiple highly controlled steps to ensure performance, safety, and longevity.

1. Mixing: Preparing the Electrode Slurry

The process begins with mixing raw materials such as active materials, conductive agents, binders, and solvents. These components are blended under controlled temperature, vacuum, and stirring conditions to form a uniform slurry with precise viscosity and particle size.

2. Coating: Applying the Slurry

The prepared slurry is coated onto metal current collectors using methods like slot-die coating or scraper coating. After coating, the material is dried to remove solvents and form solid electrode layers.

3. Calendering (Pressing): Increasing Density

Electrodes are compressed using rollers to improve density and reduce internal resistance. This step enhances energy density while maintaining proper porosity for electrolyte absorption.

4. Slitting: Cutting Electrodes

Wide electrode sheets are cut into narrower strips with high precision. Proper tension and blade quality ensure smooth edges and consistent dimensions.

5. Tab Forming: Creating Electrical Tabs

Tabs are formed by cutting electrode edges, providing connection points for electrical current flow in the final battery.

6. Winding or Stacking: Cell Assembly

Electrodes and separators are assembled into a cell structure. Cylindrical cells typically use winding, while pouch cells often use stacking. Proper alignment prevents short circuits.

7. Vacuum Drying: Removing Moisture

Moisture is removed through vacuum baking to prevent harmful chemical reactions. This step is essential for battery safety and long-term stability.

8. Tab Welding: Securing Connections

Tabs are welded using ultrasonic technology, ensuring strong and stable electrical connections without damaging materials.

9. Packaging: Sealing the Cell

Cells are enclosed in cylindrical, prismatic, or pouch packaging. Pouch cells use aluminum-plastic films, while others use metal casings. Proper sealing prevents leakage and contamination.

10. Leak Testing: Ensuring Airtightness

Leak tests using vacuum or helium methods ensure the cell is properly sealed and protected from moisture and impurities.

11. Electrolyte Filling: Enabling Ion Flow

Electrolyte is injected into the cell to allow lithium ions to move between electrodes. Precise control ensures uniform distribution.

12. Formation: First Charge Cycle

The first charge-discharge cycle activates the battery and forms the SEI layer, which stabilizes performance and enhances lifespan.

13. Aging: Stabilization and Testing

Batteries undergo aging to stabilize internal chemistry. Final tests include resistance, voltage, and capacity checks before shipment.

Conclusion

The lithium battery manufacturing process is a complex and precise operation. Each stage—from mixing to aging—plays a critical role in determining battery quality, safety, and efficiency. As technology advances, manufacturing techniques continue to evolve for higher performance and lower cost.
