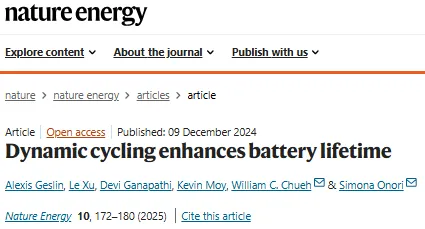

Nature Publishes Landmark Study: Dynamic Discharge Boosts Battery Life by 38%
2026-09-11 | Calvin

01 Opening: A "Wrong Premise" Used for 40 Years
In battery lifetime experiments, almost everyone uses the same method:
Constant Current (CC) discharge.
From NASA's battery databases to degradation studies in universities and quality control standards in battery factories—constant current discharge is the recognized "standard operating condition." The reasoning is simple: constant current is easy to repeat, easy to compare, and easy to model. By changing the current or temperature, one can easily compare the performance differences between batteries.
But there is a huge, rarely questioned assumption hidden here:
In real-world use, battery discharge currents are "dynamic"—sometimes fast, sometimes slow, with pulses, regenerative charging, and resting periods. Constant current discharge is precisely the least likely scenario in actual operating conditions.
In an electric vehicle, pressing the accelerator is discharge, releasing it is coasting, pressing the brake is regenerative braking (reverse charging), traffic jams mean stop-and-go, and waiting at a red light is resting... The current curve jumps up and down like an electrocardiogram.
Professors William Chueh from the Department of Materials Science and Simona Onori from the Department of Energy Science and Engineering at Stanford University decided to directly answer a question that "everyone assumes but nobody has verified":
Can battery lifetime measured with constant current truly represent real-world performance?
The answer surprised everyone: No. And the direction is opposite—the lifetime measured with constant current is "underestimated."
02 Experimental Design: 92 Cells, 47 Protocols, 2 Years Non-Stop
This is likely one of the most "expensive and labor-intensive" experiments in the battery field.
- Cells: 92 commercial EV power cells (silicon oxide-graphite anode / NCA cathode)—the same type used in actual vehicles
- Protocols: 47 different discharge protocols, with average currents ranging from C/16 (slow, taking 16 hours to fully discharge) to C/2 (2 hours to discharge)
- Temperature: Constant 35°C (simulating battery pack operating temperature)
- Duration: Continuously running for over 2 years at the SLAC-Stanford Battery Center
- Repetition: Each protocol was run on 2 cells to eliminate individual cell variability
The most crucial part was the "careful design" of the 47 protocols, divided into four main categories:
| Protocol Type | Quantity | Realism Level | Description |
|---|---|---|---|
| Constant Current | 4 | ⭐ | Traditional gold standard (includes 3 variants with 6-hour rest periods) |
| Periodic Pulse | 5 | ⭐⭐ | Simulates fixed cycles of "discharge + regenerative braking + rest" |
| Synthetic Protocols | 6 | ⭐⭐⭐ | "Highway/Urban" trips synthesized from real driving data |
| Real-World Driving | Multiple | ⭐⭐⭐⭐ | Directly from real driving data of vehicles in two cities |
The charging protocol was unified: constant current-constant voltage (CC-CV) at C/2 to 4.2V (simulating standard charging stations), and discharge was uniformly cut off at 3.1V—except for the discharge protocol, all other conditions were identical. Thus, any lifetime differences could only be attributed to the "dynamic nature of the discharge current."
To obtain information on "where exactly the battery degraded internally," the team conducted comprehensive "check-ups" (Reference Performance Test, RPT, and Hybrid Pulse Power Characterization, HPPC) every 25~100 cycles. Using a half-cell differential voltage model, they deconvoluted the total capacity fade into three components:
- Q_pe: Positive electrode capacity loss (cathode material aging)
- Q_ne: Negative electrode capacity loss (anode material aging, especially silicon aging)
- Q_Li: Loss of lithium inventory (lithium ions "locked up" by side reactions, e.g., SEI growth)
With these three "health indicators," the team could answer a deeper question: Which part of the battery does dynamic discharge actually "protect"?
03 Striking Conclusion: Constant Current Discharge Has the "Shortest" Lifetime
After 2 years of running, the results were in—completely counterintuitive.
Figure 2 shows the core evidence. The team compared the lifetime (measured in "Equivalent Full Cycles, EFC," with end-of-life defined as State of Health, SOH, decaying to 85%) of constant current discharge vs. dynamic discharge at the same average current:
| Average Current | Lifetime with Constant Current | Lifetime with Dynamic Discharge | Advantage of Dynamic Discharge |
|---|---|---|---|
| C/10 | Baseline | Up to ~38% more | ✅ Significantly Extended |
| C/5 | Baseline | Noticeably Longer | ✅ Extended |
| C/2 | Baseline | Still Longer | ✅ Extended |
Three levels of progressive findings:
① Constant current discharge had the "lowest" lifetime among all protocols. This was not an isolated case but a systematic conclusion—almost all dynamic discharge protocols resulted in longer lifetimes than constant current discharge.
② The more "realistic" the protocol, the longer the lifetime. From constant current → periodic pulse → synthetic protocols → real-world driving, the closer the discharge was to actual driving, the longer the battery lasted (Supplementary Figures 1 and 2 clearly show this gradient).
③ The lower the average current, the greater the advantage of dynamic discharge. Under slow conditions like C/10, dynamic discharge provided up to 38% more equivalent full cycles compared to constant current.
Translating this into practical terms, the team calculated:
If battery packs were designed based on lifetimes measured with constant current, it would systematically underestimate the real driving range by about 195,000 miles (approximately 310,000 kilometers).
In other words: Batteries are actually more durable than we thought—we have been using the wrong test method and unfairly "penalizing" them.
04 Hidden "Lifetime Window": 0.3C~0.5C is the Golden Zone
Even more intriguing findings followed. The team plotted all protocol data on a coordinate system of "Average Current vs. Lifetime" (Figure 2d) and discovered a counterintuitive "inverted U-shaped" curve:
Lifetime (EFC) initially increases and then decreases with increasing average current—there exists a "golden C-rate window."
Within this window (approximately 0.3C~0.5C), battery lifetime is maximized. Lifetimes are shorter at both lower and higher currents.
This is driven by a "tug-of-war" between two aging mechanisms:
- Calendar Ageing: Batteries age even when idle (side reactions, SEI thickening). At lower currents, each cycle takes longer, and the "share" of calendar ageing increases.
- Cycling Ageing: Stress and damage from the charge-discharge process itself. At higher currents, the "share" of cycling ageing increases.
0.3C~0.5C is the "sweet spot" for these two aging processes—neither too slow (calendar ageing not dominant) nor too fast (cycling ageing not dominant).
This conclusion is significant for battery pack design: Packs don't need to be blindly oversized. Controlling the average discharge current around 0.4C can maximize battery lifespan. For commercial vehicles (buses, taxis, logistics) that operate "continuously," the average C-rate naturally falls within 0.3C~0.5C—which is precisely the optimal range.
The paper specifically notes:
Calendar ageing exceeds cycling ageing as the dominant factor at EV-relevant currents (≤0.4C)—challenging the traditional assumption that calendar ageing is only important at very low currents.
05 Explainable AI "Solves the Case": Low-Frequency Pulses are the "Longevity Code"
Why does dynamic discharge make batteries last longer? The team didn't stop at "observing the phenomenon." They used explainable machine learning (XGBoost + SHAP analysis) to "solve the case"—identifying which features in the discharge curve determine battery lifetime.
They extracted 12 features from the discharge current profile (current variance, maximum instantaneous current, rest duration, regenerative charging ratio, peak frequency after Fourier transform, etc.) and used SHAP values to quantify each feature's impact on lifetime.
The findings (Figure 3):
① Low-frequency pulses are key. The discharge frequency that determines lifetime averages 8.2 mHz (approximately one pulse every 2 minutes)—far below 1 Hz. These low-frequency pulses correspond to the lithium-ion intercalation/deintercalation process. The team hypothesizes: Low-frequency pulses can reduce local stress and heterogeneity in electrode particles, thereby "gently" protecting the electrodes.
② Maximum instantaneous current is crucial (especially for the negative electrode). In real-world driving, instantaneous current can spike to 1800% of the average current. This instantaneous high current primarily damages the negative electrode—it causes greater overpotential and exacerbates silicon material degradation.
③ High-SOC rest is crucial (especially for the positive electrode). Prolonged rest periods at high states of charge mainly damage the positive electrode. The team found that if the battery is parked at a high SOC, the cathode material accelerates degradation (consistent with the mechanism of "cathode instability at high voltage").
Three "culprits," three "targets"—explainable AI deconstructed the vague concept of "dynamic discharge affects lifetime" into a clear causal chain.
06 Degradation Mechanisms: Three Types of "Internal Losses" with Distinct Roles
This is the most "hardcore" part of the paper—dissecting battery death down to the "cellular level."
Using the half-cell differential voltage model, the team tracked the evolution of three internal losses with cycling (Figure 4):
Loss 1: Loss of Lithium Inventory (Q_Li) — The Early "Main Offender"
In the early stages of battery life, degradation is dominated by loss of lithium inventory. This is where side reactions (mainly SEI growth) "lock up" lithium ions, preventing them from participating in further charge-discharge cycles.
The team found that the degradation trajectory of Q_Li can be perfectly fitted by a concise equation:
Q_Li = 1 + a×EFC^0.5 + b×EFC
The fitting error (MAPE) is less than 0.5%—this "half-power + linear" law reveals that lithium inventory loss is governed by a dual mechanism: diffusion control (EFC^0.5 term) and interfacial reaction control (EFC term).
Loss 2: Positive Electrode Capacity Loss (Q_pe) — The Mid-to-Late "Successor"
In the mid-to-late stages of battery use, positive electrode capacity loss gradually takes over as the dominant factor. It is primarily damaged by high-SOC rest—the fuller the charge and the longer the rest, the faster the cathode degrades.
Loss 3: Negative Electrode Capacity Loss (Q_ne) — Silicon's "Achilles' Heel"
Negative electrode capacity loss is mainly affected by Depth of Discharge (DoD) and instantaneous high current. There is a subtle mechanism here:
Instantaneous high current → increased overpotential → earlier triggering of discharge cut-off voltage → reduced actual DoD → avoiding deep discharge in the low SOC region.
The low SOC region is precisely where silicon is most active and degrades fastest (silicon participates in reactions only at low voltages). Thus, the instantaneous high current in dynamic discharge inadvertently "protects" the negative electrode—reducing the battery's exposure to silicon's "high-risk zone."
A key insight woven throughout the paper: The "extended longevity" from dynamic discharge is not due to a single mechanism, but a superposition of multiple mechanisms: "low-frequency pulses reduce stress" + "instantaneous current avoids silicon's high-risk zone" + "high-SOC rest is interrupted by low frequencies."
07 Why This Matters: A "Cognitive Correction" for an Industry
The value of this paper extends far beyond the finding that "dynamic discharge extends lifespan." It touches on a much deeper issue:
For the past few decades, we may have been evaluating battery lifetime using the wrong protocols.
Specifically, there are three levels of impact:
For Academia: Almost all published battery degradation data are results of constant current discharge. This paper proves that these data systematically underestimate real battery lifetime—those conclusions that "batteries can only cycle 500 times" might need to be doubled under real-world driving. This means a vast amount of historical data needs to be re-evaluated.
For Battery Manufacturers: When designing new formulations or new cells, if constant current is still used for lifetime testing, it will misjudge the true potential of the battery—good materials might be unfairly "penalized" as short-lived, while poor materials might slip through. The paper urges: To develop new materials, real-world load profiles must be used for evaluation.
For BMS (Battery Management Systems): The paper finds that calendar ageing dominates at ≤0.4C, overturning the traditional BMS assumption of "cycling ageing priority." Health prediction models in BMS need to recalibrate the weights of calendar ageing vs. cycling ageing.
A powerful statement from the paper's conclusion:
"This work quantifies the importance of evaluating new battery chemistries and designs with realistic load profiles, highlighting opportunities to re-examine our understanding of aging mechanisms at the chemical, material, and cell levels."
In plain language: We may not have fully understood "how batteries die" because we've been using the wrong experimental methods.
08 Limitations and Outlook
The team, as always, was honest about limitations:
- The experiment only covered one chemistry (silicon oxide-graphite/NCA). Whether other systems (LFP, NMC, silicon-carbon, etc.) follow the same pattern needs verification.
- The optimal C-rate window (0.3C~0.5C) depends on cell design, chemistry, and aging conditions and may vary for different batteries.
- Most protocols simulated "continuous use" scenarios (buses, taxis). The "frequent short trips + long rest periods" pattern of private passenger vehicles requires separate investigation.
However, this does not diminish the strength of the core conclusion: Constant current discharge does not represent real-world battery aging.
Final Thoughts
What struck me most about this paper is that it overturns a "common sense" used for 40 years.
Measuring battery life with constant current discharge is an almost "self-evident" practice—simple, controllable, and repeatable. But the Stanford team, with hard data from 92 cells, 2 years of work, and 47 protocols, has proven that this "self-evident" practice is, in fact, wrong.
What's more insidious is the direction of the error—it makes batteries appear shorter-lived than they actually are.
What does this mean? It means that for decades, countless batteries have been "unfairly penalized." Those materials judged "insufficiently durable," those cells "retired early," those battery packs "overdesigned"—they are likely more durable than we believed, simply because we never measured them correctly.
The discovery of the "0.3C~0.5C golden window" provides a previously overlooked optimization dimension for battery pack design: It's not that lower currents are always better, nor higher currents; rather, there exists a balance point between "calendar aging" and "cycling aging."
This reminds me of classic "paradigm shifts" in science: Copernicus discovered that it's not the Sun that orbits the Earth, but the Earth that orbits the Sun. This paper finds that it's not "constant-current discharge is the standard," but "constant-current discharge is the most damaging."
Of course, the scales are vastly different. But in the specific field of batteries, this paper indeed shakes the foundation:
From "constant current is the gold standard" to "realistic conditions are the gold standard"—battery lifetime testing needs a paradigm revolution.
The integration of explainable AI (SHAP) has equipped this revolution with a "telescope"—it not only tells you "dynamic discharge extends life" but also "why": low-frequency pulses, instantaneous current, and high-SOC rest—three features, three mechanisms—are, for the first time, clearly pinned to the causal chain.
From the 38% improvement in lifetime, to the 0.3C~0.5C golden window, and the 195,000 miles of "unfairly penalized range"—the value of this paper is not just a few numbers, but a calibration of industry perception: the true potential of batteries may have been consistently underestimated.
