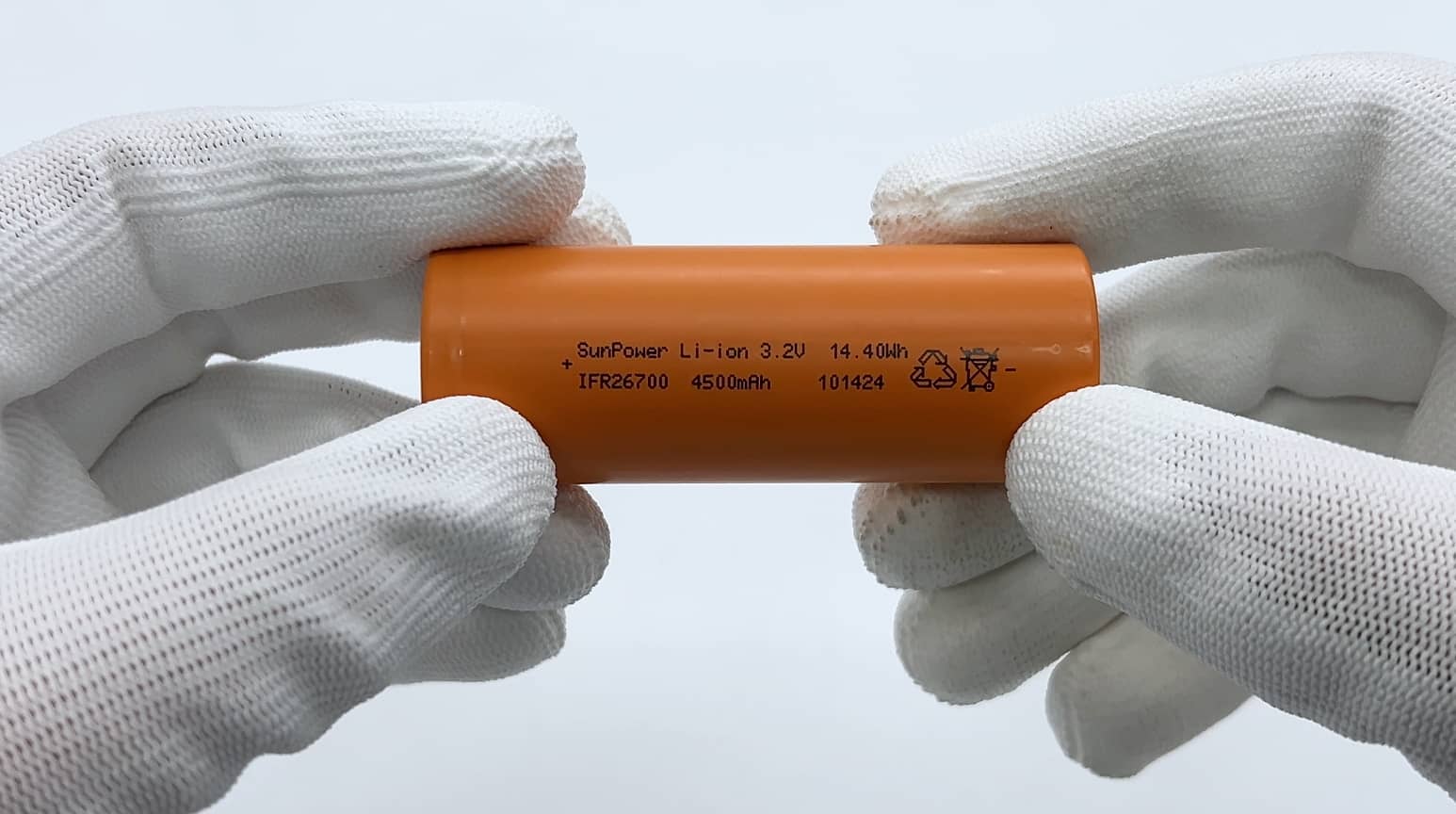

Everything You Need to Know About Cylindrical Batteries

2025-11-02 | Calvin

Cylindrical batteries are commonly used in a wide range of applications, from consumer electronics to electric vehicles. These batteries are typically classified based on their materials (e.g., lithium iron phosphate, lithium cobalt oxide) and shell type (e.g., steel or polymer). In this guide, we’ll explore everything you need to know about cylindrical batteries, their types, applications, and key considerations.

Table of Contents

• Part 1: Characteristics of Cylindrical Batteries
• Part 2: Structure of Cylindrical Batteries
• Part 3: 7 Common Types of Cylindrical Batteries
• Part 4: Cylindrical Battery Voltage, Capacity, Charger, and PCB
• Part 5: Advantages and Disadvantages of Cylindrical Batteries
• Part 6: FAQs

Part 1: Characteristics of Cylindrical Batteries

1. Appearance of Cylindrical Lithium Batteries

Cylindrical lithium batteries typically consist of a positive electrode (made of materials like nickel cobalt oxide or zinc manganate), a separator paper, and an electrolyte. The outer casing is generally made from an aluminum-plastic composite pipe, which provides structural integrity and protection.

2. Cylindrical Battery Capacity

The energy density of cylindrical lithium batteries typically ranges from 300 to 500 Wh/kg, depending on the battery's design and specific model. This gives them a relatively high specific power, with some models capable of reaching more than 100W. Performance can vary based on battery size and application.

3. Safety and Reliability

Cylindrical lithium batteries are known for their safety and reliability. They are resistant to overcharging, have high-temperature tolerance, and boast a long service life. These batteries are equipped with built-in safety features like overcurrent and overcharge protection.

4. Applications of Cylindrical Lithium Batteries

These batteries are versatile power sources, commonly used in portable electronics such as digital cameras, MP3 players, and laptops. They are also found in electric vehicles, power tools, and even power banks.

Part 2: Structure of Cylindrical Batteries

A cylindrical lithium-ion battery consists of several components:

• Casing: Acts as the battery’s negative electrode, typically made of nickel-plated steel.
• Cap: Serves as the positive electrode.
• Electrodes: The positive and negative electrodes store and release energy.
• Separator: Prevents short circuits by keeping the positive and negative electrodes apart.
• Electrolyte: Conducts ions between the electrodes during discharge and charge cycles.

Power cylindrical batteries, unlike standard models, feature specialized high-current conductive structures to accommodate the large current requirements of power applications.

Part 3: 7 Common Types of Cylindrical Batteries

Cylindrical lithium batteries come in various sizes, each suited for different applications. The first two digits of the model number typically indicate the diameter (in millimeters), and the next two digits represent the height (in millimeters). Here are the seven most common types:

1. 10440 Battery

Size: 10mm x 44mm
Capacity: Typically around 300mAh
Application: Used in small electronics like flashlights and portable audio devices.

2. 14500 Battery

Size: 14mm x 50mm
Capacity: Generally 1600mAh
Application: Commonly found in consumer electronics like wireless audio devices and digital cameras.

3. 16340 Battery

Size: 16mm x 34mm
Capacity: Around 700mAh
Application: Used in high-brightness flashlights and LED lighting systems.

4. 18650 Battery

Size: 18mm x 65mm
Capacity: 1000mAh to 3500mAh
Application: One of the most common battery types, found in laptops, power tools, and electric vehicles.

5. 21700 Battery

Size: 21mm x 70mm
Capacity: 4000mAh to 5000mAh
Application: Used in electric vehicles (EVs), solar energy systems, and large-capacity applications.

6. 26650 Battery

Size: 26mm x 65mm
Capacity: 3200mAh
Application: Suitable for power tools and high-performance applications due to its large capacity.

7. 32650 Battery

Size: 32mm x 65mm
Capacity: 6000mAh
Application: Common in backup power supplies, UPS systems, and renewable energy storage.

Part 4: Cylindrical Battery Voltage, Capacity, Charger, and PCB

1. Rated Voltage

Cylindrical lithium batteries typically have a rated voltage of 3.7V or 3.2V, depending on the chemistry used (e.g., lithium iron phosphate vs. lithium cobalt oxide).

2. Capacity Range

Here are some common capacities for cylindrical battery cells:

• 10440: 320mAh
• 14500: 600mAh - 800mAh
• 18650: 1000mAh to 3000mAh
• 26650: 3000mAh to 3500mAh
• 32650: 6000mAh

3. Battery Pack Voltages

Battery packs can be combined to achieve various voltages, such as 3.7V, 7.4V, 12V, 24V, or higher.

4. Chargers and PCB

Cylindrical battery chargers vary based on the battery pack configuration. Most cylindrical batteries are equipped with Protection Circuit Boards (PCBs) to prevent overcharge, overdischarge, short circuits, and other safety risks.

Part 5: Advantages and Disadvantages of Cylindrical Batteries

Advantages:

• The mature manufacturing process results in lower production costs and high yields.
• Cylindrical batteries have a globally standardized size, making them suitable for mass production and ensuring widespread availability.
• The cylindrical design offers superior heat management, which is crucial for high-power applications.
• Most cylindrical batteries are sealed, requiring little to no maintenance during use.
• The casing is designed to resist damage, providing better protection compared to other battery types.

Disadvantages:

• Cylindrical batteries tend to be bulkier, which can be a limitation for space-constrained applications.
• Over time, the performance of the battery can decline, especially after long-term use.
• Variability in manufacturing can result in inconsistent performance and energy output across batches.

Part 6: FAQs

Q1: What is the difference between cylindrical and pouch batteries?

Cylindrical batteries are generally more robust and offer better heat dissipation, whereas pouch batteries are lighter and more flexible in terms of form factor.

Q2: Can cylindrical batteries be used in electric vehicles?

Yes, cylindrical batteries (such as the 21700 model) are commonly used in electric vehicles due to their high energy density and reliable performance.

Q3: How do I know the right cylindrical battery for my device?

Look for the battery model that matches the required voltage, capacity, and form factor for your device. Always check the manufacturer's specifications for optimal performance.

Conclusion

Cylindrical lithium batteries offer a wide range of benefits, from their reliability and safety to their versatility in applications. With their high energy density and efficient design, they are ideal for various industries, from consumer electronics to electric vehicles and renewable energy systems.

Whether you're considering cylindrical batteries for personal use or industrial applications, understanding their characteristics, advantages, and potential limitations is crucial. Stay informed and choose the right battery to meet your energy needs.
