18650 Rechargeable Battery: Your Comprehensive Guide

2025-09-21 | Calvin

The 18650 battery is one of the most widely used lithium-ion cylindrical cells in modern electronics. Small but mighty, it powers everything from flashlights and power banks to battery packs for e-bikes and DIY projects. In this comprehensive guide, we delve deep into the nuances of the 18650 battery, uncovering its specifications, applications, care tips, and more, to empower users in making informed decisions and maximizing their battery efficiency.

Table of Contents

• What is an 18650 rechargeable battery?
• 18650 Battery specifications (quick reference)
• Advantages & disadvantages
• Common uses and applications
• Care, charging and storage best practices
• Safety warnings (must-read)
• FAQs

What is an 18650 rechargeable battery?

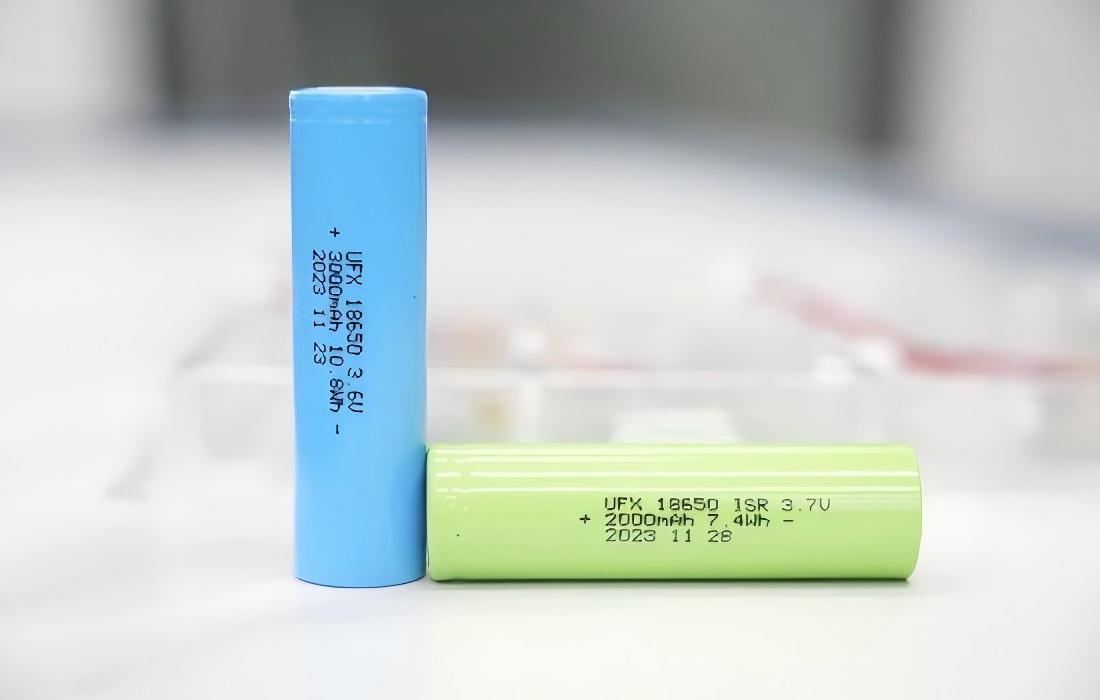

An 18650 is a cylindrical lithium-ion (Li-ion) cell named after its size: 18 mm diameter and 65 mm length. It’s widely used because it packs a lot of energy in a compact form, making it a go-to choice for everything from flashlights to battery packs. Nominal voltage is typically 3.6–3.7 V, and capacities commonly range from about 1800 mAh to 3600 mAh, depending on the cell chemistry and manufacturer.

Quick note: manufacturers and chemistries vary — for best accuracy, check the datasheet from the cell maker (e.g., Samsung, Panasonic, LG) when designing or buying battery packs.

18650 Battery specifications (quick reference)

• Dimensions: 18 mm × 65 mm
• Chemistry: Li-ion (various cathodes: NMC, NCA, LFP/LiFePO4, LiMn2O4, LiCoO2, etc.)
• Nominal voltage: 3.6–3.7 V
• Typical capacity: 1800–3600 mAh (varies by model)
• Standard charging voltage: 4.2 V (charge-cutoff)
• Discharge cutoff: around 2.5–3.0 V (depends on cell & application)
• Max continuous discharge current: commonly 5 A to 30 A (model dependent)
• Cycle life: typically 300–500 cycles (LFP variants often last longer)
• Weight: ~45–50 g per cell
• Operating temp: roughly −20°C to 60°C (performance falls off at extremes)
• Energy (Wh) example: 3.7 V × 2.5 Ah = 9.25 Wh

Advantages & disadvantages

Advantages

• High energy density: lots of power for size — great for portable devices.
• Stable voltage profile: delivers usable voltage over most of the discharge cycle.
• Low internal resistance: supports high drain current with less heat.
• Rechargeable with low memory effect: convenient for repeated cycling.
• Widely available & standardized form factor: easier sourcing and pack design.

Disadvantages

• Safety risks if misused: overcharging, shorting, or physical damage can lead to thermal runaway.
• Performance degrades with cycles: capacity drops over time.
• Requires correct charging equipment: improper charging shortens life or creates hazards.
• Variability across brands/chemistries: not all 18650s are equal — specs matter.

Common uses and applications

• Laptop battery packs & power banks — often found inside multi-cell packs.
• High-performance flashlights — favored for runtime and current delivery.
• Power tools (in packs) — when high discharge is needed.
• E-bikes, scooters, some EV packs — historically used in large numbers for energy storage (modern EVs increasingly use prismatic or pouch cells, but 18650s remain in some designs).
• DIY projects, robotics, drones (small scale) — hobbyists often use 18650s for custom packs.
• UPS and solar storage (modular packs) — when cells are properly managed with BMS.
• Vaping devices & portable fans — common, though device safety and local regulations apply.
• Medical portable devices — only approved, certified cells/suppliers should be used.

Care, charging and storage best practices

Charging

• Always use chargers designed for Li-ion cells and the specific nominal voltage.
• Don’t exceed the manufacturer’s recommended charge voltage (typically 4.2 V).
• Remove cells from the charger after full charge, or use smart chargers with auto-cutoff.

Storage

• Store at ~40–60% state of charge if kept long term.
• Keep cells in a cool, dry place away from direct sunlight and conductive surfaces.
• Avoid storing fully discharged cells for long periods.

Usage

• Use matched cells in multi-cell packs (same brand, capacity, age).
• Employ a Battery Management System (BMS) for multi-cell packs — it handles balancing, over/under voltage protection, and temperature limits.

Handling & inspection

• Don’t use cells with dents, punctures, bulges or leakage.
• Clean terminals gently; avoid conductive debris near terminals.
• Replace any cell showing swelling or unusual heat generation.

Safety warnings (must-read)

• Never short an 18650 cell. A short can cause massive current flow and rapid heating.
• Don’t charge a damaged or punctured cell.
• Avoid mixing protected and unprotected cells in the same pack unless you know what you’re doing.
• For consumer products, always follow local regulations regarding transport and disposal of Li-ion batteries.
• If a cell starts smoking or swelling, move it to a safe, non-combustible area and follow hazardous-battery disposal guidance.

FAQs

Q: How long does an 18650 last?

A: Cycle life varies by chemistry and usage, but typical consumer 18650 cells last 300–500 cycles before noticeable capacity loss. LFP variants often last longer.

Q: Can I use any 18650 in my device?

A: Not necessarily. Match nominal voltage, max discharge current, and protection features. When in doubt, consult the device’s manufacturer.

Q: What’s the difference between an unprotected and protected 18650?

A: Protected cells include a small PCB that prevents overcharge/overdischarge/shorting. Unprotected cells don’t — they rely on the device or external circuitry for safety.

Q: Can 18650 batteries catch fire?

A: If abused (shorted, overcharged, punctured), they can vent or ignite. Proper handling, charging, and certified components reduce risk dramatically.
