LiFePO4 Battery Voltage Chart Guide: No More Confusion About Battery Voltage

2026-05-15 | Calvin

If you've ever stared at a multimeter reading and wondered whether your LiFePO4 battery is at 80% or 20%, you're not alone. Unlike lead-acid batteries, LiFePO4 chemistry holds an almost flat voltage curve across most of its discharge range — which is great for stable power delivery, but makes estimating remaining charge by voltage alone genuinely tricky.

This guide gives you the exact voltage charts for every common LiFePO4 system — 3.2V cell, 12V, 24V, 36V, 48V, 72V, and 96V — alongside the numbers that matter most: full charge voltage, cutoff voltage, and the SOC-to-voltage relationship at every 10% increment. We also cover what throws voltage readings off (temperature, load, rest time) and how to measure accurately.

Bookmark this page. It's the only voltage reference you'll need.

What is LiFePO4 battery voltage?

LiFePO4 (lithium iron phosphate) batteries operate within a defined voltage window that's narrower and flatter than other lithium chemistries. There are four voltage values worth understanding before reading any chart:

• Nominal voltage — the engineering reference voltage used to describe the battery (e.g. 12.8V). Not the actual resting or charged voltage.
• Full charge voltage — the maximum safe voltage after a complete charge cycle (e.g. 14.6V for a 12V pack). Never exceed this.
• Resting voltage — the open-circuit voltage measured after 2+ hours of no load and no charging. This is the only voltage that maps reliably to state of charge.
• Cutoff voltage — the minimum discharge voltage before the BMS disconnects to protect the cells (e.g. 10.0V for a 12V pack). Discharging below this causes permanent capacity loss.

How to read a LiFePO4 voltage SOC chart

The defining characteristic of LiFePO4 chemistry is its flat discharge curve. From roughly 90% SOC down to 20%, voltage barely moves — typically just 0.2–0.3V across the entire mid-range. This means a 12V pack at 80% charge reads almost the same voltage as one at 40% charge.

You must measure resting voltage, not load voltage. Under load, voltage sags temporarily due to internal resistance. A fully charged pack can read 12.5V while running a 50A load — which looks like 50% SOC on the chart but isn't. Disconnect all loads and chargers, wait at least 2 hours, then measure.

Voltage charts are most useful at the extremes. The top 10% and bottom 20% of SOC show the steepest voltage changes — that's where voltage gives you the clearest signal. In the middle, a battery monitor with a shunt (coulomb counter) gives far more accurate SOC than voltage alone.

LiFePO4 voltage charts by system

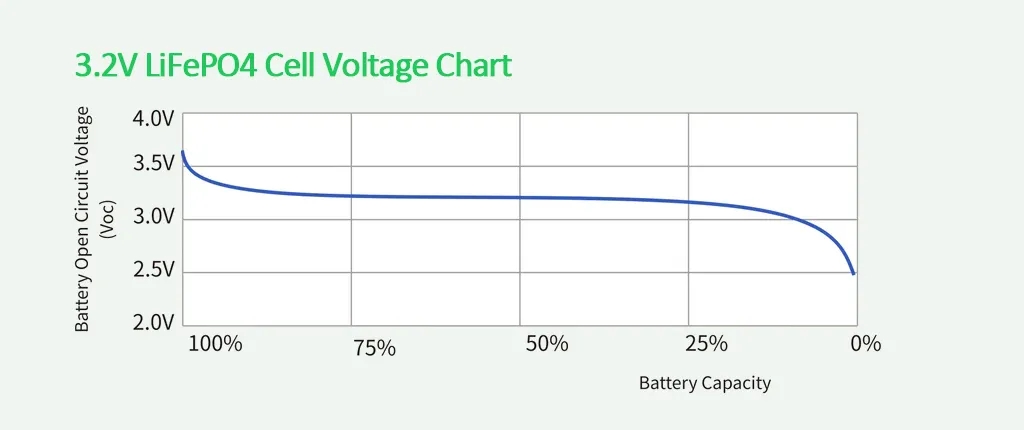

3.2V single cell

Nominal: 3.20V | Full charge: 3.65V | Cutoff: 2.50V
Used in: all LiFePO4 pack builds — the base unit everything else is calculated from.

State of charge (SOC)	Resting voltage (OCV)
100%	3.65V
90%	3.40V
80%	3.35V
70%	3.32V
60%	3.30V
50%	3.28V
40%	3.26V
30%	3.22V
20%	3.10V
10%	2.90V
0%	2.50V

The flat plateau between 80% and 20% (3.35V–3.26V) is only 0.09V — this is why voltage-based SOC estimation is imprecise in the mid-range.

12V pack (4S configuration)

Nominal: 12.8V | Full charge: 14.6V | Cutoff: 10.0V
Used in: RVs, marine trolling motors, off-grid solar, caravans, portable power stations.

State of charge (SOC)	Resting voltage (OCV)
100%	14.6V
90%	13.6V
80%	13.4V
70%	13.3V
60%	13.2V
50%	13.1V
40%	13.0V
30%	12.9V
20%	12.5V
10%	12.0V
0%	10.0V

A resting voltage of 13.2V on a 12V pack typically indicates 50–60% SOC — not 'full.' Many users mistake this for a fully charged battery.

24V pack (8S configuration)

Nominal: 25.6V | Full charge: 29.2V | Cutoff: 20.0V
Used in: larger solar storage systems, e-bike mid-drives, marine windlasses, mobile power setups.

State of charge (SOC)	Resting voltage (OCV)
100%	29.2V
90%	27.2V
80%	26.8V
70%	26.6V
60%	26.4V
50%	26.2V
40%	26.0V
30%	25.8V
20%	25.0V
10%	24.0V
0%	20.0V

36V pack (12S configuration)

Nominal: 38.4V | Full charge: 43.8V | Cutoff: 30.0V
Used in: 36V trolling motors (Minn Kota, MotorGuide), golf carts, e-bikes, light electric utility vehicles.

State of charge (SOC)	Resting voltage (OCV)
100%	43.8V
90%	40.8V
80%	40.2V
70%	39.9V
60%	39.6V
50%	39.3V
40%	39.0V
30%	38.6V
20%	37.5V
10%	36.0V
0%	30.0V

A resting voltage below 37.5V signals you're in the bottom 20% — time to recharge.

48V pack (16S configuration)

Nominal: 51.2V | Full charge: 58.4V | Cutoff: 40.0V
Used in: home solar storage (powerwall-style), modern golf carts, aerial work platforms, telecom backup.

State of charge (SOC)	Resting voltage (OCV)
100%	58.4V
90%	54.4V
80%	53.6V
70%	53.2V
60%	52.8V
50%	52.4V
40%	52.0V
30%	51.6V
20%	50.0V
10%	48.0V
0%	40.0V

At 48V, voltage-based SOC is especially unreliable in the 40–80% band — the swing is only 1.6V across 40% of capacity. Pair your 48V system with BMS-reported SOC or a shunt monitor.

72V pack (22S configuration)

Nominal: 72.0V | Full charge: 81.9V | Cutoff: 60.0V
Used in: high-performance electric vehicles, 6+ seat tour cars, outboard motors, performance e-bikes.

State of charge (SOC)	Resting voltage (OCV)
100%	81.9V
90%	79.2V
80%	73.7V
70%	73.0V
60%	72.6V
50%	72.2V
40%	71.5V
30%	71.0V
20%	68.2V
10%	65.0V
0%	60.0V

At 72V, even small voltage differences represent significant energy shifts. Always use active BMS monitoring — voltage alone is particularly unreliable as a fuel gauge at this system voltage.

96V pack (30S configuration)

Nominal: 96.0V | Full charge: 109.5V | Cutoff: 80.0V
Used in: industrial forklifts, heavy-duty AGVs, mining equipment, large-format energy storage.

State of charge (SOC)	Resting voltage (OCV)
100%	109.5V
90%	102.0V
80%	100.8V
70%	99.8V
60%	99.0V
50%	98.2V
40%	97.5V
30%	96.8V
20%	94.0V
10%	89.5V
0%	80.0V

96V systems should always use a dedicated BMS with cell-level monitoring. Voltage charts serve as safe operating boundaries here — rely on your BMS for SOC, not a handheld multimeter.

Resting voltage vs voltage under load

This is the most common source of confusion among LiFePO4 users, and it's worth addressing directly.

Resting voltage (also called open-circuit voltage or OCV) is measured when the battery has no current flowing in or out and has been left to stabilise for at least 2 hours. This is the only voltage reading that meaningfully maps to the SOC charts above.

Voltage under load drops in real time as current flows, due to the battery's internal resistance. The heavier the load, the bigger the drop. A healthy 12V LiFePO4 pack powering a 100A inverter load might read 12.4V at the terminals — which looks like 20% SOC on the chart — while actually sitting at 70% SOC. Remove the load, wait 2 hours, and it reads 13.2V.

This effect is called voltage sag, and it's more pronounced at high discharge rates (1C or above), low temperatures (cold increases internal resistance), and with older or degraded cells.

The rule: never estimate SOC from a voltage reading taken while the battery is under load or within 2 hours of charging. For accurate real-time SOC, use a shunt-based battery monitor — it counts amp-hours in and out regardless of voltage.

How temperature affects LiFePO4 voltage

Temperature changes the relationship between voltage and SOC in ways that can seriously mislead you if you're not aware of them.

In cold conditions (below 10°C / 50°F), electrolyte viscosity increases and internal resistance rises. This causes the battery to show a lower terminal voltage than its actual SOC warrants — the voltage appears to indicate a depleted battery even when capacity remains. At -20°C, internal resistance can increase 5–10× compared to room temperature, producing dramatic voltage sag under even modest loads.

Critical cold-weather rule: never charge a LiFePO4 battery below 0°C (32°F) unless it has an integrated heating system. Charging in freezing temperatures causes lithium plating — metallic lithium deposits form on the anode, permanently reducing capacity and creating a potential short-circuit risk. The BMS on quality batteries will block charging below 0°C for this reason.

In hot conditions (above 45°C / 113°F), resting voltage may read slightly elevated while accelerated chemical reactions gradually reduce long-term cycle life. Avoid prolonged exposure above 60°C.

In cold climates, rely on a shunt monitor for SOC rather than voltage readings. Bring the battery to room temperature and rest for 2 hours before using voltage to diagnose a low-charge condition.

LiFePO4 vs lead-acid discharge curve

The single biggest difference between LiFePO4 and lead-acid isn't cycle life or weight — it's the shape of the discharge curve.

Lead-acid voltage declines steadily and proportionally as the battery discharges. A 12V lead-acid battery at 50% SOC reads noticeably lower than at 100% — which makes voltage a reasonably useful fuel gauge.

LiFePO4 voltage stays nearly flat from 100% down to about 20% SOC, then drops sharply. The payoff is significant: your electronics and appliances receive stable voltage throughout almost the full discharge cycle, rather than slowly dimming or underperforming as the battery depletes.

The trade-off is that voltage alone can't tell you much about remaining capacity across the bulk of the discharge range — which is why everything in this guide emphasises resting voltage, proper measurement technique, and shunt-based monitoring.

If you're upgrading from lead-acid to LiFePO4, recalibrate your expectations around voltage readings. The battery isn't broken because it reads 13.2V at rest — it's working exactly as designed.

How to check your LiFePO4 battery charge level accurately

Using a multimeter (OCV method):

• Disconnect all loads from the battery — inverters, chargers, everything.
• Wait a minimum of 2 hours (ideally overnight after a heavy discharge or full charge cycle).
• Set your multimeter to DC voltage.
• Touch the positive probe to the positive terminal, negative to negative.
• Record the reading and compare to the SOC chart for your voltage system above.

This gives you a reasonable SOC estimate, accurate to within ±10% in the mid-range and ±5% at the extremes.

For accurate real-time SOC — use a shunt monitor:

A shunt-based battery monitor (such as the Victron SmartShunt or Renogy 500A monitor) measures current flowing in and out of the battery and calculates SOC by counting amp-hours — not voltage. This method is accurate to within 1–2% regardless of temperature or load conditions, and gives you real-time data on a display or via Bluetooth app.

For any system above 24V, or any application where battery state matters (off-grid solar, marine, EV auxiliary), a shunt monitor is the right tool.

Charging voltage quick reference

Always use a charger specifically designed for LiFePO4 chemistry. Do not use lead-acid charger profiles — the absorption and float stages differ and can reduce battery life or trigger BMS disconnections.

System	Nominal V	Max charge V	Float V	Cutoff V
3.2V cell	3.20V	3.65V	3.40V	2.50V
12V (4S)	12.8V	14.6V	13.6V	10.0V
24V (8S)	25.6V	29.2V	27.2V	20.0V
36V (12S)	38.4V	43.8V	40.8V	30.0V
48V (16S)	51.2V	58.4V	54.4V	40.0V
72V (22S)	72.0V	81.9V	79.2V	60.0V
96V (30S)	96.0V	109.5V	102.0V	80.0V

Frequently asked questions

What voltage is a fully charged 12V LiFePO4 battery?

A fully charged 12V LiFePO4 battery (4S configuration) reaches 14.6V at the end of the charge cycle. After resting for 2 hours with no load, the resting voltage settles to around 13.6V — this is normal and does not indicate any capacity loss. Do not confuse resting voltage with charge voltage.

What voltage is too low for a LiFePO4 battery?

For a 12V pack, any resting voltage below 12.0V (around 10% SOC) signals the battery is nearly depleted. The BMS cutoff triggers at 10.0V to prevent cell damage. Allowing cells to drop below 2.5V per cell repeatedly causes permanent capacity loss. Recharge before reaching 20% SOC for longest lifespan.

Why does my LiFePO4 voltage drop under load?

Voltage sag under load is normal — it's caused by the battery's internal resistance. The heavier the current draw, the larger the temporary voltage drop. A reading of 12.2V under a 100A load does not mean the battery is nearly empty. Always disconnect the load and rest the battery 2 hours before using voltage to estimate SOC.

How do I estimate state of charge by voltage?

Disconnect all loads and chargers, wait 2 hours, then measure terminal voltage with a multimeter. Compare the reading to the SOC table for your system voltage above. Note that readings in the 40–80% SOC range will be very similar — for reliable mid-range SOC, use a shunt-based battery monitor rather than voltage alone.

Does temperature affect LiFePO4 battery voltage?

Yes, significantly. Cold temperatures increase internal resistance, causing voltage to read lower than the actual SOC warrants. At -20°C, voltage sag under load can be extreme. Never charge below 0°C — lithium plating will permanently damage the cells. In cold climates, rely on a shunt monitor for SOC rather than voltage readings.

What voltage should I charge my 48V LiFePO4 battery to?

The maximum charge voltage for a 48V LiFePO4 pack (16S) is 58.4V (3.65V per cell). If your charger has a float stage, set it to 54.4V (3.40V per cell). Never exceed 58.4V — overcharging triggers BMS protection and, in extreme cases, causes permanent cell damage. Always use a charger with a dedicated LiFePO4 profile.
