Everything You Should Know About 18650 Battery Voltage

2026-01-12 | Calvin

Understanding 18650 battery voltage isn’t just a technical detail—it’s the foundation for safe operation, optimal performance, and long battery life. Whether you’re designing an energy system, sourcing lithium-ion cells, or simply choosing the right battery for your application, voltage knowledge helps you avoid costly mistakes.

In this guide, we’ll break down everything you need to know about 18650 lithium-ion battery voltage, from nominal values and voltage ranges to material differences and real-world factors that influence performance.

Table of Contents

• 18650 Battery Voltage Basics
• 18650 Battery Voltage by Chemistry
• 18650 Battery Voltage Chart
• What Is the Normal 18650 Battery Voltage Range?
• What Is Considered Low Voltage for an 18650 Battery?
• Key Factors That Affect 18650 Battery Voltage
• FAQs About 18650 Battery Voltage

18650 Battery Voltage Basics

The 18650 battery is a cylindrical lithium-ion cell (18mm diameter, 65mm length) widely used in power tools, laptops, EV battery packs, energy storage systems, and industrial equipment.

Compared to traditional nickel-based batteries (Ni-Cd or Ni-MH at ~1.2V), an 18650 lithium-ion cell delivers significantly higher voltage, making it more energy-dense and efficient.

Key Voltage Definitions for 18650 Batteries

1. Nominal Voltage

The nominal voltage represents the average working voltage of the battery during normal operation.

• Standard Li-ion 18650: 3.6V–3.7V
• Some manufacturers rate cells at 3.6V, others at 3.7V, depending on chemistry and design

This value is used for system design and battery pack calculations.

2. Charging Limit Voltage

The maximum charging voltage for most 18650 lithium-ion batteries is:

• 4.20V per cell

Charging beyond 4.2V can lead to overheating, accelerated degradation, or safety risks. That’s why proper chargers and Battery Management Systems (BMS) are critical.

3. Discharge Cut-Off Voltage

The discharge termination voltage is the lowest safe operating voltage:

• Typically 2.5V–2.75V

Discharging below this level causes over-discharge, which permanently damages the cell and reduces cycle life.

18650 Battery Voltage by Chemistry

Not all 18650 batteries behave the same. Voltage characteristics vary depending on the cathode material.

Lithium Cobalt Oxide (LiCoO₂) 18650 Battery

This is the most common 18650 chemistry used in consumer electronics.

• Nominal voltage: 3.7V
• Charging limit voltage: 4.2V
• Minimum discharge voltage: 2.75V
• Typical capacity: ≥1000mAh
• Energy density: High

This chemistry offers excellent energy density but requires strict voltage control.

Lithium Iron Phosphate (LiFePO4) 18650 Battery

LiFePO4 18650 cells are preferred where safety and long cycle life matter more than energy density.

• Nominal voltage: 3.2V
• Charging limit voltage: 3.6V
• Minimum discharge voltage: ~2.0V
• Typical capacity: ~1500mAh
• Thermal stability: Excellent

Although capacity is lower, LiFePO4 batteries are widely used in industrial, solar, and energy storage systems due to their stability.

18650 Battery Voltage Chart

State of Charge (%)	Voltage (V)
0%	2.5
10%	3.0
20%	3.2
30%	3.4
40%	3.5
50%	3.6
60%	3.7
70%	3.8
80%	3.9
90%	4.0
100%	4.2

Note: Actual voltage can vary depending on load, temperature, and cell quality.

What Is the Normal 18650 Battery Voltage Range?

In real-world applications, the operating voltage range of an 18650 battery typically falls between:

• 3.0V to 4.2V per cell

During Discharge

• Fully charged: ~4.2V
• Mid-range operation: ~3.6–3.7V
• Near empty: ~3.0V

During Charging

• Constant current phase → Constant voltage phase
• Charge ends at 4.2V

This predictable voltage behavior is why 18650 batteries are easy to integrate into battery packs.

What Is Considered Low Voltage for an 18650 Battery?

Low voltage generally refers to a cell dropping below its safe discharge threshold.

• Warning level: ~3.0V
• Critical low voltage: <2.75V

At this point:

• Capacity degradation accelerates
• Internal resistance increases
• Safety risks may rise

How to Prevent Low-Voltage Damage

• Use a BMS with low-voltage cut-off

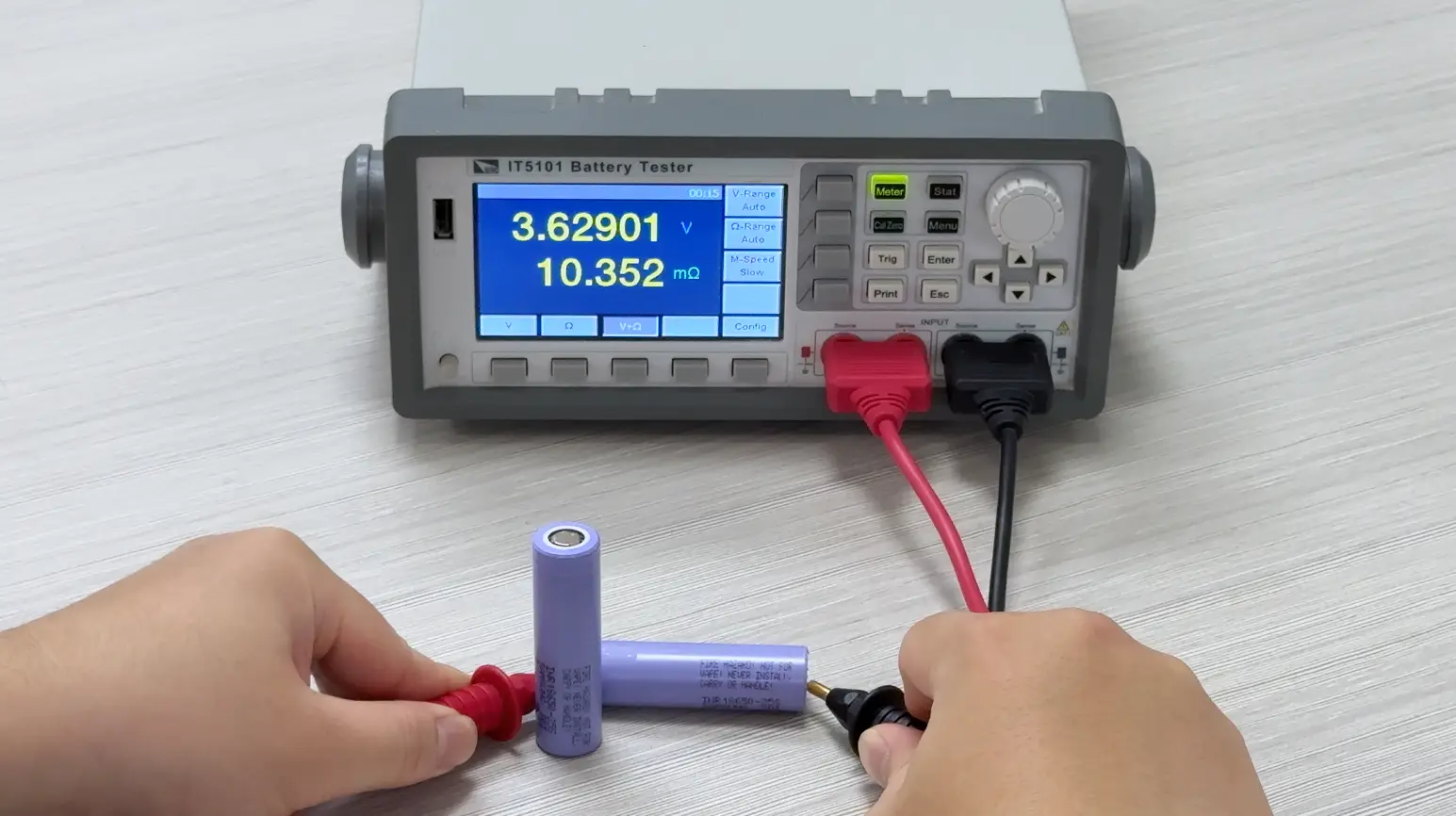

• Monitor voltage using a multimeter or battery checker
• Recharge promptly once voltage approaches 3.0V

Consistent voltage monitoring significantly extends battery lifespan.

Key Factors That Affect 18650 Battery Voltage

• State of Charge (SOC): Higher SOC means higher voltage.
• Load Current: Heavy loads cause voltage sag.
• Temperature: Cold reduces voltage; heat may slightly increase it.
• Battery Chemistry: Different chemistries have different voltage profiles.
• Internal Resistance: Higher resistance increases voltage drop.
• Aging and Cycle Life: Voltage stability decreases over time.
• Charge and Discharge Rate: Fast rates can cause voltage fluctuations.

FAQs About 18650 Battery Voltage

Is 4.2V safe for an 18650 battery?

Yes, 4.2V is the standard maximum charging voltage for most Li-ion 18650 cells.

Can I use a 3.7V charger on a 3.6V battery?

Yes. These ratings are effectively interchangeable for standard Li-ion cells.

Why does voltage drop under load?

Voltage sag occurs due to internal resistance, especially under high current draw.

Conclusion

Mastering 18650 battery voltage characteristics is essential for safety, performance, and long-term reliability. From chemistry selection to proper voltage management, informed decisions make all the difference—especially in energy systems, power tools, and battery pack design.
