Winston Thundersky LiFePO4 313Ah 3.2V Battery Prismatic Cell
Product Details:
Place of Origin: China
Brand Name: Thunder Sky Winston Battery
Certification: CE
Model Number: TSWB-LFP313AHA
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 313Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.22(mΩ) Operating Voltage: 2.5V~3.8V
- Dimension: 173.8*71.8*207.8mm Battery Weight: 5.55kg±75g
Product Description
100% brand new, grade-A Winston Thundersky LiFePO4 313Ah 3.2V Battery Prismatic Cell with low internal resistance, long cycle life, high safety, and a wide operating temperature range. Suitable for use in RVs, EVs, golf carts, ESS, solar systems, and more.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| MODEL | TSWB-LFP313AHA | |
| Nominal Capacity | 313AH | |
| Dimension | L | 173.8±0 .8mm |
| W | 71.8±1 .0mm | |
| H | 207.8±0 .8mm | |
| Nominal voltage | 3.2V | |
| Maximum cut-off voltage for charging |
3.8V | temperature0℃-60℃ |
| Minimum cut-off voltage for discharge |
2.5V | temperature>0℃ |
| 2.0V | temperature≤0℃ | |
| Standard Charge / Discharge Current |
156.5A(0.5CA) | |
| Internal Resistance | ≤0.22(mΩ) | |
| Energy density | ≥ 178Wh/kg | ≥393Wh/L |
| Cycle Life | 70%DOD | ≥8000Times |
| Operating Temperature |
Charge | 0℃~60℃ |
| Discharge | -20℃~60℃ | |
| Storage Humidity | ≤85%RH | |
| Self-discharge Rate | ≤3.5% Monthly | |
| Weight | 5.55kg±75g | |

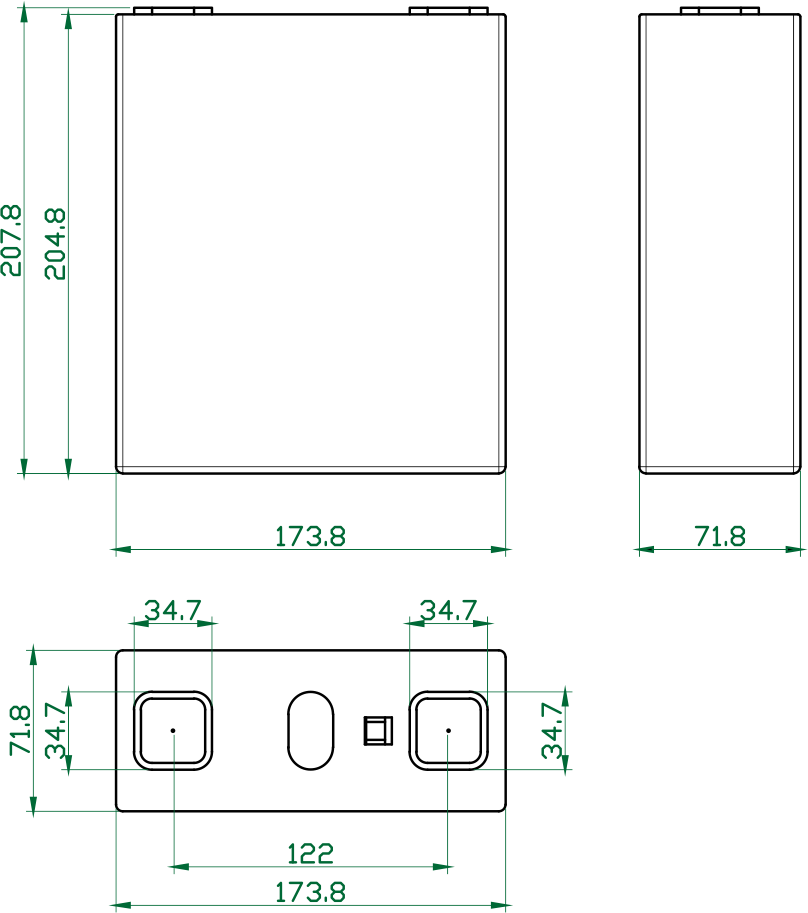

Dimension and Details

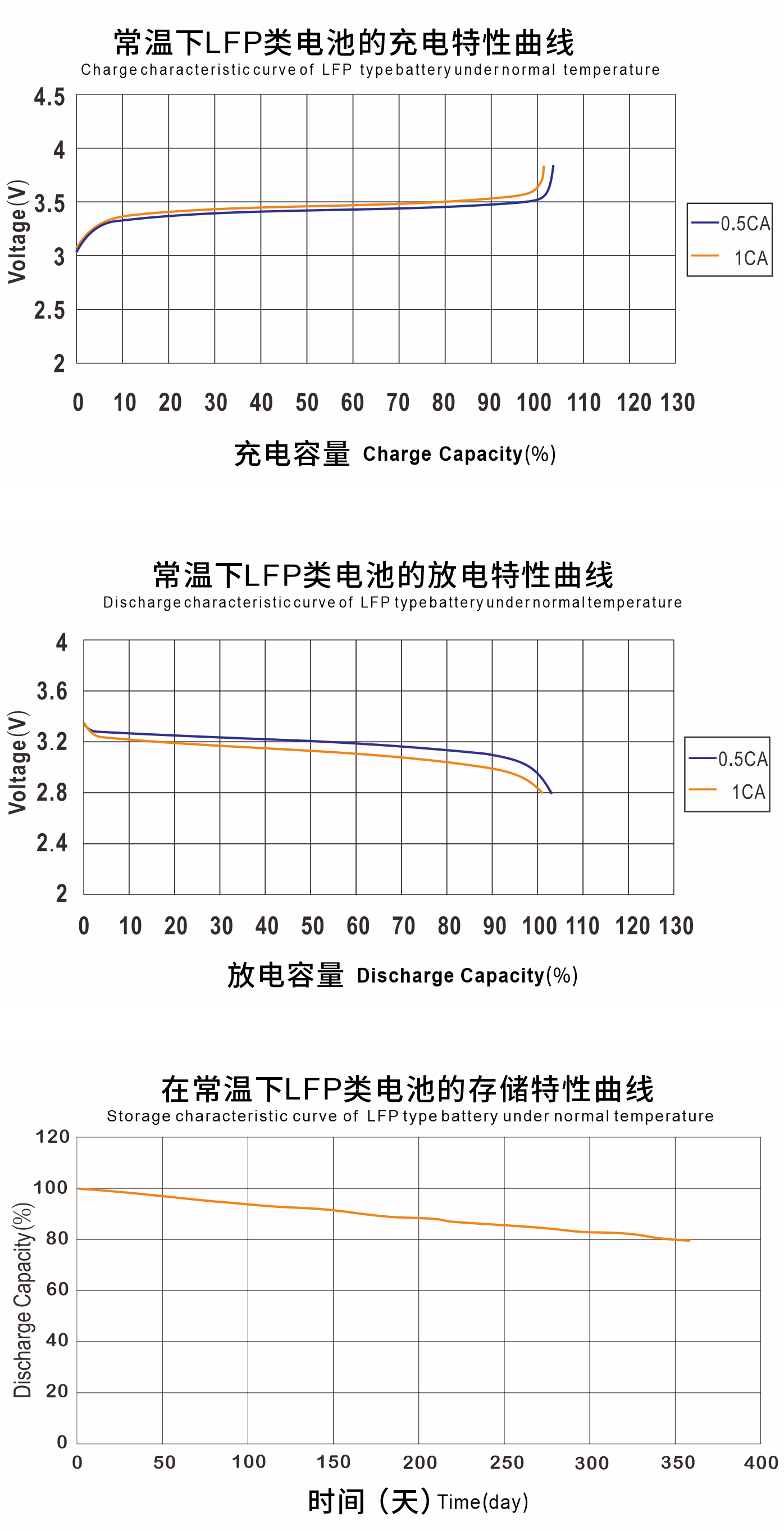

Electrical Performance Diagram
Certification
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
