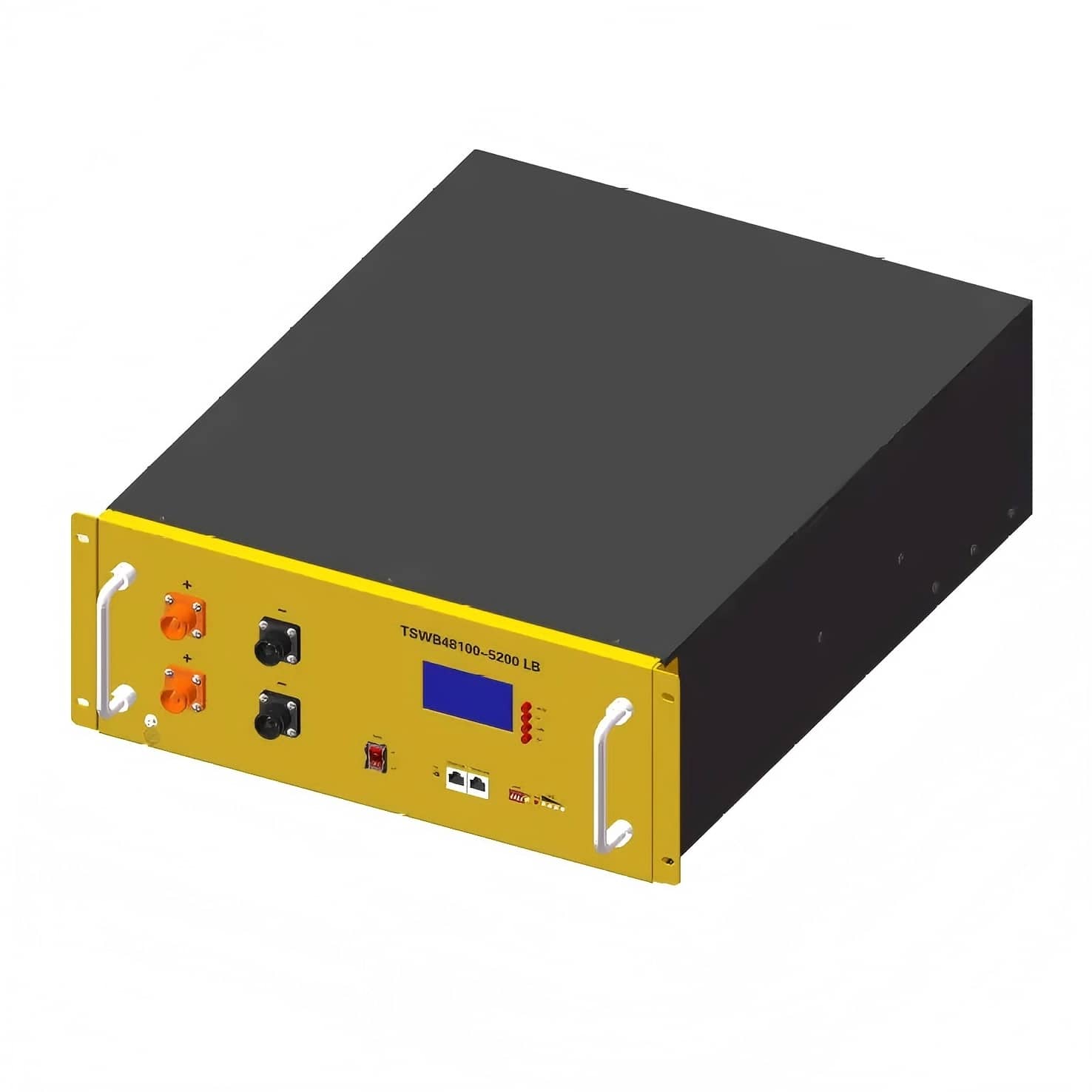

Winston Thundersky 48V 100Ah LiFePO4 Battery Module For BESS
Product Details:
Place of Origin: China
Brand Name: Thunder Sky Winston Battery
Certification: CE
Model Number: TSWB48100-5200
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 52V
- Internal Impedence: / Operating Voltage: 45-60V
- Dimension: 482*570*177 mm Battery Weight: 65kg
Product Description

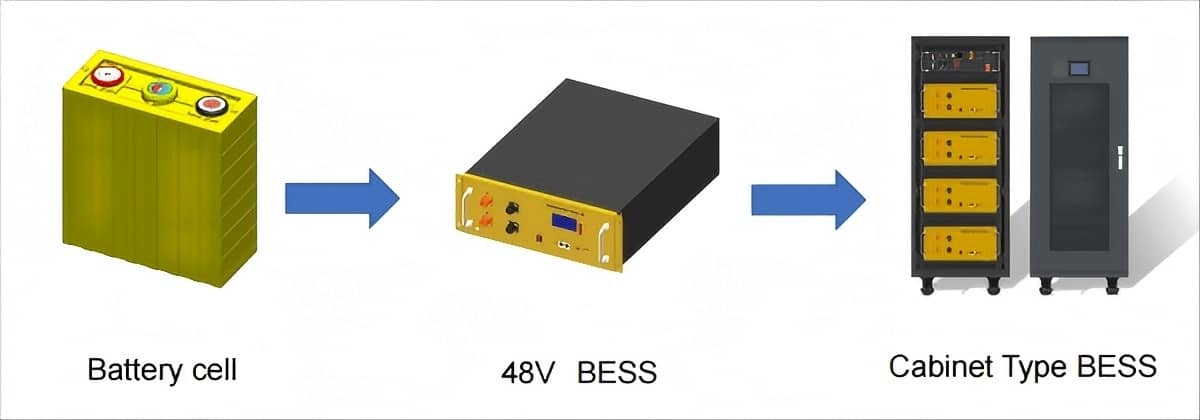

The Winston Thundersky 48V 100Ah LiFePO4 Battery Module is built using advanced battery pack technology, with a water-based lithium battery as the core unit. It features voltage, current, and temperature monitoring, as well as SOC, SOH, and SOP estimation. The module also includes an information display and multiple system protection functions. It can be configured into BESS (Battery Energy Storage Systems) of various voltages and capacities, making it widely suitable for home energy storage, wall-mounted systems, RV power supplies, rooftop PV systems, industrial energy storage, power stations, and other applications.
Product Features
Safe & Durable
- Independently R&D with global core patents energy storage type high-capacity water-based lithium Yttrium battery, more than 7000 times cycle life and the service life
- BMS has highly reliable redundant UPS unit, which will never be powered off. The three-level early warning mechanism and perfect protection functions (scp, ocp, ovp, uvp, otp, etc.) realize the whole process monitoring and management
- Power grid friendly, meets the design specifications of smart grid, is efficient and safe, the battery pack is completely isolated from the power grid, and the output belt is isolated, safe and reliable.
Smart & Reliable
- Equipped with Smart BMS, it can monitor battery voltage, current, temperature, SOC, SOH and other information in real time, and has intelligent thermal management function to realize the safe and stable operation of energy storage battery system..
- Standard battery case design, unified external interface, equipped with communication wiring row, can be quickly configured for use.
- City power priority, inverter priority Settable. Four time periods (peak, flat, valley and peak time periods) tariff setting, flexible calculation of customer profit.
48V BESS Parameters
| Item | Parameters |
|---|---|
| Rate Voltage | 52V |
| Rated Capacity | 100Ah （50-100Ah Optional） |
| Rated Energy | 5200Wh |
| Battery Type | LYP |
| group way | 1P16S |
| Max Charging Current | 50A |
| Max Discharging Current | 100A |
| Work Voltage Range | 45-60V |
| Operating temperature | Charging: 0℃~55℃, Discharging: －20℃~55℃ |
| Communication Interface | CAN BUS、RS485 |
| Size | L482 * D570 * H177（mm） |
| Weight | 65kg |
Parameters of Cabinet Type Household BESS
| Battery Pack Parameters | |
| Voltage range | 45V～60V |
| Expandable energy | 5.2Kwh~78Kwh (Optional) |
| Battery type | LYP（Water-based lithium Yttrium battery） |
| Battery pack charge/discharge C-rate | ≤1C |
| Cycle Life | 7000 Times @ 80%DOD |
| On Grid output characteristics | |
| Rated output Power | 3Kw~40Kw |
| Rated grid-connected voltage | 220Vac、230Vac、240Vac |
| Rated grid-connected voltage | 50Hz/60Hz |
| Power fact | ＞0.99 |
| Maximum efficiency | 97.7% |
| Backup Power bank characteristics | |
| Rated output power | 3Kw~40Kw |
| Rated output voltage | 220Vac、230Vac、240Vac |
| Rated output frequency | 50hz/60hz (settable) |
| Overload capacity | <10ms |
| Photovoltaic system parameters | |
| Rated output power | 3000~40000W |
| Maximum output current | 60V |
| Rated output frequency | 48~60V |
| Other Parameters | |
| Heat dissipation method | Air-cooled cooling |
| Operating temperature range | -25℃～60℃ |
| BESS Safety Standard | IEC62109-1, IEC62109-2, AS62040-1-1 |
| Communication Interface | CAN2.0B, RS485 |
| System Noise | ≤25dB @1m |
| Relative humidity | 0~95% (non-condensing) |
| Maximum working altitude | ≤4000m |
| Protection grade of BESS | NEMA 3R/IP65 |
| Certification | CE、UL、IEC |
