3.3KW On Board LiFePO4 Battery Charger
Product Details:
Place of Origin: China
Brand Name: 3.3KW On Board LiFePO4 Battery Charger
Certification: CE
Model Number: SMHC3
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: Customized plywood cases
Payment Terms: T/T
- Input Voltage: AC 90V~264V Rated Power: 3.3KW
- Output Voltage: DC 48V/72V/84V/96V/144V/312V Output Current: 10-42A
- Dimension: 294X210X111mm Weight: 6.2kg
Product Description
The battery charger adopts fully closed pouring and sealing heat-conducting silica gel process, with protection grade up to IP67, good shock resistance, good heat dissipation performance and long service life.The products are applicable to lithium battery, lifepo4 battery, lead-acid battery, nickel metal hydride battery, etc., and can be used for battery pack cycle charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, ships, communication equipment, etc.
Product models
| specifications and models | Input Voltage Range | Rated Output Voltage | Max Output voltage | Max Output Current |
| SMHC3-4842A | AC 90~264V | 48V | 66.0V | 42A |
| SMHC3-7240A | AC 90~264V | 72V | 99.0V | 40A |
| SMHC3-8440A | AC 90~264V | 84V | 116V | 40A |
| SMHC3-9632A | AC 90~264V | 96V | 132V | 32A |
| SMHC3-14423A | AC 90~264V | 144V | 198V | 23A |
| SMHC3-31210A | AC 90~264V | 312V | 440V | 10A |
Technical Parameters
| Item | Parameters |
| AC Input Wide Voltage, Range | AC90V~264V |
| AC Input Frequency Range | 40~70Hz |
| With APFC Function, Power Factor | ≥0.98 |
| Soft Switching Technology, Efficiency | ≥93% |
| Protection Level | IP67 |
| Operating Temperature | -40℃~60℃ |
| Storage Temperature | -55℃~100℃ |
| CAN Communication Function | Optional |
| 12V3A Auxiliary Power Supply | Optional |
| LED Light Indicator For Charging Process | Standard |
| Noise | ≤45dB |
| Overall Size | 294*210*111mm |
| Net Weight | 5.9Kg |

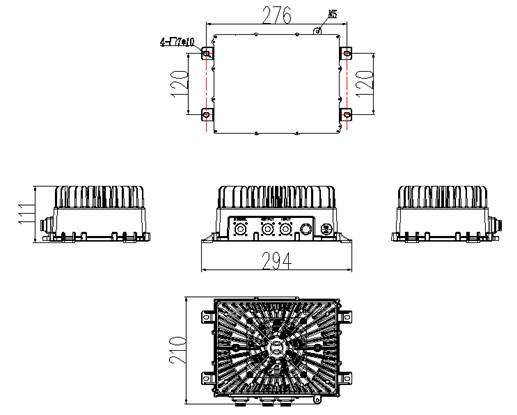

Shape and Installation dimension
Protection Function
| Overheat Protection | when the internal temperature of the charger exceeds 80 ℃, the charging current will reduce automatically. When it exceeds 85 ℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes to charge. |
| Short Circuit Protection | when the output short circuit, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging. |
| Battery Reverse Connection Protection | when the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger. |
| low-voltage＆ Over-voltage Protection | If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again. |
| Full Automatic Shutdown | Automatically shut down after full charge. |
| Output Over-current Protection | Stop the output when exceeds + 1% of the maximum output current |
| C A N communication Protection | Automatically stop the output when CAN communication fails |
Packaging, Transport and Storage
(1) Packing
On the packing box, there are product name, product part number, product brand, product type, production number and name of manufacturer; In packing box, along with the technical documents, it includes packing list, quality certificate, product specification.
(2) Transport
Suitable for cars, boats, aircraft, transportation. The products have to be prevented against sunshine and moisture and in a civilized transportation.
(3) Storage
Product should be stored in the packing box when it is not used and be maintained in a 5 ℃ to 40 ℃ clean, dry and well-ventilated environment. It should not be stored together with chemicals, acid and alkali substances etc,. Should avoid storing in the sun, fire, water and avoid storing with corrosive substances. The storage period is 2 years (from the inventory date of the factory). After the 2 years of storage period, the products should still comply with the provisions of the relevant standards.
