24V 48V 60V 72V 2KW On Board Battery Charger
Product Details:
Place of Origin: China
Brand Name: 2KW On Board Battery Charger
Certification: CE
Model Number: SMCZ2
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: Customized plywood cases
Payment Terms: T/T
- Input Voltage: AC 90-264V Rated Power: 2kW
- Output Voltage: DC 24V/36V/48V/60V/72V/84V/96V Output Current: 18A-45A
- Dimension: 282x168x90mm Weight: 3.8kg
Product Description
The battery charger adopts fully closed pouring and sealing heat-conducting silica gel process, with protection grade up to IP67, good shock resistance, good heat dissipation performance and long service life. The products are applicable to lithium battery, LiFePO4 battery, lead-acid battery, nickel metal hydride battery, etc., and can be used for battery pack cycle charging of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, ships, communication equipment, etc.
PRODUCT ADVANTAGE
01 Input Wide Voltage
Input Wide Voltage Design, ranging from AC90V to AC264V, suitable for any voltage level in any region of the world.
02 High Power Factor
AC input with Active Power Factor Correction (APFC) , which has low heat output and no pllution to electric network.
03 Fully-sealed pouring process
Fully-sealed and heat-condu cting slica gel process, protection level IP67, good seismic resistance, good heat dissipation performance and long service life.
04 High reliability
Wide temperature range: - 40 ℃ ~ + 60 ℃, 100% full load aging test, soft switching technology; low sWitching loss of power devices, high efciency (> 93%) , energy saving and power saving.
05 High safety
Waterproof、shockproof、 acid fog proof、dust proof and enhanced isolation design, make it safe to operate in harsh conditions.
06 Dynamic Charging Curve
Charger with computer interface, can adjust charging mode on site. Suitable for lead-acid, ithium batteres and other batteres. to achieve the best matching Equpped with CAN communication inlertace to realze real-time communcation wth BMS.
07 Temperature Compensation
lellent temperature compensation in the charging process, to avoid damage caused by overcharging or undercharging,and to maximize the battery life.
Product models
| specifications and models | Input Voltage Range | Rated Output Voltage | Max Output voltage | Max Output Current |
|---|---|---|---|---|
| SMCZ2-2445A | AC 180~264V | 24V | 33.0V | 45A |
| SMCZ2-4835A | AC 180~264V | 48V | 66.0V | 35A |
| SMCZ2-6030A | AC 180~264V | 60V | 82.5V | 30A |
| SMCZ2-7225A | AC 180~264V | 72V | 99.0V | 25A |
| SMCZ2-4825C | AC 90~264V | 48V | 66.0V | 25A |
| SMCZ2-6020C | AC 90~264V | 60V | 82.5V | 20A |
| SMCZ2-7218C | AC 90~264V | 72V | 99.0V | 18A |
Technical Parameters
| Item | Parameters |
|---|---|
| Ac Input Wide Voltage，Range | AC 90V~264V |
| AC Input Frequency Range | 40~70Hz |
| With APFC function，Power Factor | ≥ 0.98 |
| Soft Switching Technology，Efficiency | ≥ 93.0% |
| Protection Level | IP67 |
| Operating Temperature | - 40 ℃ ~ + 60 ℃ |
| Storage Temperature | - 55 ℃ ~ + 100 ℃ |
| CAN Communication Function | optional |
| 12V5A Auxiliary Power Supply | optional |
| LED Light Indicator for Charging Process | Standard |
| Noise | ≤45 db |
| Overall Size | 282 ×168× 90 (mm) |
| Net Weight | 3.8kg |
| Input | Frequency | 40-70Hz |
| Stand-by Consumption | ≤ 5W | |
| Main Output | Output Mode | CV / CC |
| Output Power | 2000W@220VAC | |
| CV Accuracy | ±1% | |
| CC Accuracy | ±1% | |
| Ripple Voltage Coefficient | 5% | |
| Low Voltage Output | Output Mode | Constant Voltage |
| Output Voltage | 13.8V | |
| Rated Current | 5A | |
| CV Accuracy | ±2% | |
| Maximum Current | 5.5A±0.5A | |
| Output Power | ≥ 62.5W | |
| Ripple Voltage Coefficient | 1% | |
| Communication Function | CAN Communication | Yes |
| Baud Rate | 125Kbps、250Kbps、500Kbps | |
| Terminal Resistance | N/A |

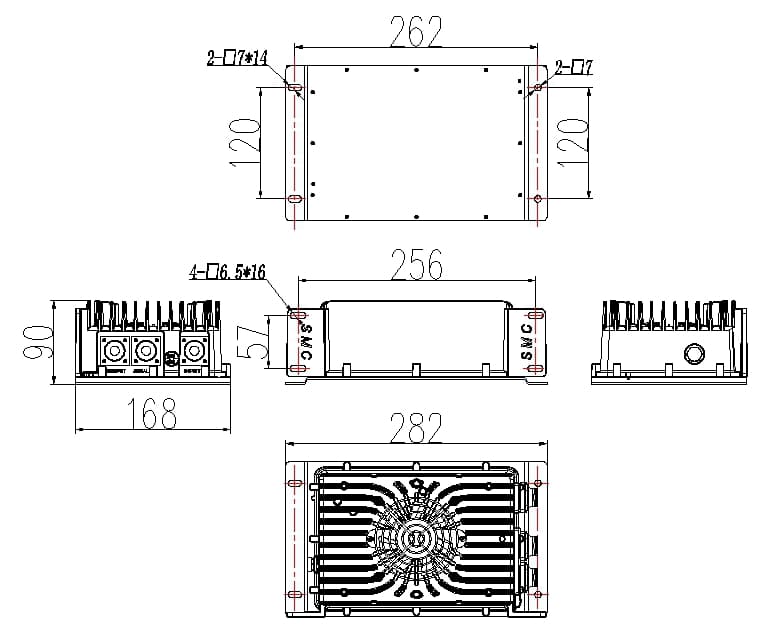

Shape and Installation dimension

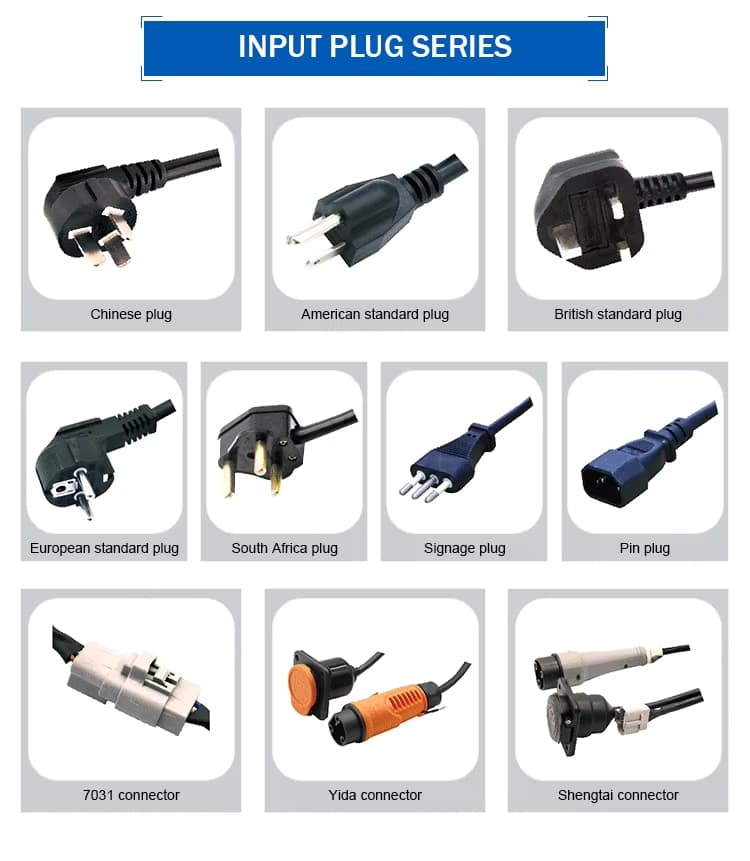

INPUT PLUG SERIES

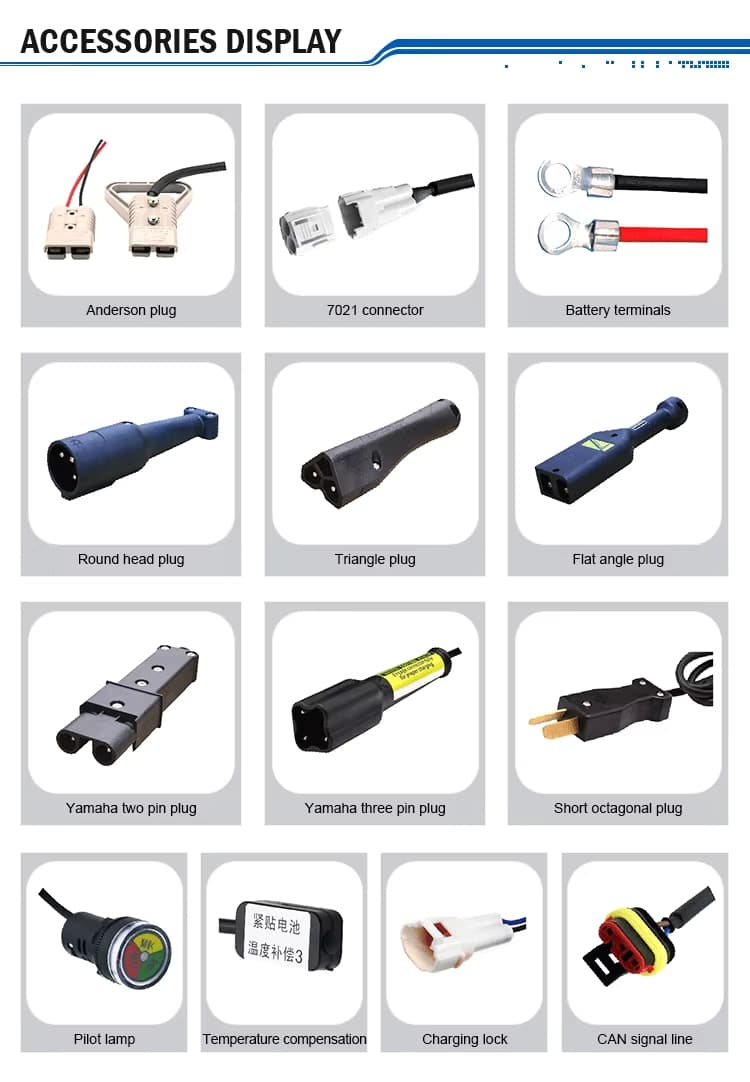

ACCESSORIES DISPLAY
Protection Function
| Overheat Protection | when the internal temperature of the charger exceeds 80 ℃, the charging current will reduce automatically. When it exceeds 85 ℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes to charge. |
| Short Circuit Protection | when the output short circuit, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging. |
| Battery Reverse Connection Protection | when the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger. |
| low-voltage＆Over-voltage Protection | If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again. |
| Full Automatic Shutdown | Automatically shut down after full charge. |
| Output Over-current Protection | Stop the output when exceeds + 1% of the maximum output current |
| C A N communication Protection | Automatically stop the output when CAN communication fails |
Packaging, Transport and Storage
(1) Packing
On the packing box, there are product name, product part number, product brand, product type, production number and name of manufacturer; In packing box, along with the technical documents, it includes packing list, quality certificate, product specification.
(2) Transport
Suitable for cars, boats, aircraft, transportation. The products have to be prevented against sunshine and moisture and in a civilized transportation.
(3) Storage
Product should be stored in the packing box when it is not used and be maintained in a 5 ℃ to 40 ℃ clean, dry and well-ventilated environment. It should not be stored together with chemicals, acid and alkali substances etc,. Should avoid storing in the sun, fire, water and avoid storing with corrosive substances. The storage period is 2 years (from the inventory date of the factory). After the 2 years of storage period, the products should still comply with the provisions of the relevant standards.
