Sinopoly Battery LiFePO4 3.2V 100Ah Prismatic Cell
Product Details:
Place of Origin: China
Brand Name: Sinopoly Battery
Certification: CE
Model Number: SP-LFP-100AHA(A)
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.4mΩ Operating Voltage: 2.5V~3.65V
- Dimension: 221±1*142±1*61±0.5mm Battery Weight: 3Kg±0.1Kg
Product Description
100% brand new, grade-A Sinopoly Battery LiFePO4 3.2V 100Ah Prismatic Cell, have high capacity, high output voltage, good performance of charge and discharge cycling, high stability of output voltage, excellent safety performance (no burning or explosion) and wide range of operating temperature. Indeed, the batteries are environmental friendly and can be charged or discharged at large current.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- ·High current discharge at ultra-low temperature with continuous discharge of 2C at -40℃
- ·Compliant with EU environmental regulations, with Non-PVDF water-soluble binders
- ·Bolt Assembly for Easy Installation.
- ·High continuous discharge rates up to 10C
- ·Ultra-low internal resistance, low self-discharge
- ·Plastic case design has excellent heat dissipation during use
- ·With certificates: ISO9001, ISO13001 and TS14949, and quality certificates: PONY UN38.3, ROHS, CE and UL.
Specification
| Item | Specification | |
|---|---|---|
| Product Model | SP-LFP-100AHA(A) | |
| Nominal Capacity | 100Ah | |
| Nominal Voltage | 3.2V | |
| Weight | 3Kg±0.1Kg | |
| Internal Impedance | ≤0.4mΩ | |
| Cycle Life | ≥3000Cycles @80%DOD | |
| Self-discharge rate | ≤3%/month | |
| Dimension | Height | 221±1mm |
| Width | 142±1mm | |
| Thickness | 61±0.5mm | |
| Charge | Standard Current | 100A |
| Max. Current | 200A | |
| Limited Voltage | 3.65V | |
| End Current | 5A | |
| Discharge | Standard Current | 100A |
| Max. Continuous Current | 300A | |
| Cut-off Voltage | 2.5V | |
| Max. Pulse Current | 400A, 180S | |
| Max. Pulse Current | 500A, 10S | |
| Operation Temperature | Charge | 0℃~45℃ |
| Discharge | -20℃~55℃ | |
| Storage Temperature | -10℃~45℃ | |
| Storage Humidity | 25%~85% | |

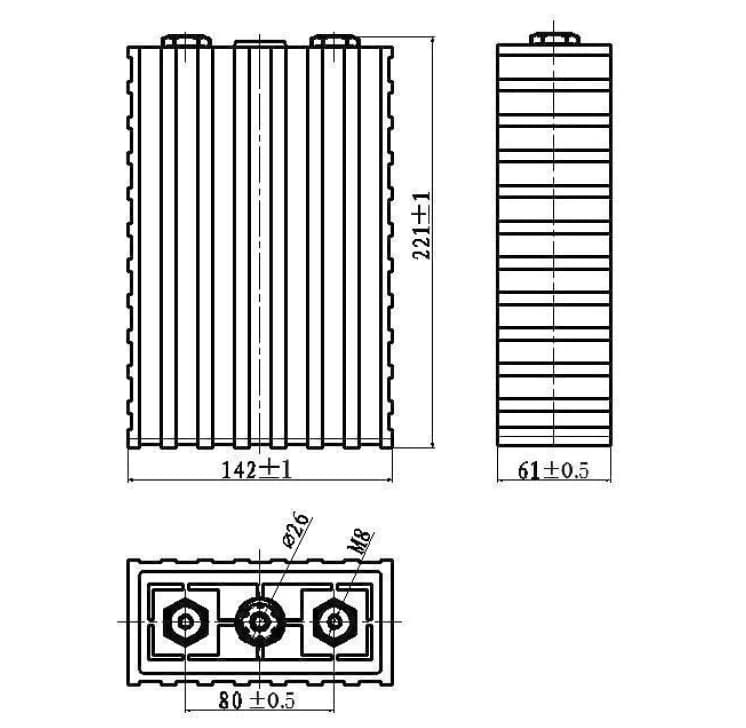

Dimension and Details

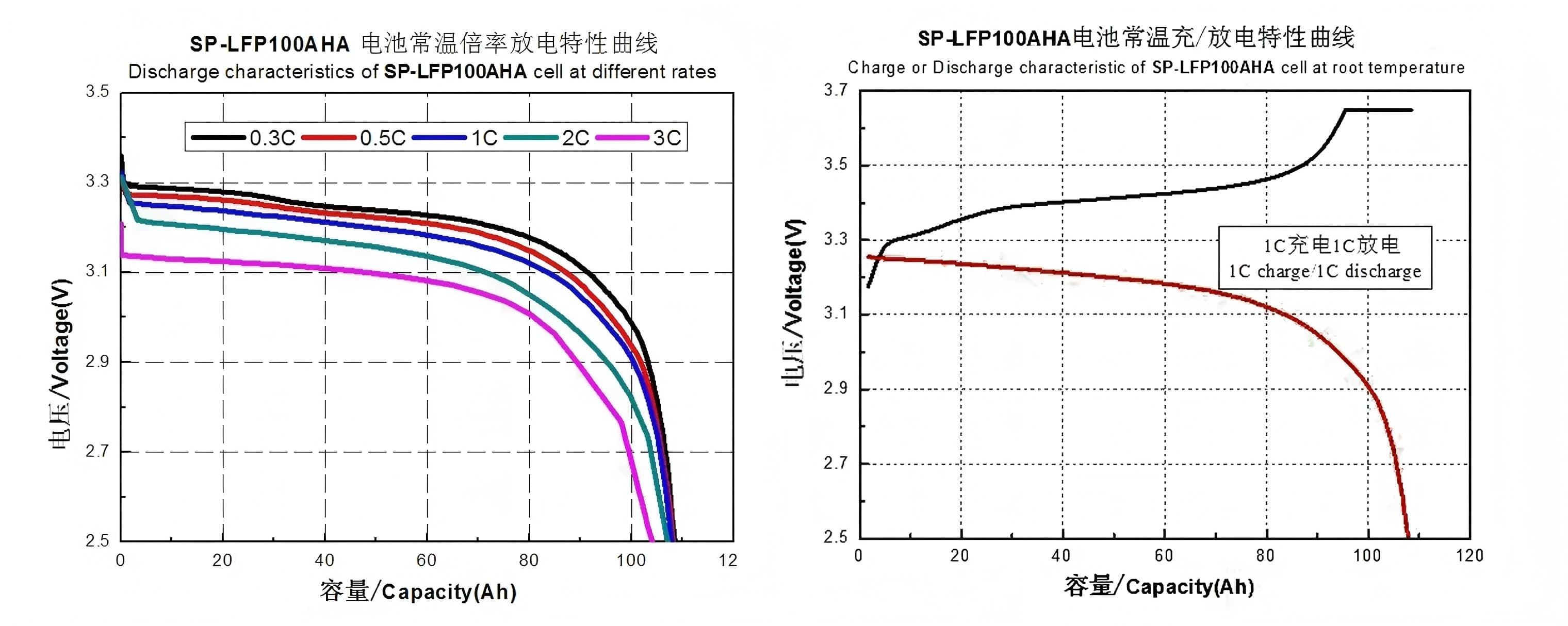

Charge/Discharge Characteristics Of SP-LFP100AHA LiFePO4 cell

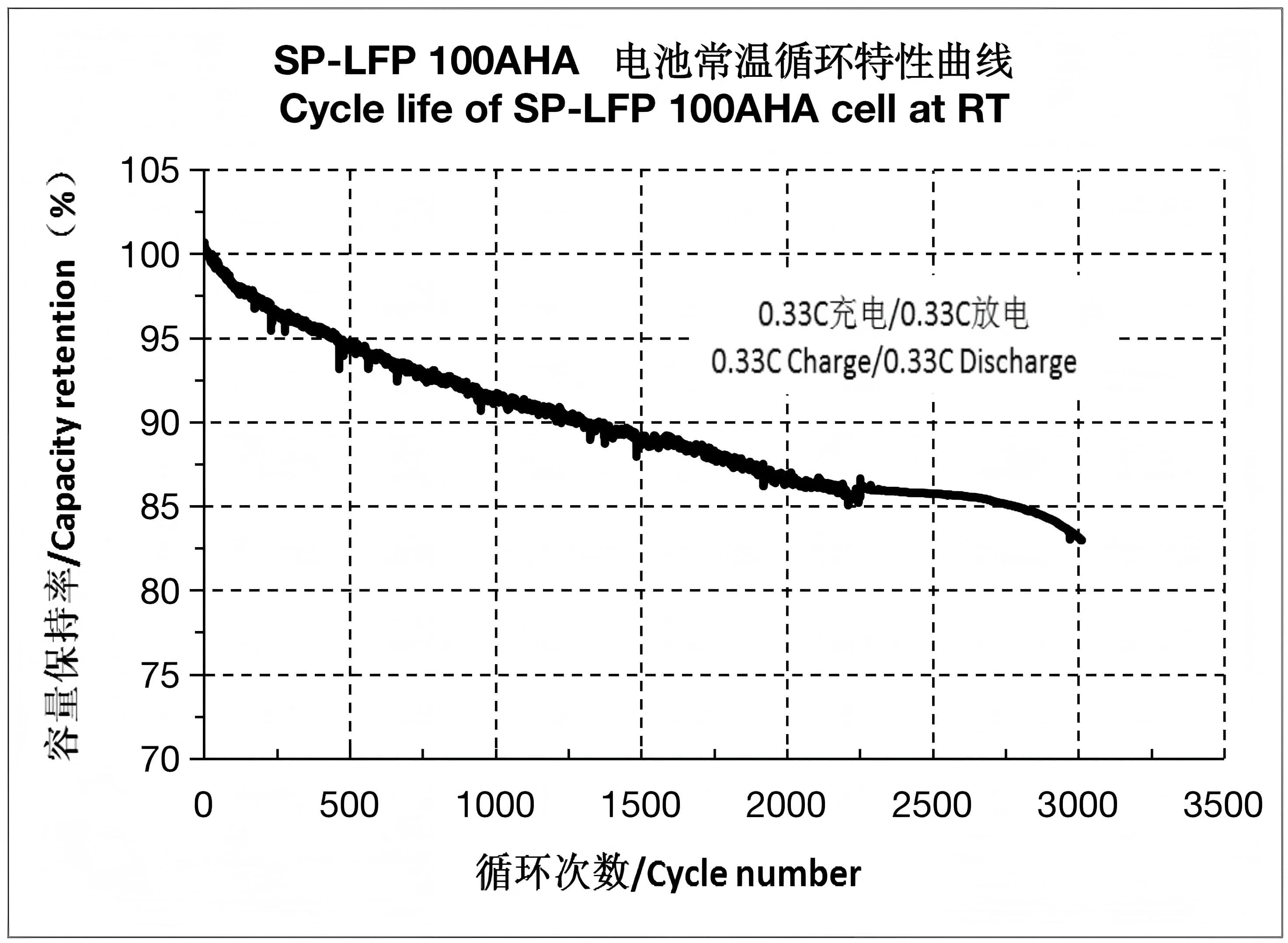

Cycle Life Of SP-LFP100AHA LiFePO4 cell
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
