3.65V 35Ah High C-Rate Semi Solid State Battery Pouch Cell
Product Details:
Place of Origin: China
Brand Name: WELION
Certification: CE
Model Number: SHP320-35
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 35Ah Nominal Voltage: 3.65V
- Internal Impedence: 1.0±0.4mΩ Operating Voltage: 2.75V~4.2V
- Dimension: / Battery Weight: 410±15g
Product Description
SHP320 series battery pouch cells with NMC+ chemistry offer industry-leading energy density, high C-rates, and extended lifespan, while their robustness ensures safety and performance in a range of applications. With energy density over 300 Wh/kg and 600 Wh/l, they are perfect for designs prioritizing volume, weight, and handling. They deliver extraordinary power output with a discharge rate of 7C and pulses up to 10C, ideal for high-performance motorcycles and LEVs. Despite their compact performance, they retain 80% capacity after 800 cycles at 97% depth of discharge - that's about 50,000 km on an E-bike or 100,000 km on a motorcycle. SHP320 cells are pass rigorous overcharge, short circuit, overtemperature and crush tests, ensuring reliable operation under demanding conditions.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Items | Criteria | |
|---|---|---|
| Nominal capacity | 35Ah(0.33C) | |
| Nominal voltage | 3.65V | |
| Charge cut-off voltage | 4.2V | |
| Discharge cut-off voltage | 2.75V | |
| Charge method | Ultrafast | Maximum charging current 2C(Cell state between 0%SOC- 60%SOC) |
| Fast | 1C(35A)constant current (CC)charge to 4.2V,then constant voltage(CV)charge till charge current decline to≤0.05C (1.75A) | |
| Standard | 0.33C(11.55A)constant current(CC)charge to 4.2V,then constant voltage(CV)charge till charge current decline to≤ 0.05C(1.75A) | |
| Discharge method | High-rate discharge | 5C(175A,60S) |
| Rate discharge | 3C(105A) | |
| Standard | 0.33C(11.55A) | |
| Cycle life(with jig) | Capacity retention≥80% | ≥800 cycles(25℃±2℃,0.5C/3C,97%DOD) |
| Operating temperature | Charge:0℃~45℃ |
|
| Discharge:-20℃~55℃ | ||
| Protection temperature | Charge:0℃~55℃ |
|
| Discharge:-20℃~60℃ | ||
| Storage temperature | Short-term(one month):-20℃~45℃ | |
| Long-term(six months):-10℃~35℃ | ||
| Storage humidity | ≤85%RH | |
| AC impedance | 1.0±0.4mΩ | |
| Weight | 410±15g | |

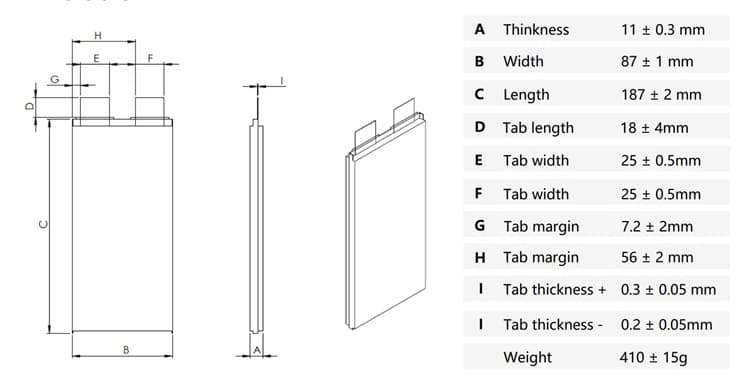

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
