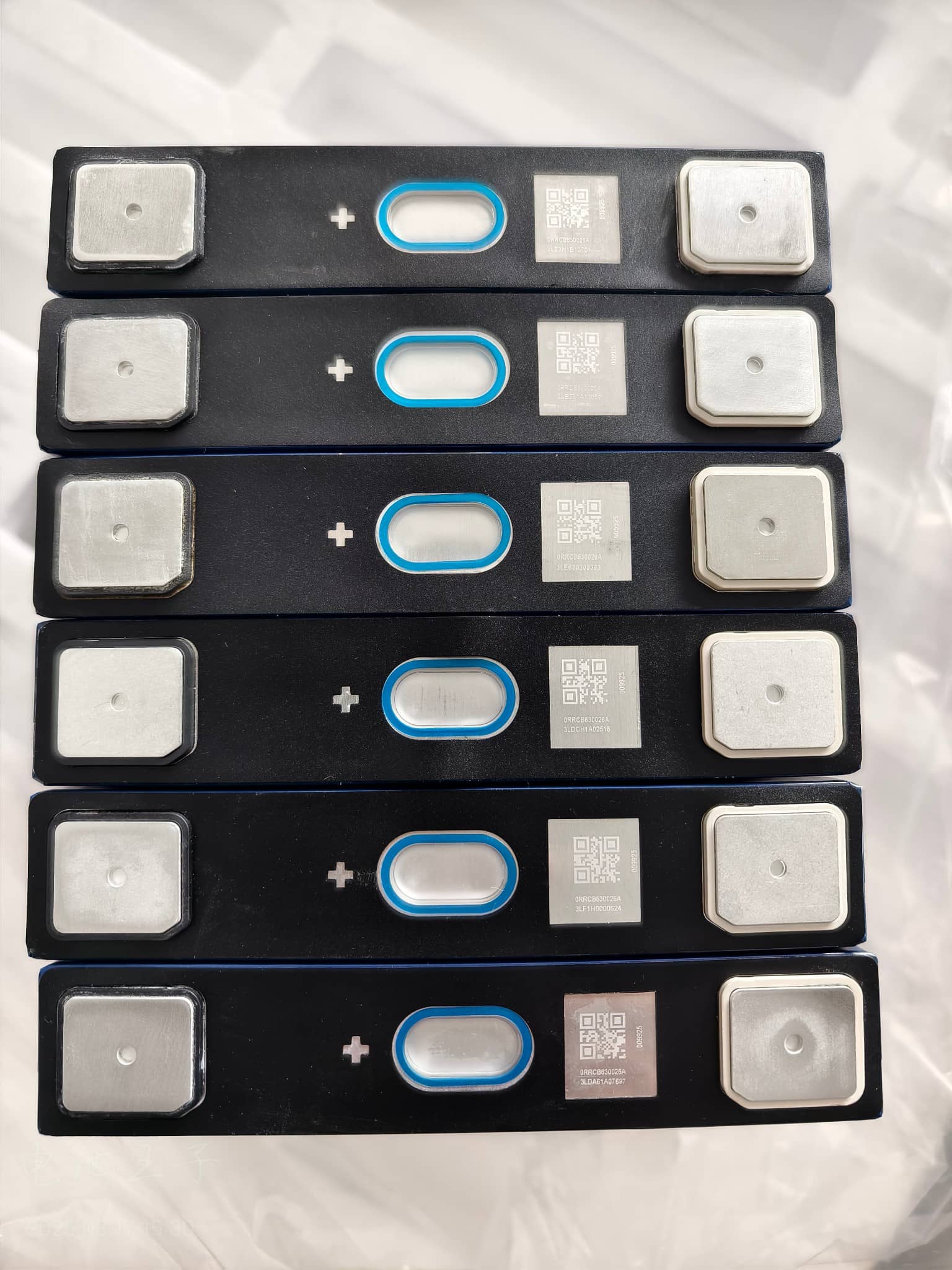

REPT Battery High Rate 3.2V 54Ah LiFePO4 Cell
Product Details:
Place of Origin: China
Brand Name: REPT
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 54Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.50 mΩ Operating Voltage: 2.5-3.65 V
- Dimension: 148.66*29.72*114.61mm Battery Weight: 1.082± 0.03kg
Product Description
The REPT Battery 3.2V 54Ah LiFePO4 Cell is the most widely used product in the REPT PHEV series platform applications. Its core competitive advantages are "high safety, long lifespan, and strong adaptability," making it suitable for a wide range of applications, including ultra-low temperatures of -35°C and low SOC power output.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- High Safety:
Rigorous-tested;no fire/explosion,precise temp control. - Long Lifespan:
Stable output at-35℃ ultra-lowtemp &low SOC. - Wide Compatibility:
Top PHEV platform product;zero-defect delivery.
Specification
| Item | Specification | Comment |
|---|---|---|
| Typical Capacity | 54Ah | 25 ± 2℃，1.0C |
| Typical Voltage | 3.2V | 25 ± 2℃ |
| Operating Voltage | 2.5-3.65 V | 0℃＜T≤55℃ |
| 2.0-3.65 V | -20℃≤T≤0℃ | |
| Standard Discharging Current |
54A | 25±2℃ |
| Maximum Continuous Discharging Current |
216A | 25±2℃ |
| Maximum Discharging Current |
324 A | @10s，SOC≥50%，25±2℃ |
| Operating Temperature | -10＜T≤55℃ | Charge |
| -20℃≤T＜55℃ | Discharge | |
| Typical Dimension(W*T*H) | 148.66*29.72*114.61mm | @3000 ± 200 N，17%SOC |
| Cell Weight | 1.082± 0.03kg | |
| Energy Density | 158Wh/kg | 1.0C |
| 344Wh/L | ||
| ACR （1 kHz） | ≤0.50 mΩ | ~ 17% SOC |
| Standard Charging Method (CC&CV) |
In an ambient temperature of 25±5℃, the battery is charged with a constant current of 1/3I1(A) until 3.65V. Then it is charged at a constant voltage of 3.65V until the current is less than 0.05I1(A), and rest for one hour. |

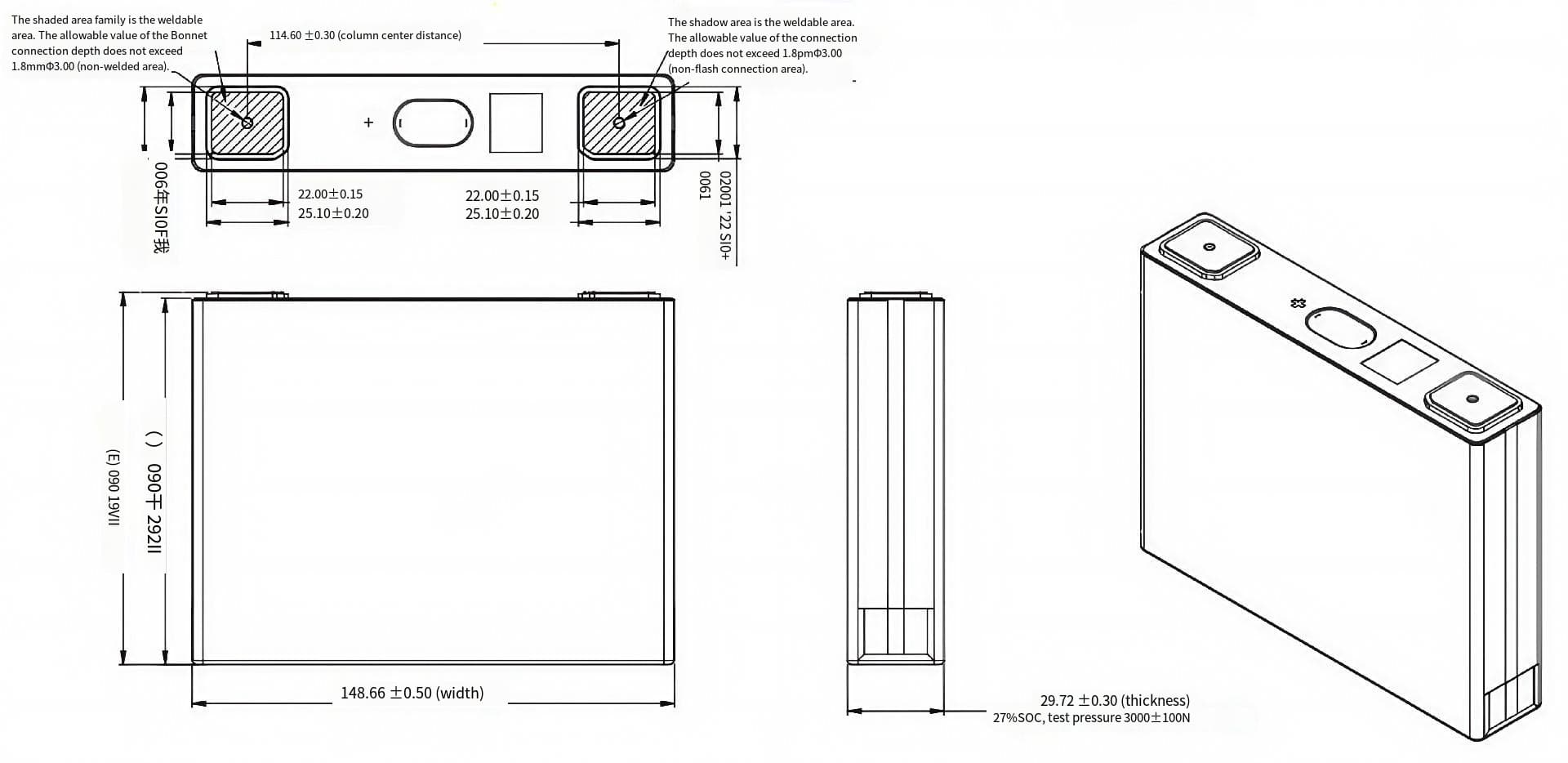

Dimension and Details
Certification
- · Report from the Electric Power Research Institute & Non-Electrical Research Institute + CGC certification
- · International EU certification
- · American UL certification (UL1973&UL1642)
- · UL9540A report
- · German Rhine ISO26262
- · Korea KC certification
- · India BIS certification
- · International transport appraisal
- · Functional safety management system certification (BMS), etc.
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
