REPT Battery 3.2V 65Ah high rate power LiFePO4 Cell for EV PHEV
Product Details:
Place of Origin: China
Brand Name: REPT
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 65Ah Nominal Voltage: 3.17V
- Internal Impedence: ≤0.70mΩ Operating Voltage: 2.0V~3.65V
- Dimension: 34*182*92(mm) Battery Weight: 1253±13g
Product Description
We introduced multiple hybrid battery models to meet customer demands for driving ranges of 100 km, 150 km, and 200–300 km. We completed upgrades to enable fast charging for our hybrid battery cells. The life cycle and power performance of our hybrid batteries have been further improved to meet warranty requirements across various operating conditions and different markets worldwide.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- Energy Density: 170Wh/kg
- Fast Charging (10%~80%): 1.2C
- High continuous discharge rate: 2C
- Excellent low-temperature performance: ≥70% * Nominal capacity@ -20℃
- Long cycle life: ≥5500 cycles@70%DOD
Specification
| Item | Specification | Comment |
|---|---|---|
| Typical Capacity | 65Ah@1.0C 66Ah@0.33C |
25±2℃ |
| Typical Voltage | 3.17V@1.0C 3.22V@0.33C |
25±2℃ |
| Operating Voltage | 2.0V~3.65V 1.8V~3.65V |
-5℃＜T≤60℃ -30℃≤T≤-5℃ |
| Standard Discharging Current | 65A | 25±2℃ |
| Maximum Continuous Discharging Current | 130A | 25±2℃ |
| Maximum Discharging Power | 1180W | @10s，50%SOC |
| Standard Charging Current | 21.7A | 25±2℃ |
| Maximum Continuous Charging Current | 87.8A | 25±2℃ |
| Maximum Charging Power | 385W | @10s，97%SOC |
| Operating Temperature | -20℃＜T≤55℃ -30℃≤T≤60℃ |
Charge Discharge |
| Storage Temperature | -30℃~60℃ | Storage ambient humidity ＜95%ROH, no condensation |
| Typical Dimension | Thickness: 34.40-0.2/+0.3mm Width: 183.50±0.5mm Shoulder Height: 92.00±0.6mm Total Height: 94.15±0.6mm |
@3000±150N，25%SOC |
| Cathode Material | LiFePO4 | |
| Cell Weight | 1253±13g | |
| Energy Density | 170Wh/kg 366Wh/L |
@1/3C，25±2℃ @1/3C，25±2℃ |
| Cell Internal Resistance ACR （1 kHz） |
≤0.70mΩ | 20%-50%SOC |

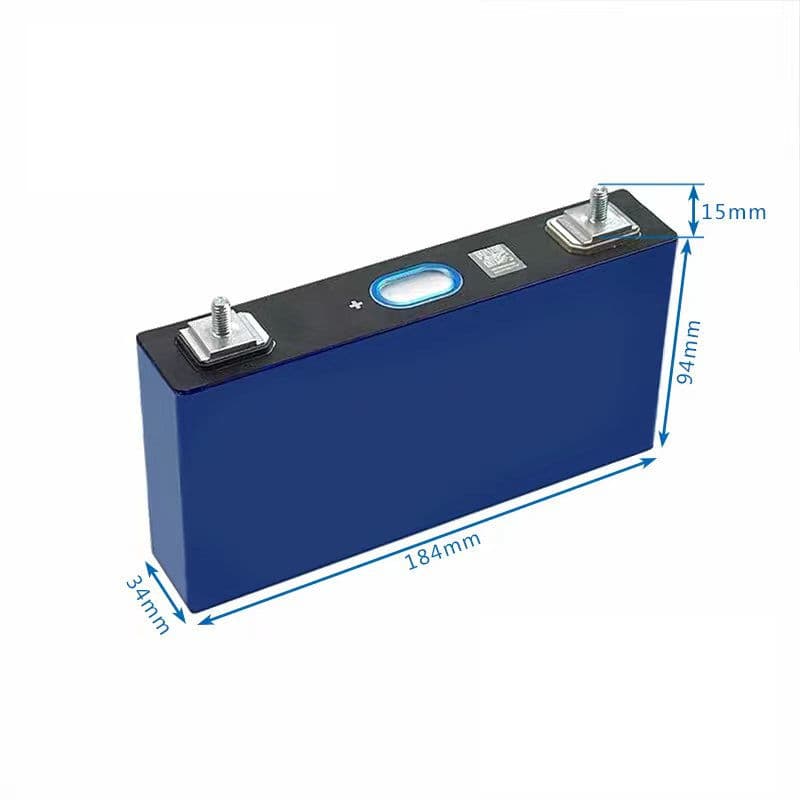

Dimension and Details
ULTRA LONG LIFE CYCLE
Long life cycle, long cycle, long calendar life warranty period, low internal resistance, high discharge rate
Applications
Provide core technologies and professional solutions for consumer power, energy storage, logistics networks, and renewable energy applications
Certification
- · Report from the Electric Power Research Institute & Non-Electrical Research Institute + CGC certification
- · International EU certification
- · American UL certification (UL1973&UL1642)
- · UL9540A report
- · German Rhine ISO26262
- · Korea KC certification
- · India BIS certification
- · International transport appraisal
- · Functional safety management system certification (BMS), etc.
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
