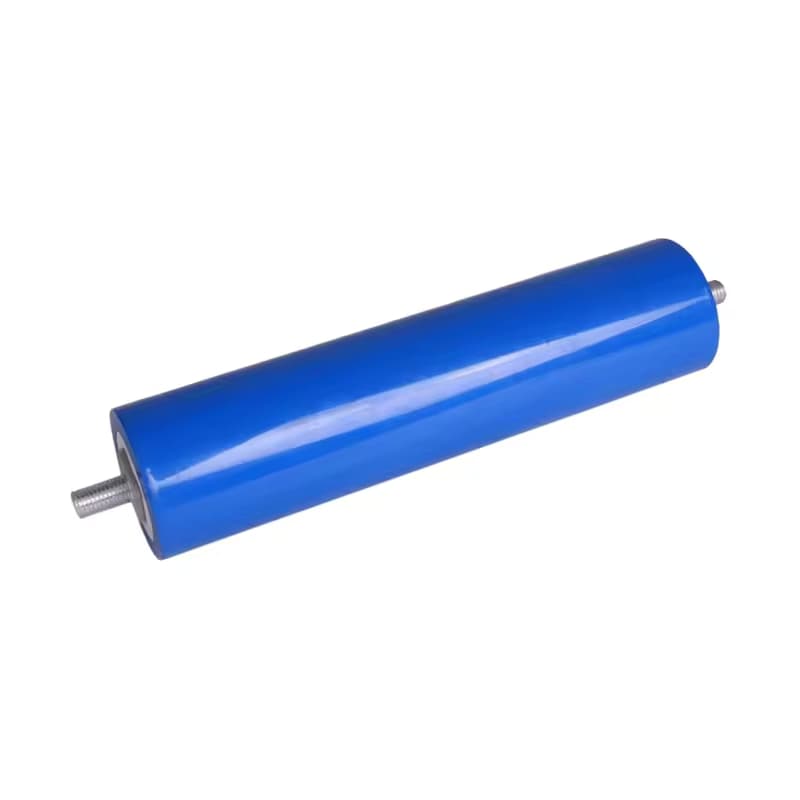

YinLong 55Ah 2.3V LTO Cells

Product Details:

Place of Origin: China

Brand Name: Yinlong

Certification: CE

Model Number: /

Payment & Shipping Terms:

Retail Price: /

Wholesale Price: Negotiable

Packaging Details: cartons or plywoods

Payment Terms: T/T

  • Nominal Capacity: 55Ah Nominal Voltage: 2.3 V
  • Internal Impedence: ≤1mΩ Operating Voltage: 1.5V~2.8V
  • Dimension: 66 * 260 mm Battery Weight: 1.9kg

Product Description

100% brand new, grade-A YinLong 55Ah 2.3V LTO Cells features high safety, fast charging, a wide temperature range, and a long lifespan. It is suitable for truck power batteries, new energy vehicle (NEV) power batteries, and construction machinery power batteries. Additionally, it is ideal for automotive emergency start batteries, two- and three-wheeler power batteries, and mobile energy storage vehicle batteries.

Beyond vehicle applications, this battery technology is widely used in grid frequency regulation, telecommunication base stations, industrial peak shaving, smart charging, and data centers. It also plays a key role in renewable energy integration, such as wind and solar power storage, as well as in rail transit, commercial complexes, home energy storage, and shore power for ships.

Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories.  Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.

Product Features

  • Fast Charging:Experience the rapid charging capabilities with our cutting-edge LTO batteries and high-power charging stations. A single cell achieves full recharge in an astonishingly brief 6 minutes, enabling electric vehicles to charge swiftly, completing the process well under 20 minutes.
  • Wide Temperature Ranges:Yinlong lithium-titanate-oxide batteries boast an expansive operating temperature range from -40°C to +60°C. Excelling in both extreme cold and hot conditions, these batteries operate optimally without the necessity for any supplementary equipment to sustain their functionality.
  • Long LTO Battery Life-Span:Our LTO batteries feature cutting-edge "Zero-Strain-Material," meticulously crafted for an impressive lifespan of 30,000 full depth-of-discharge cycles. This durability exceeds competing lithium-ion technologies by up to six times, ensuring a remarkable lifespan of up to 30 years
  • High Charge/Discharge Capability:In contrast to carbon materials, LTO batteries have superior lithium ion diffusion coefficient, facilitating high-intensity charging and discharging rates. This capability not only ensures rapid charging but also enables the batteries to deliver high-power outputs tailored to meet specific demands.
  • Designed With Safety-First:Our LTO cells, lacking a Solid Electrolyte Interphase (SEI) layer, has exceptional safety and resilience and can withstand cutting or puncturing.

Specification

Item Parameter
Battery Type Lithium Titanate Battery
Nominal Capacity 55Ah
Nominal Voltage 2.3 V
Internal Resistance ≤1mΩ
Charging(CC-CV) Maximum Charging Current 10C
Charging Upper Limit Voltage 2.8V
Discharging Maximum Discharging Current 10C
Discharging Cut-off Voltage 1.5V
Charging Time Standard Charging 0.5h
Quick-acting Charging 0.2h
Operation Thermal Ambient Charging -50°C ~ 65°C
Discharging -50°C ~ 65°C
Storage Thermal Ambient Short-term (within 1 month) -20°C ~ 45°C
Long term  (within 1 year) -20°C ~ 20°C
Storage Humidity < 70%
Battery Weight 1.9kg
Battery Dimension 66 x 260 mm
Cycle Life 30,000 times

Note

1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.

2.We will test all battery voltage, internal resistance and capacity before delivery.

3.100% Eco-friendly, will not cause pollution pressure to the environment
