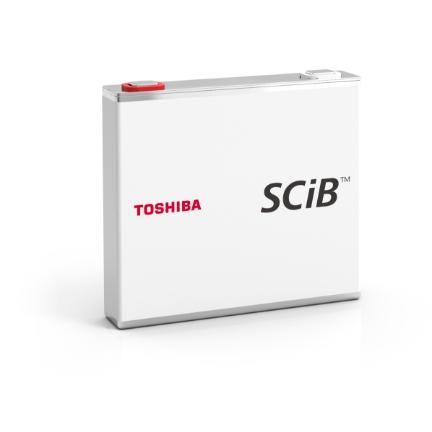

2.3V 23Ah LTO Toshiba SCiB Battery

2.3V 23Ah LTO Toshiba SCiB Battery uses lithium titanium oxide (LTO) in its anode to achieve excellent characteristics, including safety, long life, low-temperature performance, rapid charging, high input/output power and wide usable SOC range. 2.3V 23Ah LTO Toshiba SCiB Battery has been widely used for vehicle, industrial and infrastructure applications, including automobiles, buses, railroad cars, elevators and power plants.

Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories.  Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.

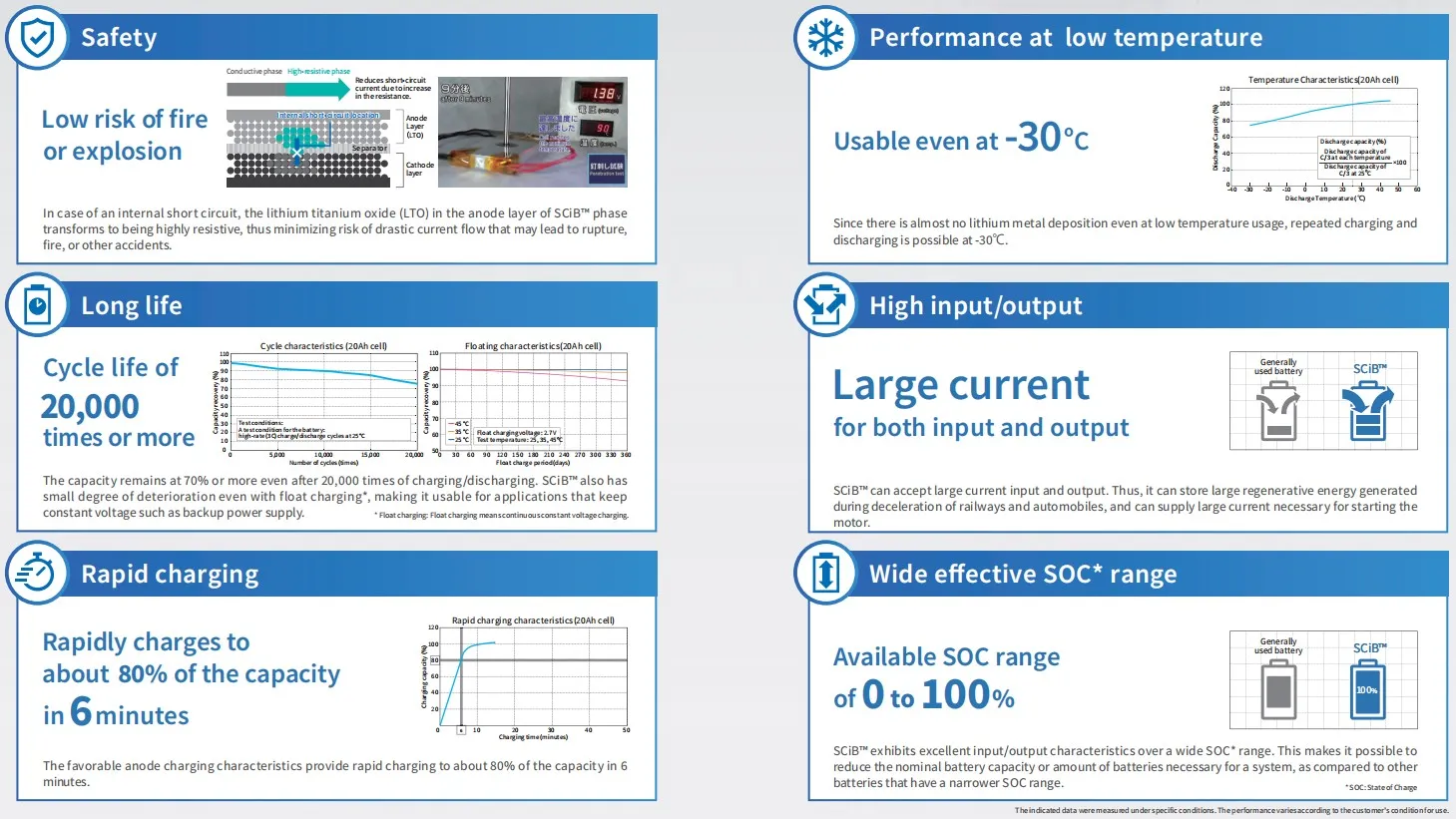

Product Features

• Long Life Cycle Characteristics – Exceptional long life is achieved by using new oxide-based materials. Capacity loss after 10,000 charge-discharge cycles is less than 20%.
• Inherently Safe – The battery’s advanced safety features include Toshiba’s proprietary lithiumtitanate technology which prevents thermal runaway.
• Fast Charge Rates – It takes only 6 minutes to charge from SOC 0% to 80%, SCiB batteries increase customer up-time and productivity and enable efficient capture of regen energy.
• High Output Performance – SCiB batteries offer a power density nearly equivalent to that of ultra-capacitors. This ensures sufficient power output (160 A continuous) for high power application needs.
• Superb Temperature Performance – SCiB provides sufficient discharge capacity at various temperatures ranging from ice-cold −30°C up to 55°C. This makes SCiB suitable for applications in wide ranging temperatures.
• Production – Producing the batteries on a state-of-the-art automated high volume production line ensures that the customer receives the highest quality battery and stable supply to meet the most demanding application needs

Specification

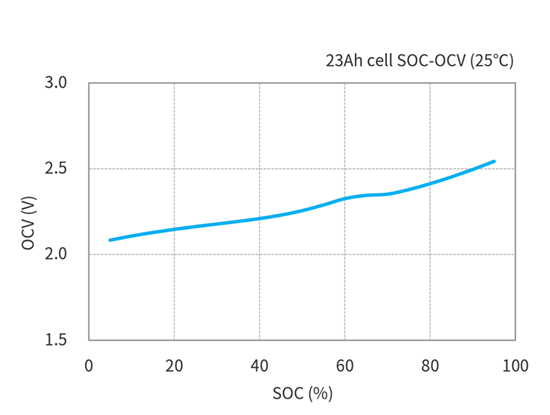

SOC-OCV characteristics

Under the condition temperature 25℃, the performance is:

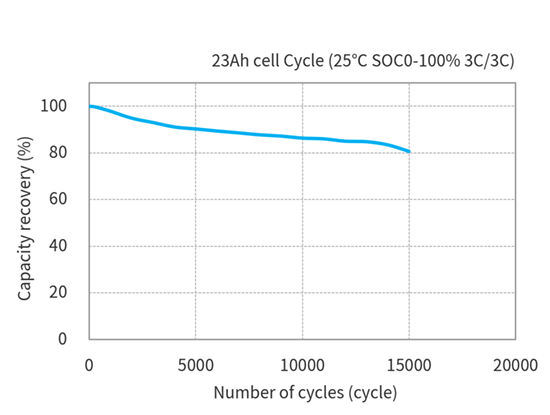

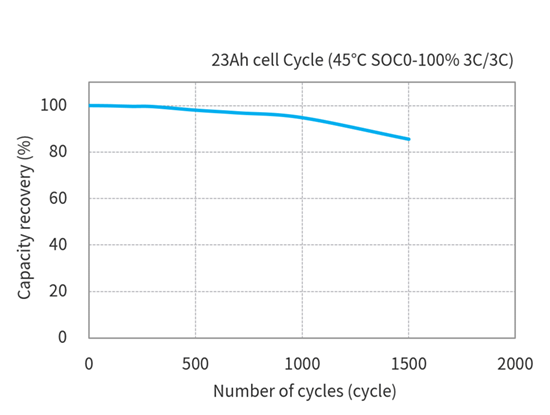

Cycle characteristics

Under the condition temperature 25℃ × SOC0-100% 3C/3C & condition temperature 45℃ × SOC0-100% 3C/3C, the performance is:

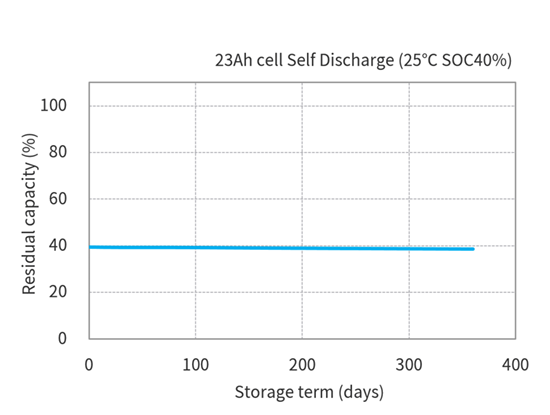

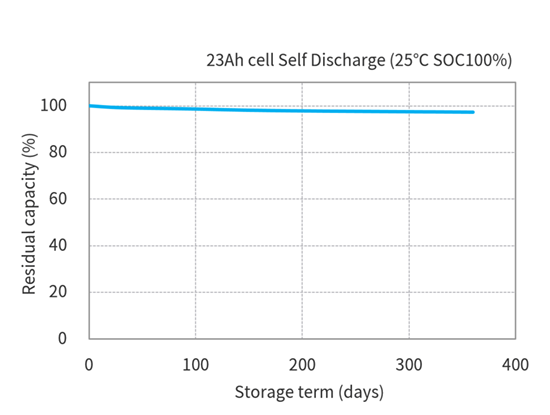

Self Discharge characteristics

Under the condition temperature 25℃ × SOC40% & condition temperature 25℃ × SOC100%, the performance is:

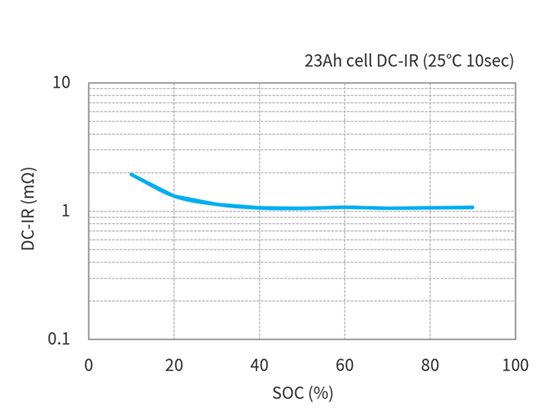

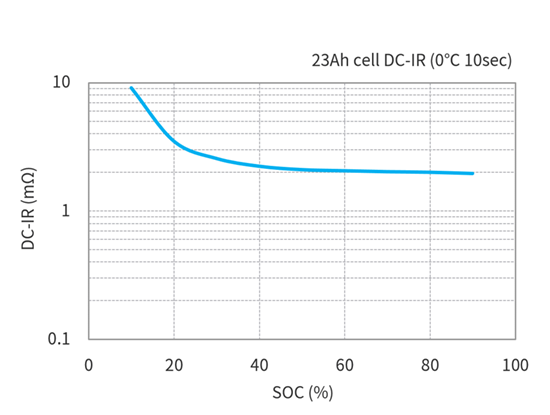

DC-IR characteristics

Under the condition temperature 0℃ & condition temperature 25℃, the performance is:

Recommended applications

Electric Bus, Electric Ferry, RailWay, AGV・AMR, UPS, Power System.

Note

1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.

2.We will test all battery voltage, internal resistance and capacity before delivery.

3.100% Eco-friendly, will not cause pollution pressure to the environment
