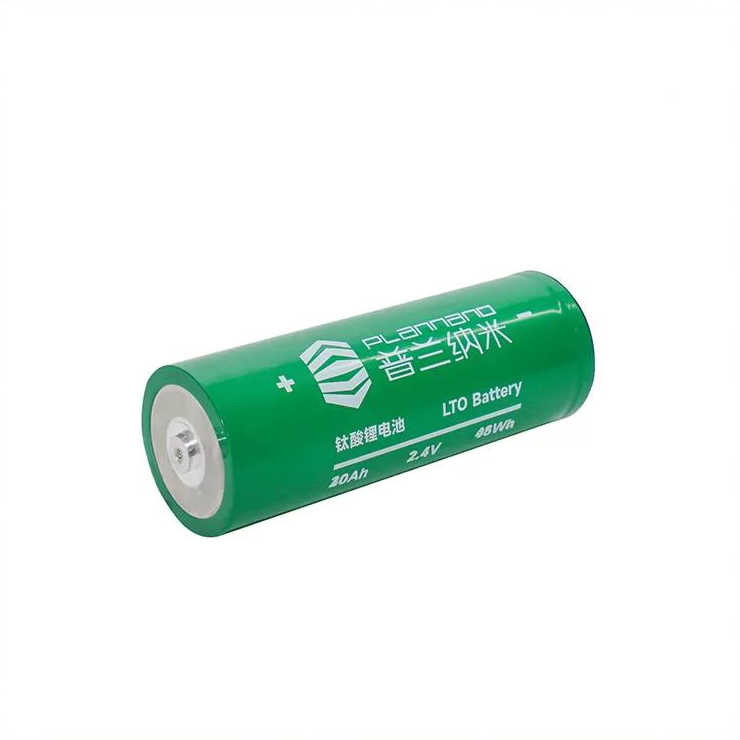

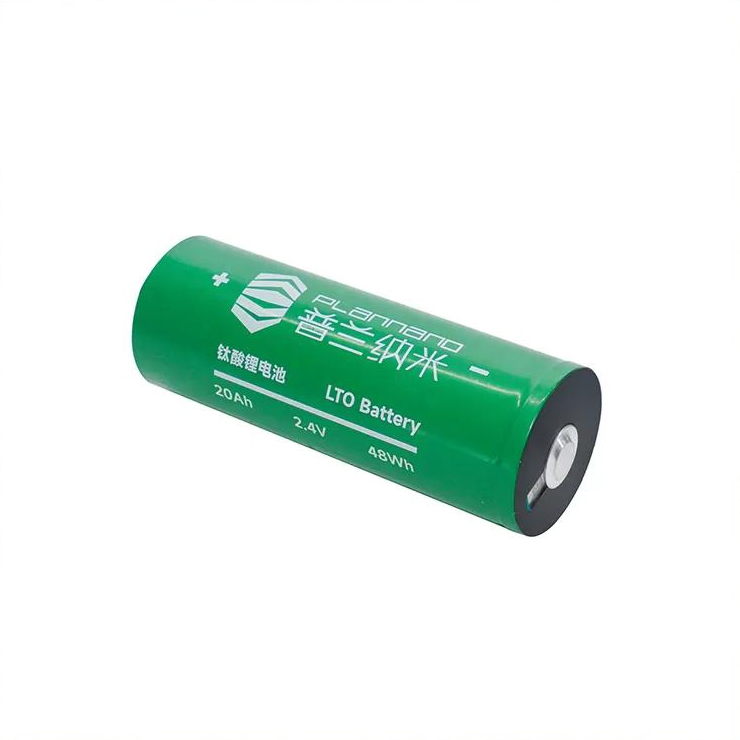

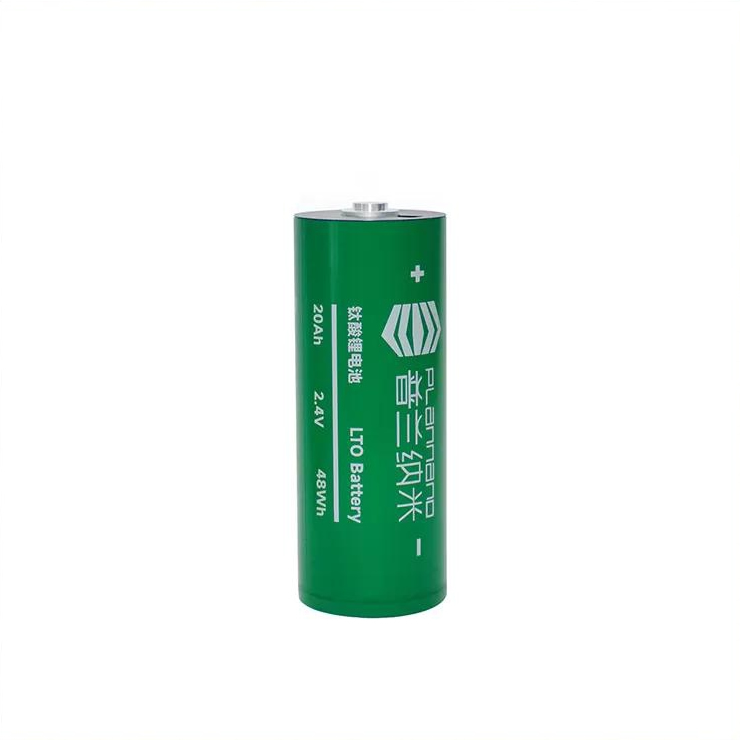

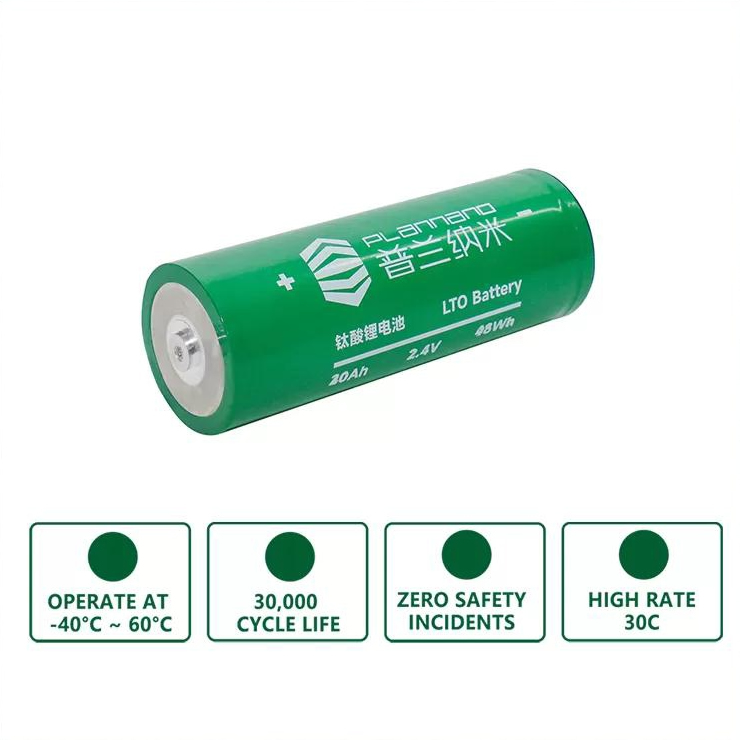

2.4V 20Ah 60100 LTO Cells
Product Details:
Place of Origin: China
Brand Name: Plannano
Certification: CE
Model Number: PLITR60100CWLA-20Ah-2.4V
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 20Ah Nominal Voltage: 2.4V
- Internal Impedence: ≤0.5mΩ Operating Voltage: 1.5v～2.8v
- Dimension: φ60*100 Battery Weight: ≤650g
Product Description
The lithium titanate battery features high safety, high power characteristics, and excellent wide operating temperature range with maintenance-free properties. It meets the energy storage requirements of various scenarios. With a long cycle life of over 20,000 cycles, it offers lasting economic value.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- High Security
No lithium precipitation, good thermal stability, realize intrinsic safety; - Long Life
More than 20 years of service life 30000 Cycle - High Rate
6 minutes to fully charge, 6 minutes to empty; - Wide Temperature Resistance
Can be charged and discharged repeatedly at -50~65℃;
Specification
| Items | PLITR60100CWLA-20Ah-2.4V |
|---|---|
| Weight | ≤650g |
| Nominal Capacity | 20Ah@1C1A(20A) |
| Nominal Voltage | 2.4V |
| Nominal Energy | 48Wh |
| Energy Density | 73.8Wh/kg |
| Resistance | ≤0.5mΩ(AC, 1000Hz)) |
| Charging cut-off voltage | 2.8v |
| Discharging cut-off voltage | 1.5v |
| Standard charging current | 1C1A(20A) |
| Standard discharging current | 1C1A(20A) |
| Max. Constant Charging Current | 4C1A(80A) |
| Max. Constant Discharging Current | 8C1A(160A) |
| Max. Charging Current | 12C1A(240A) |
| Max. Discharging Current | 20C1A(400A) |
| Operating Temperature | -45°C ~ +60°C |

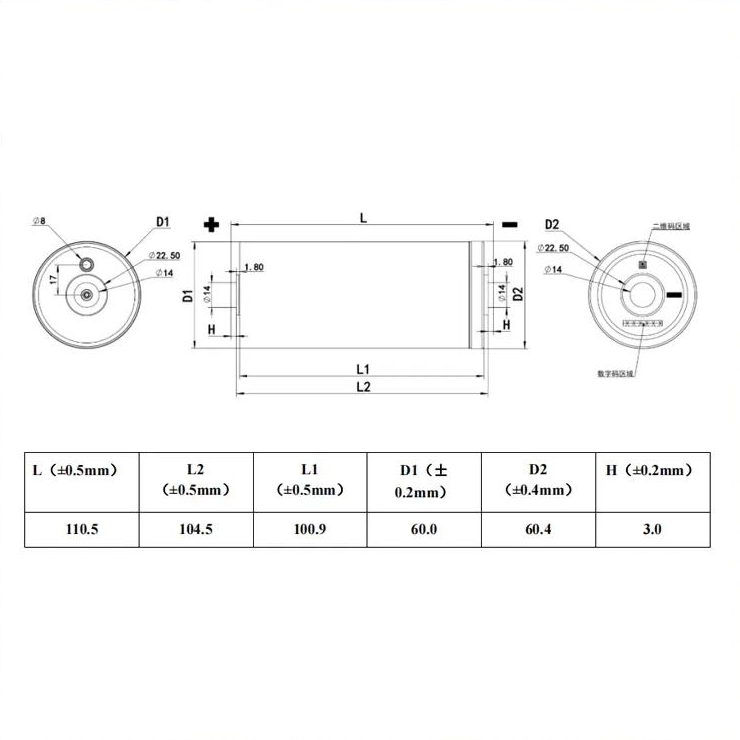

Dimension and Details
High Security

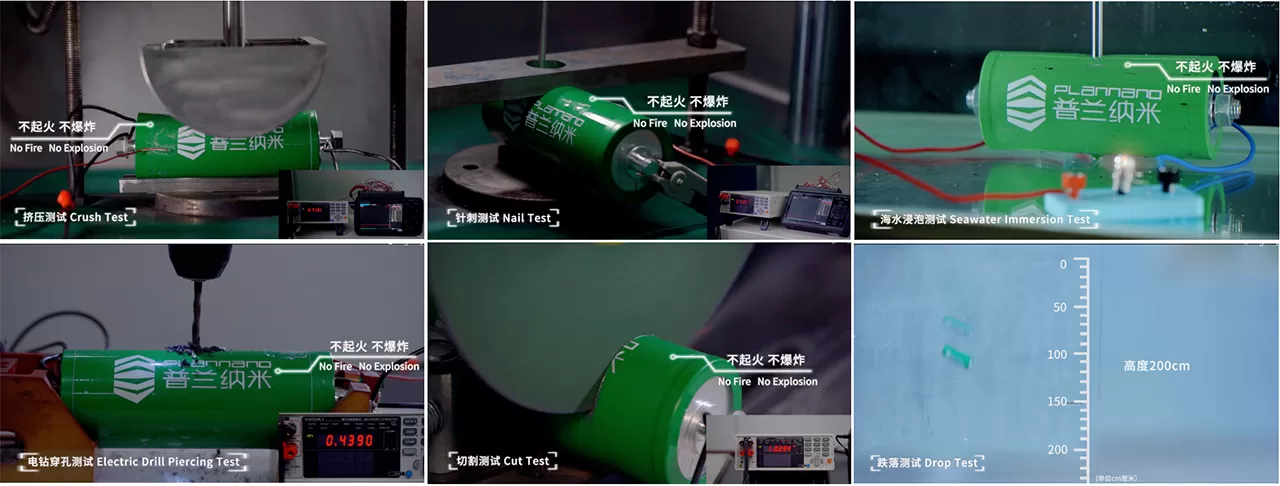

Results show that:The LTO titanium batteries don’t occur fire or explosion after penetration,electric drill,cutting and other tests.
(Remark:This is a professional test.Never imitate !)
Certification
CE IEC62619, UL, MSDS UN38.3
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
