2.4V 2.9Ah toshiba lto batteries 10C charge/discharge rate
Product Details:
Place of Origin: Japan
Brand Name: Toshiba SCiB
Certification: CE
Model Number: MP146396PA
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 2.9Ah Nominal Voltage: 2.4V
- Internal Impedence: / Operating Voltage: 1.8 V~2.8 V
- Dimension: 13.5 × 62.5 × 96.5 mm Battery Weight: 150 ± 5 g
Product Description
The compact high power 2.4V 2.9Ah toshiba lto batteries cell is well suited for applications that require short-time high power charge/discharge, and for applications that require small battery size and light weight.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- Long life (cycle characteristics)
The 2.9Ah SCiB™ cell maintains over 80% of its initial capacity after 40,000 charge/discharge cycles at a tough charge/discharge rate (10C) and high temperature (35°C) conditions. - Rapid charging
The 2.9Ah SCiB™ cell can be charged from 0 to over 80% SOC* in one minute.
* State of Charge - High-rate discharge
The 2.9Ah SCiB™ cell provides stable discharge capacity even in large discharge current. - Low-temperature operation
The 10Ah SCiB™ cell can be charged and discharged at temperatures below the freezing point.
There is little degradation even if charge and discharge operation is repeated under low temperature condition, making it suitable for use in a wide range of temperature.
Specification
| Item | Parameter |
|---|---|
| Model | MP146396PA |
| Type | SCiB™ lithium-ion rechargeable cell (LTO) |
| Rated capacity | 2.9 Ah |
| Average operating voltage | 2.4 V |
| Maximum charging voltage | 2.8 V |
| Discharge cut-off voltage | 1.8 V |
| Maximum continuous current | 29 A (charge or discharge) |
| Maximum pulse current | 200 A (within 10 seconds, charge or discharge) |
| Casing | Aluminum alloy metal can |
| Terminals | Aluminum alloy, electrically isolated from casing |
| Dimensions (Thickness × Width × Height) | 13.5 × 62.5 × 96.5 mm |
| Weight | 150 ± 5 g |
| Operating temperature | −30 to 60°C |
| Recommended operating temperature | −10 to 35°C |
| Storage temperature | −40 to 60°C |
| Recommended storage temperature | −10 to 35°C |
| Maximum terminal temperature | 90°C |
| Operating/storage humidity | 25–85% RH (avoid condensation) |

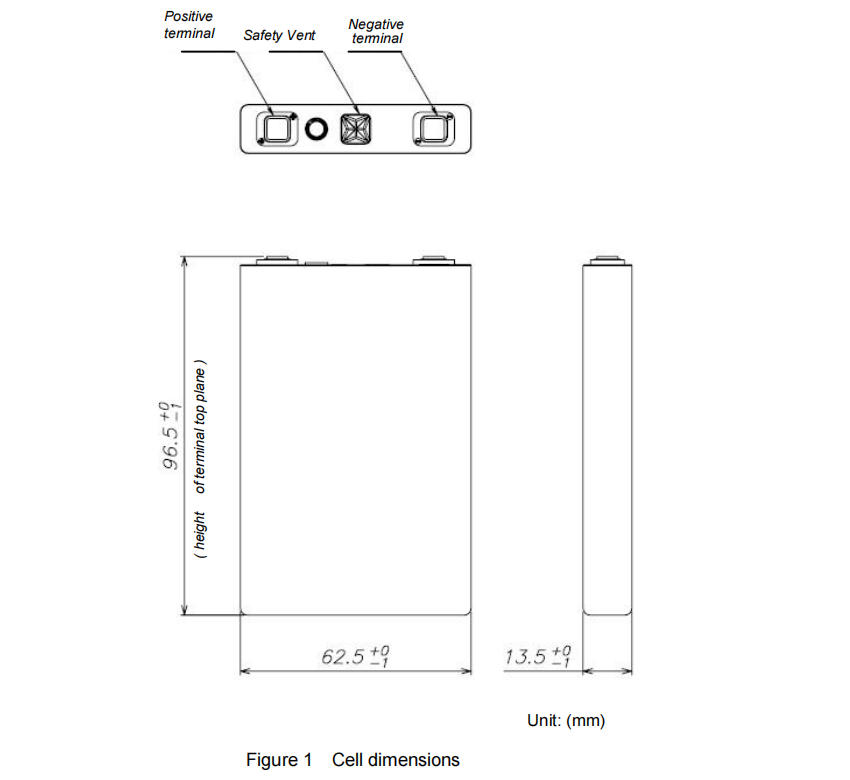

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
