SVOLT Battery 3.2V 106Ah LiFePO4 Battery Cell
Product Details:
Place of Origin: China
Brand Name: SVOLT
Certification: CE
Model Number: CV04
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: ≥106Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.30±0.05mΩ Operating Voltage: 2.0 ~ 3.65 V
- Dimension: 117.2(L)*52.3(T)*147.3(W)mm Battery Weight: 1935±30 g
Product Description
100% brand new, grade-A SVOLT Battery 3.2V 106Ah LiFePO4 Battery Cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Item | Specification | Condition |
|---|---|---|
| Nominal Capacity | ≥106Ah ≥104Ah |
25℃, 106A(1C) DC to 2.0V 25℃, 34.7A(1/3C) DC to 2.0V |
| Energy | ≥341.3Wh ≥332.8Wh |
25℃, 106 A(1C) DC to 2.0V 25℃, 34.7 A(1/3C) DC to 2.0V |
| Specific Energy | ≥176.8Wh/Kg ≥172.4Wh/Kg |
25℃, 106 A(1C) DC to 2.0V 25℃, 34.7 A(1/3C) DC to 2.0V |
| Operating voltage | 2.0 ~ 3.65 V | |
| ACR(1KHz) | 0.2~0.4mΩ | 25℃, BOL, 30%SOC |
| ACR mean(1KHz) | 0.30±0.05mΩ | 25℃, BOL, 30%SOC |
| Outgoing Voltage | 3.29±0.005V | 25℃, BOL, 30%SOC |
| Outgoing capacity | ≥106 Ah | 25℃, 34.7A (1/3C) DC to 2.0V |
| Operating temperature | Charge: 0 ~ 55℃ Discharge: -30 ~ 60℃ |
|
| Cycle life | ≥3500(80%SOH) | 25℃ 0.5C/1C, 100%DOD |
| Discharge power@25℃ | ≥1350W | 25±2℃, ≥30%SOC, 10 s, BOL |
| Discharge power density@25℃ | ≥700W/Kg | 25±2℃, ≥30%SOC, 10 s, BOL |
| Recommended SOC range | 2% - 99% | |
| Cell weight | 1935±30 g | |
| Cell dimension | 117.2(L)*52.3(T)*147.3(W)mm |

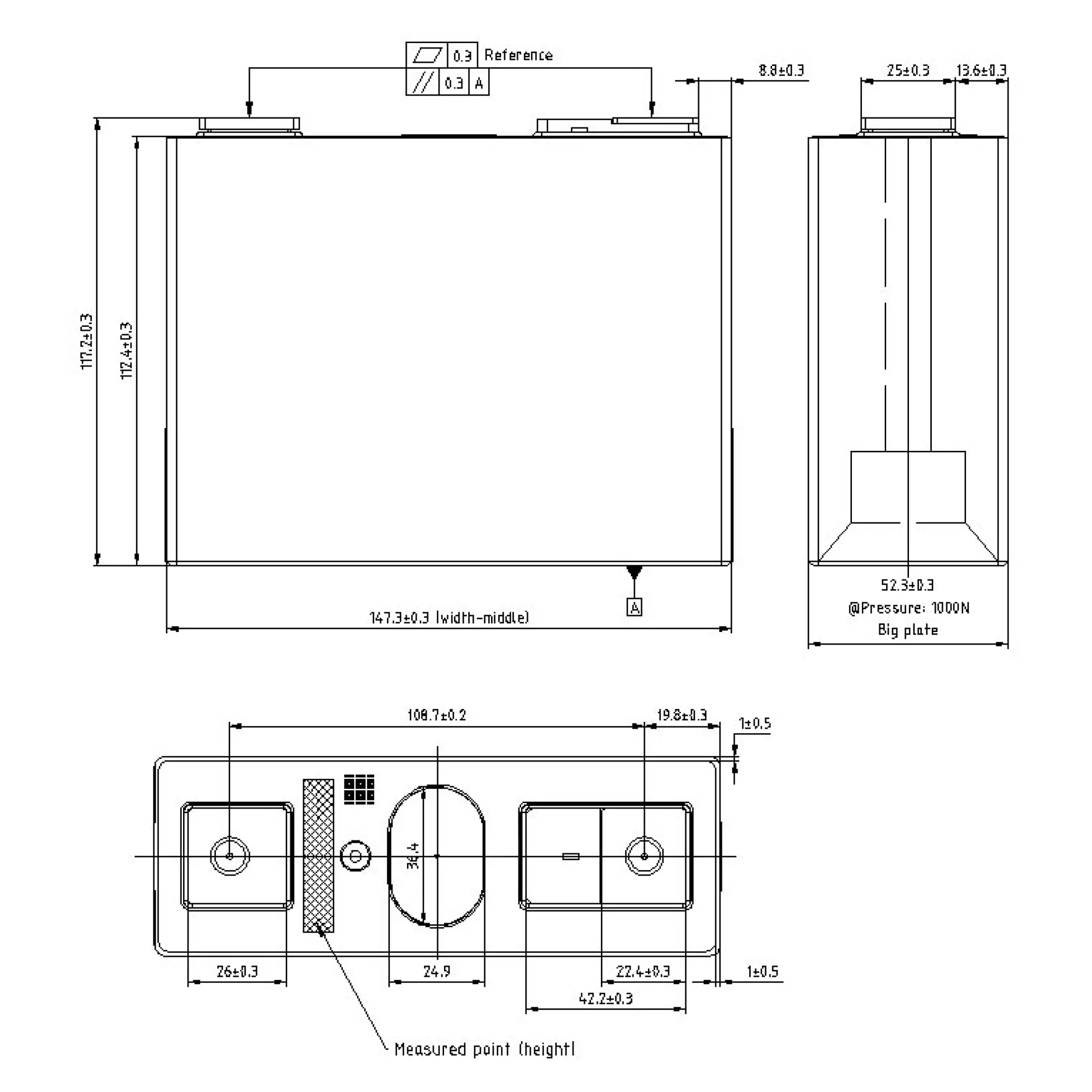

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
