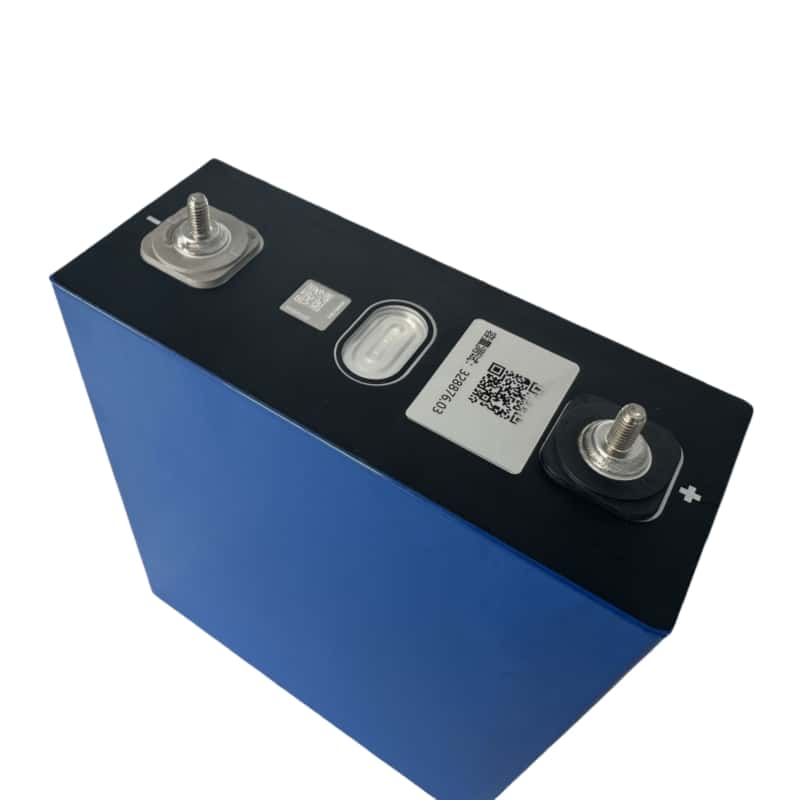

Sunwoda Battery 3.2V 314Ah LiFePO4 Cell
Product Details:
Place of Origin: China
Brand Name: Sunwoda
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 314 Ah Nominal Voltage: 3.2V
- Internal Impedence: ＜0.21mΩ Operating Voltage: 2.5 V ~3.65 V
- Dimension: 174.30x71.53x204.33(mm) Battery Weight: 5.6±0.25 Kg
Product Description
The Sunwoda 314Ah energy storage cell shares the same dimensions as the industry-standard 280Ah cell, while delivering a 12% increase in capacity within the same form factor. It achieves an energy density of 180 Wh/kg and a volumetric energy density of 395 Wh/L.
Product Features
- Material Safety: The 314Ah cells use a lithium iron phosphate (LiFePO4) chemistry with a thermal decomposition temperature exceeding 800°C. The cells have also passed the authoritative UL9540A certification. In the event of thermal runaway, hydrogen release is reduced by 34% compared to the previous generation, significantly below the industry average. Coupled with a nano-ceramic coated separator, it acts like a "bulletproof vest," preventing lithium dendrite growth and enhancing both the lifespan and safety of the cells.
- Structural Safety: Sunwoda’s 314Ah cell features insulated top caps and reinforced casing, compatible with 1500V high-voltage systems. With creepage distance optimization, JR insulation safety design, and strong electrical safety measures that cut off the system’s TP path, the overall cell system safety is further improved.
- Extended Lifespan: The full tab design reduces internal resistance, and combined with the lithium iron phosphate chemistry, the cells achieve over 12,000 cycles. Even with daily full charge and discharge, the system can operate stably for over 20 years.
- Exceptional Performance: The Sunwoda 314Ah energy storage cell has an energy density exceeding 180Wh/kg and a volumetric energy density of 395Wh/L, far above the industry average. This means it can store more energy in the same volume, significantly reducing the footprint and cost of the energy storage system.
Specification
| Parameter | Specification |
|---|---|
| Cell Type | prismatic battery with high |
| Nominal Capacity | 314 Ah |
| Nominal Voltage | 3.2V |
| Cell Weight | 5.6±0.25 Kg |
| Cut-off Voltage | 3.65 V |
| End-off Voltage | T＞0℃: 2.5 V T≤0℃: 2.0 V |
| Standard Charge Power | 0.5 P |
| Max Continuous Charge Power | 0.5 P |
| Standard Discharge Power | 0.5 P |
| Max Continuous Discharge Power | 0.5 P |
| Impedance(1kHz, 50%SOC) | ＜0.21mΩ |
| Charge Temperature | 0℃~ 60℃ |
| Discharge Temperature | -30℃~ 60℃ |
| Storing Temperature | -40℃~ 60℃ |
| Optimum Working Temperature | 25℃~ 35℃ |
| Residual Capacity Loss (First 3 Month at BOL State) | per month ≤ 3% |
| Dimensions (L x W x H) | 174.30(mm)x71.53(mm)x204.33(mm) |
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
