Lishen LiFePO4 3.2V 130Ah Battery 6C discharge rate 3C charge rate
Product Details:
Place of Origin: China
Brand Name: lishen
Certification: CE
Model Number: LP44147272-130Ah
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 130Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤ 1.0mΩ Operating Voltage: 2.5V~3.65V
- Dimension: 147.05(L)*44.4(T)*272(H)mm Battery Weight: 3425±100g
Product Description

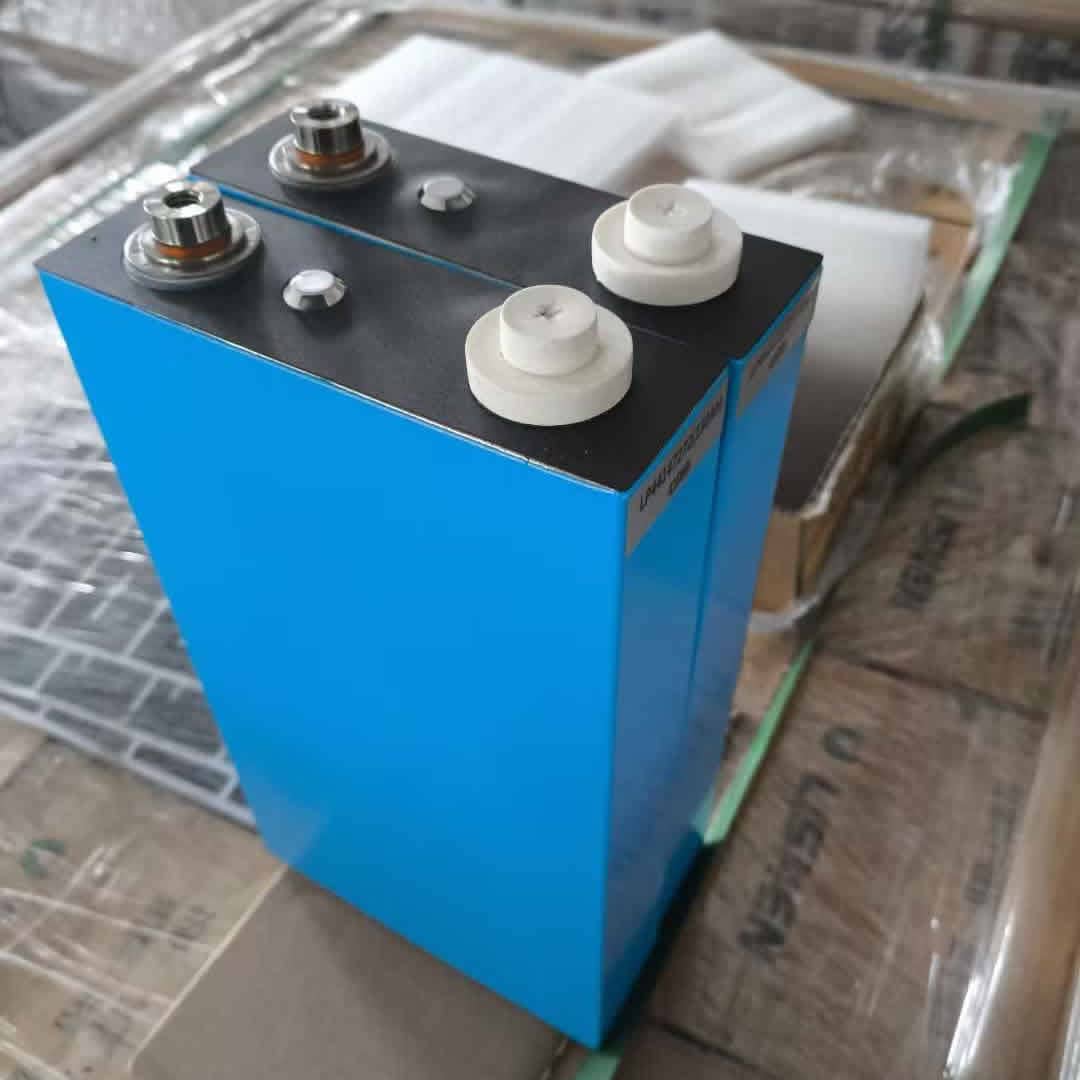

Our Lishen LP44147272 is a high-performance Grade A lithium iron phosphate (LiFePO4) power cell, designed with M8 internal thread terminals for easy assembly and wiring. With a nominal voltage of 3.2V and a large capacity of 130Ah, this cell supports up to 6C burst fast charging and 12C high current discharge, perfectly meeting the high-power demand of various mobile devices and energy storage systems.
Adopting advanced LiFePO4 technology, the battery features extremely low internal resistance, no memory effect, excellent temperature adaptability and outstanding cycle stability. After 2000 full charge-discharge cycles, the capacity still remains above 80% of the nominal value, greatly reducing the later replacement cost for users.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- High Rate Charge & Discharge: Continuous 3C charging, 6C 10s burst charging; continuous 6C discharging, 12C 30s high-current discharging.
- Ultra-low Internal Resistance: AC impedance ≤1.0mΩ, low heat generation, higher energy conversion efficiency.
- Long Cycle Lifespan: More than 2000 cycles with capacity retention ≥80%, durable and cost-effective.
- Wide Temperature Adaptation: Charge at 0℃~45℃, discharge at -20℃~60℃ for complex environments.

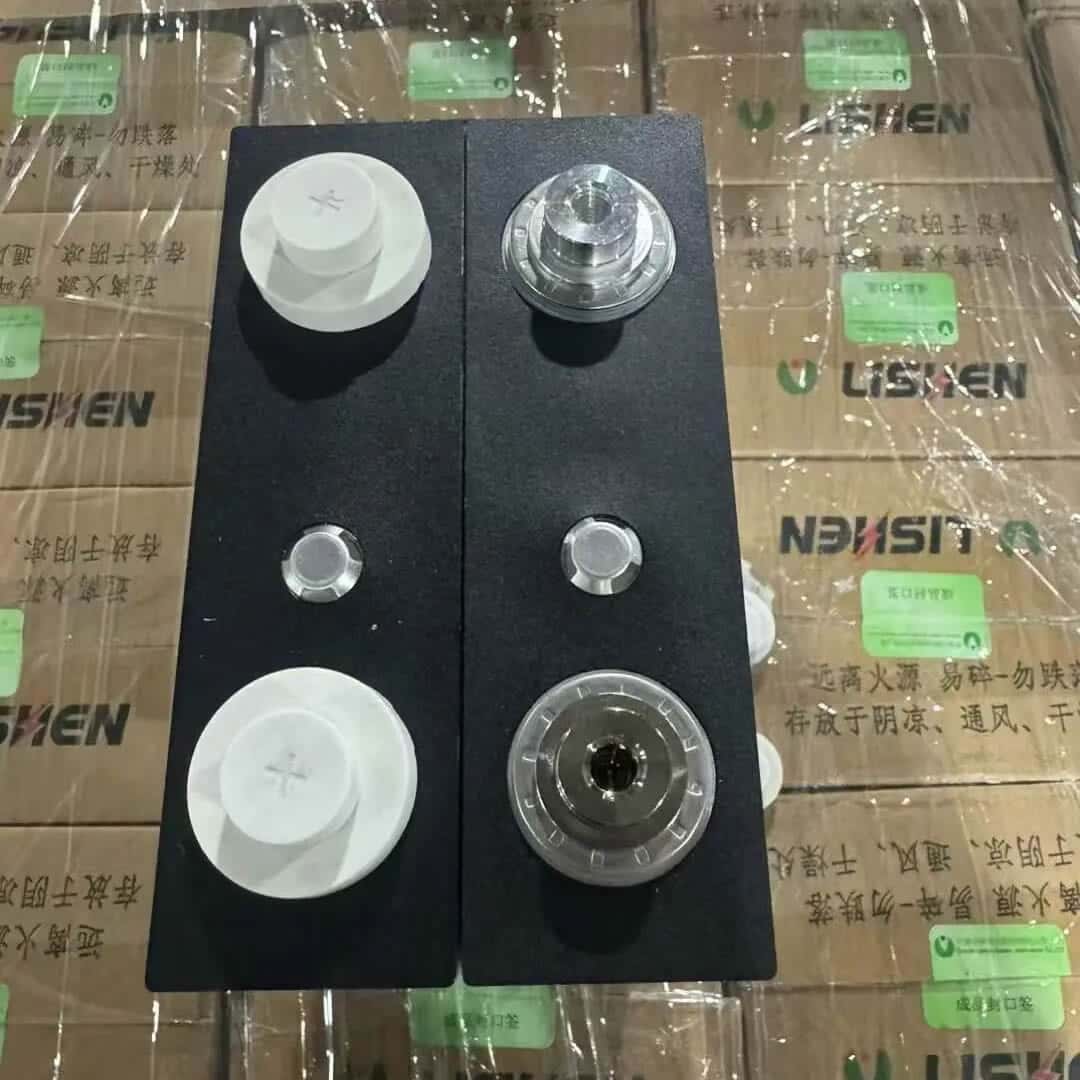

- M8 Internal Thread: Firm connection, convenient for series-parallel assembly and battery pack integration.
- High Safety: Inherently safe LiFePO4 material, no flammable and explosive risks, no memory effect.
Specification
| Item | Specification |
|---|---|
| Cell Type | Lithium-ion LiFePO4 Power Cell |
| Model Number | LP44147272 |
| Nominal Capacity | 130Ah |
| Nominal Voltage | 3.2V |
| AC Internal Resistance | ≤ 1.0mΩ |
| Gross Weight | 3425±100g |
| Dimension | 147.05(L) × 44.4(T) × 272(H) mm |
| Terminal Type | M8 Internal Thread |
| Standard Charging Current | 1C |
| Rated Charging Voltage | 3.65V |
| Max Continuous Charging Current | 3C |
| Max Burst Charging Current | 6C (10 seconds) |
| Discharge Cut-off Voltage | 2.0V |
| Max Continuous Discharging Current | 6C |
| Max Burst Discharging Current | 12C (30 seconds) |
| Cycle Life | ≥80% Capacity Retention after 2000 Cycles |
| Charging Temperature | 0℃ ~ 45℃ |
| Discharging Temperature | -20℃ ~ 60℃ |

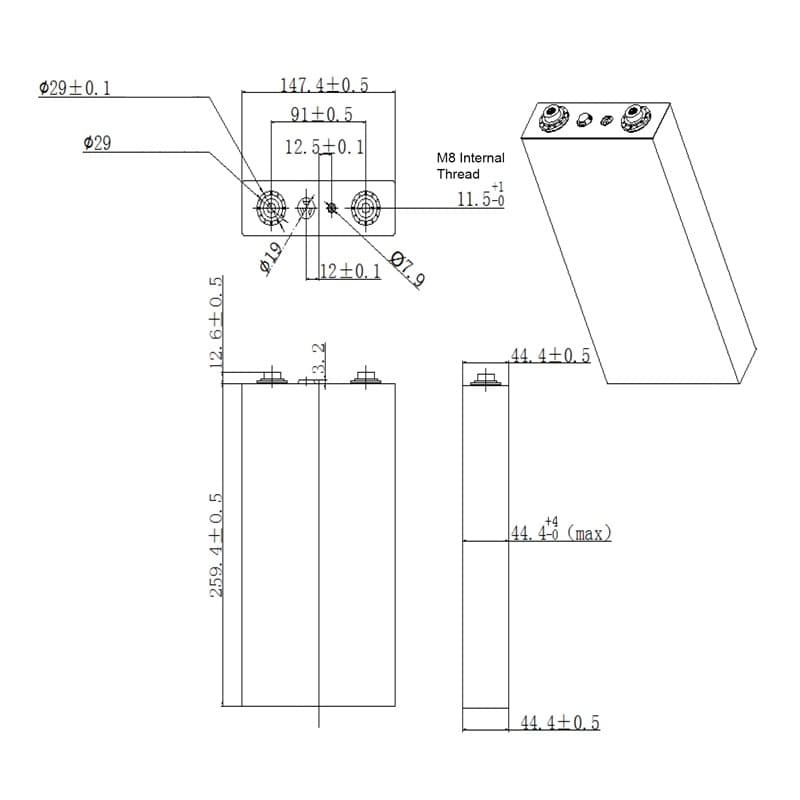

Dimension and Details
Applications
- Transportation: Electric vehicles, e-bikes, scooters, golf carts, yachts and boats
- Energy Storage: Household storage, industrial storage, off-grid solar energy systems
- Power Backup: Communication base station, cabinet standby power supply
- Others: Mobile engineering equipment, custom battery packs and special mobile power
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.

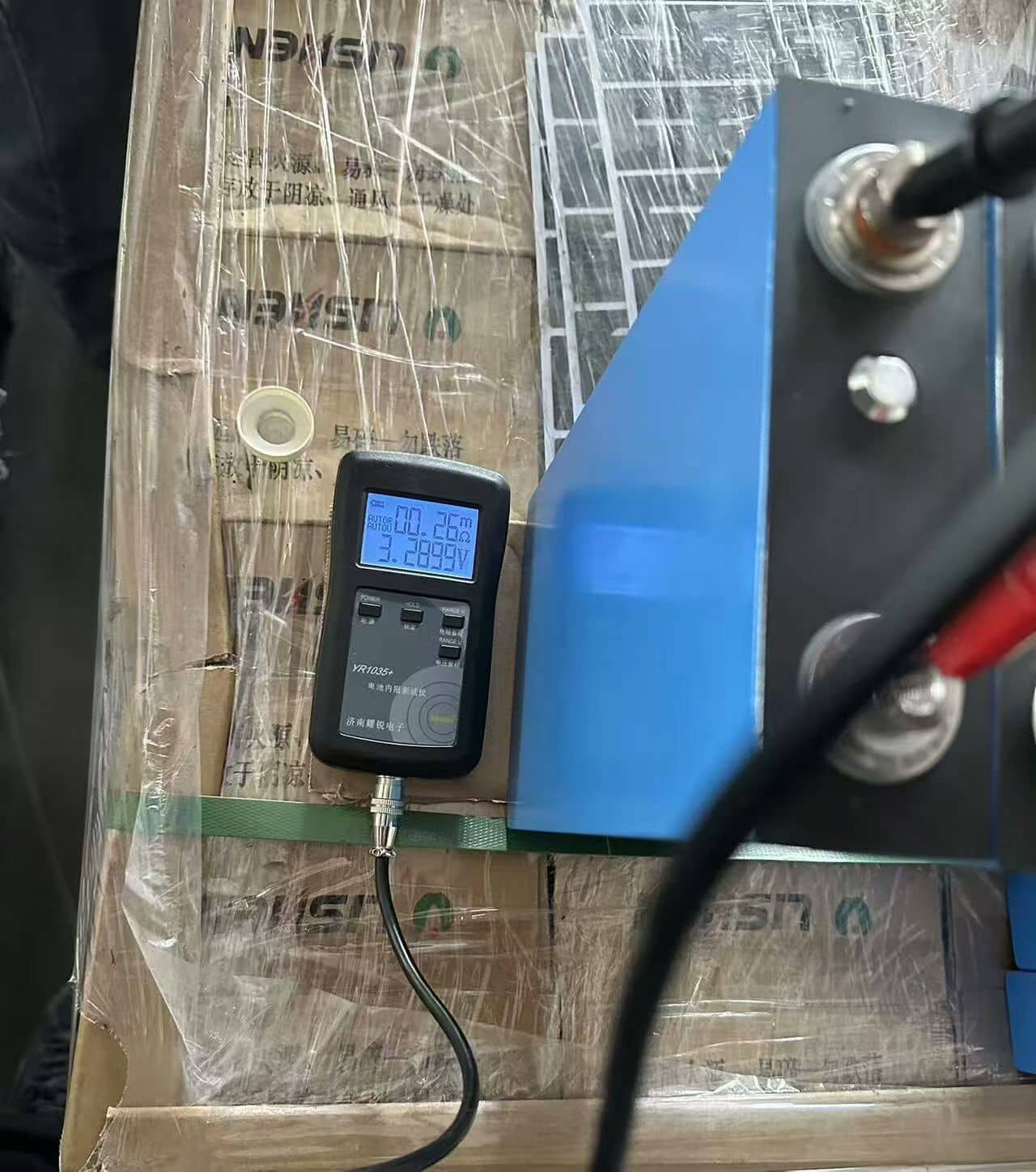

2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
