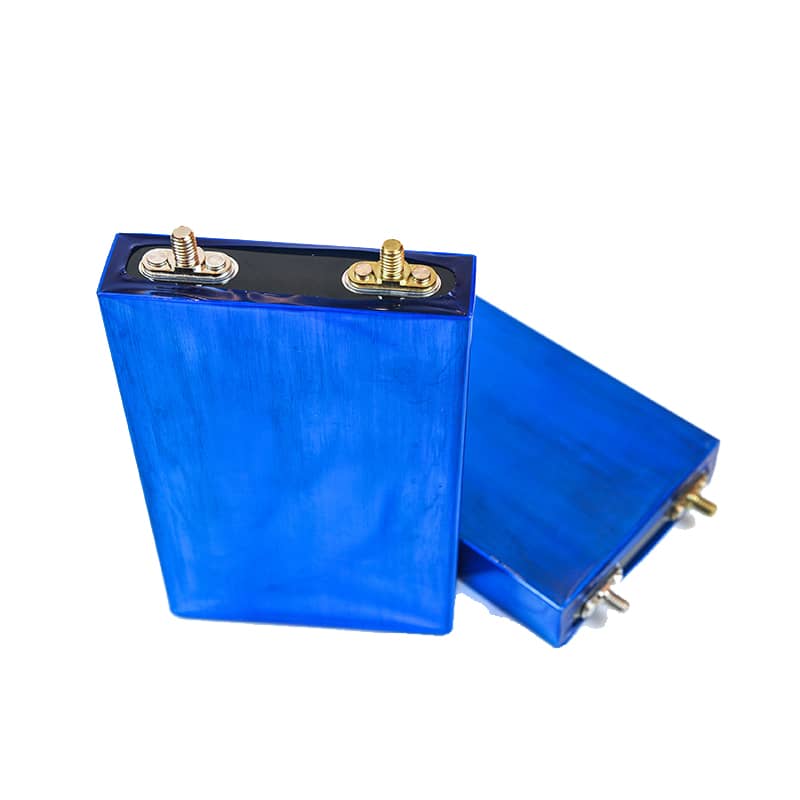

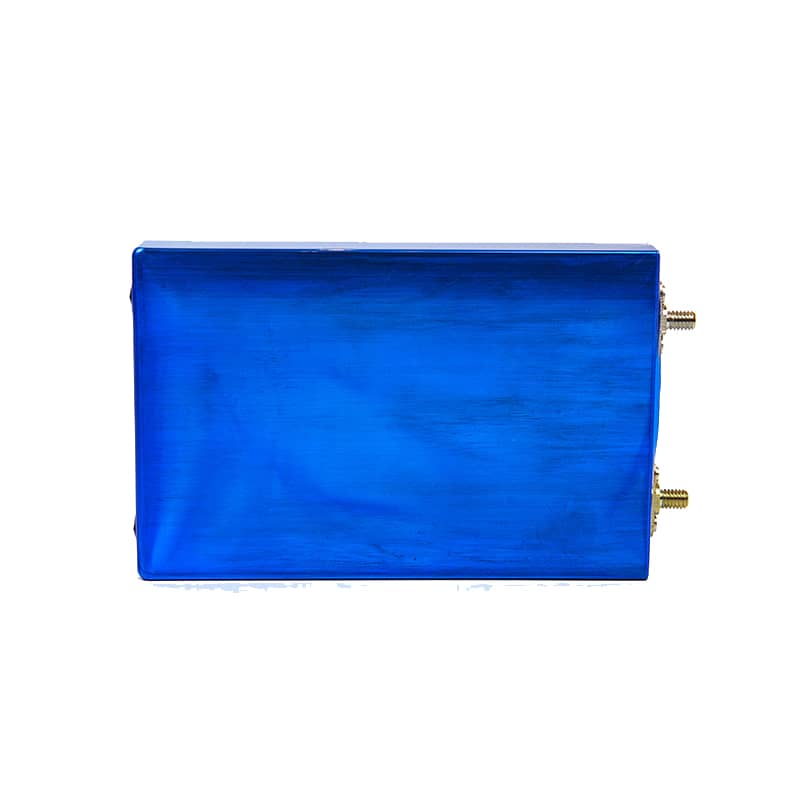

LiFePO4 20Ah 3.2 V High Rate Prismatic Battery Cell

100% brand new, grade-A LiFePO4 20Ah 3.2 V Prismatic Battery Cell. It is small in size, flexible in dimensions and have a high discharge multiplier.

Advantage

• 1. The 3.2V 20Ah lithium iron phosphate battery cell with excellent performance.
• 2. Long cycle life: Rechargeable lithium ion battery cell, with more than 2000 times of cycle life, which is around 7 times compared to the lead acid battery.
• 3. Light weight: Approximately 1/3 weight of lead acid batteries.
• 4. Excellent safety: It is believed in the industry that the LiFePO4 technology is almost the safest type of lithium battery.
• 5. Bolt design: Very easy for assembling and packing to the battery pack for energy storage and power supply application.
• 6. No memory effect. Lithium batteries are considered to have no memory effect that other rechargeable batteries have. The memory effect is an effect in which the battery content is crystallized due to use of the battery. The reason is that the battery is repeatedly partially charged and discharged incompletely. It will temporarily reduce the capacity of the battery, resulting in shorter talk time.

Specification

Performance

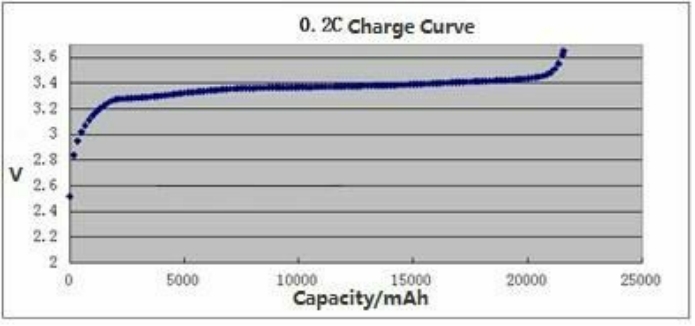

Charge curves at room temperature

Charge at 0.2C at room temperature,Cut-off current of charge is 0.4A, Cut-off voltage of charge is 3.65V

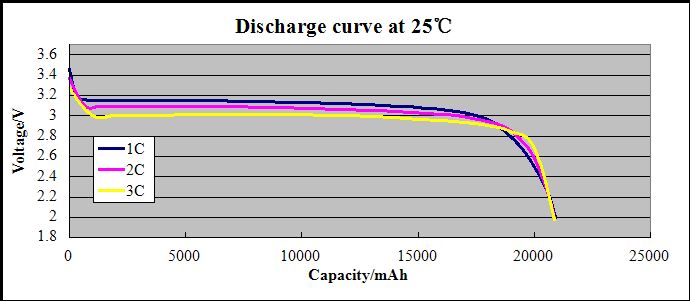

Discharging curves at different current

Discharge at different current of 1C,3C and 5C to cut-off voltage of 2V.

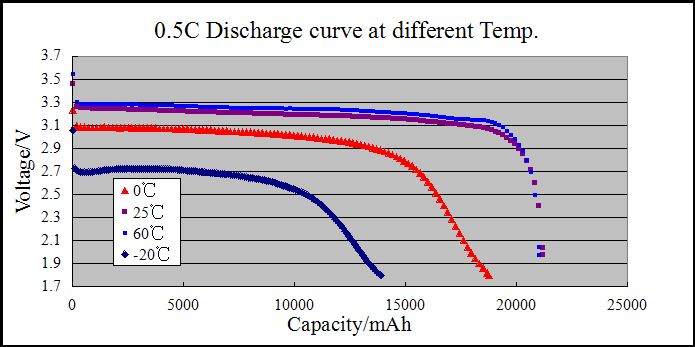

Discharging curves at different temperature

Fully charged the battery at room temperature, discharge it at different temperature with 0.5C current to 2V

Applications For Reference

• Energy storage equipment Energy storage equipment for solar and wind power generation systems, uninterrupted power system UPS, and solar cells used as energy storage equipment ;
• Electric tools High-power electric tools (wireless), electric drills, weeders, etc.;
• Light electric vehicles Electric motor vehicles, electric bicycles, recreational vehicles, golf carts,electric pushers, clean vehicles, hybrid electric vehicles (HEV);
• Small equipment Medical equipment: (electric wheelchair, electric scooter), toys (remote control electric airplane, car, boat);
• Other small electrical appliances Miner’s lamps, implantable medical devices (lithium iron phosphate is non-toxic, and only iron lithium can meet the requirements for lithium batteries), replacing lead acid, nickel hydrogen, nickel cadmium, lithium cobalt, and lithium manganese batteries in small electrical appliances.

Note

1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.

2.We will test all battery voltage, internal resistance and capacity before delivery.

3.100% Eco-friendly, will not cause pollution pressure to the environment
