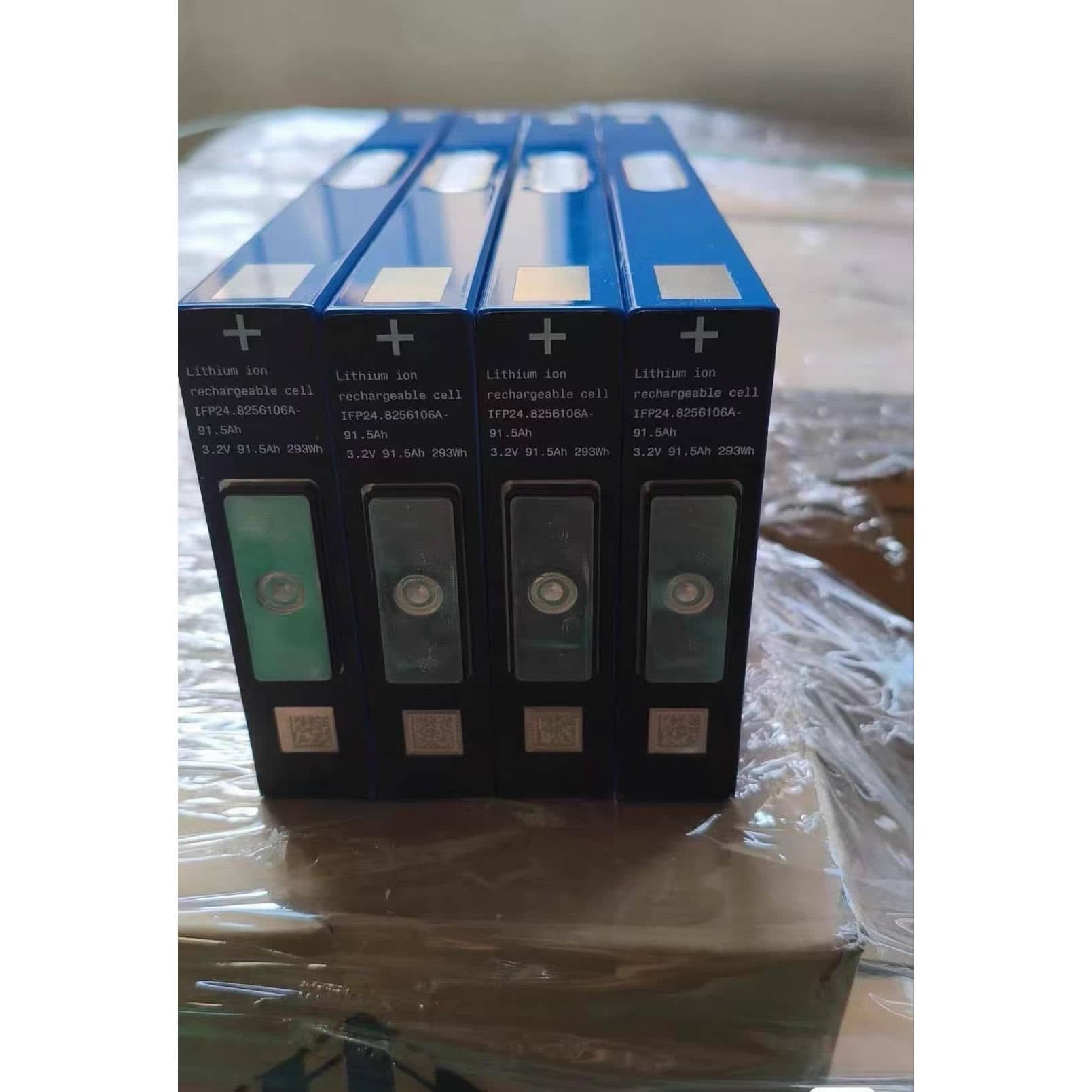

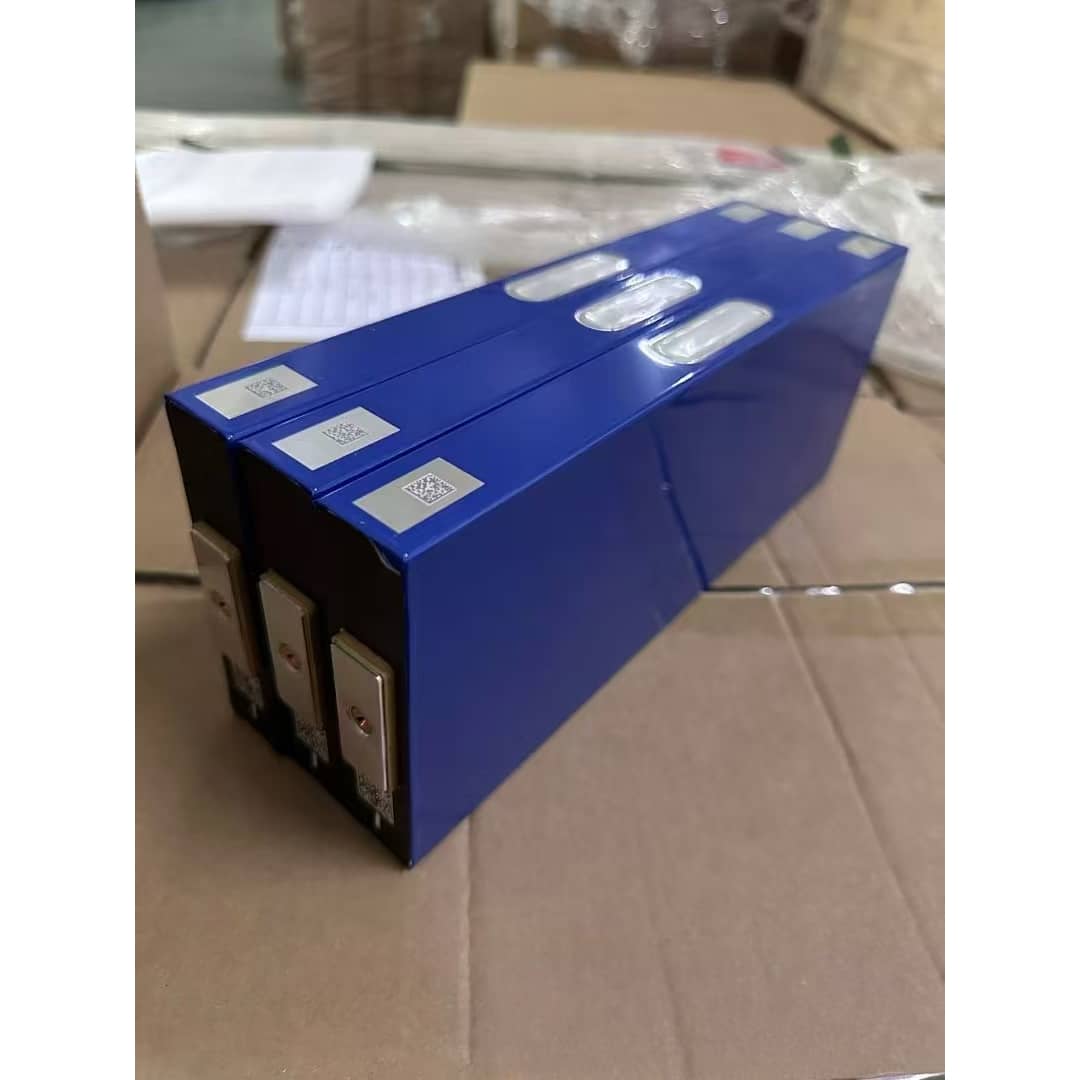

Gotion LiFePO4 3.2v 91.5ah Battery Cell
Product Details:
Place of Origin: China
Brand Name: Gotion
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 91.5Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.3mΩ-0.6mΩ Operating Voltage: 2.5V~3.8V
- Dimension: 25*106*256mm Battery Weight: 1542+15g
Product Description
100% brand new, grade-A Gotion LiFePO4 3.2v 91.5ah Battery Cell offers a 3C discharge, low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Items | Condition/Note | Specification |
|---|---|---|
| Capacity | 0.33C | 91.5Ah Minimum |
| Nominal voltage | 0.33C | 3.2V |
| Operating voltage | Continuous charge/discharge | 2.5V~3.8V |
| Peak charge/discharge | 2.0V-3.8V SOC 2.3V-3.8V >0℃ |
|
| ACR | 25°C±2°C .17.0%SOC.1KHz | 0.3mΩ-0.6mΩ |
| DCR | 25°C±2°C, 50%SOC, 1.5C, 10s | <1.1mΩ |
| Standard charge | Constant current | 0.33C |
| Up limited voltage | 3.8V | |
| Cut-of current | 0.05C | |
| Temperature | 25°C±2°C | |
| Standard discharge | Constant current | 0.33C |
| Cut-of voltage | 2.5V | |
| Temperature | 25°C±2°C | |
| Temperature sensitivity | Storage allowable temperature | 40°C≤T≤60°C |
| Operating allowable temperature | -30°C≤T≤55°C | |
| Weight | w/ bule film | 1542+15g |
| Maximum Cell thickness | 0.15Mpa @ 30s, 30%S0C | 25.0士0.4mm |
Dimension and Details
We have our own welding machines to help customers weld poles.
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
