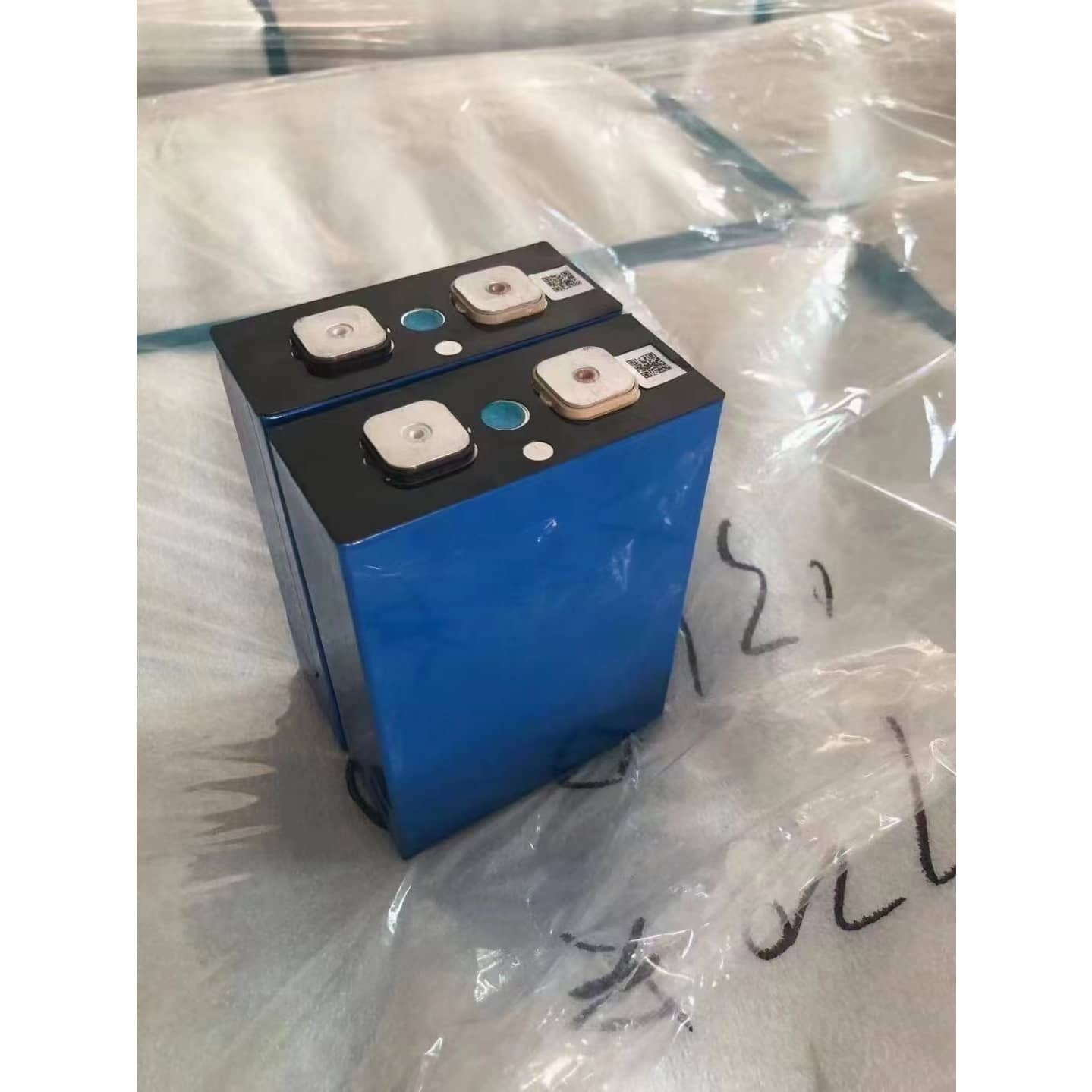

Gotion LiFePO4 3.2V 67Ah Battery Cell
Product Details:
Place of Origin: China
Brand Name: Gotion
Certification: CE
Model Number: IFP42100140A-67Ah
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 67Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.33mΩ≤R≤0.47mΩ Operating Voltage: 2.5V~3.65V
- Dimension: 100.24×43.2×144.9mm Battery Weight: 1235g±37g
Product Description
Gotion 3.2V 67Ah Battery Cell is an excellent lithium iron phosphate (LiFePO4) battery cell designed for electric vehicles, energy storage systems and industrial power supplies. It has high energy density, long cycle life and excellent safety performance. Its stable output and efficient charging and discharging characteristics can meet the needs of multiple scenarios and are an ideal choice for electric vehicles and energy storage equipment.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- · High energy density: The capacity of a single battery cell is 67Ah, which supports efficient energy storage and maximizes the endurance performance.
- · Long cycle life: The cycle life exceeds 4,000 times, and it still maintains excellent performance under 80% DOD conditions, which is suitable for long-term use scenarios.
- · Excellent safety performance: It uses lithium iron phosphate positive electrode material, has excellent thermal stability, and has passed many international safety tests (such as short circuit, overcharge, acupuncture, etc.).
- · Fast charging and discharging capability: Supports 2C discharge and 1C fast charging, greatly improving the use efficiency, suitable for applications with high power requirements.
- · Green and environmental protection: No heavy metal components, in line with RoHS and environmental protection requirements, is an important part of clean energy solutions.
- · Wide temperature adaptability range: The operating temperature range is -20°C to 55°C, suitable for stable operation in a variety of complex environments.
Specification
| Item | Specifications |
|---|---|
| Battery Type | LFP |
| Combination Mode | IFP42100140A-67Ah |
| Nominal Capacity | 67Ah |
| Nominal Voltage | 3.2V |
| Charge Voltage Range | 2.0 V～3.65V; T>0℃ |
| Discharge Voltage Range | 1.8V~3.65V; T≤0℃ |
| Weight | 1235g±37g |
| Weight Energy Density | 175Wh/kg; 0.33C |
| Volume Energy Density | 350Wh/L; 0.33C |
| ACR | 0.33mΩ≤R≤0.47mΩ; Fresh cell (17%±3%SOC) |
| DCR | 1mΩ≤R≤2mΩ; 50%SOC@3C30S, 25±2C |
| High Temperature Cycle Life | 1000 cycles |
| Room Temperature Cycle Life | 2500 cycles |
| Calendar Life | 10 years; 25±2℃, 50%SOC,80%EOL |
| Dimension | (100.24±0.2)×43.2×(144.9±0.5)mm |

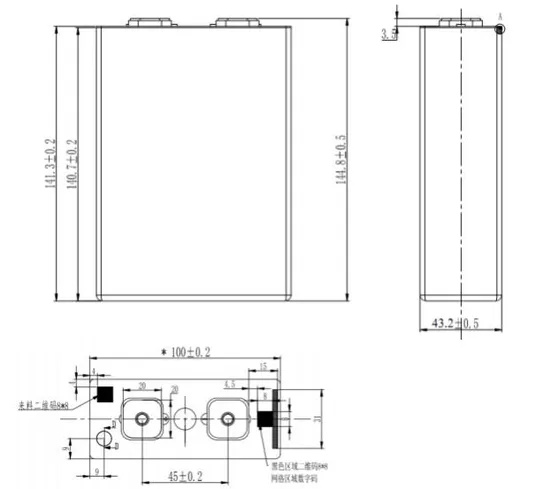

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.

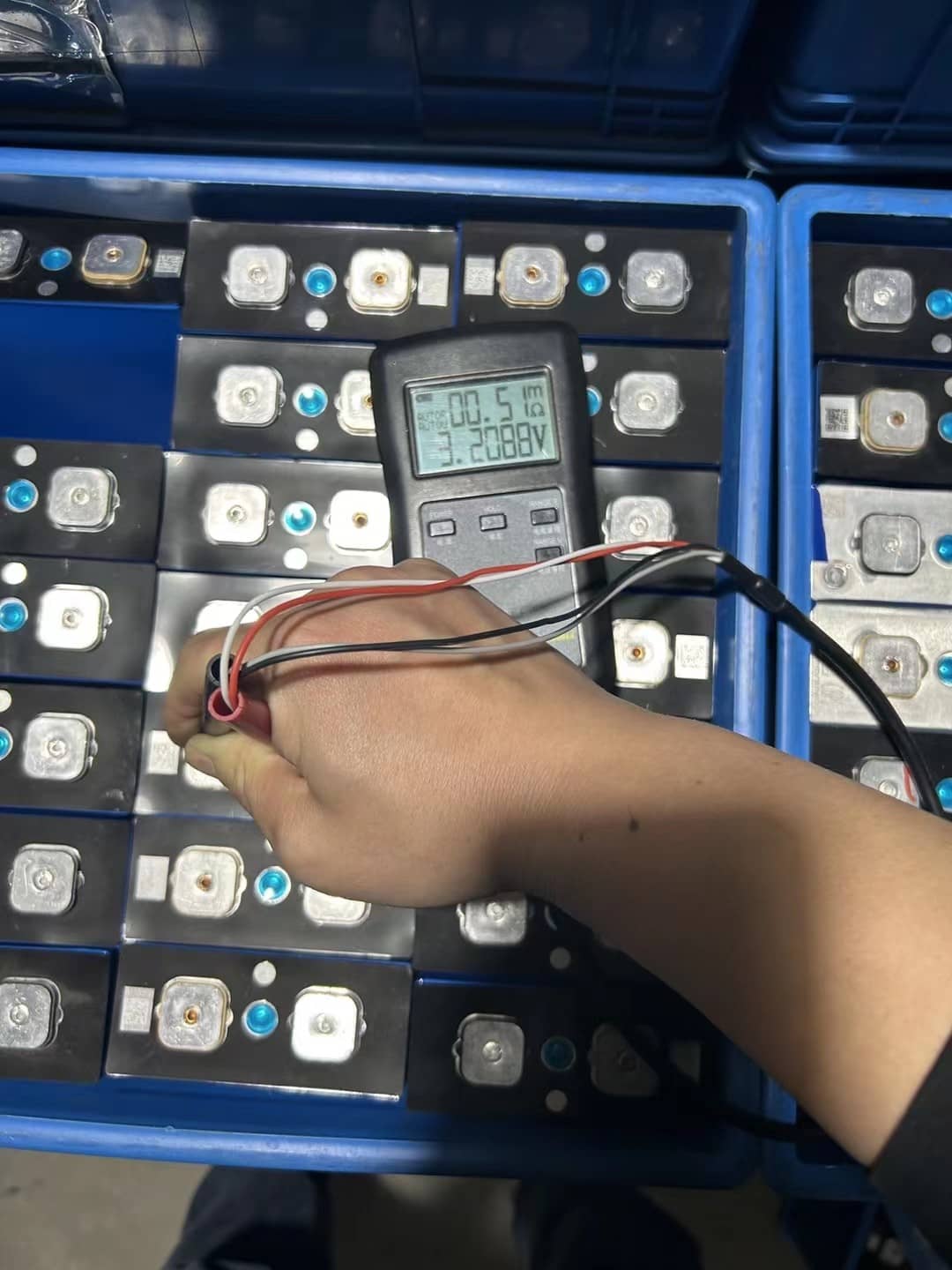

2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
