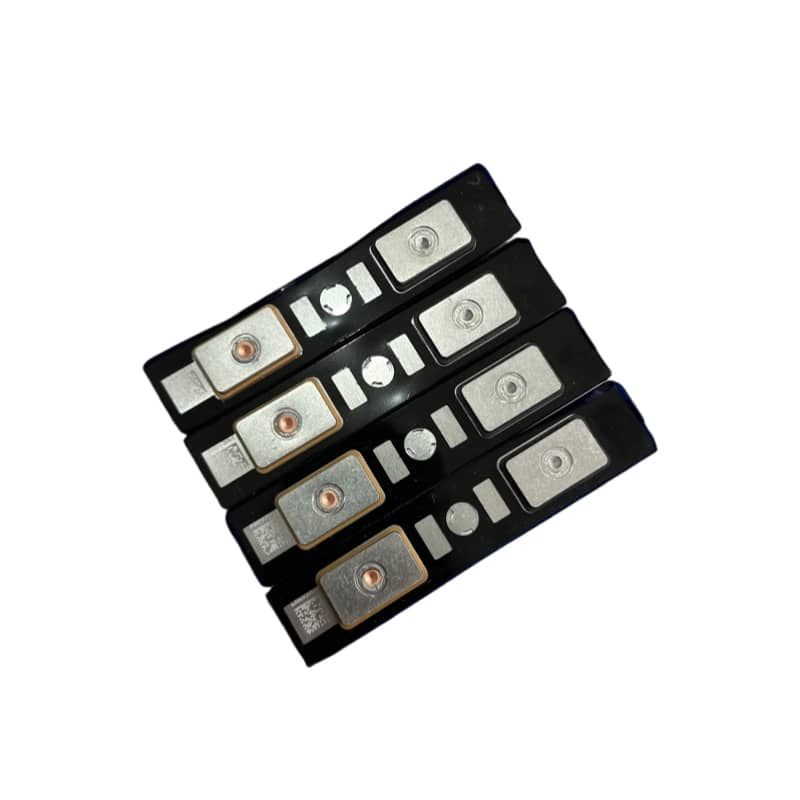

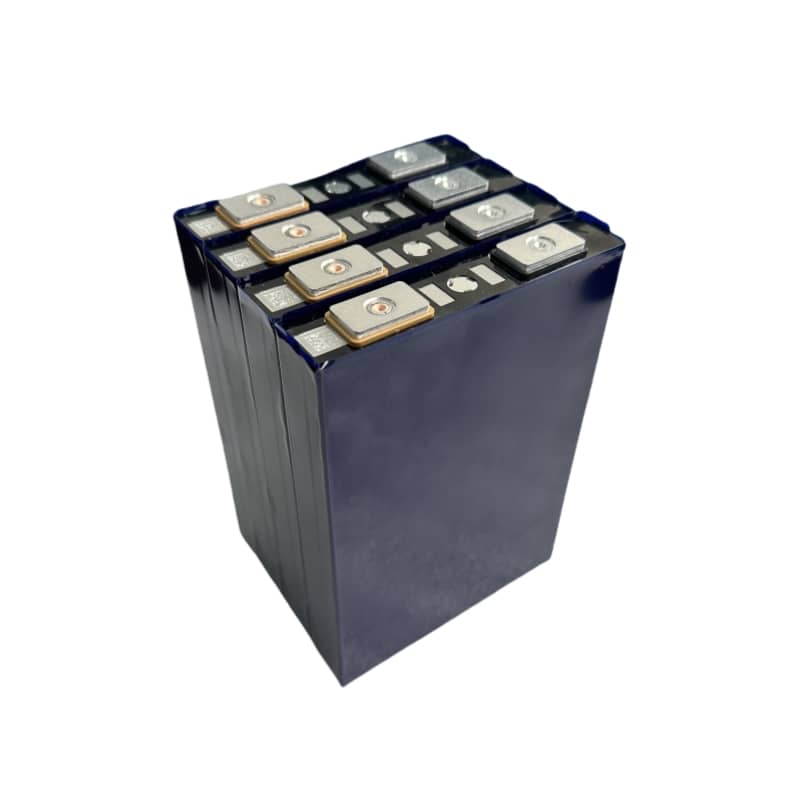

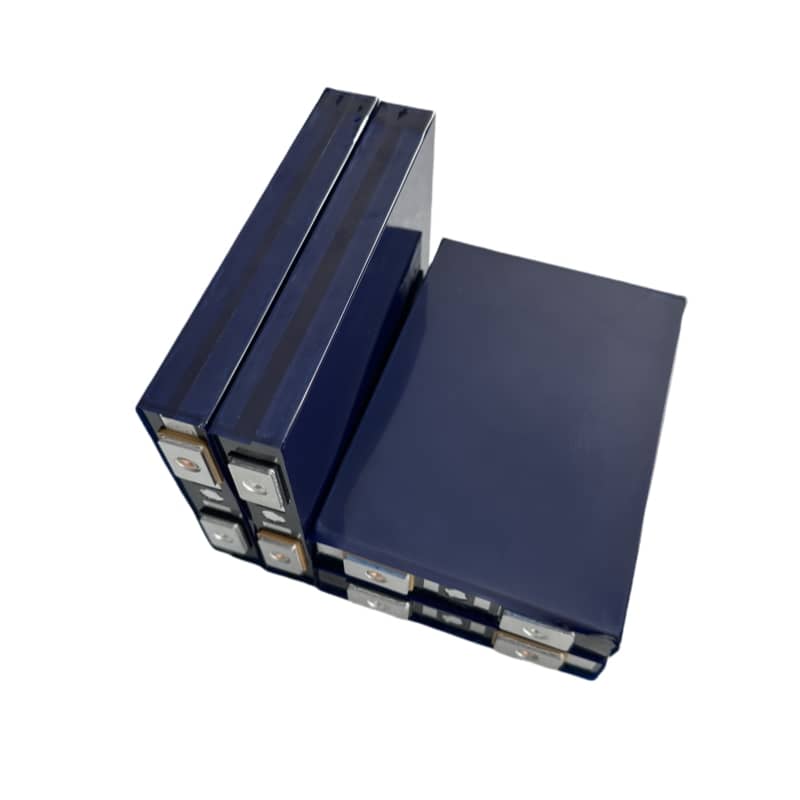

Gotion LiFePO4 3.2V 27Ah Battery Cell
Product Details:
Place of Origin: China
Brand Name: Gotion
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 27.0 Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.9 mΩ±0.3 mΩ Operating Voltage: 2.0 V～3.65 V
- Dimension: 21.3×100.5×144.8mm Battery Weight: 605 g±18 g
Product Description
The Gotion LiFePO4 3.2V 27Ah Battery Cell is designed to deliver superior performance for electric scooter and e motocycles, e-bikes, and other high-demand applications. Engineered with advanced lithium-ion technology, this battery cell is perfect for situations requiring fast energy delivery, It combines high capacity with quick discharge, ensuring a reliable power source for long-lasting and high-performance applications.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- 1. Qualified for UN38.3/MSDS, RoHS, CE, TUV, UL with high safety
- 2. More than 5000 cycles under the designed working condition
- 3. Integral safety valve is used to enhance safety
- 4. High Energy Density
Specification
| Parameter | Specification | Remark |
|---|---|---|
| Nominal Voltage | 3.2V | / |
| AC Internal Resistance | 0.9 mΩ±0.3 mΩ | / |
| DC Internal Resistance | ≤3.0 mΩ | 50%SOC(5C/10 s，25 ℃) |
| Rated Capacity | 27.0 Ah | 1C standard charge and discharge, 25 ℃, |
| Operating Voltage | 2.0 V～3.65 V | / |
| Energy Density | ≥140 Wh/kg | 0.33C discharge |
| Optimum Charging/Discharge Temperature Range |
10 ℃～35 ℃ | / |
| Storage Temperature Range |
-40 ℃～60 ℃ | |
| Max Continuous Discharge Current |
4C | Single battery at 15 ° C ~ 35 ° C 1C constant current constant pressure full, set aside 1 h to 6C discharge to termination voltage 2.0V, and single electric pool temperature rise < 30 ℃ |
| Max Pulse Discharge Current |
6C～10 s | 20 ℃～35 ℃ |
| Dimension | (21.3±0.9)× | (T×W×H)mm |
| Weight | 605 g±18 g | / |

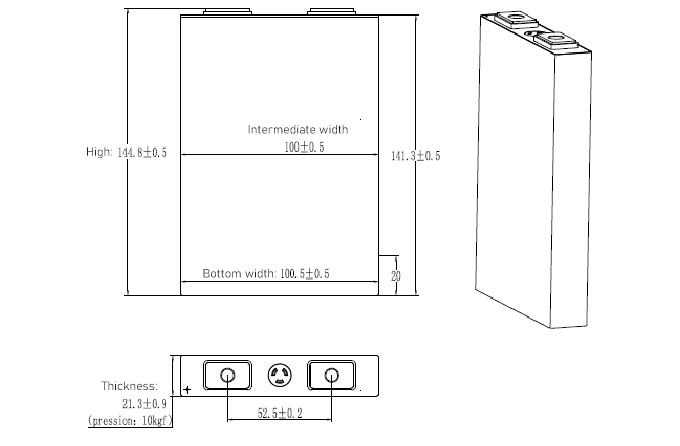

Dimension and Details
3.2V Lithium Iron Phosphate Battery Cells Series
We are spot trader for Gotion 3.2V Lithium iron phosphate battery cells. To provide you with reliable and efficient power solutions that you can trust
| Model | Chemical | Voltage | Capacity | IR | Cycle Life | Charge Current | Size | Weight |
|---|---|---|---|---|---|---|---|---|
| IFP27175200A-105Ah | LiFePO4 | 3.2V | 105Ah | 0.4mΩ | 3000 | 2C | 27*175*200mm | 2060g |
| IFP27175200A-96Ah | LiFePO4 | 3.2V | 96Ah | 0.45mΩ | 6000 | 2C | 27*175*200mm | 2020g |
| IFP27175200A-100Ah | LiFePO4 | 3.2V | 100Ah | 0.4mΩ | 6000 | 2C | 27*175*200mm | 2022g |
| IFP27175200A-110Ah | LiFePO4 | 3.2V | 110Ah | 0.4mΩ | 3000 | 2C | 27*175*200mm | 2080g |
| IFR32135-15Ah | LiFePO4 | 3.2V | 15Ah | 1.5mΩ | 2000 | 2C | φ33*135mm | 276g |
| IFR-32135-13Ah | LiFePO4 | 3.2V | 13Ah | 1.5mΩ | 5000 | 3C | φ33*135mm | 265g |
| IFP28148115A-52Ah | LiFePO4 | 3.2V | 25Ah | 0.5mΩ | 2000 | 1C | 27*148*101mm | 969g |
| INP27148101A-55Ah | NCM | 3.67V | 55Ah | 1mΩ | 2500 | 2C | 27*148*101mm | 890g |
| IFP54173145A-150Ah | LiFePO4 | 3.2V | 150Ah | 0.4mΩ | 3000 | 0.5C | 54*173*145mm | 2816g |
| IFP81175200A-300Ah | LiFePO4 | 3.2V | 300Ah | 0.1mΩ | 8000 | 1C | 81*175*200mm | 5998g |
| IFP2265146-21Ah | LiFePO4 | 3.2V | 21Ah | 3.2mΩ | 2000 | 2C | 22*65*146mm | 428g |
| IFP20100140A-27Ah | LiFePO4 | 3.2V | 27Ah | 1.1mΩ | 4000 | 2C | 20*100*140mm | 596g |
| IFP20100140-30Ah | LiFePO4 | 3.2V | 30Ah | 0.6mΩ | 2000 | 1C | 20*100*140mm | 615g |
| IFP42100140A-67Ah | LiFePO4 | 3.2V | 67Ah | 0.32mΩ | 2000 | 1C | 42*100*140mm | 1250g |
| IFP81175200A-340Ah | LiFePO4 | 3.2V | 340Ah | 0.5mΩ | 4000 | 0.5C | 81*175*200mm | 6068g |
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
