Gotion LiFePO4 3.2V 230Ah Battery Cell
Product Details:
Place of Origin: China
Brand Name: Gotion
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 230Ah Nominal Voltage: 3.2V
- Internal Impedence: <0.8mΩ Operating Voltage: 2.0V～3.65V
- Dimension: 54.2x174x207.1mm Battery Weight: 4150g±124g
Product Description
100% brand new, grade-A Gotion LiFePO4 3.2V 230Ah Battery Cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- 1. Qualified for UN38.3/MSDS, RoHS, CE, TUV, UL with high safety
- 2. More than 3000 cycles under the designed working condition
- 3. The integral safety valve is used to enhance safety
- 4. High Energy Density
Specification
| Parameter | specification |
|---|---|
| Cell Type | LiFePO4 |
| Nominal Capacity | 230Ah |
| Nominal Voltage | 3.2V, 0.33C |
| Charge/Discharge Voltage Range | 2.0V～3.65V, T>0℃ |
| 1.8 V～3.65V, T≤0℃, forbid continuous charging | |
| Weight | 4150g±124g |
| Weight Energy Density | 178Wh/kg, 0.33C |
| Volume Energy Density | 382Wh/L, 0.33C |
| ACR | 0.2mΩ≤R≤0.4mΩ, 25°C±2℃ |
| DCR | <0.8mΩ, 50%SOC@3C 30S, 25±2℃ |
| Optimum Working Temperature | 10～35℃ |
| Charge Temperature Range | 0～55℃ |
| Discharge Temperature Range | -30～60℃, cell temperature≤60℃ |
| Dimensions (L x W x H) | (54.2±0.7)x(174±0.5)x(207.1±0.5)(mm) |

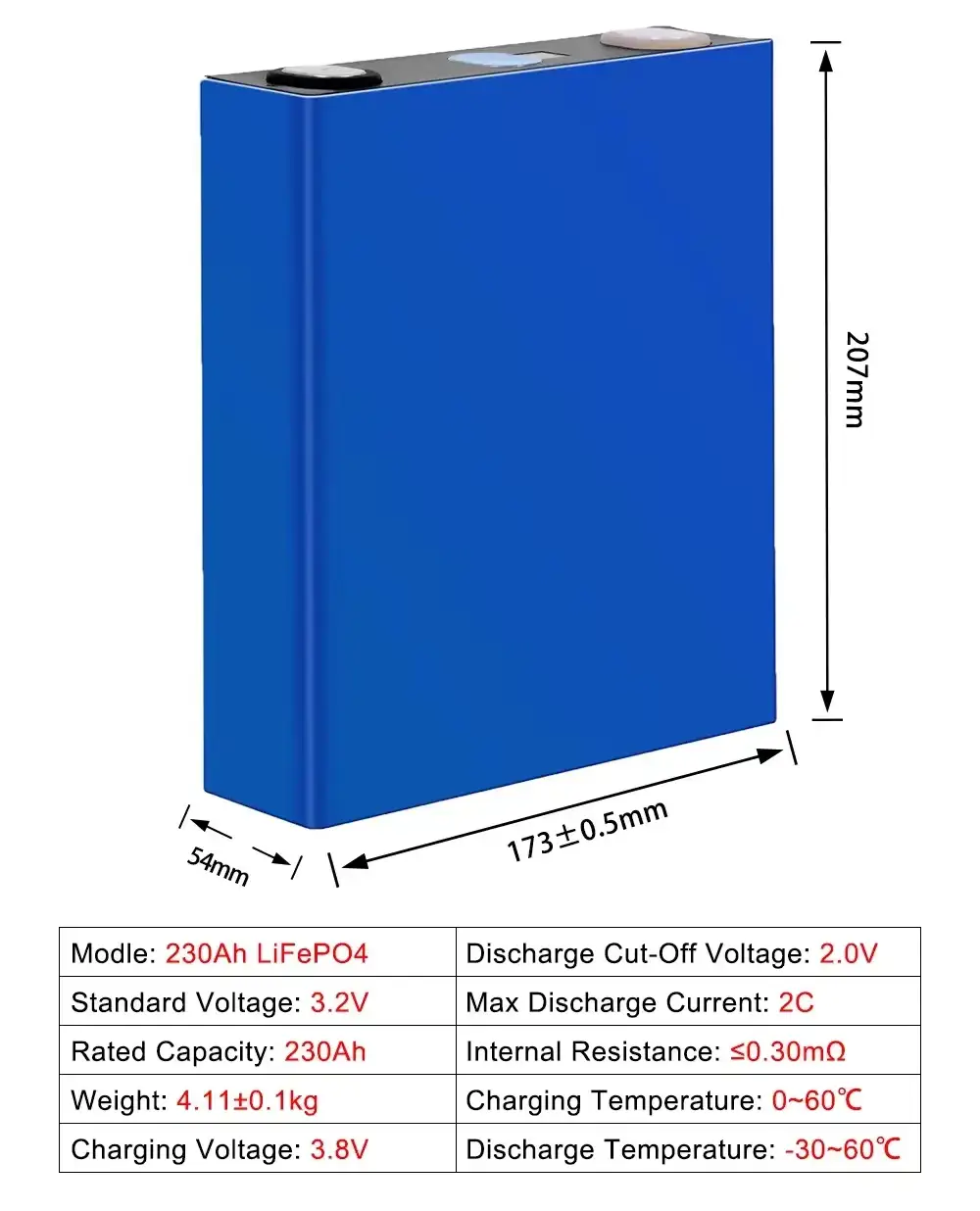

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
