Gotion LiFePO4 3.2V 120Ah Battery Cell
Product Details:
Place of Origin: China
Brand Name: Gotion
Certification: CE
Model Number: IFP53148117-120Ah
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 120Ah Nominal Voltage: 3.21V
- Internal Impedence: ＜0.75mΩ Operating Voltage: 2.5 V～3.65V
- Dimension: 52.3*149.05*119.05mm Battery Weight: 2015g ± 30g
Product Description
100% brand new, grade-A Gotion LiFePO4 3.2V 120Ah Battery Cell offers a low internal resistance, Supports 3C fast charging, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Item | Specification | Condition/Notes |
|---|---|---|
| Nominal Capacity | 120Ah | 1C |
| 122Ah | 0.33C | |
| Nominal Voltage | 3.21V | 0.33C |
| 3.15V | 1C | |
| Charge & Discharge Voltage Range | 2.5 V～3.65V | T>0℃ |
| 2.0 V～3.65V | T≤0℃ | |
| Weight | 2015g ± 30g | |
| Weight Energy Density | 195Wh/kg | 0.33C |
| Volume Energy Density | 430Wh/L | 0.33C |
| AC Resistance | 0.2mΩ≤R≤0.4mΩ | 25℃±2℃, Fresh cell(17%±3%SOC) |
| DC Resistance | ＜0.75mΩ | 50%SOC @ 2C10S, 25±2℃ |
| Max. Constant charge rate | 3C | 25℃ |
| Regular Charging(Slow Charge) | 60A | Constant current |
| 3.65V | Constant voltage | |
| 6A | Cut off condition (terminating) | |
| 10℃≤T<45℃ | Temperature | |
| Optimum Working Temperature | 10℃～35℃ | |
| Charge Temperature Range | -20℃～55℃ | |
| Discharge Temperature Range | -30℃～60℃ | Cell temperature≤60℃ |
| Calendar Life | 10 years, 3000cycles | 80% capacity retention rate |
| Dimension | 52.3*149.05*119.05mm | T*W*H |

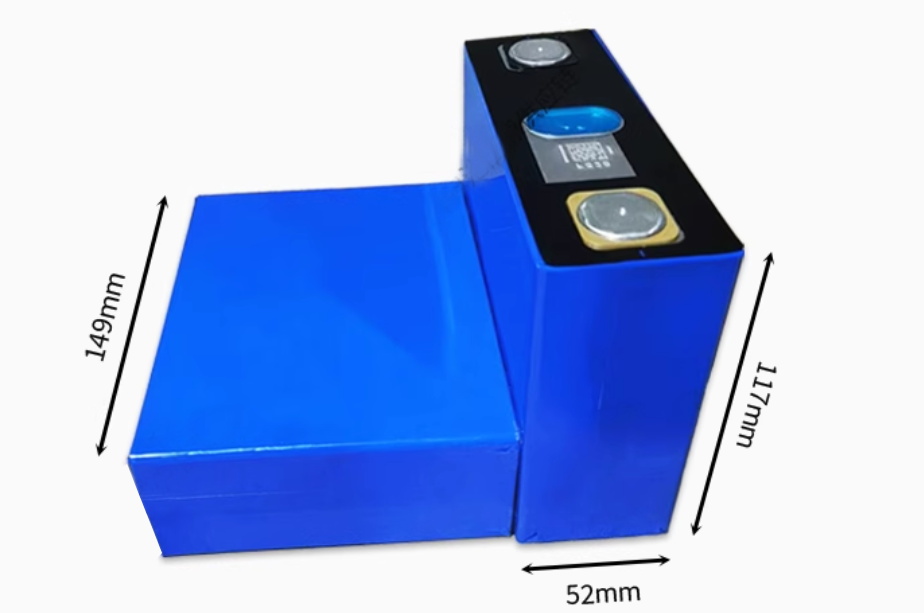

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
