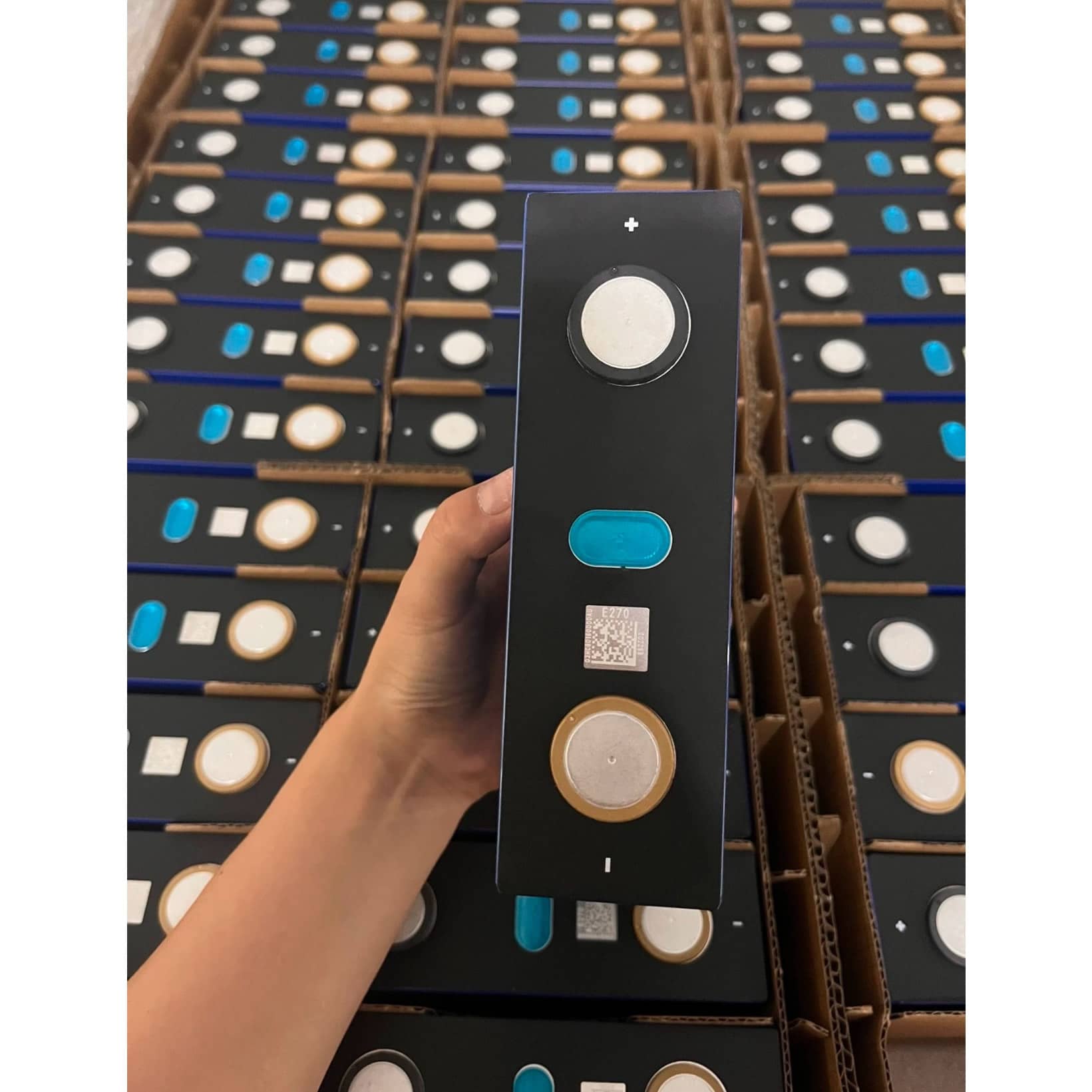

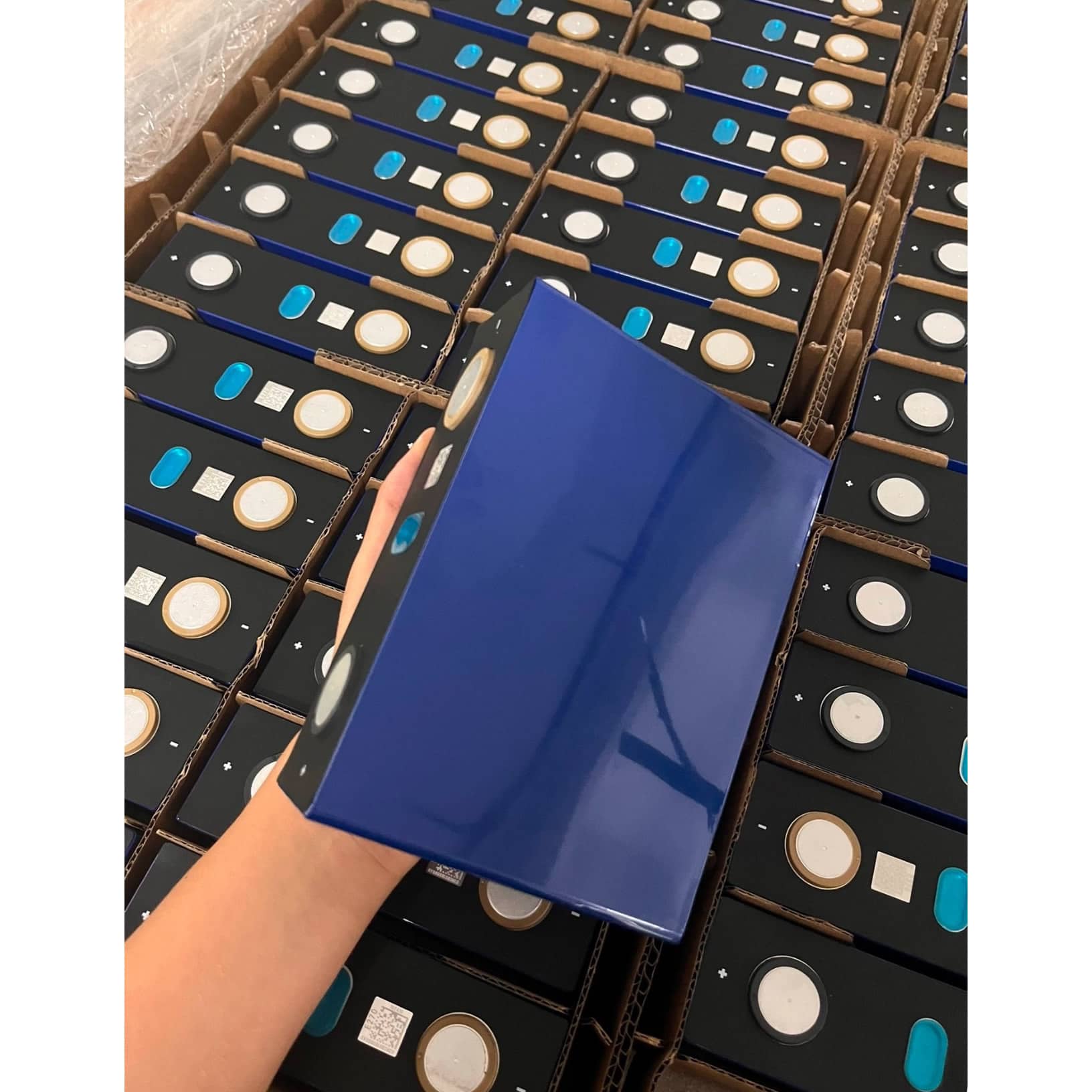

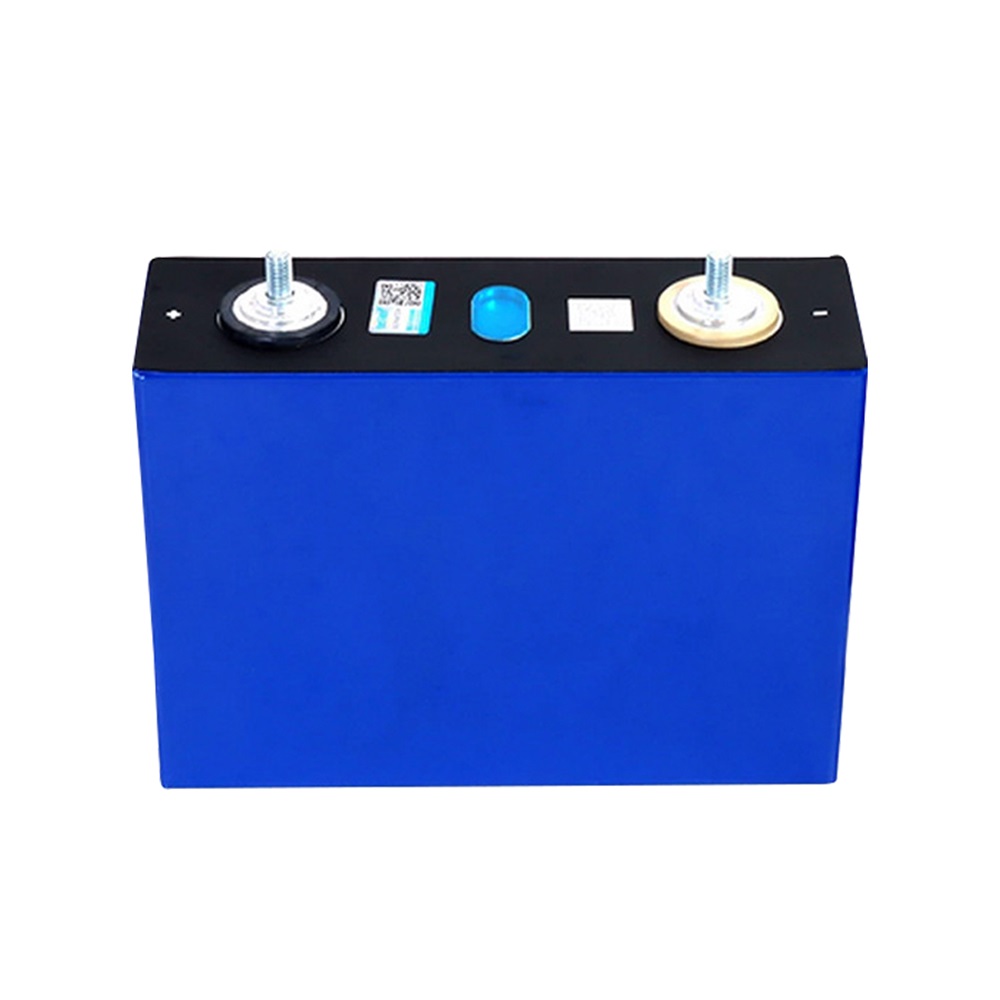

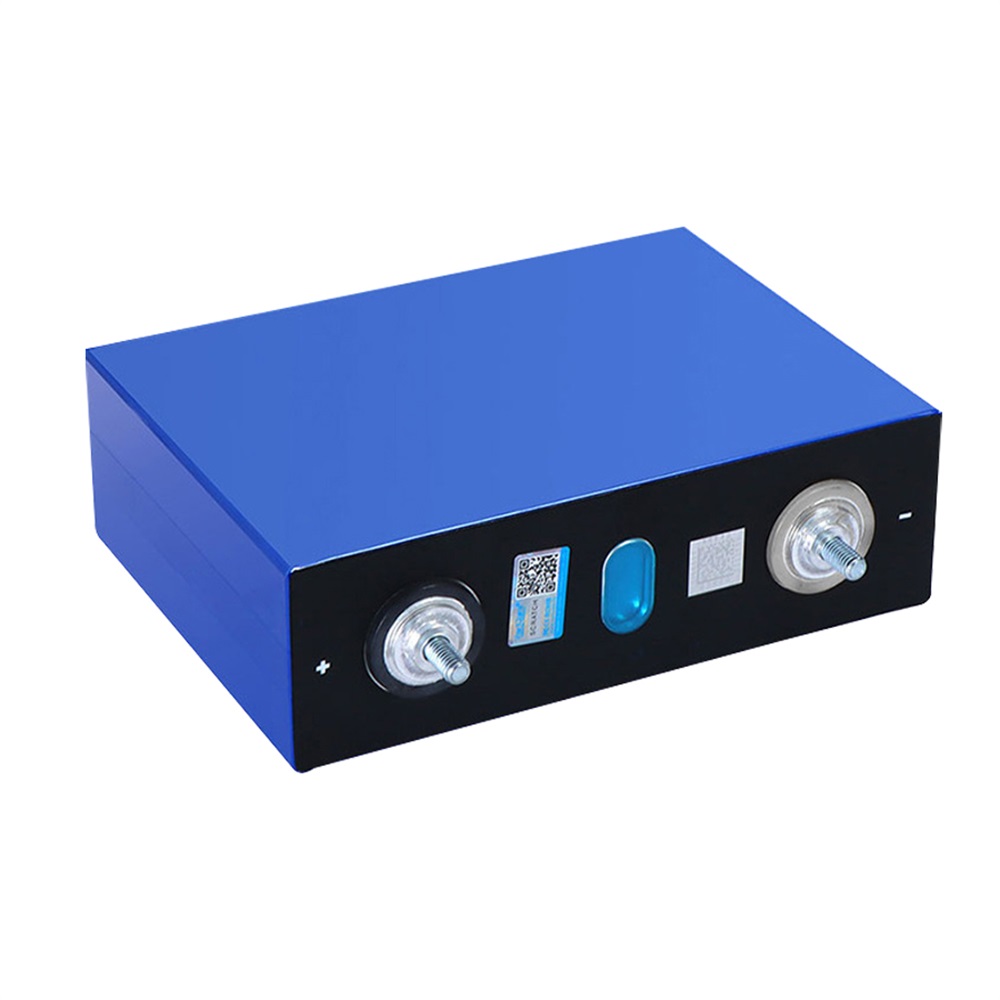

Gotion LiFePO4 3.2V 102Ah Battery Cell
Product Details:
Place of Origin: China
Brand Name: Gotion
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 102Ah Nominal Voltage: 3.2V
- Internal Impedence: 0.27mΩ≤R≤0.4mΩ Operating Voltage: 2.0～3.65V
- Dimension: 160(W)*49.9(T)*118.5(H)mm Battery Weight: 1926g±30g
Product Description
Gotion LiFePO4 3.2V 102Ah Cell that stands out for its high energy density, long cycle life, and safe design. This model has a capacity of 102Ah and offers a strong 1C discharge rate (102A). It provides high performance in industrial energy storage, solar energy systems, and electric vehicle battery packs.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- 1.The big capacity 3.2V 102Ah prismatic LiFePO4 battery cell with good performance.
- 2. Nice performance on safety:It is almost the safest lithium battery type recognized in this industry.
- 3. Lithium iron phosphate is a new type of electrode material for lithium-ion batteries. It is characterized by large discharge capacity, low price, non-toxicity and no environmental pollution.
- 4. Specially designed for power supply application like EV.
- 5. long cycle life more than 3000times@80%DOD
- 6. 1C charging and 2C discharging rate
Specification
| Parameter | Specification | Condition |
|---|---|---|
| Capacity | 102Ah | |
| Nominal Voltage | 3.2V | 0.33C |
| Charge and Discharge Voltage Range | 2.0～3.65V | >0℃ |
| 1.8～3.65V | ≤0℃ | |
| Weight | 1926g±30g | |
| Mass Energy Density | 168Wh/kg | 0.33C/0.33C |
| Volume Energy Density | 350Wh/L | 0.33C/0.33C |
| AC-Internal Resistance | 0.27mΩ≤R≤0.4mΩ | 25℃±2℃ |
| DC-Internal Resistance | 0.5mΩ≤R≤1mΩ | 50%SOC, 25℃±2℃ |
| Charging Temperature Range | 0℃～55℃ | |
| Discharging Temperature Range | -30℃～60℃ | Maximum cell temperature ≤60℃ |
| Optimum Operating Temperature | 10℃～35℃ | |
| Conventional Charging(slow) | 31A | 10℃≤T<45℃ |
| Step Charging (Fast) | 1C | 20℃≤T<45℃ |
| Cycle Life | 3000 | 80%DOD, 25℃, 1C |
| Calendar Life | 9 Years | 80%DOD, 25℃, 50%SOC |
| Thickness | (49.9±0.5)mm | 200kgf, 17%SOC |
| Dimension | 160(W)*49.9(T)*118.5(H)mm |
Dimension and Details
Electrical Performance Diagram
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
