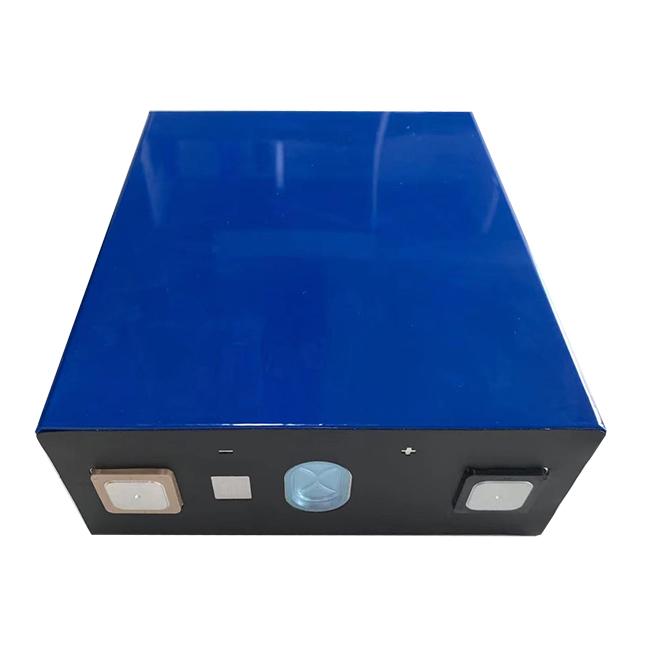

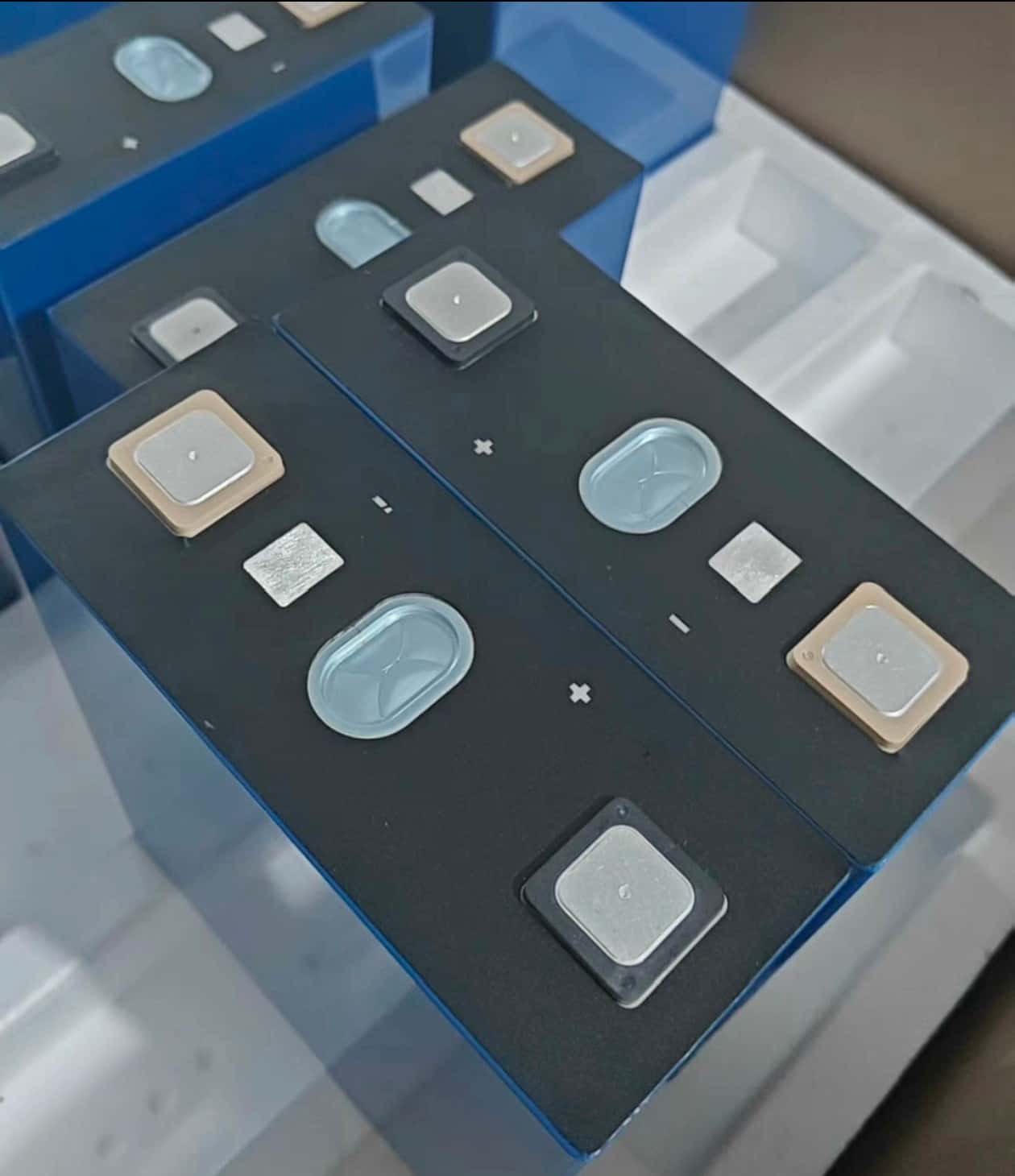

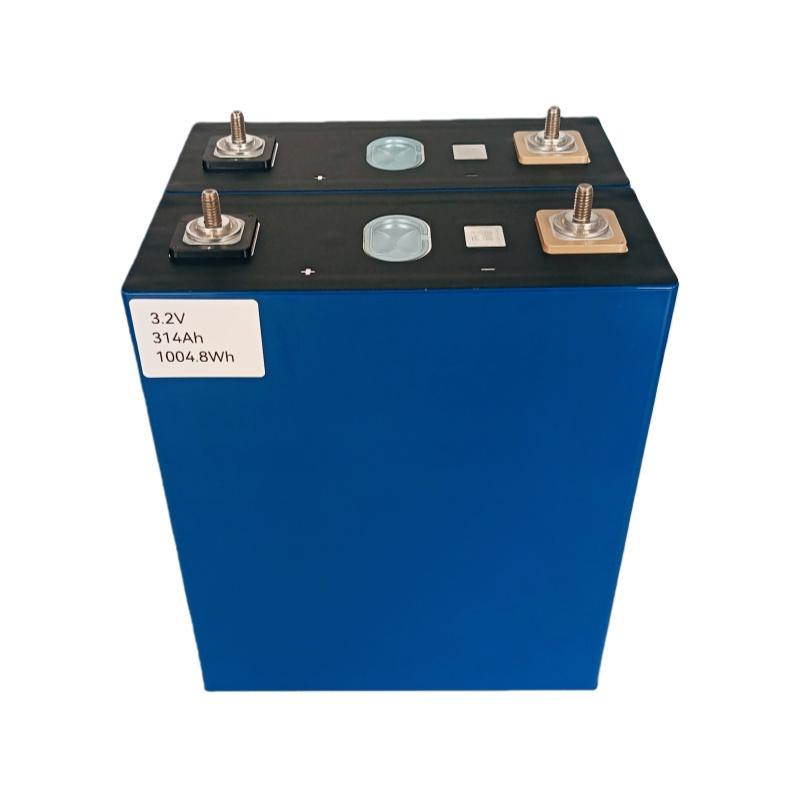

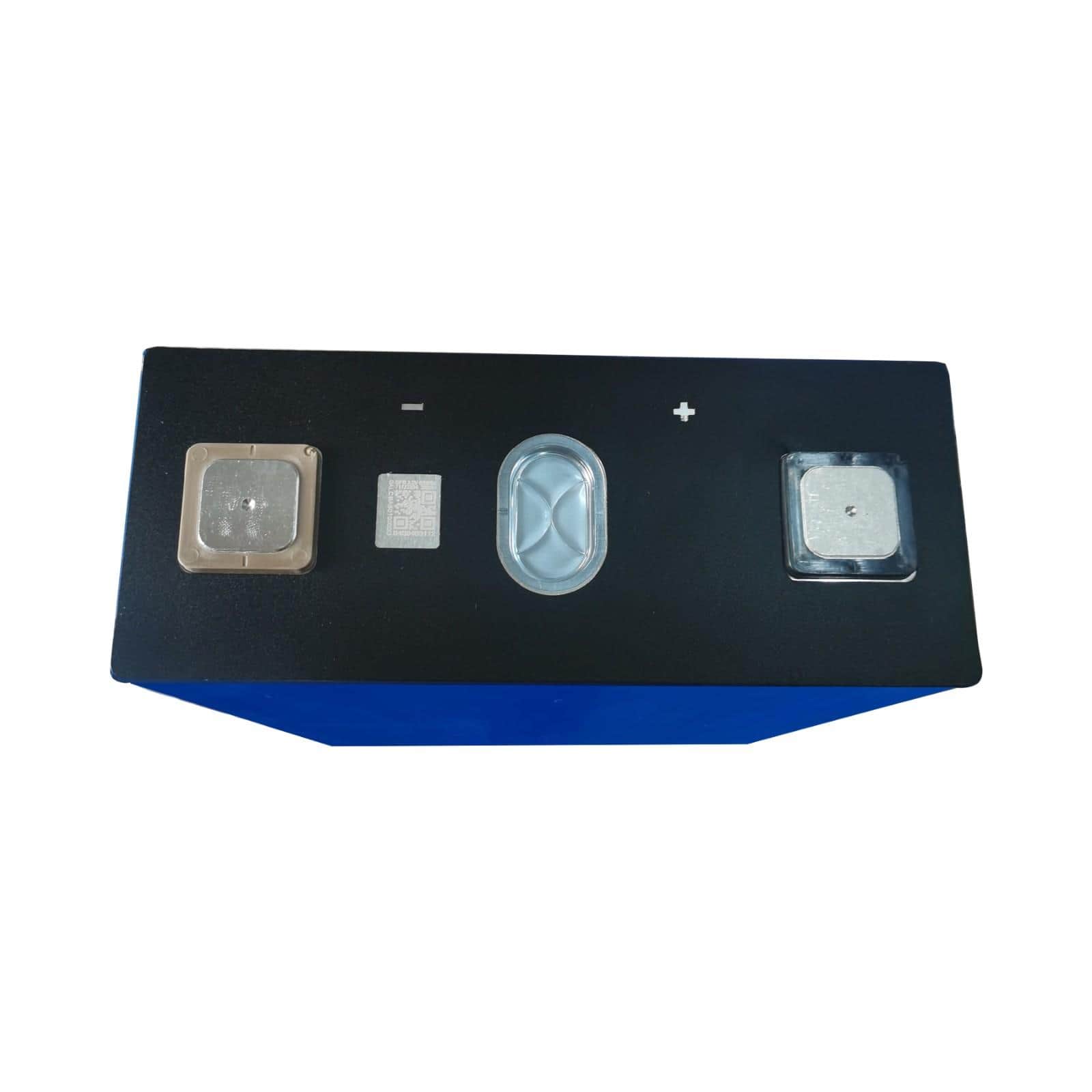

Ganfeng Lithium Battery 3.2V 314Ah LiFePO4 Cell
Product Details:
Place of Origin: China
Brand Name: Ganfeng
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 314.0Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.25mΩ Operating Voltage: 2.50V~3.65V
- Dimension: 174.2(W)*71.8(T)*207.1(H)mm Battery Weight: 5.65±0.15Kg
Product Description
The Ganfeng Lithium Battery 3.2V 314Ah LiFePO4 cell integrates high energy efficiency, superior safety, long lifespan, and excellent consistency. Even under high cycling conditions, it maintains an energy efficiency of over 96%. With the same volume, it offers a larger capacity, increasing volumetric energy density by 12%. This not only reduces the cost per kilowatt-hour of energy storage systems but also helps improve customers’ operational returns.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Parameter | Specification |
|---|---|
| Nominal Capacity | 314.0Ah |
| Impedance (1KHz) | ≤0.25mΩ |
| Shipping SOC | 5%~40% SOC |
| Operating temperature (charging) | 0~60℃ |
| Operating temperature (discharge) | -30~60℃ |
| Optimum charging and discharge temperature | 20~30℃ |
| Storage temperature | -30℃-45℃ One month -20℃~35℃ Six months |
| Weight | 5.65±0.15Kg |
| Self-discharge | ≤3.5%/month |
| Cell dimension | 174.2(W)*71.8(T)*207.1(H)mm |
| Standard charge current | 0.5C |
| Maximum charge current (continuous) | 1.0C |
| Standard charge voltage | Cell max voltage 3.65V |
| Standard charge temperature | 25±2 ℃ ambient temperature |
| Absolute charge temperature (Cell temperature) | 0~60℃ |
| Absolute charge voltage | 3.65V max. |
| Standard discharge current | 0.5C |
| Maximum discharge current (continuous) | 1.0C |
| Discharge cut-off voltage | 2.50V, 0℃＜T≤60℃ 2.00V, -20℃≤T≤0℃ |
| Standard discharge temperature | 25±2 ℃ |
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
