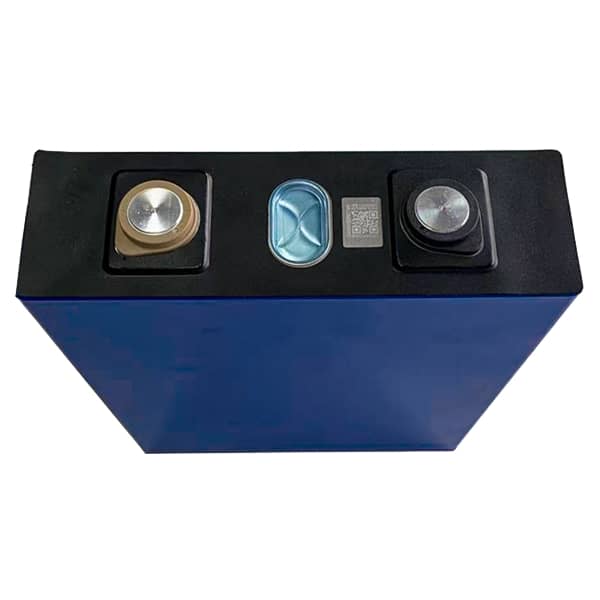

Ganfeng Lithium Battery 3.2V 206Ah LiFePO4 Cell
Product Details:
Place of Origin: China
Brand Name: Ganfeng Battery
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: Original custom carton boxes
Payment Terms: T/T
- Nominal Capacity: 206Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.40mΩ Operating Voltage: 2.5~3.65V
- Dimension: 173.7*53.8*207.1mm Battery Weight: 4.20Kg
Product Description
This battery is a high-performance power battery specifically designed for the pure electric bus market, with a rated capacity of ≥206Ah, an energy density of ≥160Wh/kg, and a cycle life of over 4,000 cycles. Its technical specifications reach a leading level.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- Low weight, High capacity
- Extended Cycle life
- Low Self Discharge
- Superior Cranking Power
- Completely Sealed
- Environmental
- Various DIY styles
Specification
| Item | Parameter Specification | |
|---|---|---|
| Nominal Capacity | 206Ah | |
| Operating Voltage | 2.5~3.65V | |
| Internal Resistance | ≤0.40mΩ | |
| Shipping Capacity | 3~30% SOC | |
| Operating Temperature（Charging） | 0~60℃ | |
| Operating Temperature (Discharging) | -20~60℃ | |
| Charging (CC-CV) | Standard charging current | 0.5C |
| Standard charging voltage | 3.65V | |
| Max continuous charging current | 1C | |
| Discharging | Standard discharge current | 0.5C |
| Maximum Discharging Current (Continuous) | 1C | |
| Maximum Pulse Discharging Current (Long Pulse) | 2C | |
| Maximum Pulse Discharging Current (Short Pulse) | 3C | |
| Storage Humidity | < 70% | |
| Battery Weight | 4.20Kg | |
| Shell Material | Aluminum | |
| Cell Dimensions | 173.7*53.8*207.1mm | |
| Cycled Capacity (80%DOD) | 3000cycles (0.5C, 25±2℃) | |

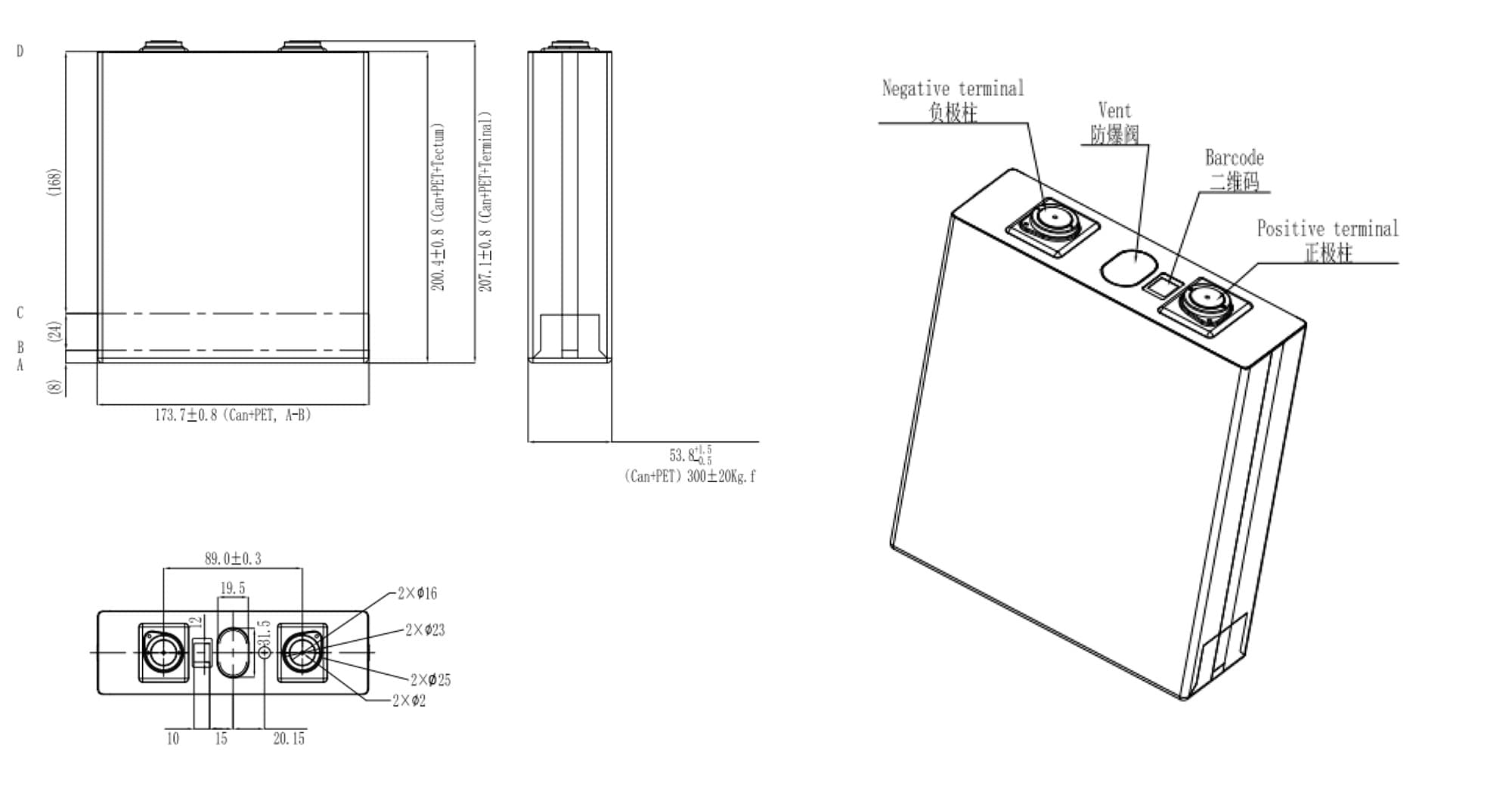

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
