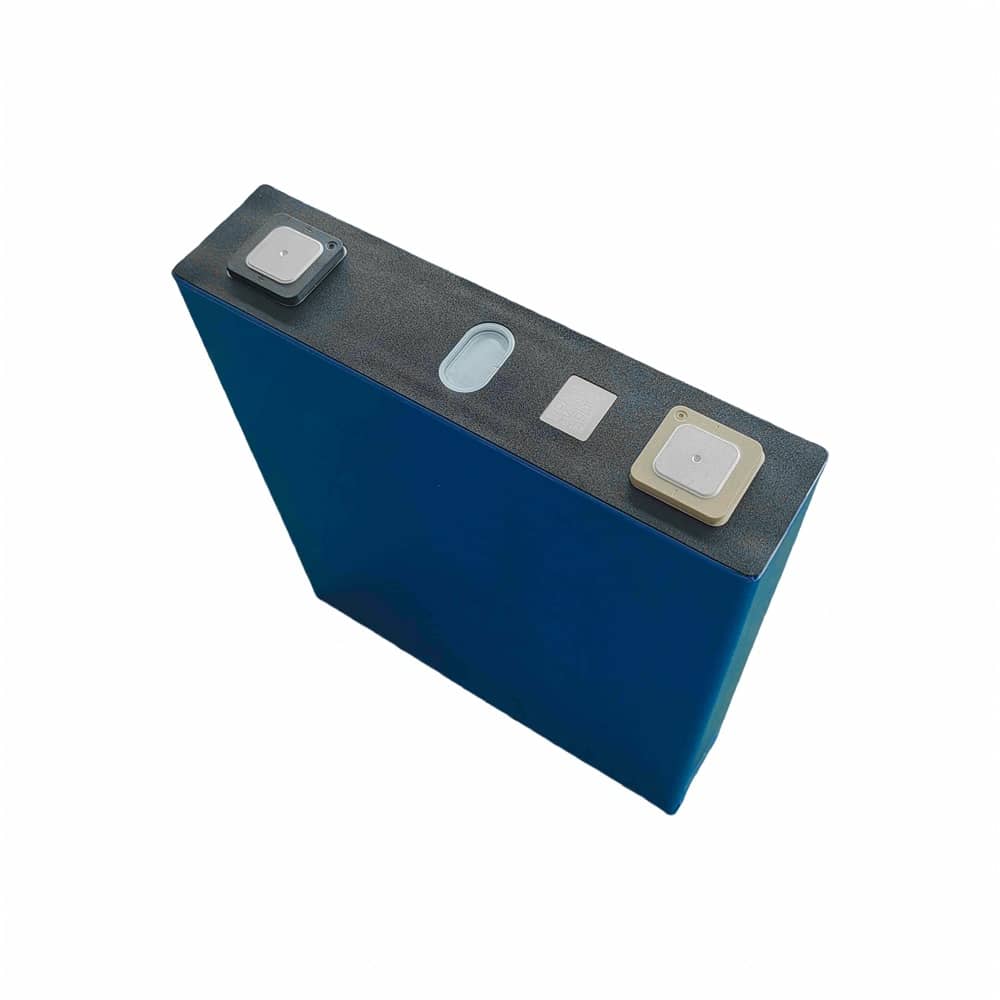

Ganfeng Lithium Battery 3.2V 173Ah LiFePO4 Cell
Product Details:
Place of Origin: China
Brand Name: Ganfeng
Certification: CE
Model Number: 41173204-173Ah
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 173Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.40mΩ Operating Voltage: 2.50V~3.65V
- Dimension: 174.2*40.9*207.1mm Battery Weight: 3.23±0.10Kg
Product Description
100% brand new, grade-A Ganfeng Lithium Battery 3.2V 173Ah LiFePO4 Cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- Low weight, High capacity
- Extended Cycle life
- Low Self Discharge
- Superior Cranking Power
- Completely Sealed
- Environmental
Specification
| Item | Parameter |
|---|---|
| Nominal Capacity | 173Ah (25±2℃) |
| Typical Voltage | 3.2V |
| Impedance Resistance (1KHz) | ≤0.40mΩ |
| Standard Charge / Discharge Current | 0.5C/0.5C |
| Standard Charge Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.50V (0℃＜T≤60℃) 2.00V (-20℃≤T≤0℃) |
| Max. Continuous Charge / Discharge Current | 1C/1C |
| Standard Charge / Discharge Temperature | 25±2 ℃ ambient temperature |
| Optimum Charging and Discharge Temperature | 20~30℃ |
| Operating Charging Temperature | 0~60℃ |
| Operating Discharging Temperature | -30~60℃ |
| Storage Temperature | -30℃-45℃(One month) -20℃~35℃(Six months) |
| Self-Discharge | ≤3.5%/month Fresh cell after 3 months, 40%SOC, 25±2°C Storage |
| Dimension（W*T*H） | 174.2±0.8*40.9±0.5*207.1±0.8mm |
| Weight | 3.23±0.10Kg |
| Cycle Life at 25℃ | 3000 Cycles@138.4Ah, 1C, 25±2°C |

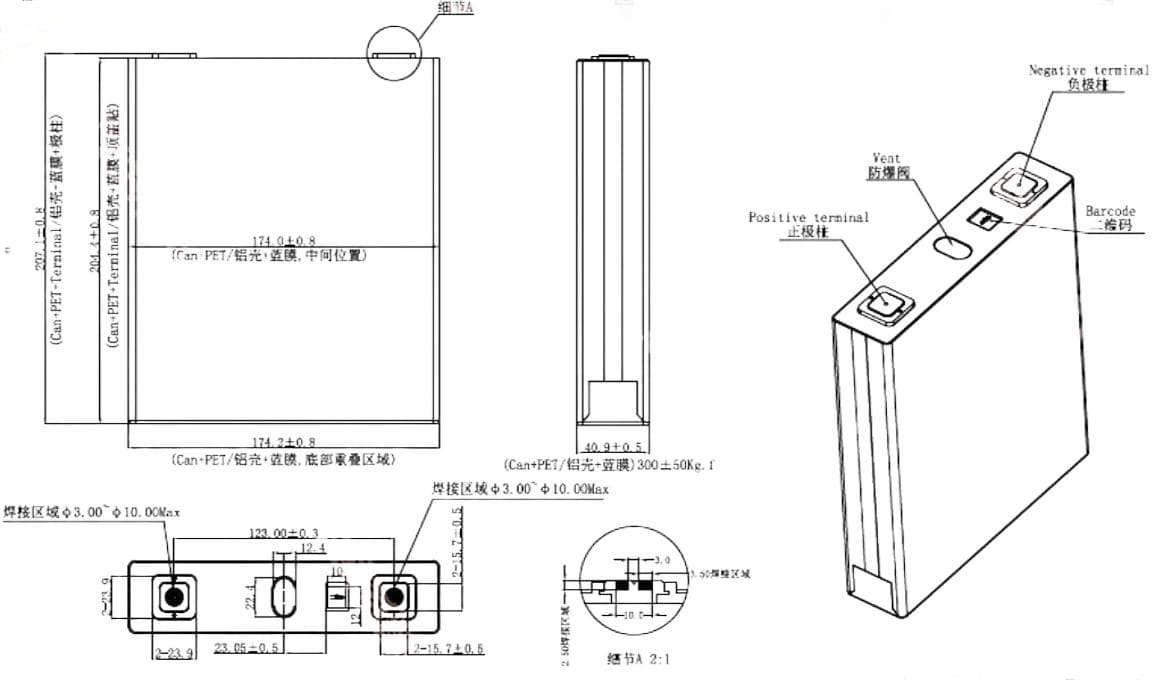

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
