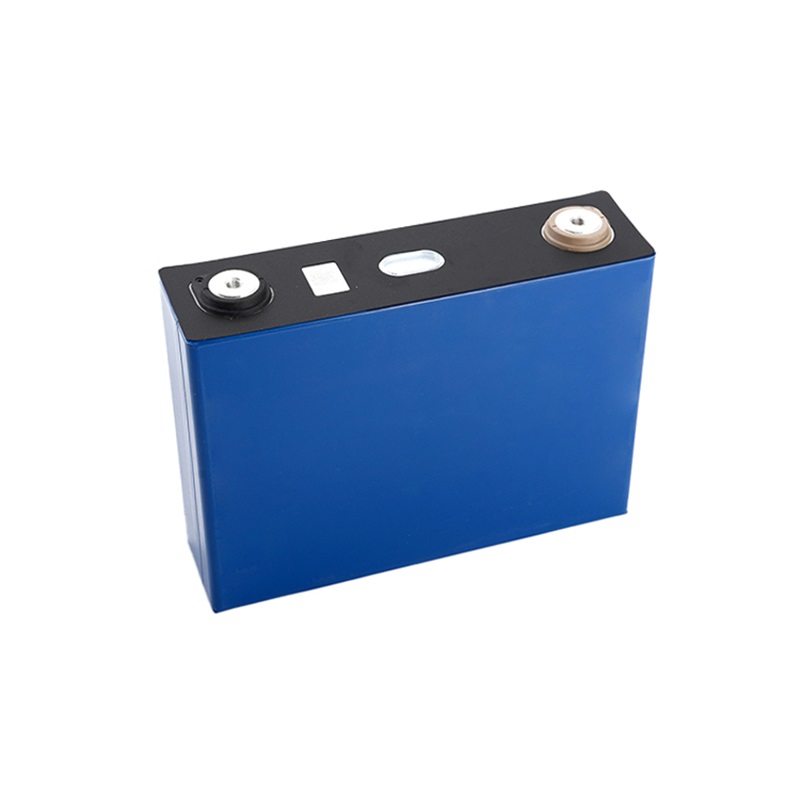

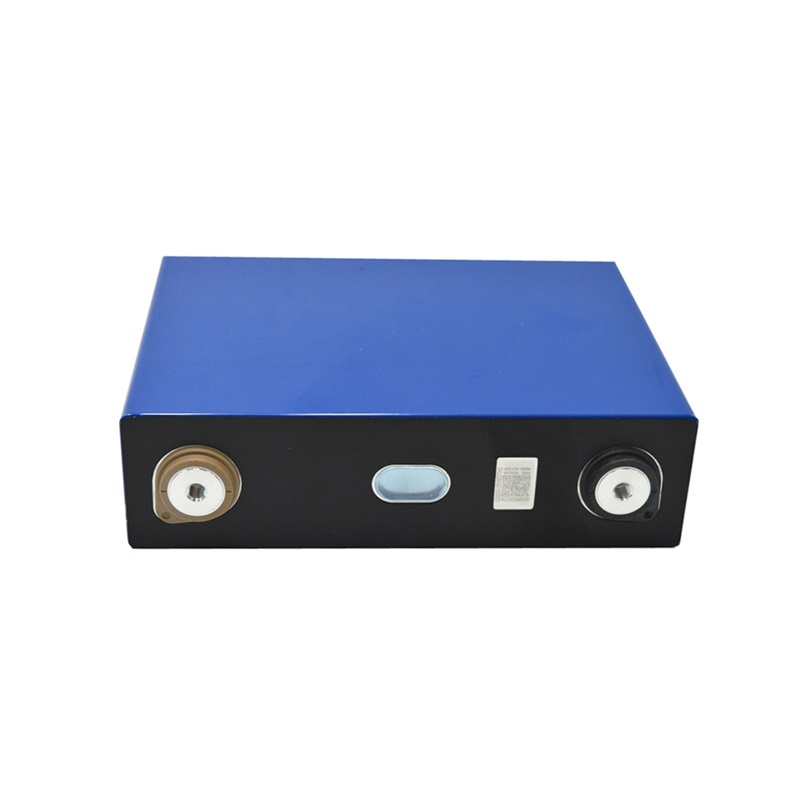

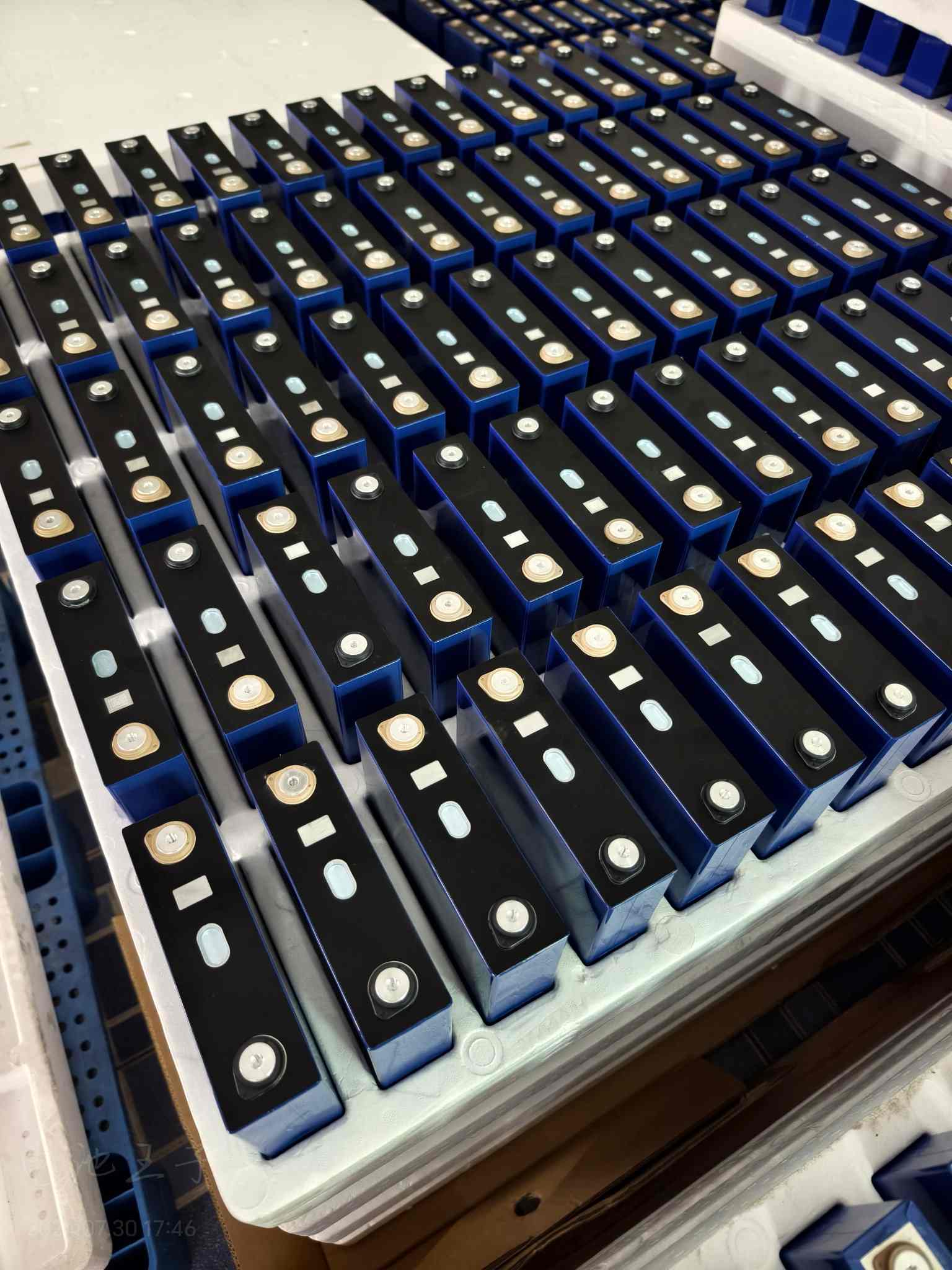

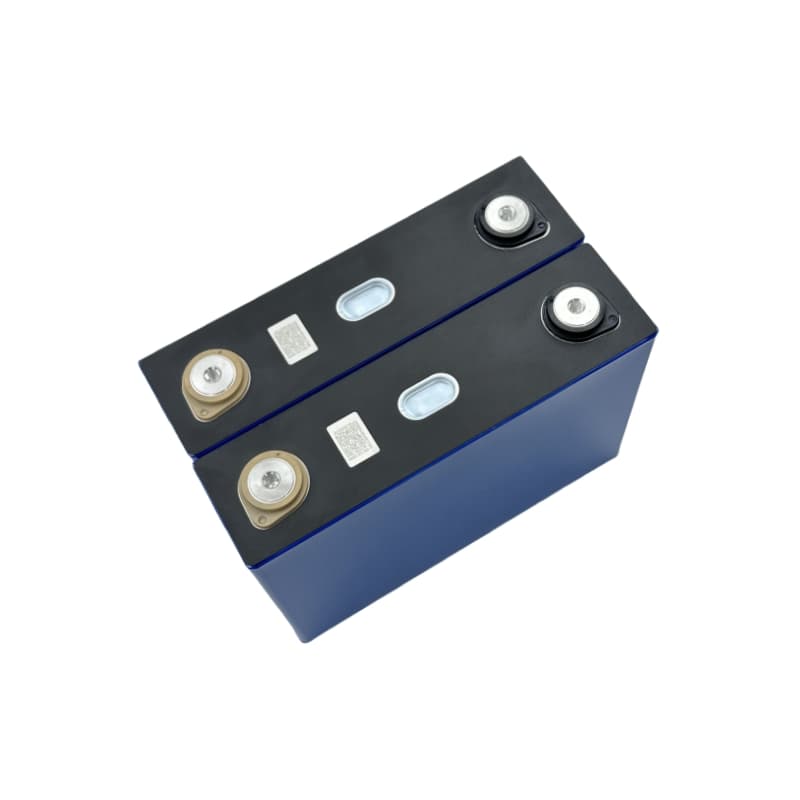

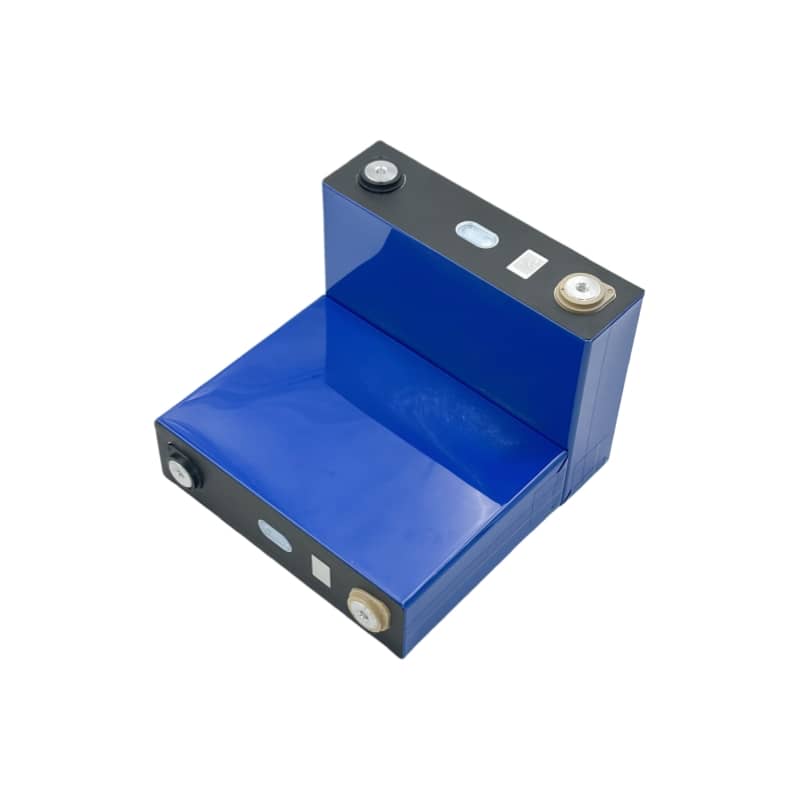

Ganfeng 100Ah 3.2V LiFePO4 Battery Cell
Product Details:
Place of Origin: China
Brand Name: Ganfeng
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: Original custom carton boxes
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤0.4mΩ Operating Voltage: 2.5~3.65V
- Dimension: 48*173.9*132.2mm Battery Weight: 2.3kg
Product Description
The Ganfeng 100Ah 3.2V LiFePO4 Battery Cell offers high capacity, long cycle life, and exceptional safety, making it ideal for solar energy storage systems, electric vehicles, and backup power applications. With a nominal voltage of 3.2V and energy storage of 320Wh, it delivers stable performance and reliability for both residential and industrial use. Its lithium iron phosphate chemistry ensures thermal stability and consistent output over thousands of cycles.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- 1. High capacity and stable discharge voltage
- 2. Longer working time with high performance
- 3. Light weight with small size
- 4. Outstanding discharge properties and small internal resistance
- 5. No memory effect, good discharge ability and high load and resist high temperature
- 6. Pollution free for environmental protection
- 7. 100% Authentic original li-ion rechargeable battery
- 8. Bulid-in anti-explosion protection and circuit protection
- 9.Long cycle life more than 4000 times
- 10.Good consistency, low self discharge
Specification
| Item | Parameter |
|---|---|
| Typical Capacity | 100Ah |
| Operating Voltage | 2.5~3.65V, 0℃<T≤60℃ 2.0~3.65V, -20℃<T≤0℃ |
| Impedance(1KHZ) | ≤0.4mΩ |
| Shipping capacity | 3~30% SOC |
| Operating temperature(charging) | 0~60℃ |
| Operating temperature(discharging) | -20~60℃ |
| Self-discharge | ≤3.5%/month |
| Standard charge current | 0.5C |
| Standard charge voltage | Cell max voltage 3.65V |
| Maximum charge current(continuous) | 1C |
| Standard charge method | CC/CV |
| Standard charge temperature | 25±2℃ |
| Absolute charge temperature (Cell temperature) | 0~60℃ |
| Absolute charge voltage | 3.65V |
| Standard discharge current | 0.5C |
| Maximum discharge current (continuous) | 1C |
| Maximum discharge current (long pulse) | 2C |
| Maximum discharge current (short pulse) | 3C |
| Discharge cut-off voltage | 2.5V, 0℃<T≤60℃ 2.0V, -20℃<T≤0℃ |
| Cell dimension | 48*173.9*132.2mm |
| Weight | 2.3kg |

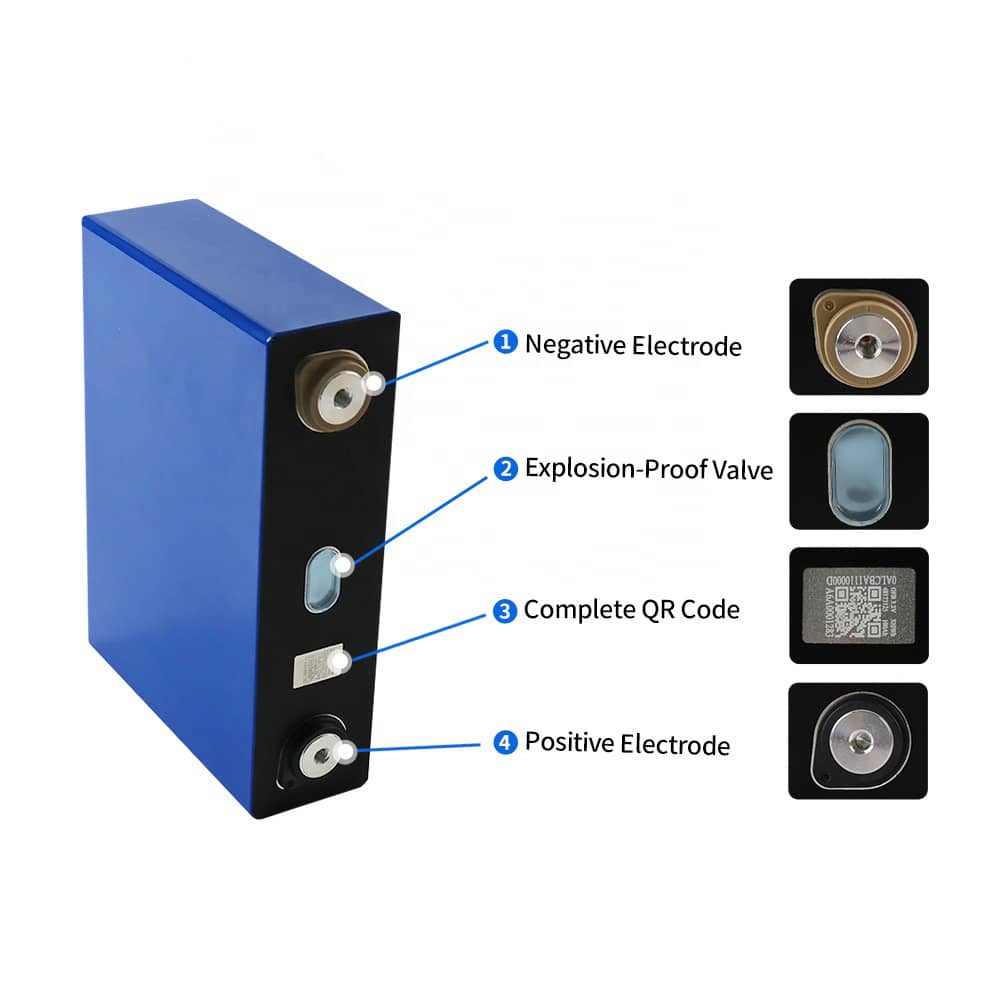

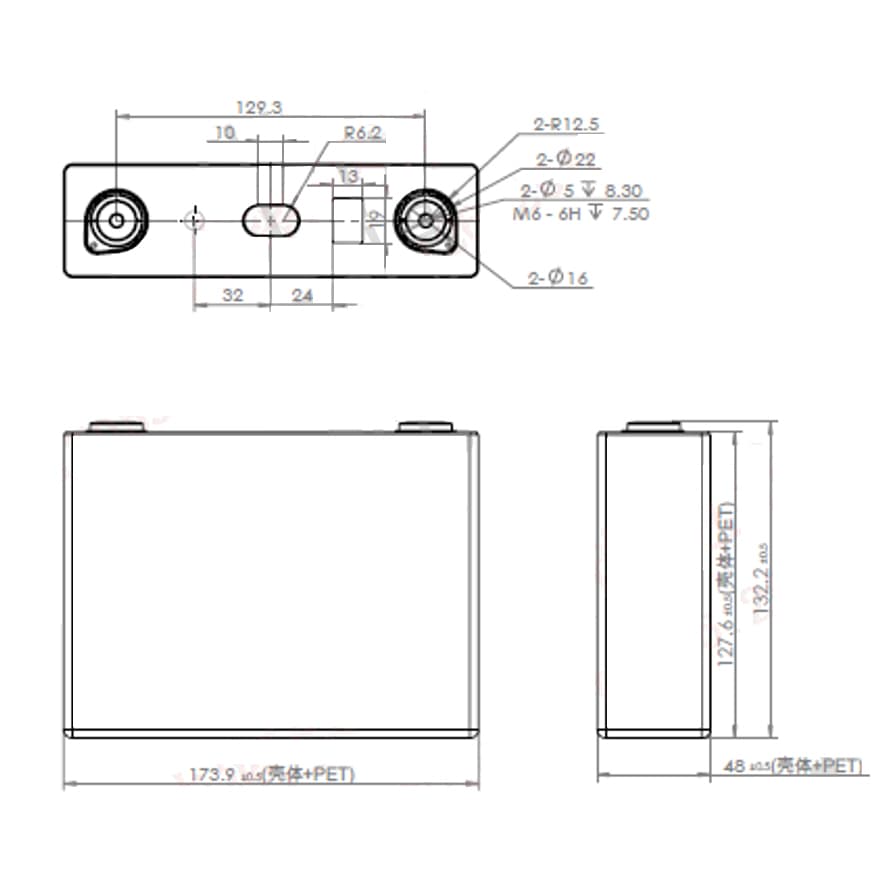

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
