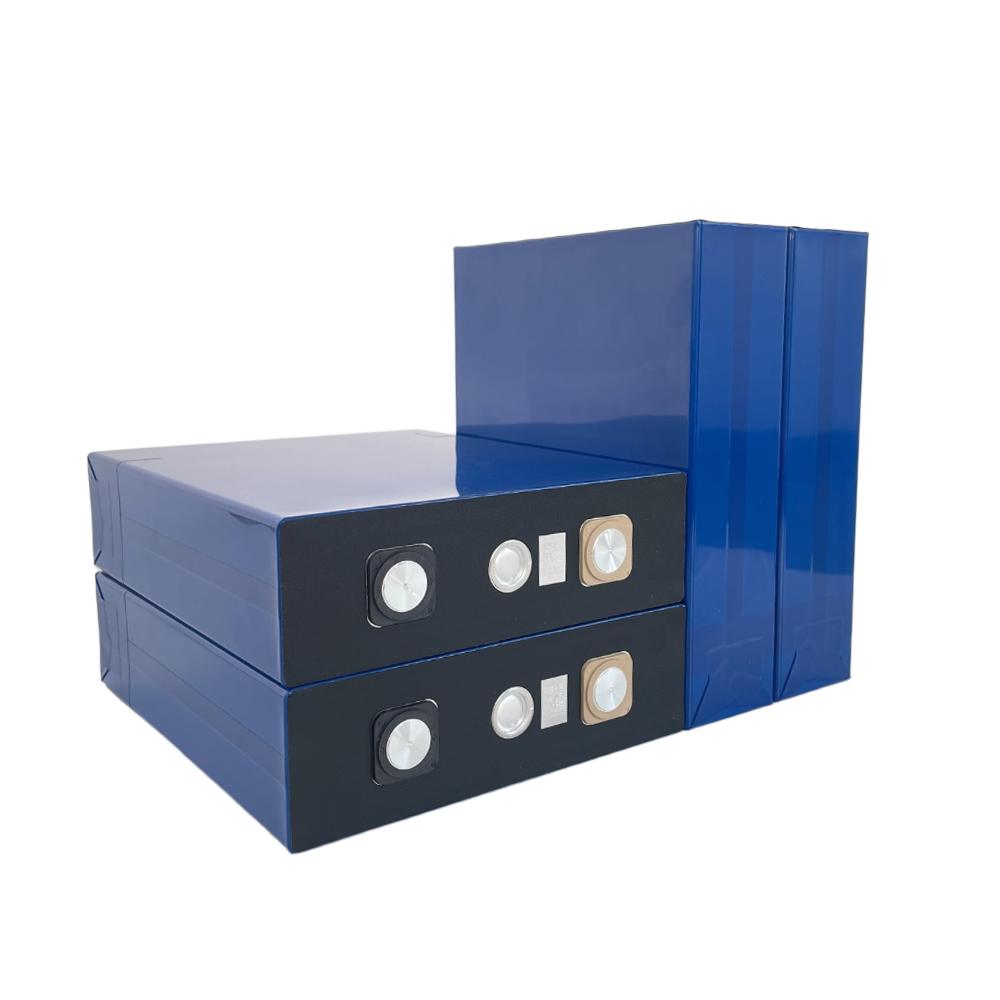

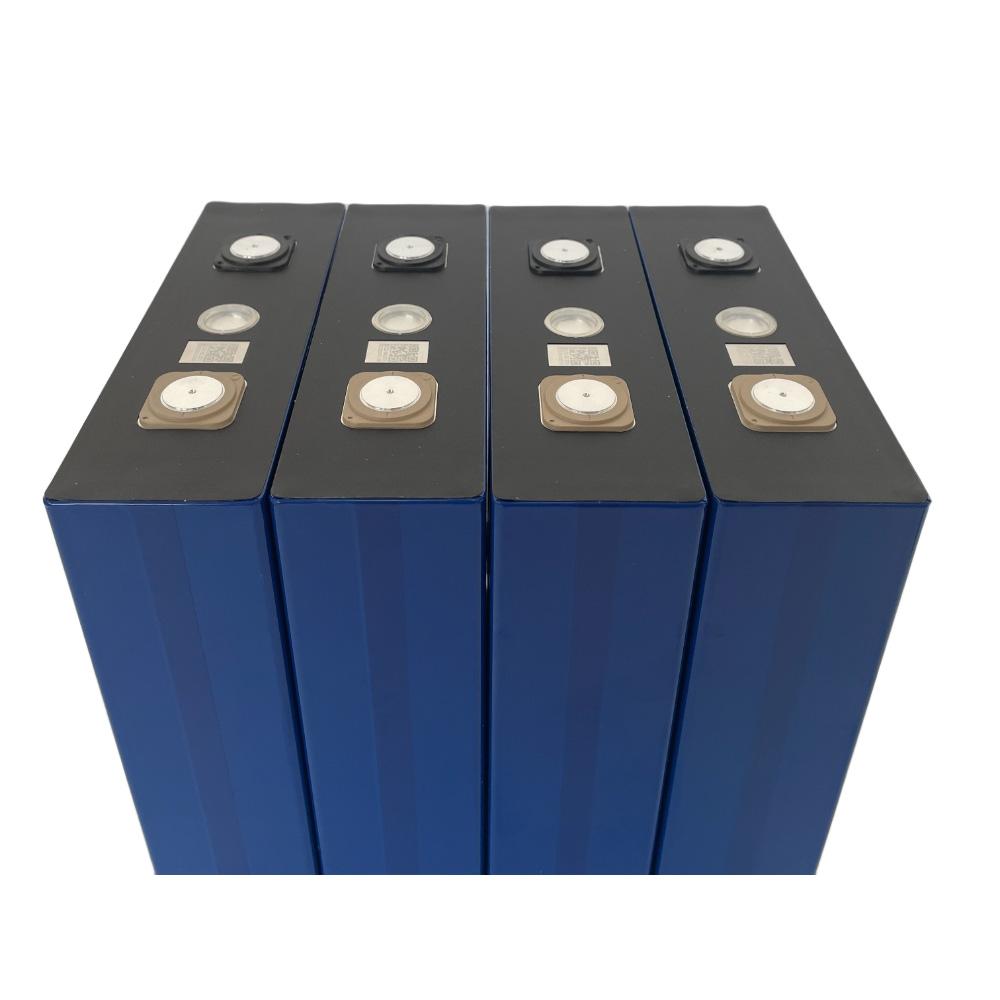

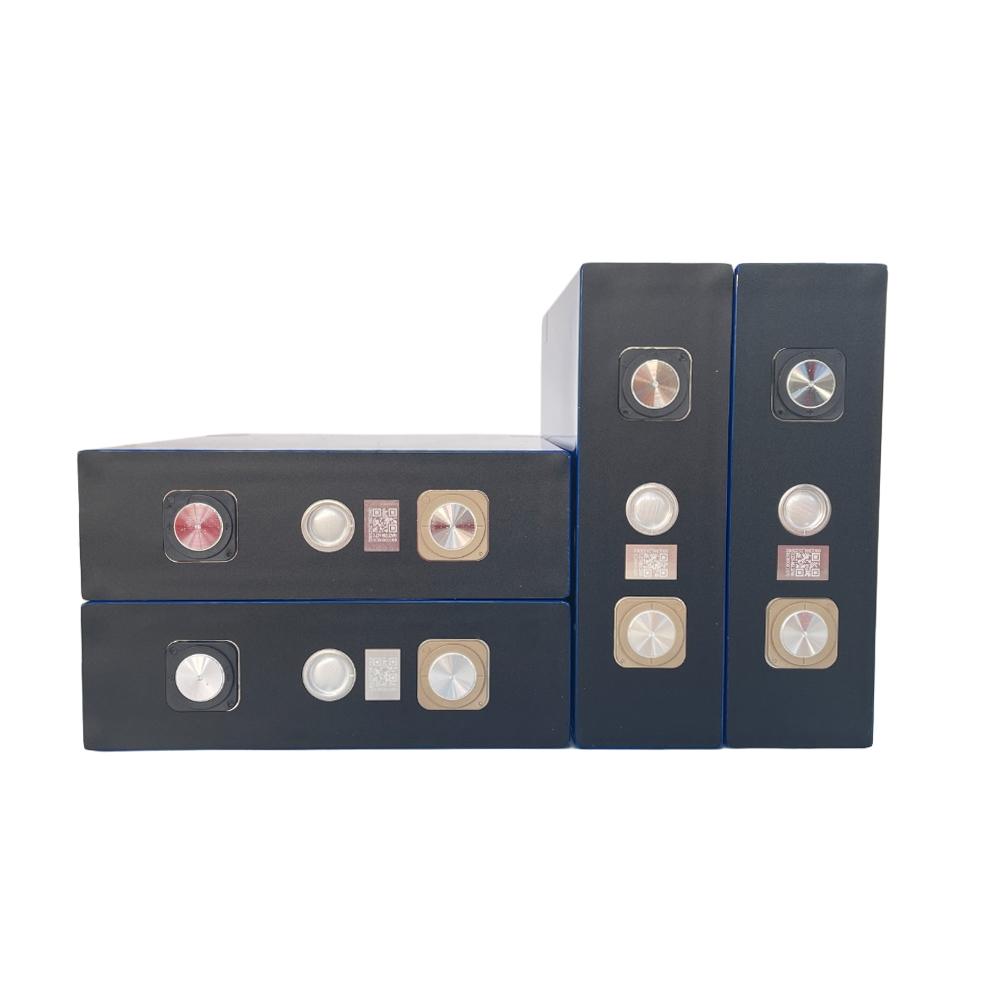

ETC 3.2V 206Ah LiFePO4 Battery Prismatic Cell
Product Details:
Place of Origin: China
Brand Name: ETC
Certification: CE
Model Number: EC-AU206-NAH3L0
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 206Ah Nominal Voltage: 3.22V
- Nominal Cycles: ≥3000 cycles Charge/Discharge: 1C/1C
- Dimension: 204.4x53.8x174.0mm Battery Weight: 4.0±0.2kg
Product Description

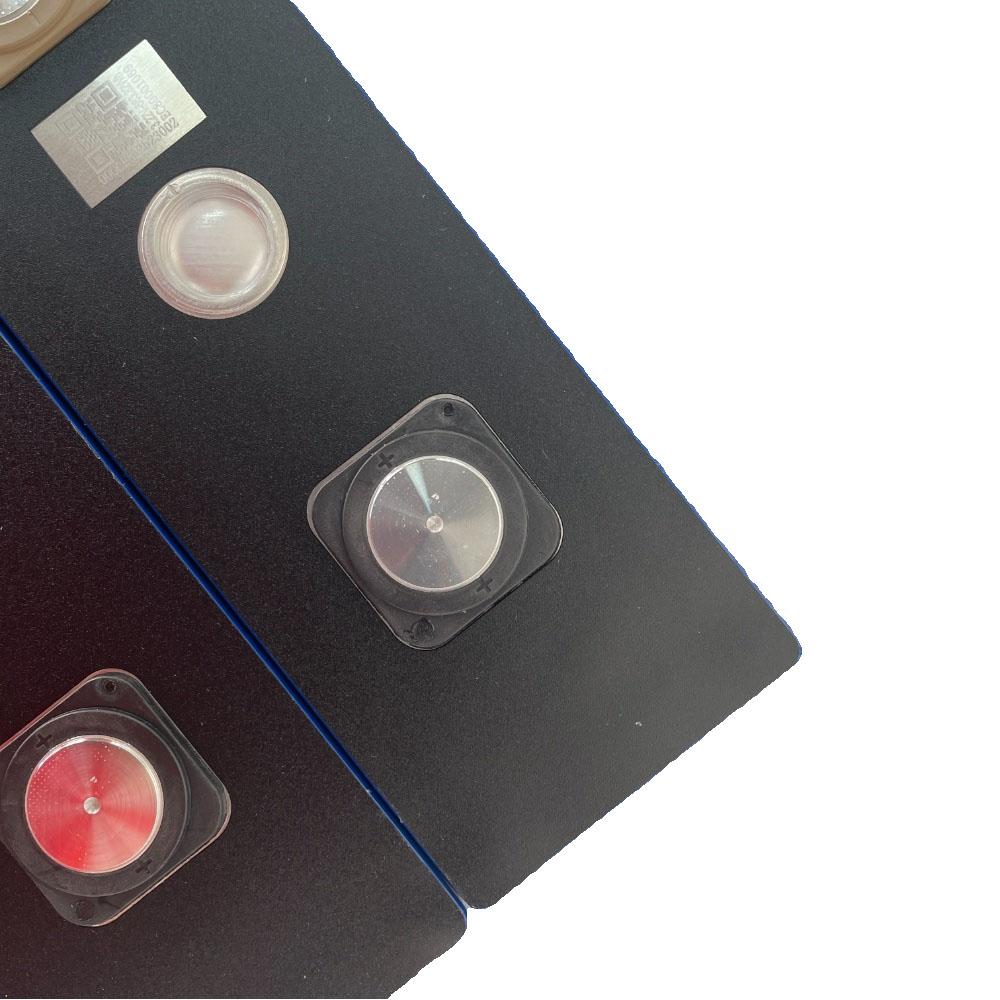

Thanks to advanced LFP technology, the ETC 206Ah LiFePO4 Battery offers exceptional safety, thermal stability, and up to ≥3000 cycles cycles—ensuring reliable performance for years to come. With low internal resistance, a high discharge rate, and M6 threaded terminals, it’s perfect for assembling custom 12V, 24V, or 48V battery banks. Each cell is brand-new, Grade A, and comes with a QR code for verification and traceability.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Specification
| Parameter | Specification | Remarks |
|---|---|---|
| Min. Capacity | 206Ah | 0.5C ,25±2℃ |
| Min. Energy | 662.12Wh | 1/3C , 25±2℃ |
| Initial IR | ≤0.4mΩ | 30%SOC |
| Nominal Voltage | 3.22V | 1/3C, 25±2℃ |
| Operating Voltage | 2.5V-3.65V 2.0V-3.65V |
T>0℃ T≤0℃ |
| Weight | 4.0±0.2kg | / |
| Standard charging current | 103.0A | 25±2℃ |
| Standard discharge current | 103.0A | 25±2℃ |
| Fast Charge Performance | 20min (3C ) | 10%~80%SOC, 25±2℃ |
| Dimension | (204.4±0.5)x(53.8±0.5)x(174.0±0.5)mm | / |
| Cycle Performance | ≥3000 cycles | At 25±2℃, 1C/1C, the residual capacity decays to 164.8Ah |
| Operating Temperature | 0-55℃ | Charging Temperature |
| 20-55℃ | Discharging Temperature | |
| Standard charging mode | At 25±2℃, the constant current of 103.0A is continuously charged to 3.65V, and the constant voltage is charged at 3.65V until the current is less than 10.3A | |
| Maximum charging current | At 25±2℃, 206.0A constant current continuous charging | |
| Standard discharge mode | 25±2℃, full charge using 1.3.1 standard charging mode, 103.0A constant discharge to 2.5V, discharge cut-off | |
| Maximum discharge current | 206.0A constant current continuous discharge at 25±2℃ | |

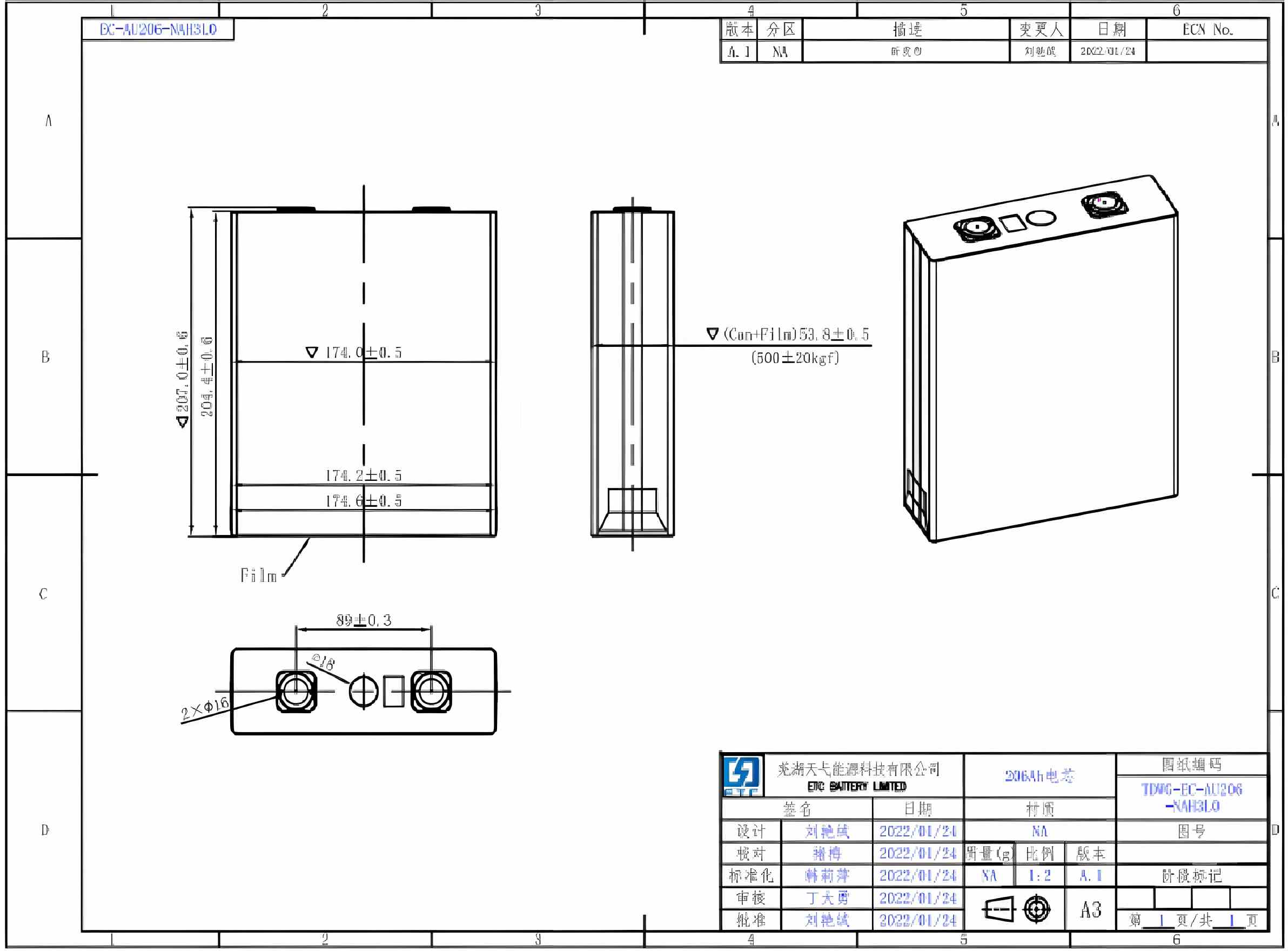

Dimension and Details

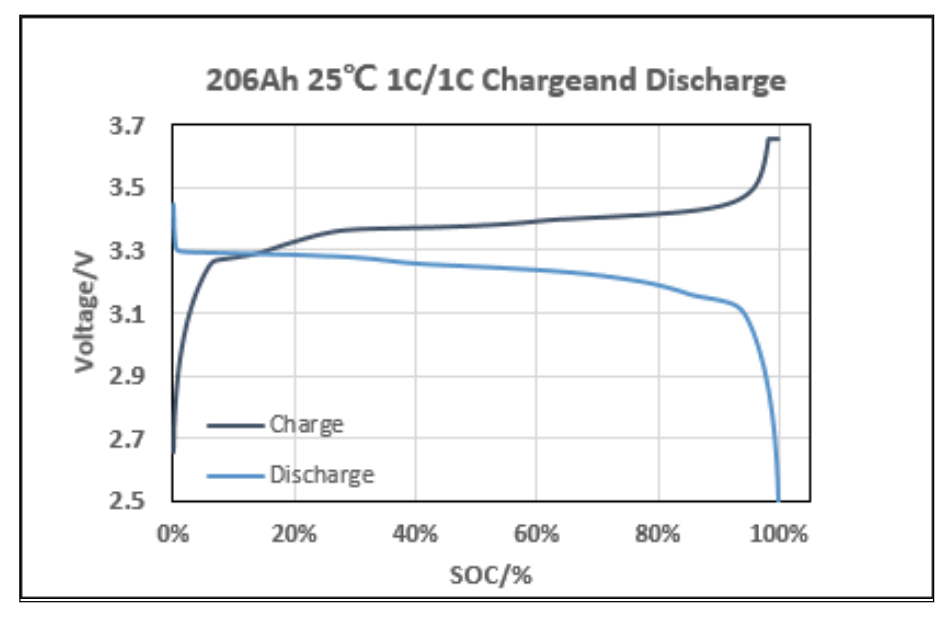

Electrical Performance Diagram
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
