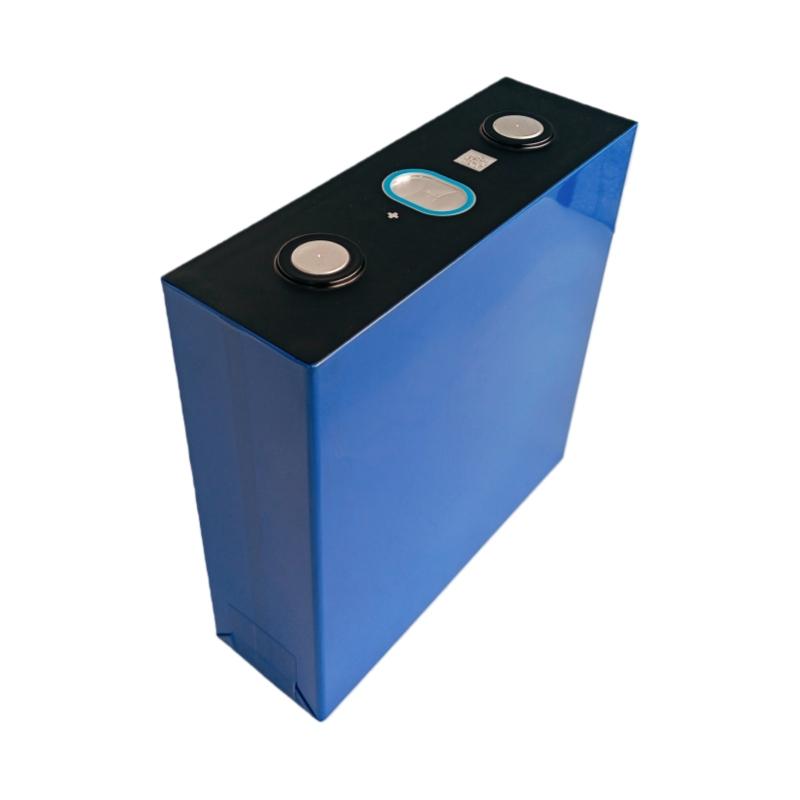

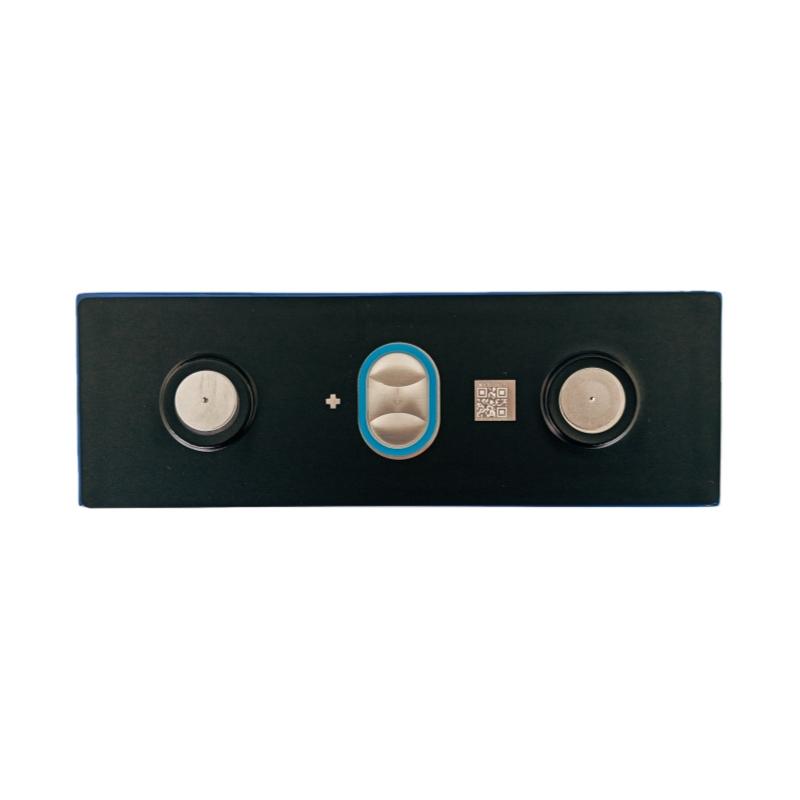

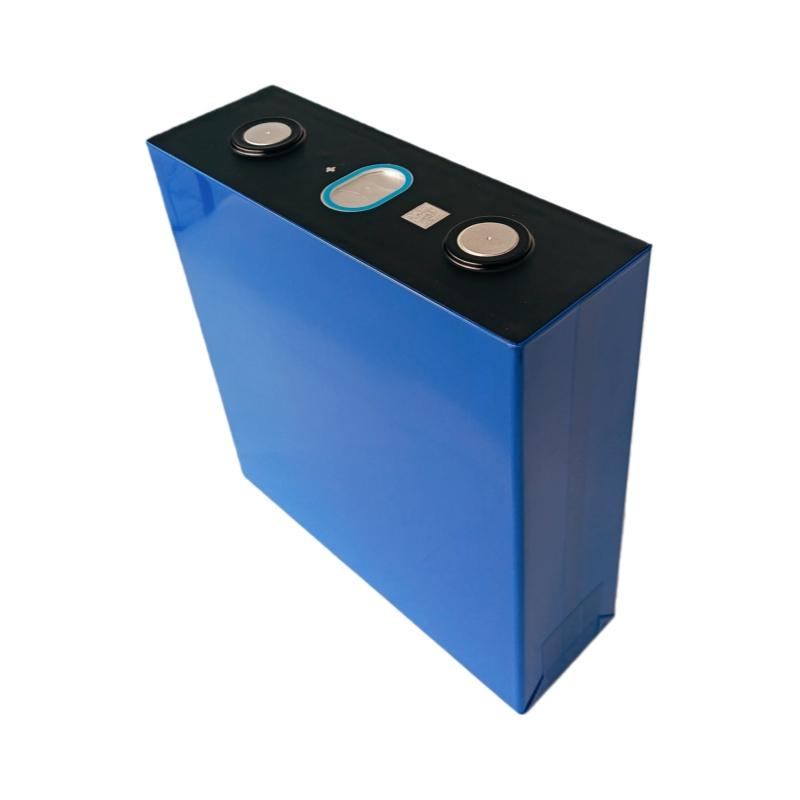

CORNEX 3.2V 472ah High Capacity LiFePO4 Battery Cell

The 4th generation 472Ah battery cell inherits the multi-dimensional advantages of the 314Ah battery, including high reliability, stability, safety, consistency, and long cycle life. Its single-cell nominal energy breaks through to 1510.4Wh, a 50% increase over the 314Ah battery cell, with an energy density of 195Wh/kg. Additionally, customers can opt for two advanced technologies: cathode pre-lithium (extending the battery cycle life to 15,000 cycles) and high-temperature optimization (maintaining efficient performance at 35°C). These features make the battery suitable for diverse global applications.

For 1500V platform systems, integrating the 472Ah battery enables a 20-foot standard container to achieve a 6.28MWh solution, expandable up to 6.9MWh. This represents a nearly 40% increase in system energy, a 20% reduction in land use for hundred-megawatt-hour applications, and over 20% lower comprehensive costs, delivering significant economic benefits. Additionally, to accommodate the next-generation high-voltage photovoltaic storage systems, the 20-foot system is designed with technical scalability. Through the optimization and upgrading of core components, it can be flexibly expanded into a flagship version featuring a 2000V platform and a 20-foot single-container capacity of 7.06MWh. This advancement accelerates the realization of the Energy Storage 3.0 era, characterized by “large capacity, high voltage, and ultra-integration.”

Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories.  Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.

Product Features

• High Reliability
  314Ah material system translation
  314Ah production line process translation
• High Performance
  195Wh/kg high energy density
  Equipped with double - sided ceramic coated separator as standard
• Long Cycle
  Positive electrode lithium supplement, 15,000 times ultra - long cycle
  Equivalent to 35°C high - temperature cycle
• High Compatibility
  20ft - 6.28&6.9MWh compatible
  20ft - 1500&2000V compatible

Specification

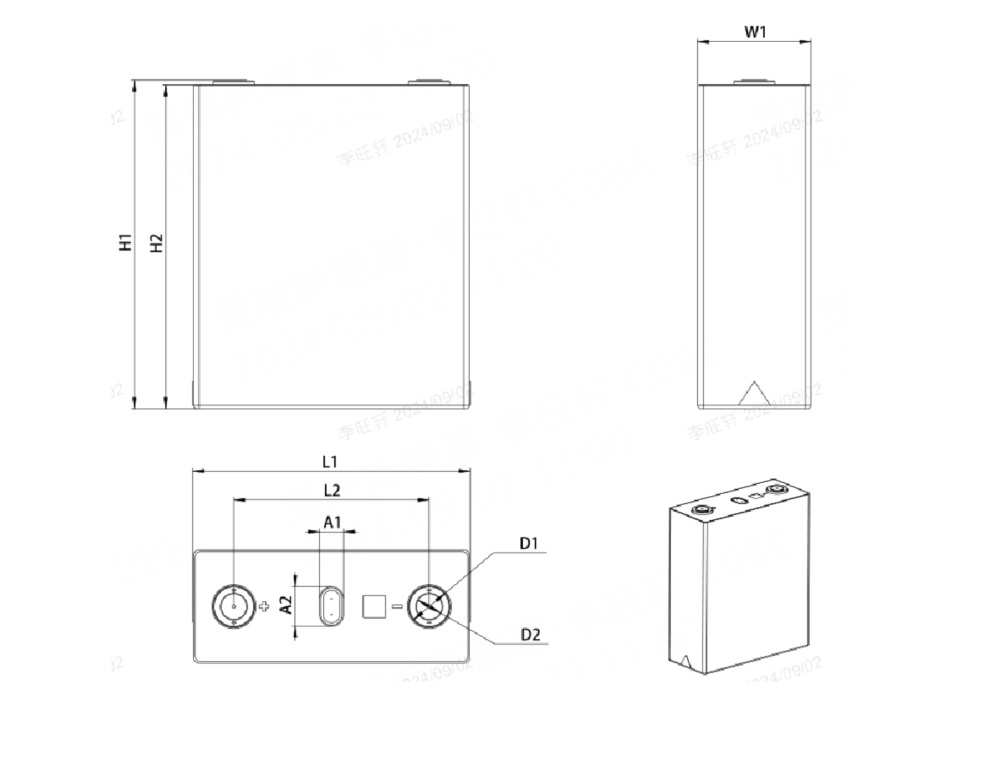

Dimension and Details

Note

1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.

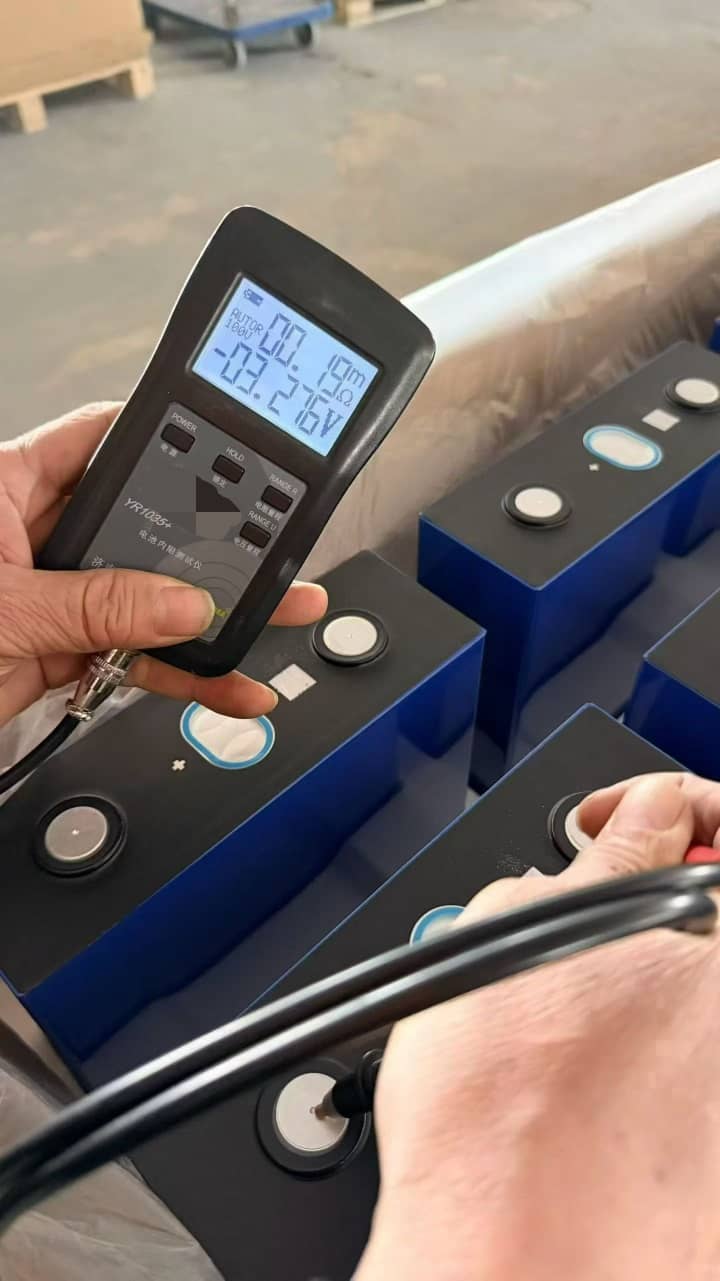

2.We will test all battery voltage, internal resistance and capacity before delivery.

3.100% Eco-friendly, will not cause pollution pressure to the environment
