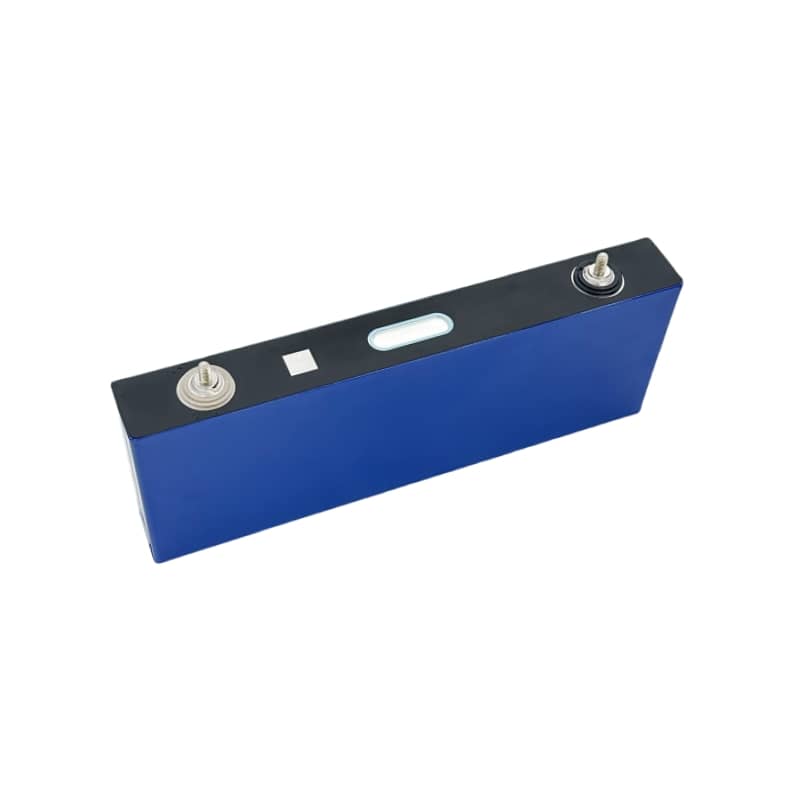

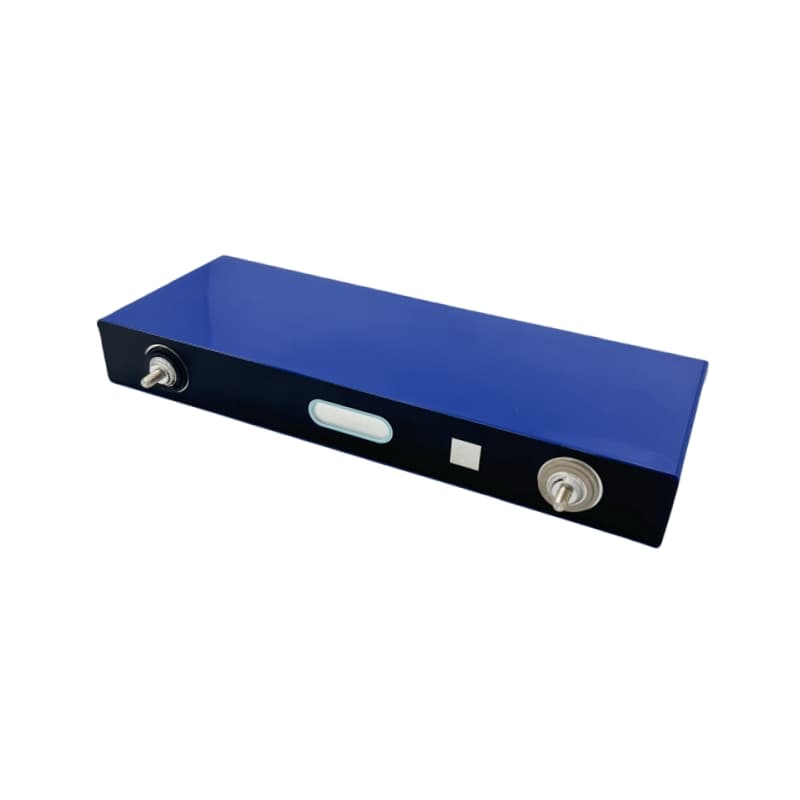

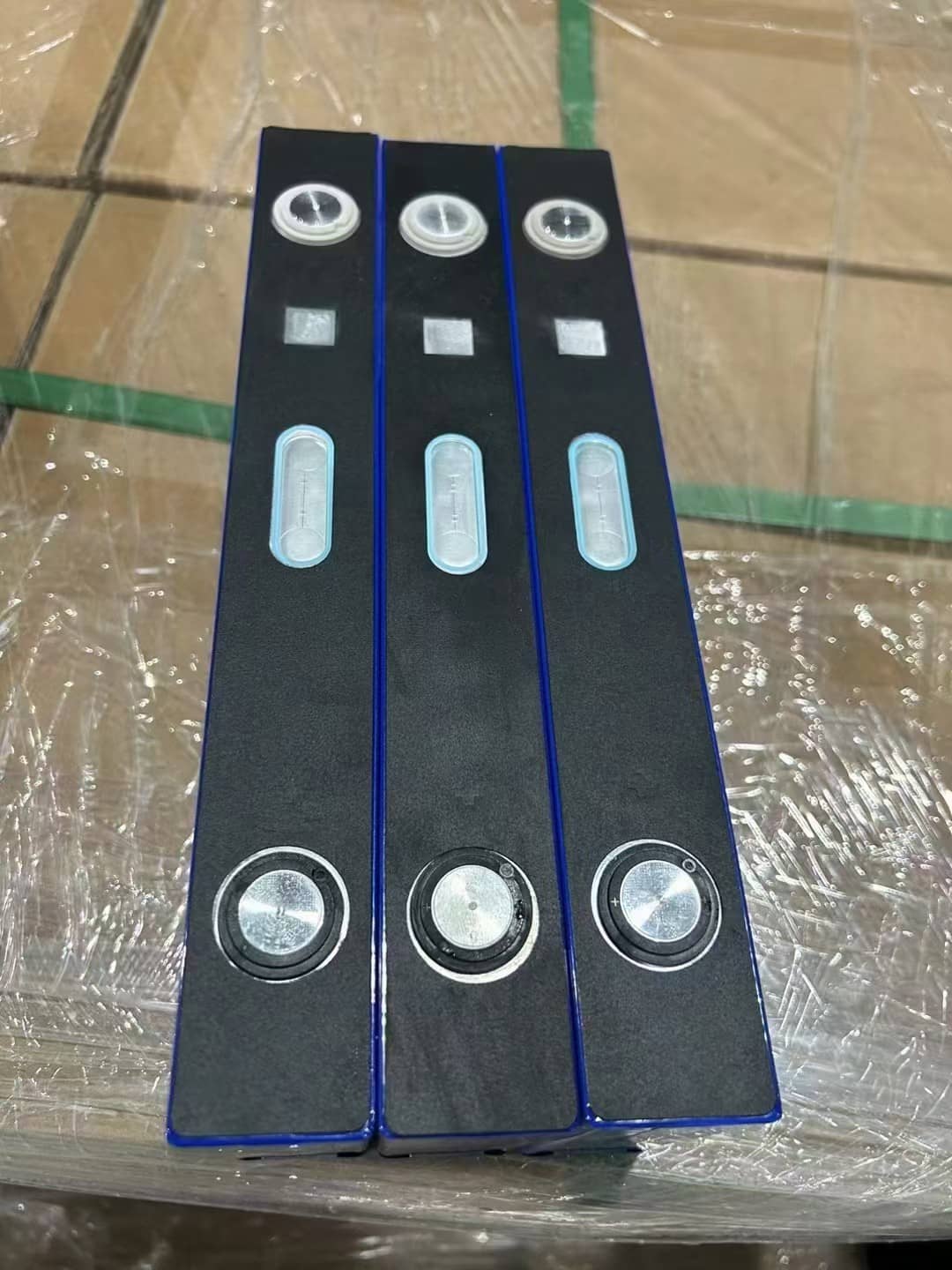

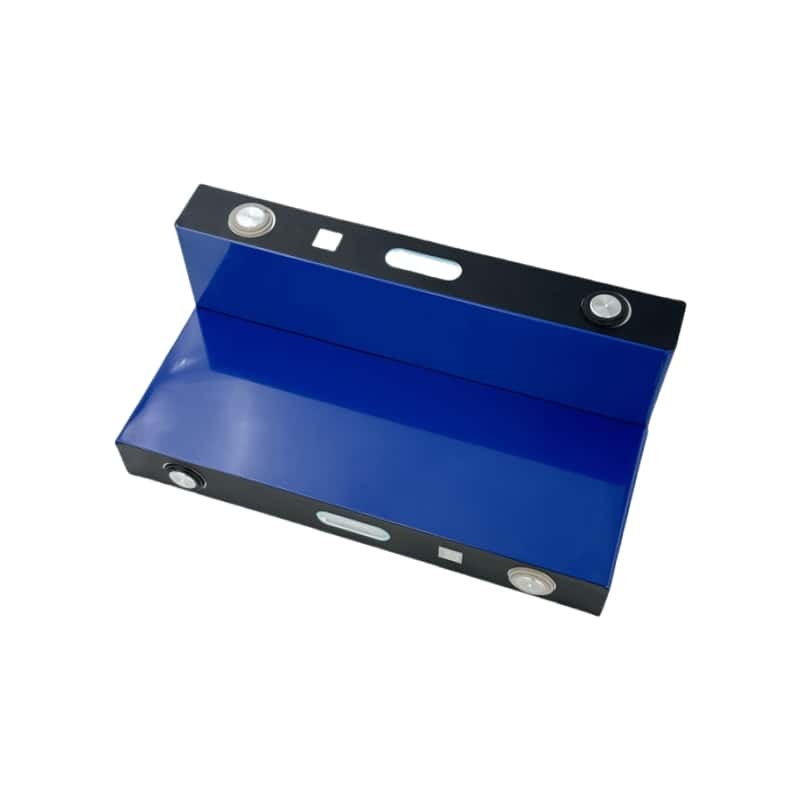

Cornex 3.2V 166Ah LiFePO4 Battery Cell
Product Details:
Place of Origin: China
Brand Name: CORNEX
Certification: CE
Model Number: PF300-166A
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 166Ah Nominal Voltage: 3.22V
- Internal Impedence: ≤0.5mΩ Operating Voltage: 2.5V～3.65V
- Dimension: 39.2*300.7*113.5mm Battery Weight: 2.97kg±0.10Kg
Product Description
100% brand new, grade-A Cornex 3.2V 166Ah LiFePO4 Battery Cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- High Security, High Convenience
Cell material and structural safety optimization.
Anti-thermal runaway propagation system. - Long Service Life, Low Cost
Warranty for 6 years or 600,000 km. - Long Battery Life, High Availability
PED 190Wh/kg high-energy density lithium iron technologies.
Endurance covering 400~600+km.
Specification
| Item | Spec | Remark |
|---|---|---|
| Dimension | Thickness：39.2±0.5 mm Width：300.7±0.5 mm Shoulder height：110.8±0.5 mm Total height：113.5±0.5 mm |
|
| Weight | 2.97kg±0.10Kg | |
| Nominal voltage | 3.22V | 1/3C ，RT |
| AC internal Resistance | ≤0.5mΩ | RT ，1KHz |
| Nominal capacity | 166Ah | 1/3C ，RT ，2.5V-3.65V |
| Operation voltage | 2.5V～3.65V | >0℃ |
| 2.0V～3.65V | ≤ 0℃ | |
| Energy density (actual) | ~180Wh/kg | 1/3C ，RT |
| Delivery capacity （SOC） | 4%~50%，routine 30% | Adjustable |
| Maximum continuous charging current |
1.00C | 15℃~45℃ |
| Maximum pulse charging current |
2.0C | RT ，50%SOC ，10S |
| Maximum continuous discharging current | 1.5C | -30℃~55℃ |
| Maximum pulse discharging current | 3.0C | RT ，≥10% SOC ，60s |
| Cycle life | ≥2500 Cycles（80%EOL） |

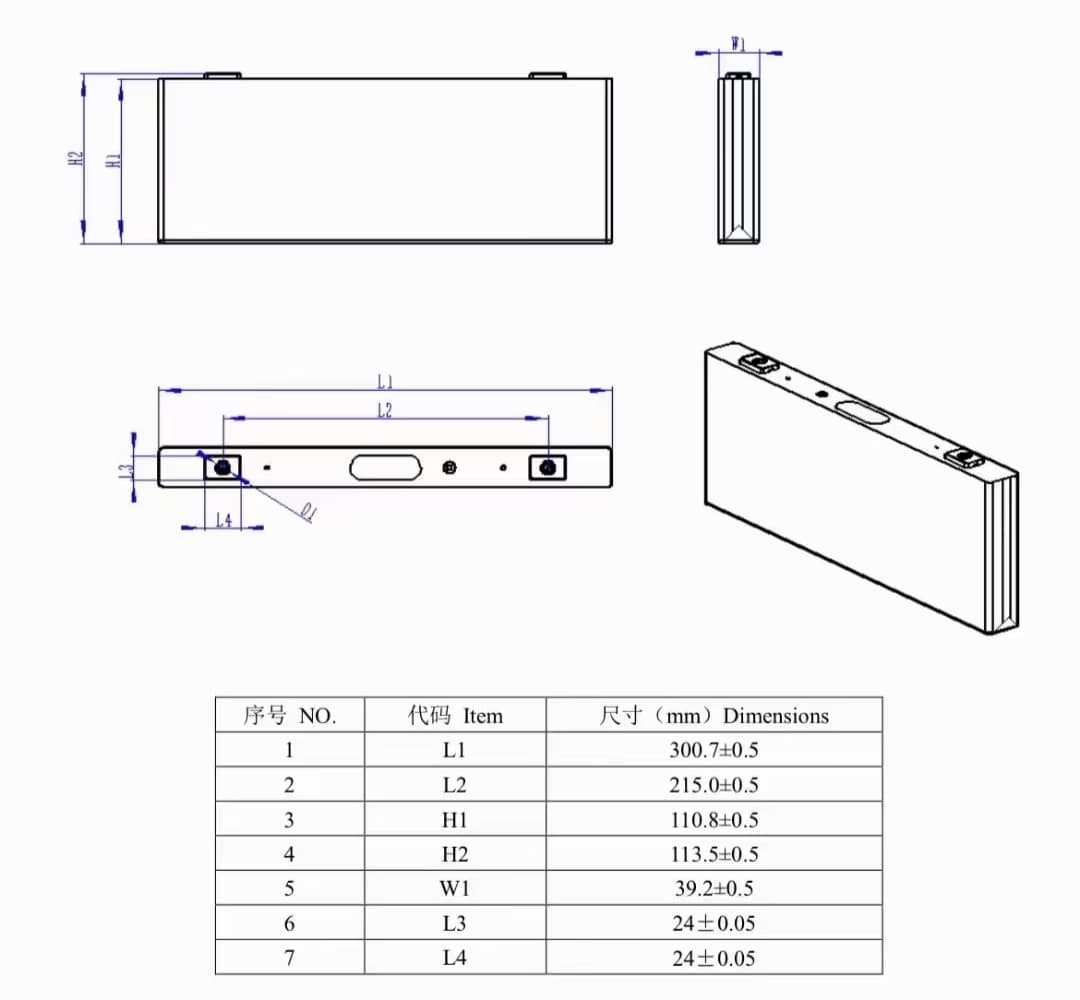

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
