CORNEX PF300-135A LiFePO4 135Ah 3.2V Battery Cell
Product Details:
Place of Origin: China
Brand Name: CORNEX
Certification: CE
Model Number: PF300-135A
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 135Ah Nominal Voltage: 3.20V
- Internal Impedence: ≤0.6mΩ Operating Voltage: 2.5V～3.65V
- Dimension: 33.2*300.7*112.4mm Battery Weight: 2.47kg±0.10Kg
Product Description
100% brand new, grade-A CORNEX PF300-135A LiFePO4 135Ah 3.2V Battery Cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Specification
| Item | Spec | Remark |
|---|---|---|
| Nominal voltage | 3.20V | RT |
| AC internal resistance | ≤0.6mΩ | RT ，1KHz |
| Rated discharging capacity | 135Ah | RT ，2.5V-3.65V， |
| Operating voltage | 2.5V～3.65V | >0℃ |
| 2.0V～3.65V | ≤0℃ | |
| Energy density | ～180Wh/kg | |
| Weight | 2.47kg±0.10Kg | N.A |
| Dimension | Thickness：（33.2±0.5）mm | Thickness test condition:SOC≤30% ，pressure of 300±10kgf |
| Width：（300.7±0.5）mm | ||
| Shoulder height：（109.8±0.5）mm | ||
| Total height：112.4±0.5mm | ||
| Cut-off charging | 3.65V | |
| Maximum pulse charging current | 2.7C | RT ，0~80%SOC ，10s |
| Maximum continuous charging current | 1.10C | 15℃ ~45℃ |
| Maximum continuous discharging current | 1.30C | 15℃~45℃ |
| Maximum pulse discharging current | 3C | RT ，≥20% SOC ，30s |
| Cut-off discharging voltage | 2.5V | >0℃ |
| 2.0V | ≤0℃ | |
| Allowable discharging temperature range | -30℃~55℃ | |
| Cycle life | ≥2500 cycles（80%EOL） | 25℃ |

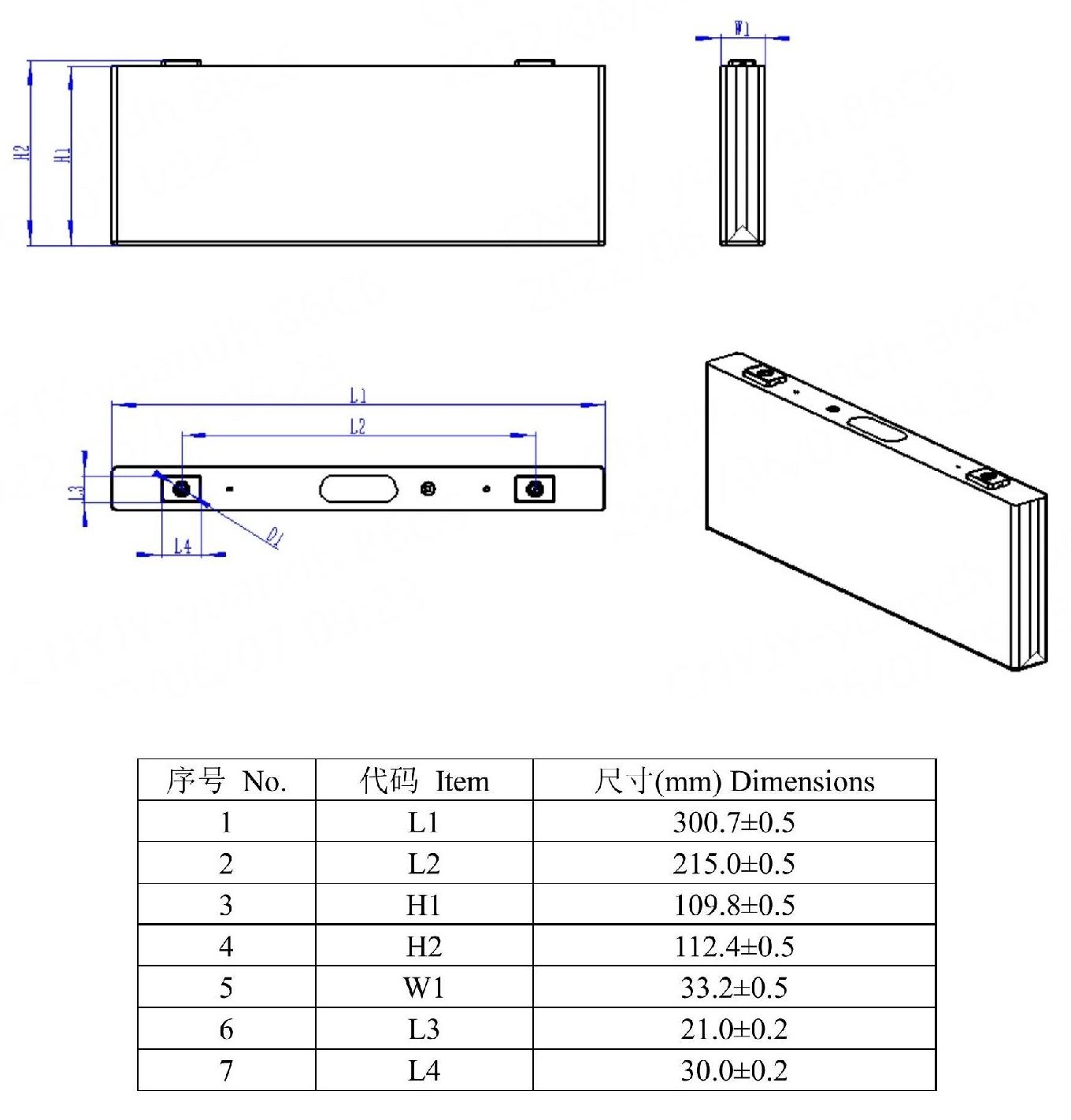

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
