3.2 V 10Ah LiFePO4 High Rate Battery
Product Details:
Place of Origin: China
Brand Name: LIAO
Certification: CE
Model Number: F10-1565150
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 10Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤6.0mΩ Operating Voltage: 2.5V~3.65V
- Dimension: 15*65*150mm Battery Weight: 275g
Product Description
With a capacity of 3.2V 10Ah, this lifepo4 cells is engineered to deliver unparalleled performance across various applications.
Advantage

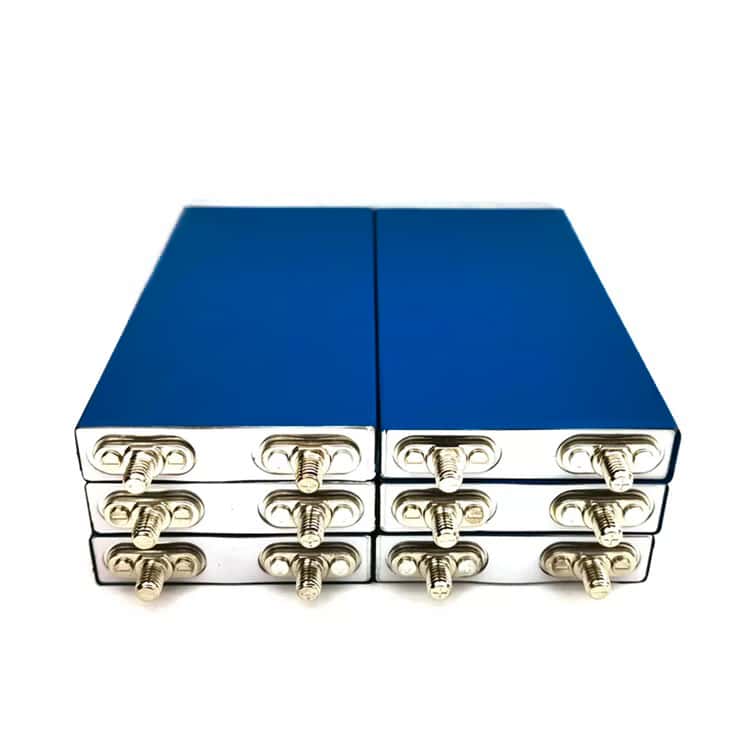

- 1. Prismatic LiFePO4 battery cell using positive and negative stud design, for easy assembling and maintenance.
- 2. The shell of the LiFePO4 battery cell is made of aluminum, which can have a better cooling effect, also have a certain mechanical strength and long life.
- 3. Battery cell using lamination technology, has the following advantages:
- ①High space utilization efficiency of high energy density batteries. The 3.2V 10Ah LiFePO4 battery cell: 32Wh; 275g; 116.4Wh/kg; 15mm*65mm*150mm
- ②Low internal resistance. Our 10Ah battery cell internal resistance:≤3mΩ, Nearly 50% lower than most of other manufacturers.
- ③Excellent large current discharge performance. Sustainable 5C discharge, and the max pulse discharge current can be 8C.
- ④ Good performance of the large current charging. The maximum our lpf cells possible can be 2C charge while the cycle life of the battery will not be affected.
- 4. A wide range temperature for battery cells discharge. Good discharge performance in high temperature and low temperature. The 0.1C discharge can be used at extremely low temperatures -40℃.
- 5. Long cycle life. After a long match of materials and processes, developed a long-life lifepo4 battery packs:25±5℃,100%DOD,1C cycle 2000times,capacity keeps more than 80%.
- 6. We keep strict cells’ grouping and matching: Capacity, Resistance, Constant current ratio, Discharge Platform, Open-circuit voltage and related parameters.
- 7.Prioritizing safety above all else, our LiFePO4 prismatic cell batteries undergo rigorous forced safety testing to ensure compliance with the highest industry standards. Rest assured, our lifepo4 battery meet stringent safety requirements, providing peace of mind for users and operators alike.
Specification
| Items | Parameters |
|---|---|
| Model No. | F10-1565150 |
| Shell | Aluminum Alloy 3003 |
| Nominal Capacity | 10Ah |
| Energy | 32Wh |
| Nominal Voltage | 3.2V |
| Open Circuit Voltage | 3.2-3.4V |
| Internal Impedance | ≤6.0mΩ |
| End of Charge Voltage | 3.65V±0.05V |
| Std. Charge Current | 10A(1C) |
| Std. Discharge Current | 10A(1C) |
| Max. Continuous Charge Current | 20A(2C) |
| Max. Continuous Discharge Current | 30A(3C) |
| Max. Pulse Discharge Current(10s) | 50A(5C) |
| Discharge cut-off Voltage | 2.5V |
| Operating Temperature | 0~+45℃ |
| -20~+55℃ | |
| Storage Temperature | -10~+45℃ |
| -10~+35℃ | |
| Weight | ＜276g |
| Dimension | 15mm*65mm*150mm |
| Cycle life | ≥2000 times |

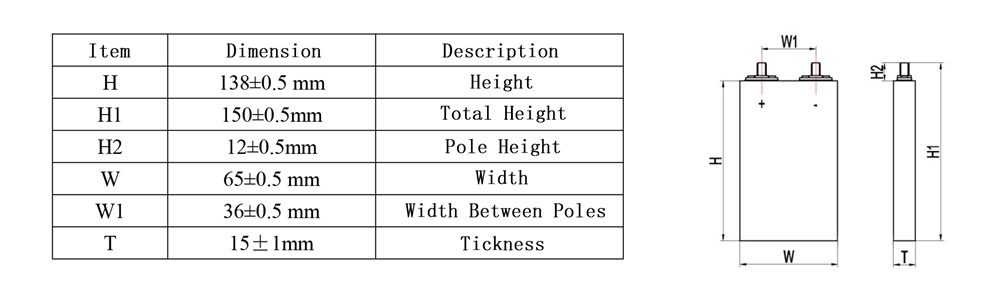

Dimension

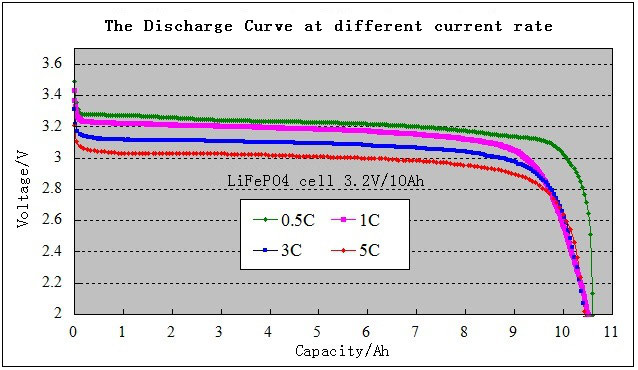

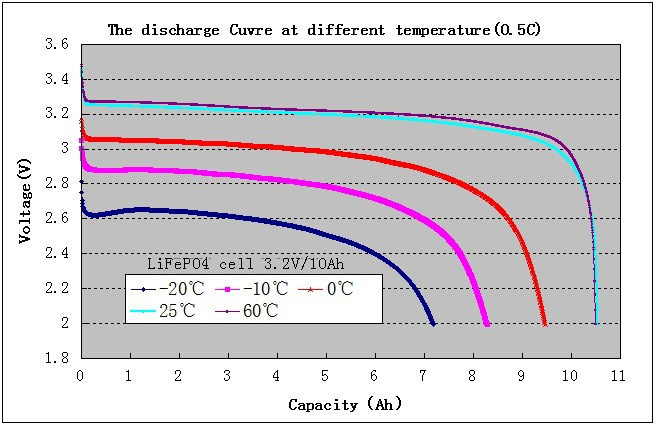

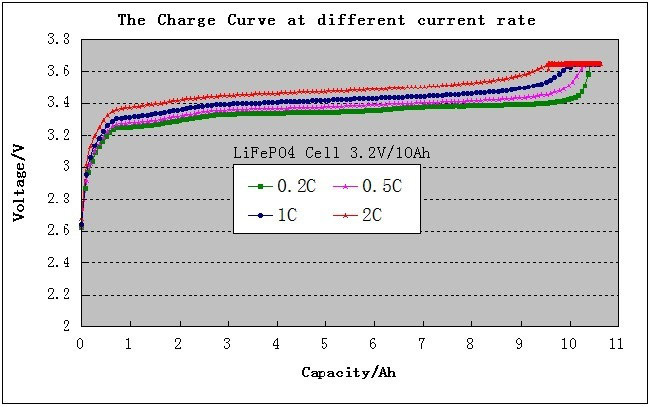

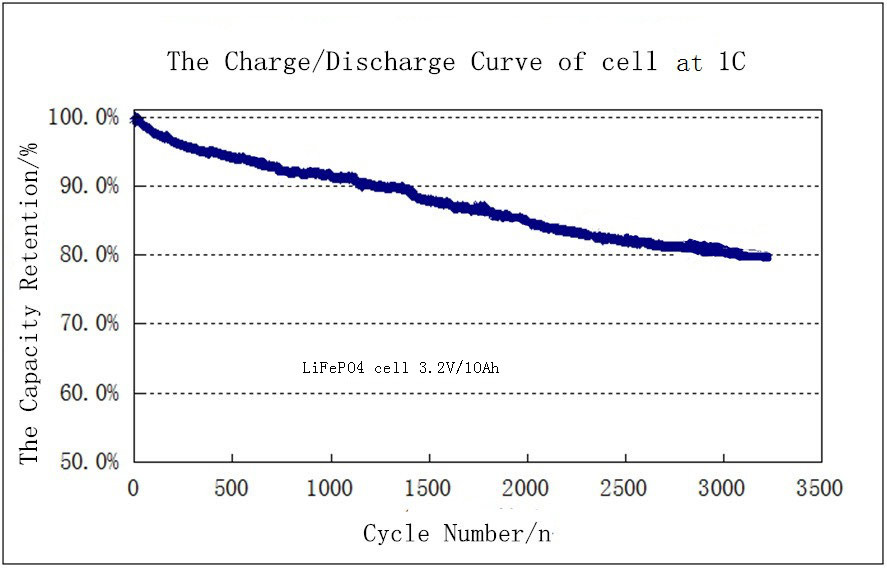

Performance
3.2v 10ah Lifepo4 Battery Application:
Widely use battery, electric vehicles, electric motorcycles, electric bicycles, sightseeing coaches, batteries pack DIY, inverter battery, outdoor high power lithium battery pack, solar panel, UPS
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
