Headway 38120HP LiFePO4 8Ah 3.2V Battery Cell
Product Details:
Place of Origin: China
Brand Name: Headway Battery
Certification: CE
Model Number: 38120HP
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: Cartons
Payment Terms: T/T
- Nominal Capacity: 8Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤4mOhm Operating Voltage: 2.5~3.65V
- Dimension: 136 mm*38.5mm Battery Weight: 330±5 g
Product Description

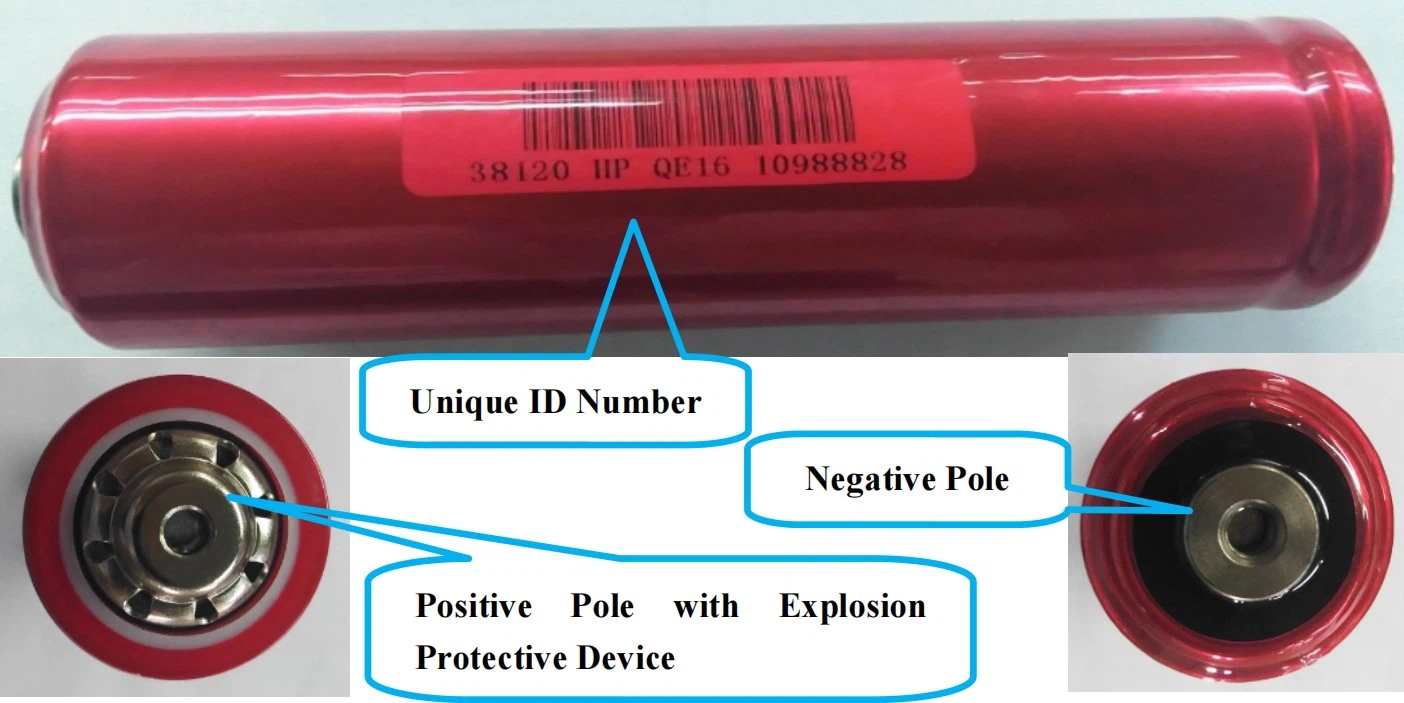

Headway 38120HP LiFePO4 8Ah 3.2V Cell Full-steel cylindrical design (38.5mm x 136mm) resists impact and vibration. Ultra-high discharge rate: 5C standard/15C maximum discharge current/30C maximum instantaneous discharge Capacity retention >85% at -40°C, a reliable energy solution for Nordic snow and North American winters, eliminating low-temperature battery life concerns. Capacity ≥80% after 3,000 cycles, 1.5 times longer lifespan than standard batteries, significantly reducing customers' full-cycle costs.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Advantages
- · Strong impact and vibration resistance, suitable for high-vibration environments (such as electric vehicles and outdoor equipment)
- · High heat dissipation efficiency, steel shell structure improves thermal stability
- · Compact size and high capacity, providing longer battery life in the same space
- · Supports high-power devices (such as power tools) with stable power output
- · Reduces long-term operating costs, especially suitable for high-frequency charging and discharging
- · Strong suitability for cold environments (solving pain points in the Nordic and North American markets)
- · High packing efficiency, increasing battery pack life by over 30%, reducing the management burden of the BMS
- · Internationally recognized qualifications ensure export compliance and enhance customer trust
- · Proven in the high-end market, enhancing brand premium
Specification
| ITEM | SPECIFICATION |
|---|---|
| Nominal capacity | 8Ah @ 0.5C |
| Minimum capacity | 7.5Ah @ 0.5C |
| Nominal voltage | 3.2V |
| Max Charging voltage | 3.65 ±0.05 V |
| Discharge ending voltage | 2.5 ±0.05 V |
| Charge current | Standard charge: 3C Max charge: 10C when T≥10 ℃ Max charge: 3C when 10 ℃≥T≥0 ℃ Max charge: 0. 1C when 0 ℃≥T≥- 10 ℃ |
| Discharge current | Standard discharge: 5C Max discharge: 15C Max instant discharge: 30C |
| Recommended charge and discharge cell surface temperature | Charge: 0～45 ℃ Discharge: -20～60 ℃ |
| Maximum allowable charge and discharge cell surface temperature. Charging and discharging at these conditions will shorten cell cycle life. |
Charge: 60 ℃ Discharge: 75 ℃ |
| Humidity range | 0～90%RH (none condensing) |
| Internal resistance | ≤4mOhm (AC Impedance, 1000HZ) |
| Cell dimension | Height: 136 mm Max Diameter: 38.5mm Max |
| Weight | 330±5 g |

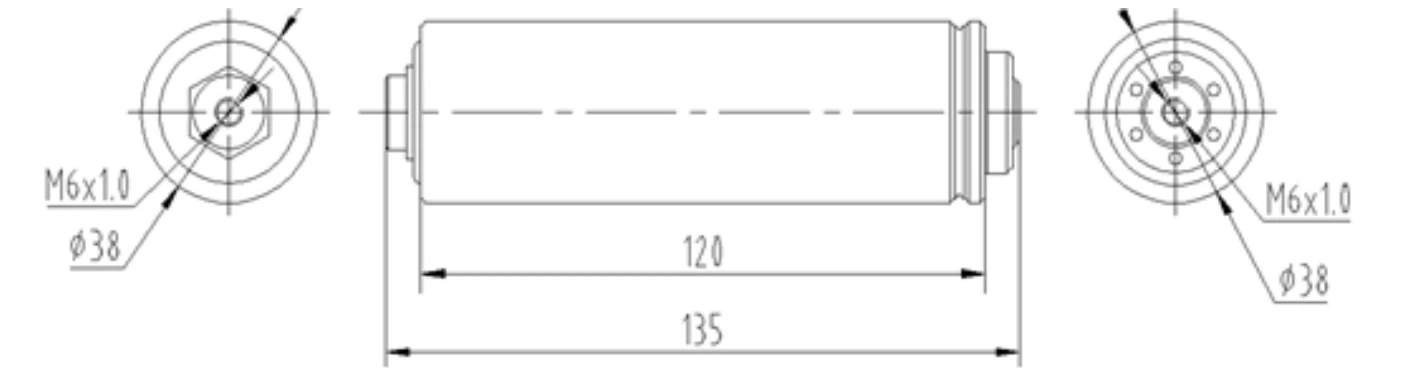

Dimension and Details

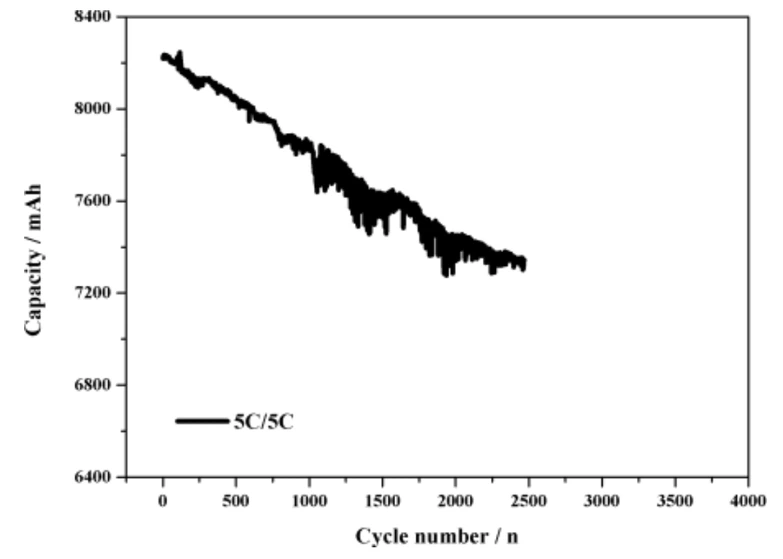

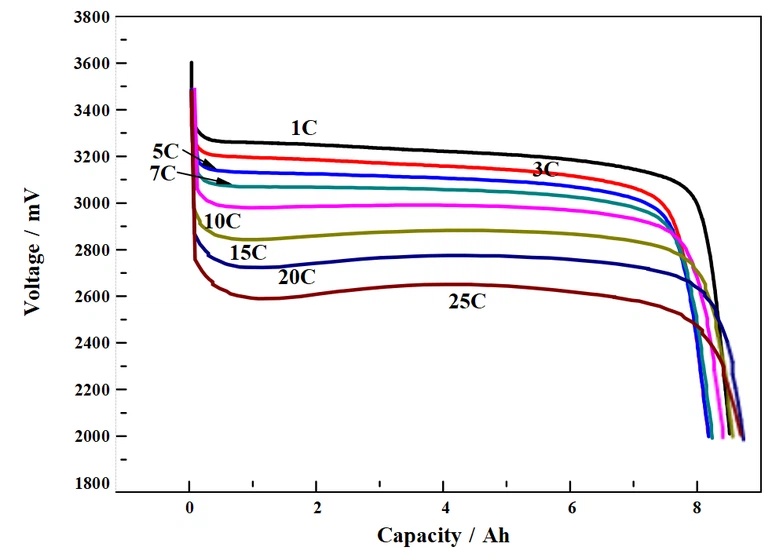

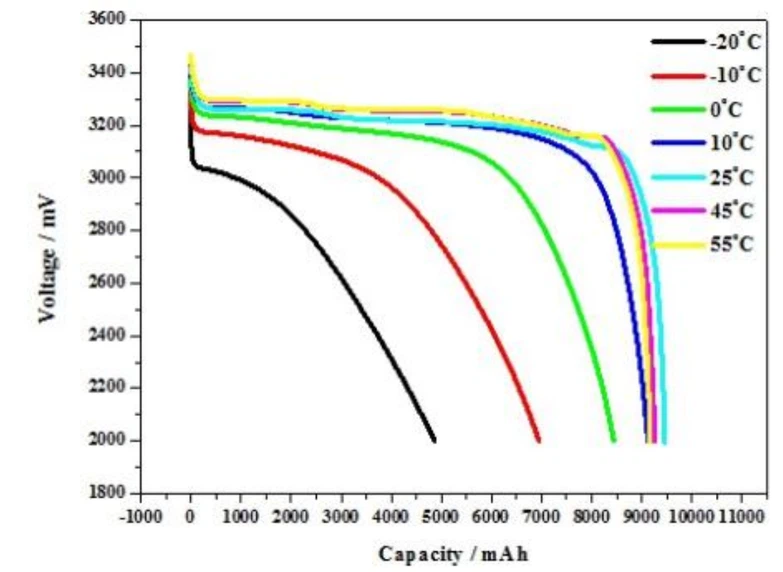

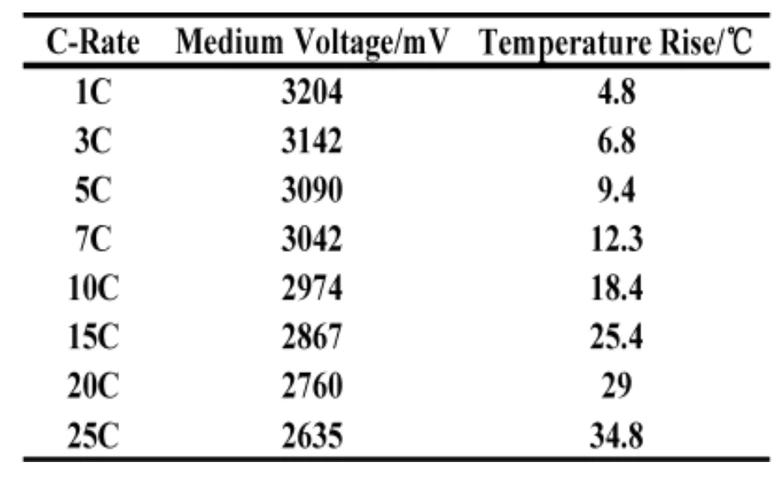

Electrical Performance Diagram
Certification
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
