GBS 12V 100Ah LiFePO4 Lithium Battery Module

The 12V 100Ah battery module consists of four 100Ah GBS cells connected in series and then fixed with aluminum strips. It is the unit that forms the pack. 12V series LFP battery module is suitable for RV starting power supply, RV backup power supply, outdoor portable power supply, solar street lamp, etc.

Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories.  Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.

Product Features

• (1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
• (2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
• (3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
• (4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
• (5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
• (6)  It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
• (7)  Low cost.
• (8)  No pollution during manufacture and usage.

Specification

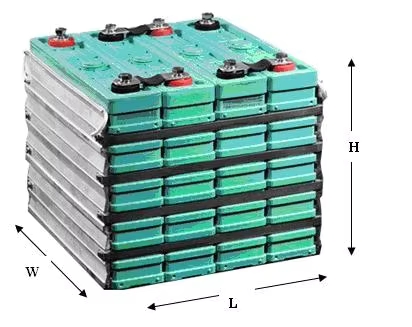

Dimension and Details

Item Description Dimensions
L Length 204mm
W Width 126mm
H Height 223mm

Certification

Matters needing attention

• (1)  Please check if spare parts are completed when open the package and read the operation manual carefully.
• (2)  Do not make the battery Short Circuit,do not over charge and discharge.
• (3)  Please charge the new battery to full capacity before discharge for the first use.
• (4)  The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
• (5)  Checking the voltage of battery, normally it is 3.2V-3.3V.
• (6)  Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
• (7)  Rivet or screw is used for battery connector.
• (8)  Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.
