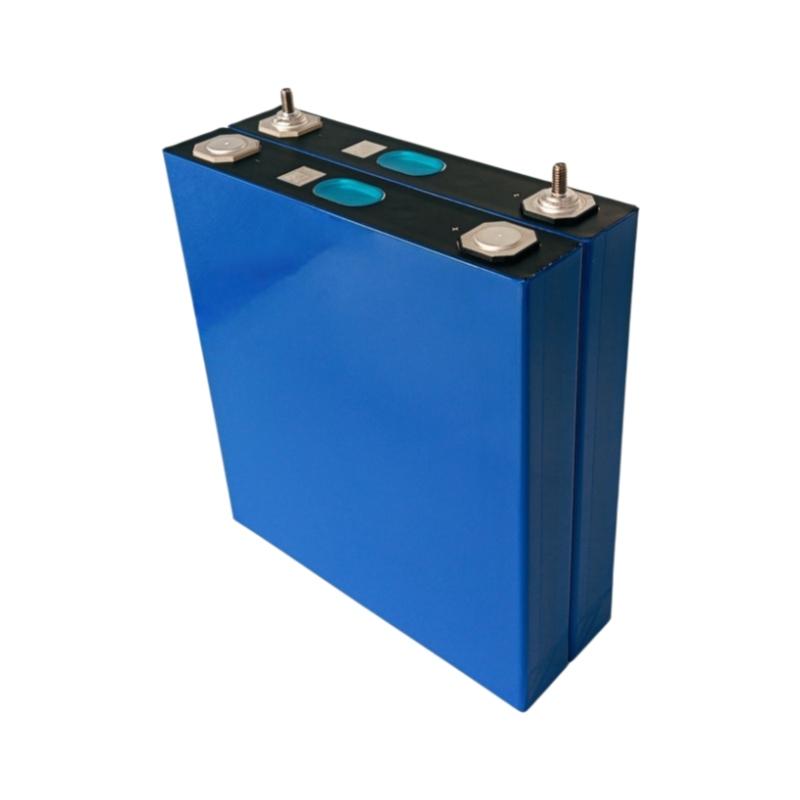

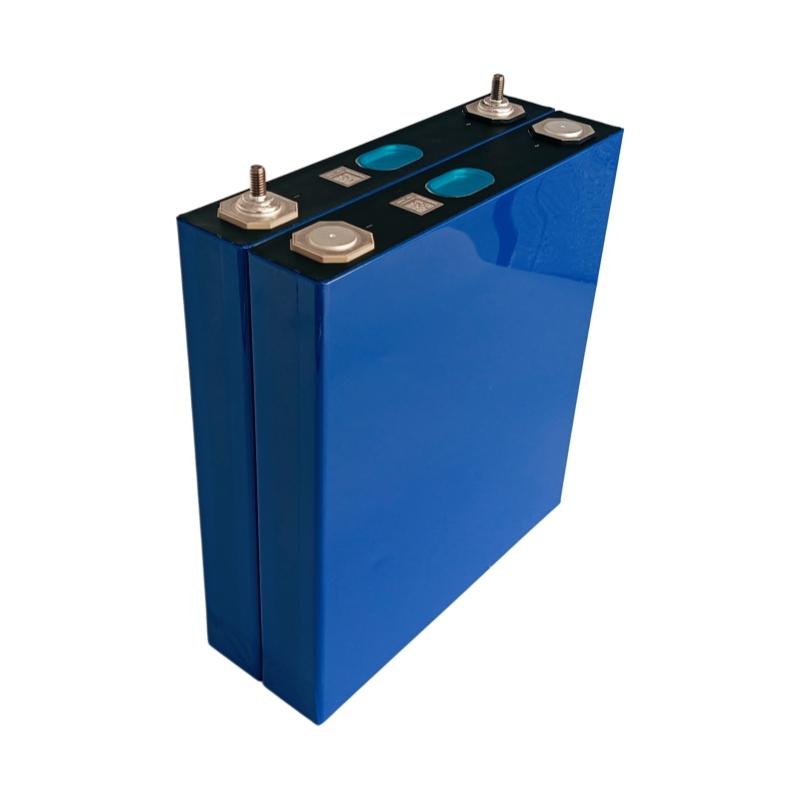

EVE LiFePO4 LF206 3.2V 206Ah Battery Cell
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: LF206
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: ≥206.0 Ah Nominal Voltage: 3.22 V
- Internal Impedence: 0.31mΩ ± 0.05 mΩ Operating Voltage: 2.5 V ~ 3.65 V
- Dimension: 200.70*35.9*218.2mm Battery Weight: 3500 g ± 105 g
Product Description
100% brand new, grade-A EVE LiFePO4 LF206 3.2V 206Ah Battery Cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
- · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
- · Long Lifespan: Up to 4000 cycles, with a capacity retention rate of ≥80% under (25°C 1C/0.5C) conditions.
- · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
- · Environmentally Friendly: Certified by environmental management systems.
- · Customization: Tailored to customer requirements.
Specification
| Items | Specification | Notes |
|---|---|---|
| Nominal Capacity | ≥206.0 Ah | Fresh battery |
| Nominal Energy | ≥663.32 Wh | |
| Nominal Voltage | 3.22 V | 0.5C discharge, 25℃ ± 2℃, 2.5 V ~ 3.65 V |
| End-off-charge Voltage | 3.65 V | / |
| End-off-discharge Voltage | 2.5 V (T > 0℃) 2.0 V (T ≤ 0℃) |
/ |
| Standard Charging Current | 0%~80%SOC 1C 80%~90%SOC 0.8C 90%~95% SOC 0.65C 95%~99% SOC 0.33C 99%~100% SOC 0.1C |
25℃ ± 2℃ |
| Maximum Instantaneous Charging Current | 2C | 30 s, ≤ 80% SOC, 25℃ ±2℃ |
| Standard Discharging Current | 103 A | 25℃ ± 2℃ , 0.5C |
| Maximum Instantaneous Discharging Current | 3C | 30 s, ≥ 30% SOC, 25℃ ± 2℃ |
| Initial IR | 0.31mΩ ± 0.05 mΩ | AC, 1 kHz, 19% ~ 23% SOC, Fresh cell |
| Direct Current Resistance (DCR) | ≤ 1.2 mΩ | 25℃, 50% SOC, 1C, 10 s, Fresh cell |
| Weight | 3500 g ± 105 g | / |
| Dimension | Terminal Height: 218.2 mm ±0.5 mm | With Terminal |
| Can-top Height: 215.5 mm ±0.5 mm | Without Terminal | |
| Length: 200.7 mm ±0.5 mm | / | |
| Thickness: 35.9 mm ±0.5 mm | (300 kgf ±20 kgf compression force, Delivery SOC) |
|
| Center Distance between Poles:150.0 mm ±0.3 mm |
/ | |
| Operation Temperature |
Charge Temperature: -10℃~65℃ | / |
| Discharge Temperature: -35℃~65℃ | / | |
| Storage Temperature |
3 months: 0℃ ~ 35℃ | Delivery SOC |
| 1 month: -20℃ ~ 45℃ | ||
| Swelling force at EOL | ≤ 40000 N | 80% SOH |

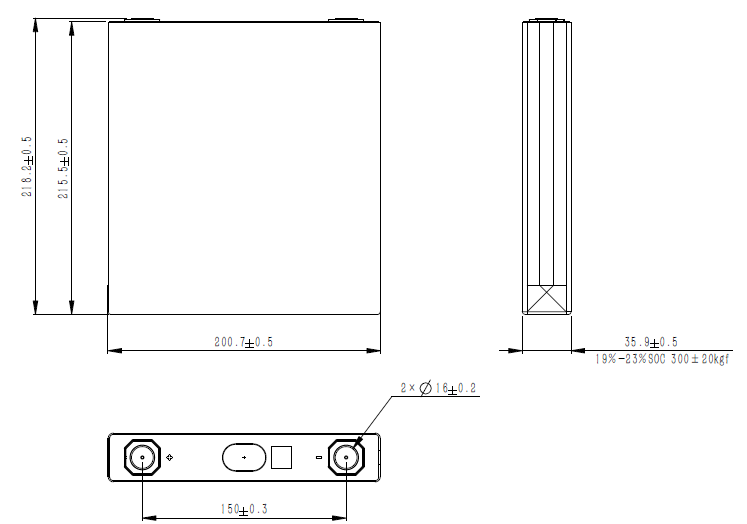

Dimension and Details
Certification
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
