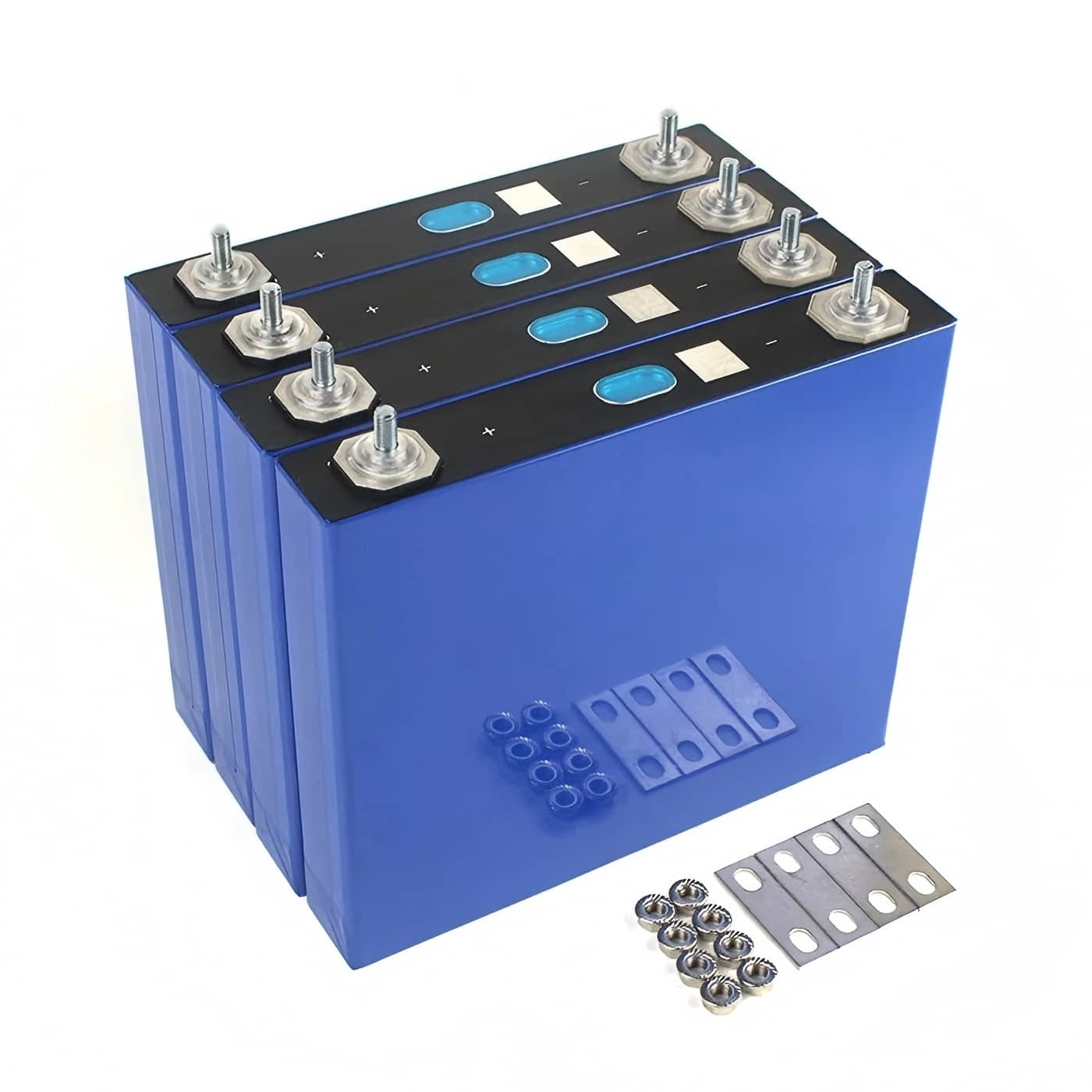

EVE LF125P 3.2V LiFePO4 125Ah High Discharge Rate Battery Cell
Product Details:
Place of Origin: China
Brand Name: EVE
Certification: CE
Model Number: LF125P
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 125Ah Nominal Voltage: 3.22V
- Nominal Cycles: 4000 Cycles Charge/Discharge: 0.5C/0.5C
- Dimension: 172.00*33.25*200.70mm Battery Weight: 2390±71g
Product Description
100% brand new, grade-A EVE LF125P 3.2V LiFePO4 125Ah Battery Cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- · High Consistency: Fully automated production lines and high-precision equipment ensure battery consistency.
- · Stable Performance: Low internal resistance, high discharge rate, and stable discharge.
- · Long Lifespan: Up to 4000 cycles, with a capacity retention rate of ≥80% under (25°C 0.5C/0.5C) conditions.
- · High Safety: High-precision explosion-proof valve design, ensuring safety with no leakage.
- · Environmentally Friendly: Certified by environmental management systems.
- · Customization: Tailored to customer requirements.
Specification
| Parameter | Specification |
|---|---|
| Nominal Capacity | 125Ah |
| Nominal Voltage | 3.22V |
| Initial IR | 0.40 mΩ + 0.05 mΩ |
| Weight | 2390±71g |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off Voltage | 2.5V (T>0℃) 2.0V (T≤ 0℃) |
| Charging Temperature | -10 ℃~65℃ |
| Discharging temperature | -35℃~65℃ |
| Storage Temperature | -20℃~45℃ |
| Model Name | LF125P |
| Cycle Life | 4000 Cycles |
| Standard Charging/ Discharging Current |
125A |
| Maximum continues Charging/ Discharging current |
375A, 3C 25+2°C |
| Maximum instantaneous Charging current | 500A, 30 s, ≤ 40% SOC, 25℃+ 2℃ |
| Maximum Instantaneous Discharging Current | 625A, 30 s, ≥ 30% SOC, 25℃ + 2℃ |
| Height(H) with terminal | 172.00 mm ± 0.50 mm |
| Height(h) without terminal | 169.30 mm ± 0.50 mm |
| Length | 200.70 mm ± 0.50 mm |
| Thickness | 33.25 mm ± 0.50 mm |

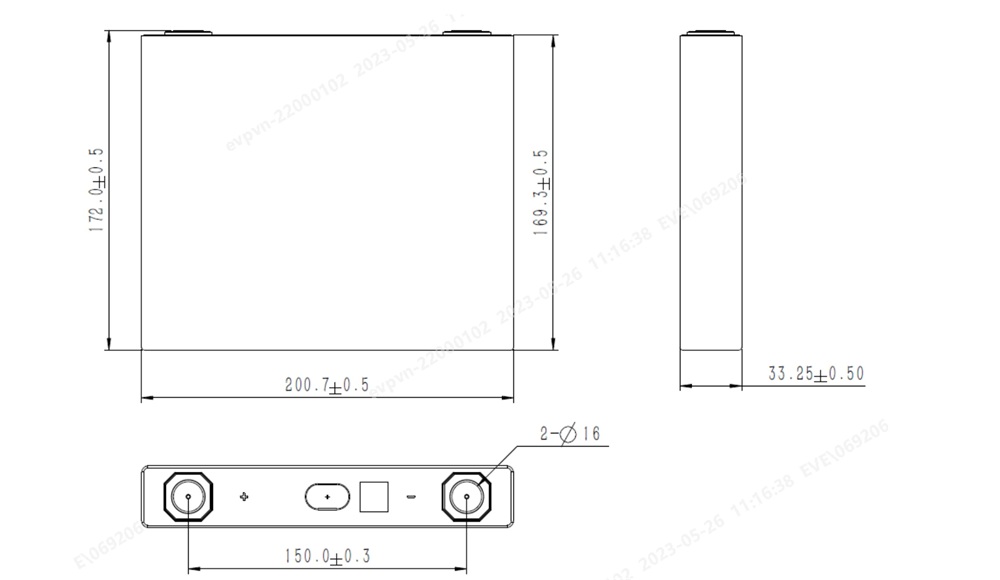

Dimension

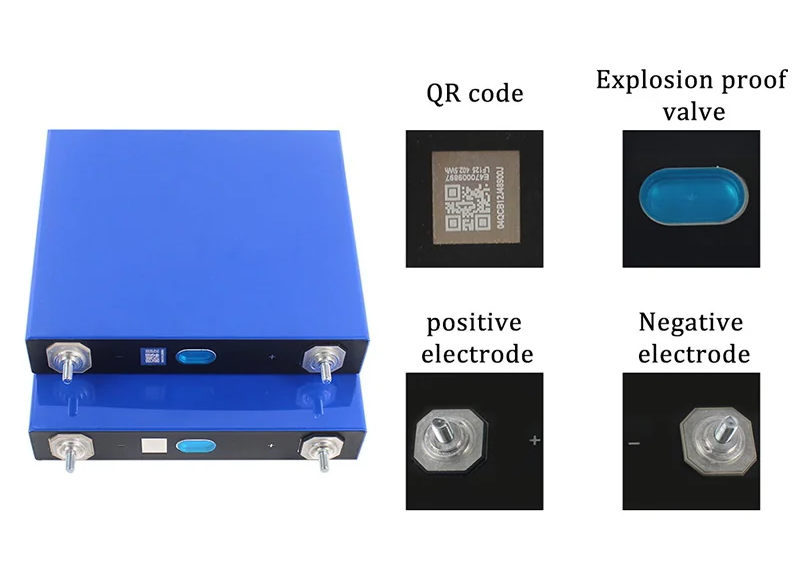

Details
Certification
Application
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
