LMFP 33140 3.6V 15Ah Lithium ion Battery Cell
Product Details:
Place of Origin: China
Brand Name: SINC
Certification: UL, MSDS, UN38.3, CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 15000mAh Nominal Voltage: 3.6V
- Internal Impedence: ≤3mΩ Operating Voltage: 2.5V~4.2V
- Dimension: Height Battery Weight: ≤ 305g
Product Description
The LMFP 33140 Lithium Ion Battery Cell is a high-capacity cylindrical battery designed for energy storage systems, electric vehicles, solar power solutions, and industrial power applications. Built with advanced Lithium Manganese Iron Phosphate (LMFP) technology, this battery cell delivers excellent safety, long cycle life, high energy density, and stable performance.
With a 33140 cylindrical format, the cell provides reliable power output and durability, making it ideal for large battery packs and high-demand energy storage systems.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Features of LMFP Battery 33140 3.6V 15Ah
- High security, close to LiFePO4 lithium battery
- Low temperature resistance,better than tracltional NMC battery, can support 75% discharging rate at minus 20℃
- High cycle life, with more than 2000 times cycle life, better than traditional NMC battery
- Adopting full tab technology, with low internal resistance, which is suitable for fast charging
- High voltage platform, same voltage platform as NMC battery
Specification
| ITEM | SPECIFICATION |
|---|---|
| Normal capacity | 15000mAh(0.5C) |
| Minimum capacity | 14500mAh(0.5C) |
| Normal voltage | 3.6V |
| Charge voltage | 4.2V |
| Discharge end voltage | 2.5V |
| Standard charge current | 0.5C(7500mA) |
| Standard discharge current | 0.5C(7500mA) |
| Max charge current | 1C (10℃-45℃), 0.2C (0℃-10℃) |
| Max continuous discharge current | Continuous 3C, (Pulse 6C, 10S, T＞0℃) 1C (-10℃＜T≤0℃) 0.5C (-20℃＜T≤-10℃) |
| Surface charge and discharge batteries maximum temperature |
Charge: 0°C ~ 45°C Discharge: -20°C ~ 55°C |
| Recommended Storage temperature | 15°C ~ 35°C |
| Internal resistance | ≤3mΩ (AC Impedance, 1000 Hz) |
| Cell dimension | Height: 140.5 mm Max Diameter: 33.3mm Max |
| Weight | ≤ 305g |
| Cycle life | ≥2000cycle, 70%DOD |

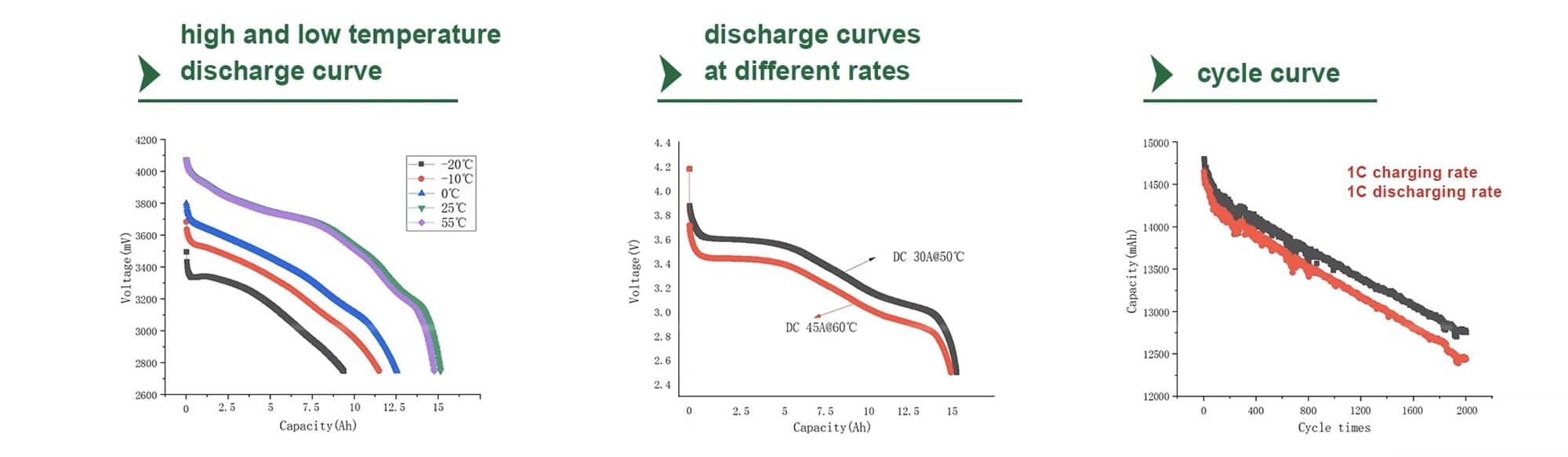

Electrical Performance Diagram
A Large Number of Spot, Offered at Highly Competitive Prices
Application
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
