JGNE 3.2V 3600mAh 26650 LiFePO4 Battery
Product Details:
Place of Origin: China
Brand Name: JGNE
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 3600mAh Nominal Voltage: 3.2 V
- Internal Impedence: ≤25mΩ Operating Voltage: 2.5V3.65V
- Dimension: (26.45)×(65.7±0.3)mm Battery Weight: Approx 85g
Product Description
Our LiFePO4 battery cells are designed by our R&D team with a focus on safety. By combining special formulations, structures, and processes, we have achieved performance characteristics of safety, consistency, and long lifespan, which are at the leading level in the industry.It can also maintain high stability under extreme charging conditions. Ultra-long cycle life: The number of cycles can reach more than 3,000 times, which is far longer than other battery types.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
In-house R"D
We have a dedicated team and center that develop and produce the cathode materials for our cells, ensuring consistent quality and stability.
Good consistency
LiFePO4 lithium battery Cells have good cycle consistency. Compared with other manufacturers, the performance of our batteries remains relatively consistent after long-term use.
Excellent safety performance
The formula, structure and process design with safety as the core have achieved a combination of safety, consistency and long life, and are at the forefront of the industry;
High safety
LiFePO4 battery cells have strong thermal stability, high decomposition temperature, are not prone to thermal runaway, will not catch fire and explode.
Flexible combination
LiFePO4 lithium battery Cells can be highly flexible in combination in space-constrained and complex structures, as well as in heterogeneous requirements. They can be flexibly combined and optimized in layout according to different volumes and battery requirements.
Environmental Benefits
Unlike lead-acid batteries, which contain hazardous lead and can pollute if not disposed of properly, lithium batteries are produced in an eco-friendly manner without harmful emissions.
Specification
| Item | Standard | Note | |
|---|---|---|---|
| Standard Capacity | 3600mAh | 0.2C,( current value of 3600mA at 1C ) | |
| Minimum Capacity | 3550mAh | 0.2C | |
| Standard Voltage | 3.2 V | ||
| Alternating Internal Resistance | ≤25mΩ | ||
| Charge Conditions | Cut-off Voltage | 3.65±0.05V | constant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.01C mA |
| Cut-off Current | 0.01C | ||
| Max. Charging Current | 3.6A | ||
| Discharge Cut-off Voltage | 2.5V | ||
| Standard Discharge Current | 1.8A | ||
| Fast Discharge Current | 3.6A | This current is the maximum current recommended for the combination of cores, and the specific value should be determined according to the combination structure. The maximum operating current is set at a temperature not exceeding 60 ℃ . | |
| Max. Continuous Discharge Current | 10.8A | Only for single cell | |
| Pulse Discharge Current | 20A , 5s | ||
| Cycle Characteristic | 100%DOD | 2000 times | the residual capacity is no less than 80% of rated capacity at 1C rate. |
| 80%DOD | 4000 times | ||
| 50%DOD | 7000 times | ||
| Working Temperature | Charge | 0 ℃~ 55 ℃ | |
| Discharge | -20 ℃~ 60 ℃ | ||
| Storage Temperature | -20 ℃~ 55 ℃ | Short-term storage (< 3 months) | |
| Cell Weight | Approx 85g | ||
Dimension and Details

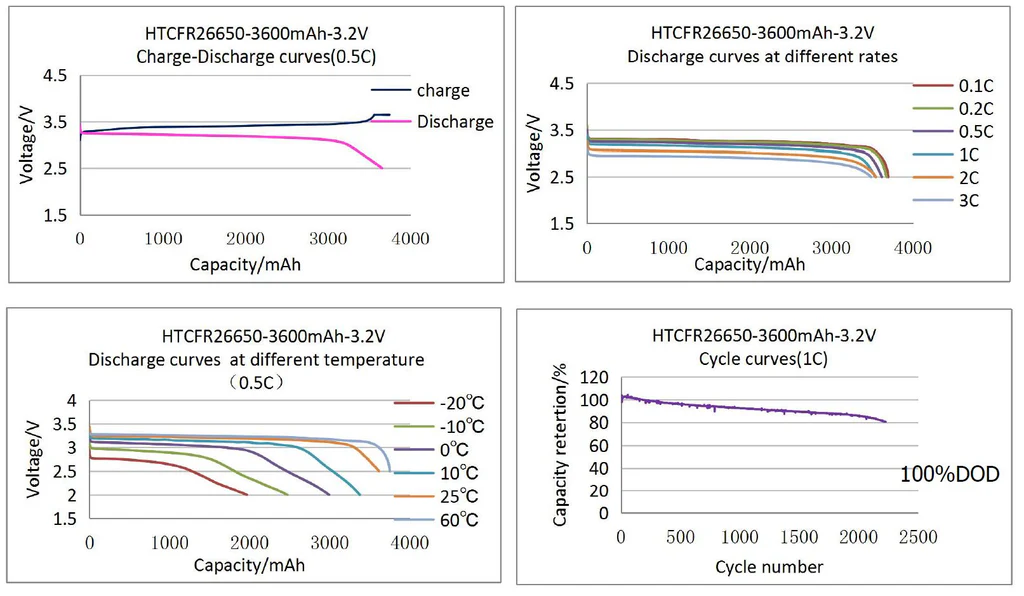

Electrical Performance Diagram
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
