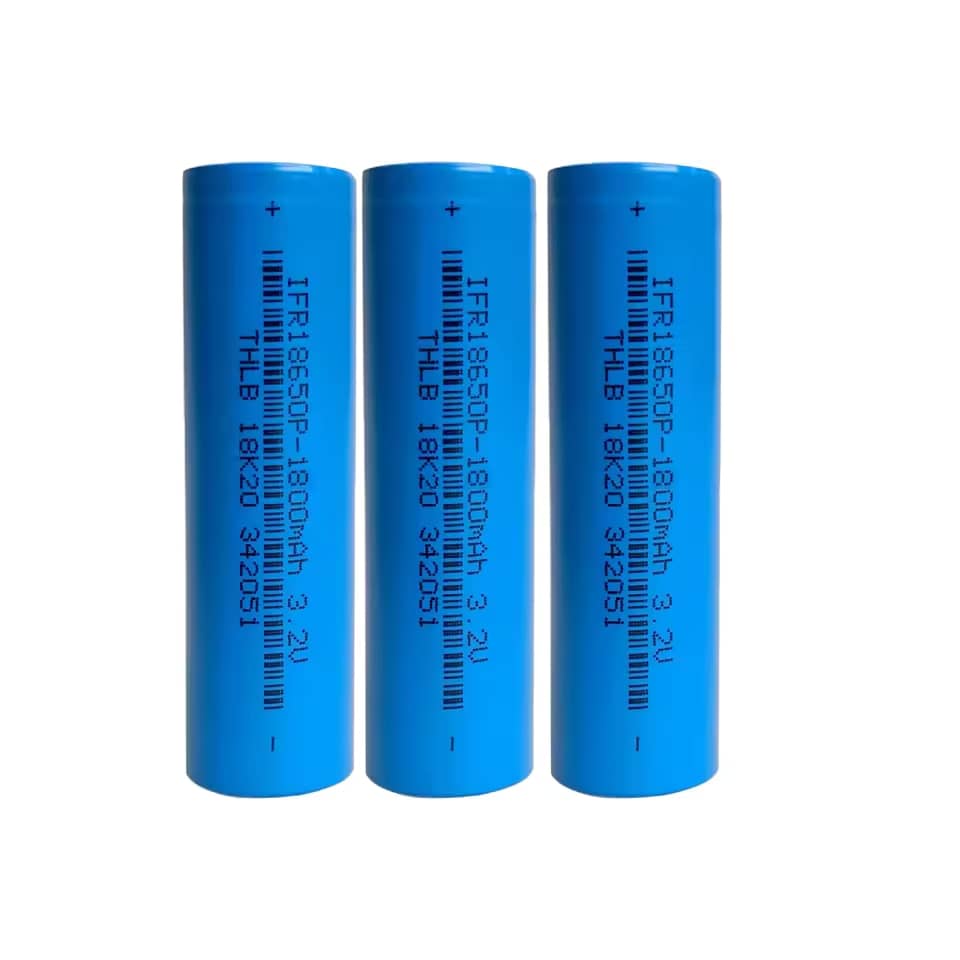

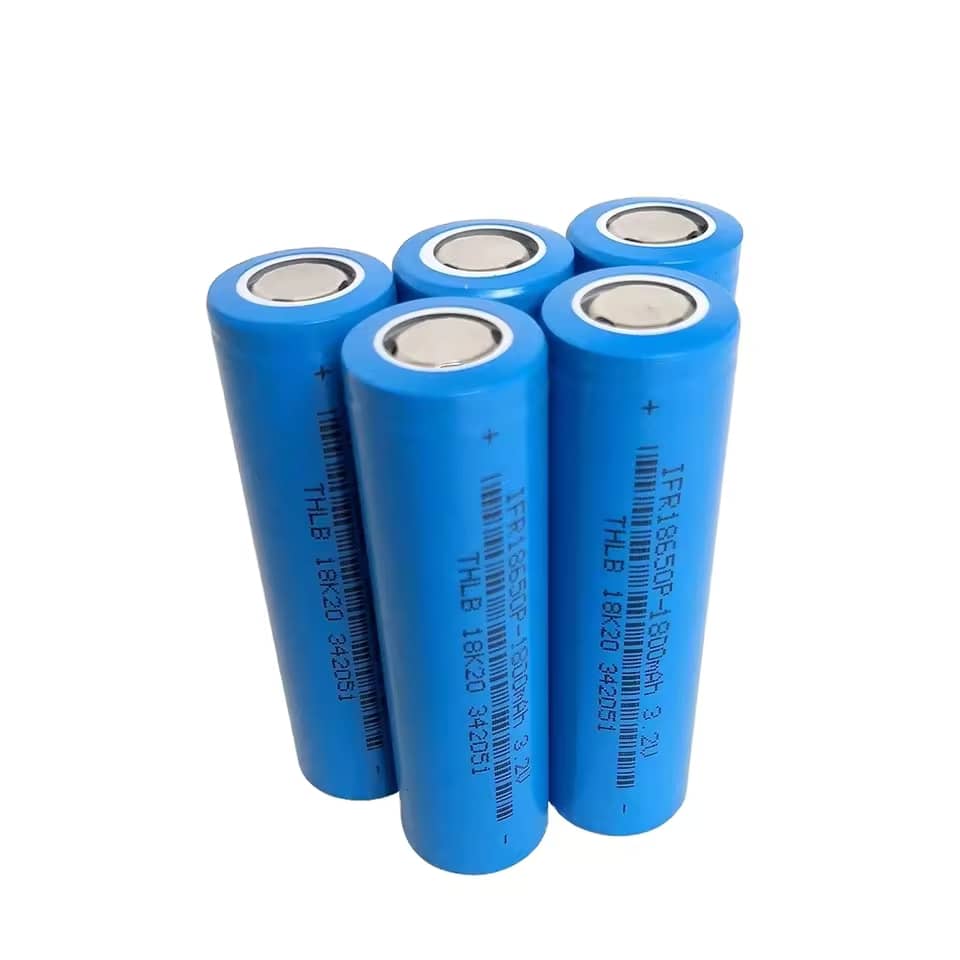

IFR18650 1800mAh 3.2V LiFePO4 cylindrical cells
Product Details:
Place of Origin: China
Brand Name: THLB
Certification: CE
Model Number: IFR18650-1800mAh
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 1800 mAh Nominal Voltage: 3.2 V
- Internal Impedence: 20mΩ Operating Voltage: 2.5V~3.65V
- Dimension: 18.3mm(d)*65.2mm (h) Battery Weight: ≤44g
Product Description
IFR18650 1800mAh 3.2V LiFePO4 cylindrical cells with high capacity, high output voltage, good charging and discharging cycle performance, stable output voltage, large current discharge, electrochemical stability, safe use (not due to improper operation of overcharge, overdischarge and short circuit and cause combustion or explosion), wide working temperature range, environmentally friendly. Widely used in solar lamps, lawn lamps, backup energy, power tools, toy models and new energy vehicles.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- ● Great safety performance.
- ● super long cycle life.
- ● Zero pollution and absolutely environment friendly.
- ● Light weight, and small size.
- ● Can be discharged with high current and power.
- ● no memory effect.
- ● Heat resistance.
Recommended applications
Mostly used for energy storage, solar-wind energy storage, UPS, power tools, light EV, medical equipment, mine lamp, lead acid replacement battery, portable equipments.
Specification
| Item | Specifications | Note | |
|---|---|---|---|
| Capacity | Nominal capacity | 1800 mAh | 0.5C |
| Minimum Capacity | 1750 mAh | 0.5C | |
| Alternating Internal Resistance |
Max | 20mΩ | AC 1 kHZ |
| Nominal Voltage | 3.2 V | ||
| Charging Voltage | 3.65±0.05 V | ||
| Standard Charge Conditions (Constant current charging and then constant voltage charging) |
Current | 0.5C (900 mA) | |
| Voltage | 3.65V | 25°C±2°C | |
| Cut-off Current | 36±5mA | 0.02C | |
| Max Charging Current | 0°C≤T≤5°C | 0.2C (360 mA) | |
| 5°C≤T≤15°C | 0.5C (900mA) | ||
| 15°C≤T≤55°C | 1C (1800 mA) | ||
| Standard Discharge Conditions (Constant Current Discharge) |
Current | 0.5C (900 mA) | 25°C±2°C |
| Cut-offVoltage | 2.5±0.05V | ||
| Max. Continuous Discharge Current |
-20°C≤T≤5°C | 0.5C (900 mA) | |
| 5°C≤T≤45°C | 3C (5400mA) | ||
| 45°C≤T≤75°C | 1C (1800 mA) | ||
| Max. Pulse Discharge Current |
12A (5s ) | ||
| Working Temperature | Charge | 0～55°C | |
| Discharge | -20~75°C | ||
| Storage Temperature | 1 month | -20~60°C | |
| 3 months | -20~40°C | ||
| 12 months | -20~20°C | ||
| Weight | ≤44g | ||
| Dimension | Height | 65.2±0.3mm | |
| Diameter | 18.3±0.2mm | ||
| Appearance | No rupture, no scratch, no deformation, no stain, no electrolyte leakage, etc. |
||

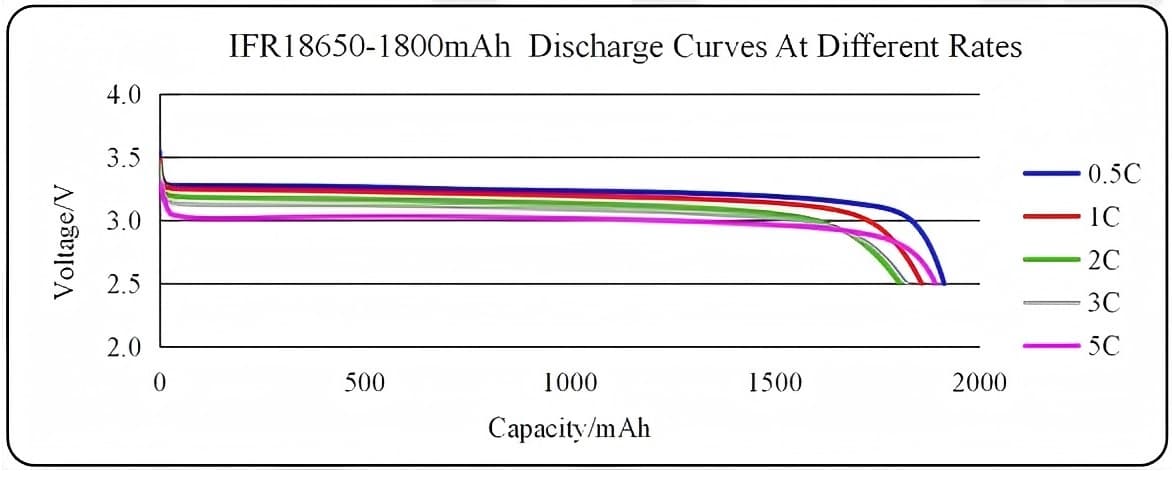

IFR18650-1800mAh Discharge Curves At Different Rates

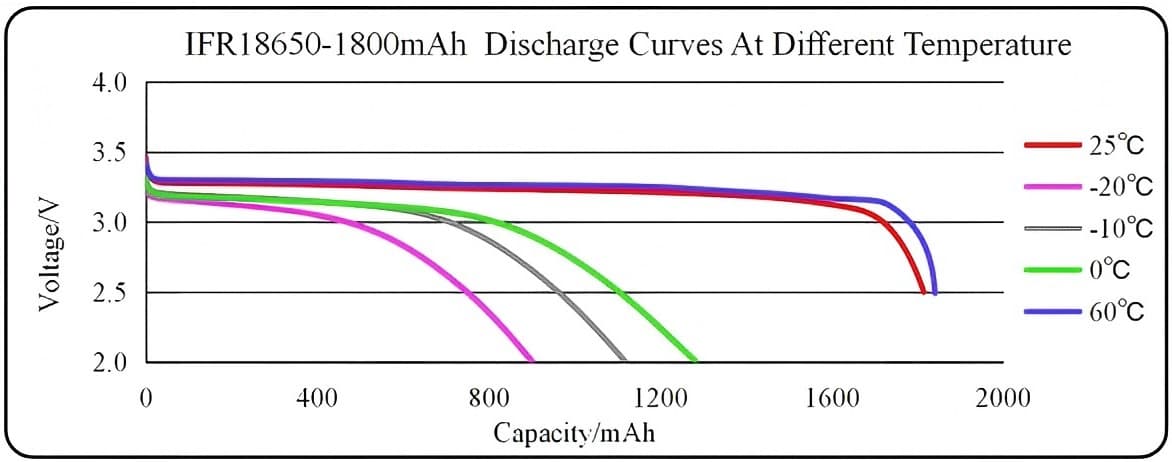

IFR18650-1800mAh Discharge Curves At Different Temperature

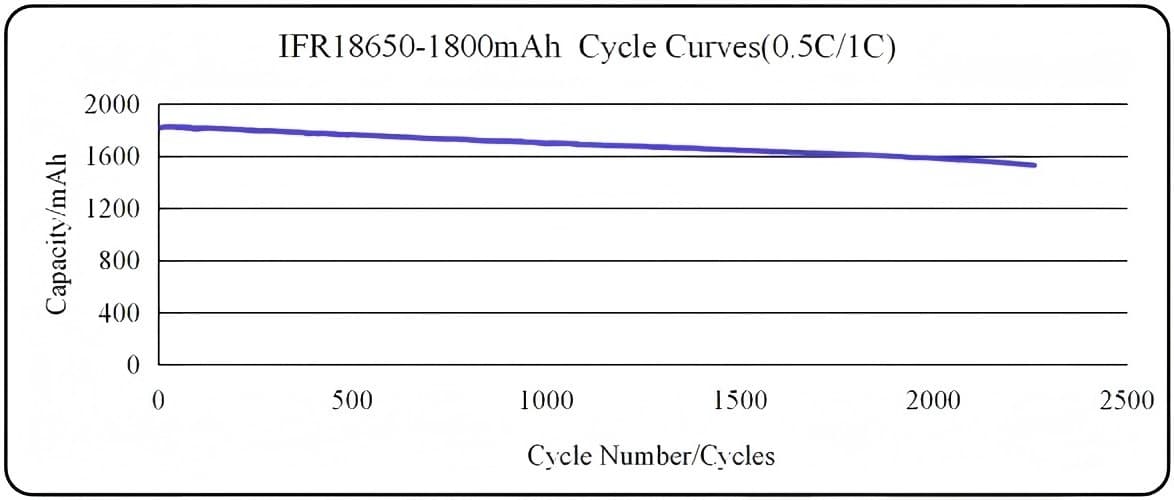

IFR18650-1800mAh Cycle Curves(0.5C/1C)
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
