Gotion LiFePO4 32140 15Ah 3.2V cylindrical battery cell
Product Details:
Place of Origin: China
Brand Name: Gotion
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 15Ah Nominal Voltage: 3.2V
- Internal Impedence: <8mΩ Operating Voltage: 2.5V~3.65V
- Dimension: 33.6mm(d)*139.7mm(h) Battery Weight: 268g
Product Description
100% brand new, grade-A Gotion LiFePO4 32140 15Ah 3.2V cylindrical battery cell offers a low internal resistance, long cycle life, high safety and a wide operating temperature range. Suitable for home appliances, boats, golf carts, submarines, electric bicycles/scooters, electric forklifts, electric vehicles, power systems, solar energy storage systems, and uninterruptible power supplies.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- · Capacity of 15,500mAh
- · Utilizes lithium iron phosphate (LiFePO4) chemistry for enhanced safety, minimizing the risk of explosion or combustion from impacts, overcharging, or short circuits.
- · Enables rapid charging and high-current discharge, supporting continuous discharge at 1C.
- · Boasts a cycle life of 2000 times at 80% Depth of Discharge (DOD).
- · Facilitates efficient charge and discharge cycles.
- · Offers higher energy density compared to lead-acid batteries.
- · Provides faster charging times and reduced self-discharge.
Specification
| Parameter | Specification |
|---|---|
| Dimension | 33.6mm(d)*139.7mm(h) |
| Weight | 268g |
| Nominal Capacity | 15000mAh |
| Nominal Voltage | 3.2V |
| AC Resistance | 1.5mΩ<R<3mQ |
| DC Resistance | <8mΩ |
| Operating Temperature | Charge: -20～55℃ |
| Discharge: -30～60℃ | |
| Regular charge(Slow charge) Current | 3A(0.2C) |
| Regular charge(Slow charge) Voltage | 3.65V |
| maximum pulse discharge rate/C | 45000mA(3C) |
| Room Temperature Cycle Life | 2000times |

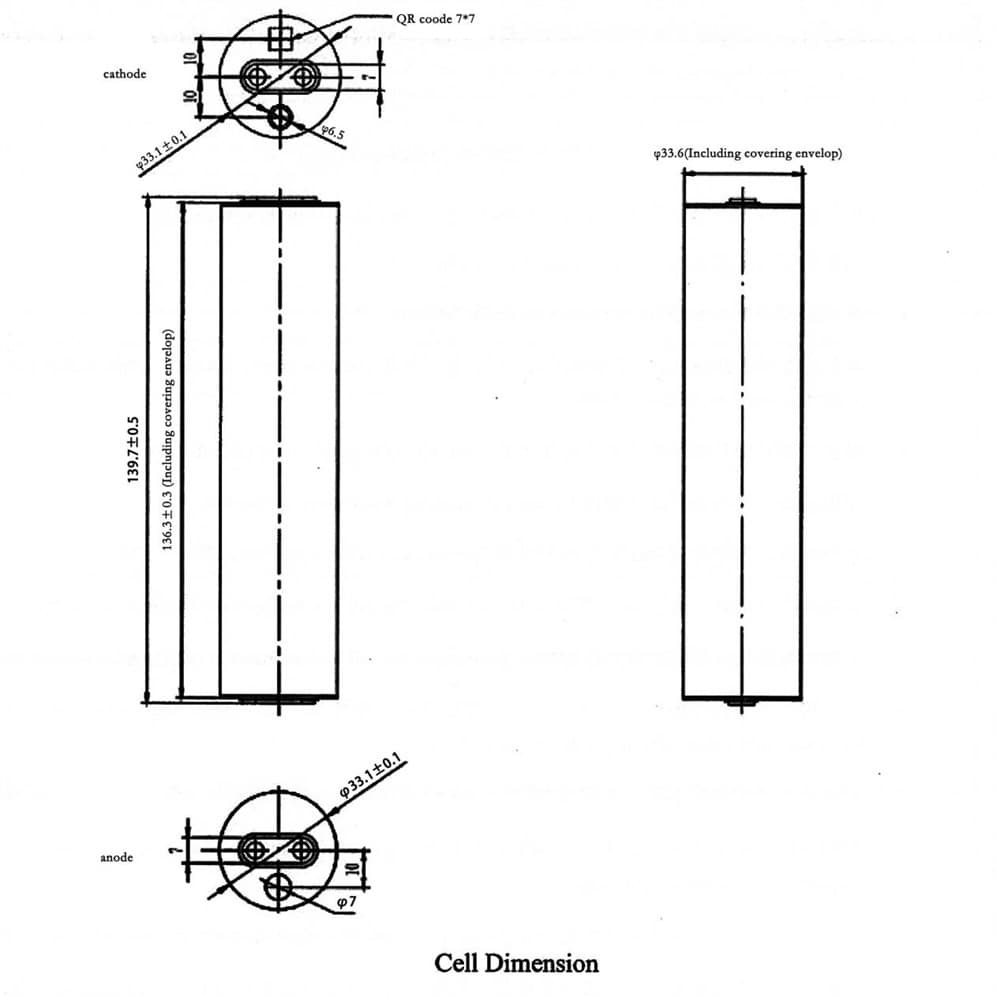

Dimension and Details

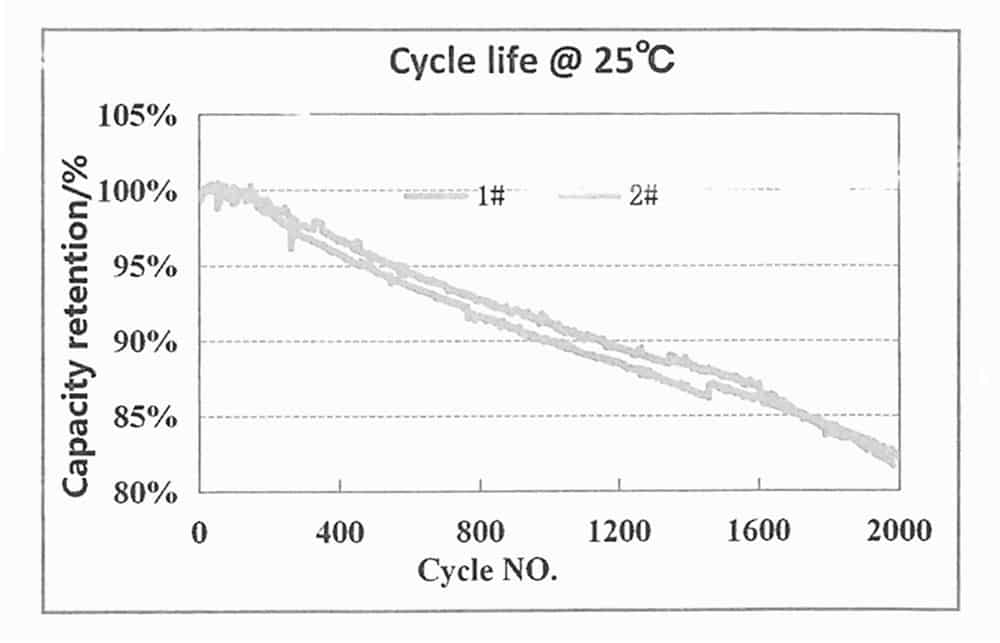

Electrical Performance Diagram
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
