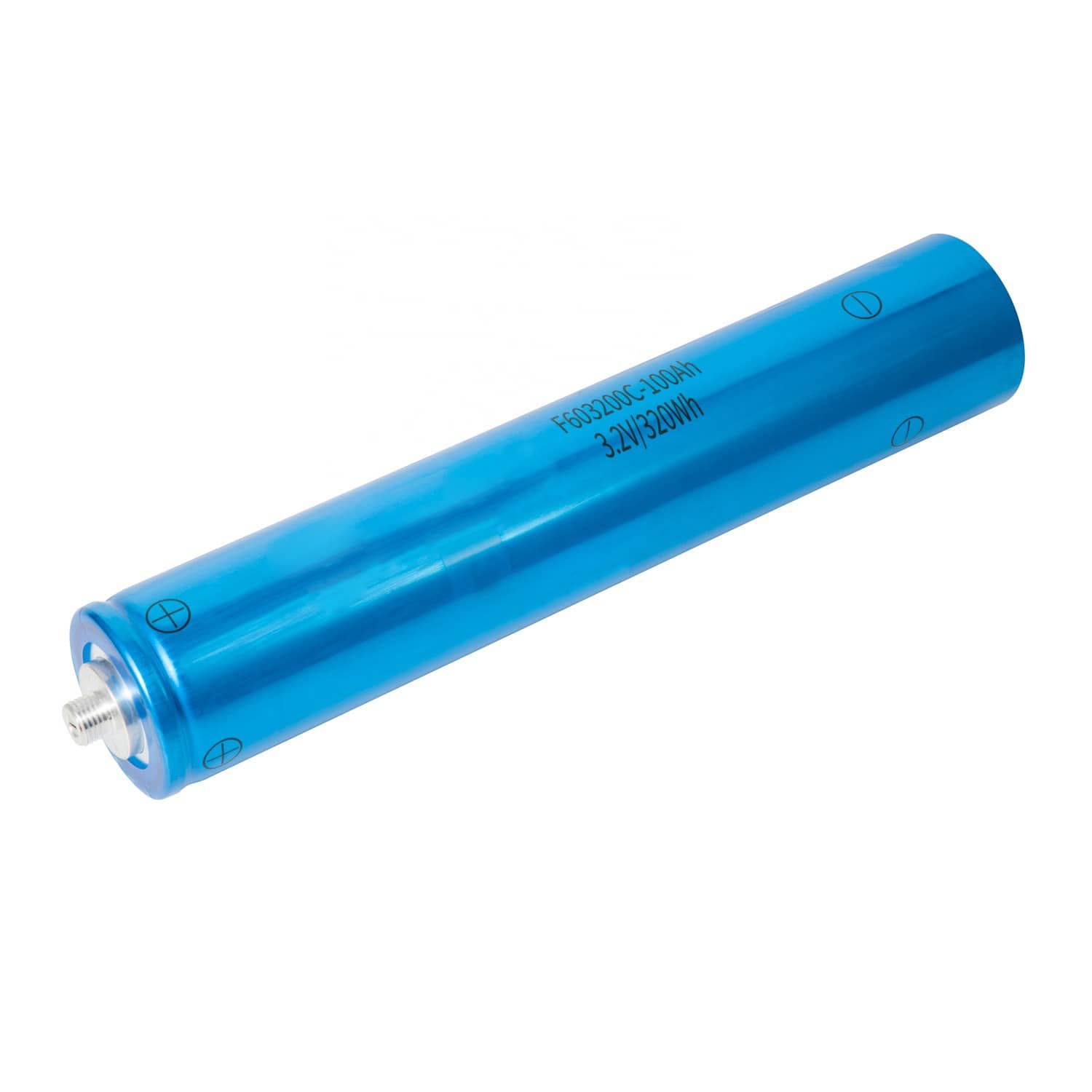

F603200C-100Ah 3.2V LiFePO4 Cylindrical Cells
Product Details:
Place of Origin: China
Brand Name: Times United
Certification: CE
Model Number: F603200C-100Ah
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 100Ah Nominal Voltage: 3.2V
- Internal Impedence: ＜0.6mΩ Operating Voltage: 2.5V~3.65V
- Dimension: φ60*320 Battery Weight: 1.90kg±0.2kg
Product Description
The F603200C-100Ah 3.2V LiFePO4 cylindrical cells, compared to traditional cylindrical batteries, offer advantages such as high capacity, low internal resistance, low temperature rise, high discharge rate, long lifespan, and high safety, while maintaining high energy density and consistency. They are suitable for applications in new energy storage, automobiles, ships, warehousing logistics, construction machinery, and other fields.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Advantage
- Full-tab
- High Rate C
- Low Resistance
- Even Temperature Rise
- High Energy Density
- High Consistency
- Excel. under various Temp.
- Long Cycle Life
- Low Pollution
- High Safety
Specification
| Item | Parameters |
|---|---|
| Model | F603200C-100Ah |
| Nominal Capacity | 100Ah ,0.5 C discharging（25±2℃） |
| Nominal Voltage | 3.2V |
| Charge Ending Voltage | 3.65V |
| Discharge Ending Voltage | 2.5V（≥0℃） 2.0V（< 0℃） |
| Standard Discharging Method | 25±2℃ 0.5C constant current discharge to 2.5V |
| Max. Pulse Charging Current | 1.5C (15℃～45℃, 50%SOC) ≤30S |
| Max. Pulse Discharging Current | 3C (15℃～45℃, 50%SOC) ≤30S |
| Operating environment | Charging: -0℃-55℃, max.90%RH Discharging: -20℃-55℃, max.90%RH |
| Impedance | ＜0.6mΩ |
| Size | Diameter:60±1mm Cell Height:320±1mm Cell Total Height with Poles:338±1mm |
| Cell Weight (Not include PCB) |
1.90kg±0.2kg |
| Mass Energy Density | 168Wh/Kg |
| Volume Energy Density | 364Wh/L |
| Cycle Life | 2000times @80%DOD |

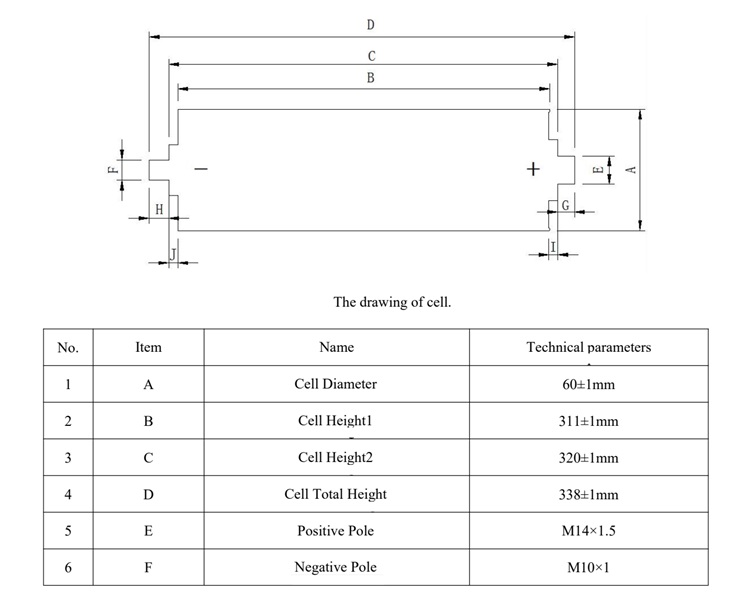

Dimension and Details
Application
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
