Biwo 60140 High Power 3.2 V 50Ah LiFePO4 Cylindrical Battery Cell
Product Details:
Place of Origin: China
Brand Name: Biwo
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 50Ah Nominal Voltage: 3.2V
- Internal Impedence: ≤ 0.8mΩ Operating Voltage: 2.5V~3.65V
- Dimension: 60.35*140.83 mm Battery Weight: 885±15g
Product Description
The Biwo 60140 3.2V 50Ah LiFePO4 Cylindrical Cell not only meets the high demands of various applications but also provides users with long-lasting and reliable power support.
Individual pricing for large scale projects and wholesale demands is available. We also offer sample orders on request for customers to assess the products and accessories. Get the export quality LiFePO4 batteries from the most reliable supplier. Buy low cost heavy-duty Lithium Iron Phosphate rechargeable battery of various capacities.
Product Features
- High Capacity and Voltage: 50Ah nominal capacity and 3.2V nominal voltage ensure the battery can provide sufficient energy and stable voltage output.
- Fast Charging Capability: Maximum charging current up to 3C, charging time only takes 120 minutes, significantly improving usage efficiency.
- High Discharge Performance: Maximum discharge current of 5C/250A, meeting the needs of high-power devices.
- Long Cycle Life: ≥6000 cycles of cycle life means the battery can be used for a long time, reducing replacement frequency.
- Wide Temperature Adaptability: Charging temperature range 0°C~50°C, discharge temperature range -20°C~50°C, adaptable to various environmental conditions.
- Low Internal Resistance Design: Internal resistance ≤0.8mΩ, helps improve battery discharge efficiency and reduce energy loss.
Applications
- Industrial Energy Storage: Backup power for base stations, UPS systems, AGV robots
- E-Mobility: Electric forklifts, low-speed EVs, logistics equipment.
- Renewable Energy: Solar storage systems, residential ESS, off-grid solutions.
- Specialized Devices: Medical instruments, emergency lighting, outdoor tools.
Specification
| Items | Specifications | Notes |
|---|---|---|
| Rated capacity | 50Ah | 0.5C Standard discharge |
| Delivery Capacity | ≥50Ah | |
| Rated energy | 160Wh | |
| Nominal Voltage | 3.2V | |
| End-of-discharge voltage | 2.5V | |
| Charge limit voltage | 3.65V | |
| Charging upper limit voltage | 3.8V | |
| Discharge cut-off voltage | 2.0V | |
| Standard charging current | 0.5C（25A） | 0.5C CC/CV to 3.65V ，0.05C cut off |
| Standard discharging current | 0.5C（25A） | 0.5C CC to 2.5V |
| Max. charging current | 3.0C（150A） | |
| Max. discharging current | 5.0C（250A） | |
| Internal Impedance of single cell | ≤ 0.8mΩ | 1kHz |
| Max. charging temperature | 50℃ | |
| Max. discharging temperature | 50℃ | |
| Min. charging temperature | 0℃ | |
| Min. discharging temperature | -20℃ | |
| Dimension | 60.35±0.50mm * 140.83±0.50 mm | |
| Weight | 885±15g |

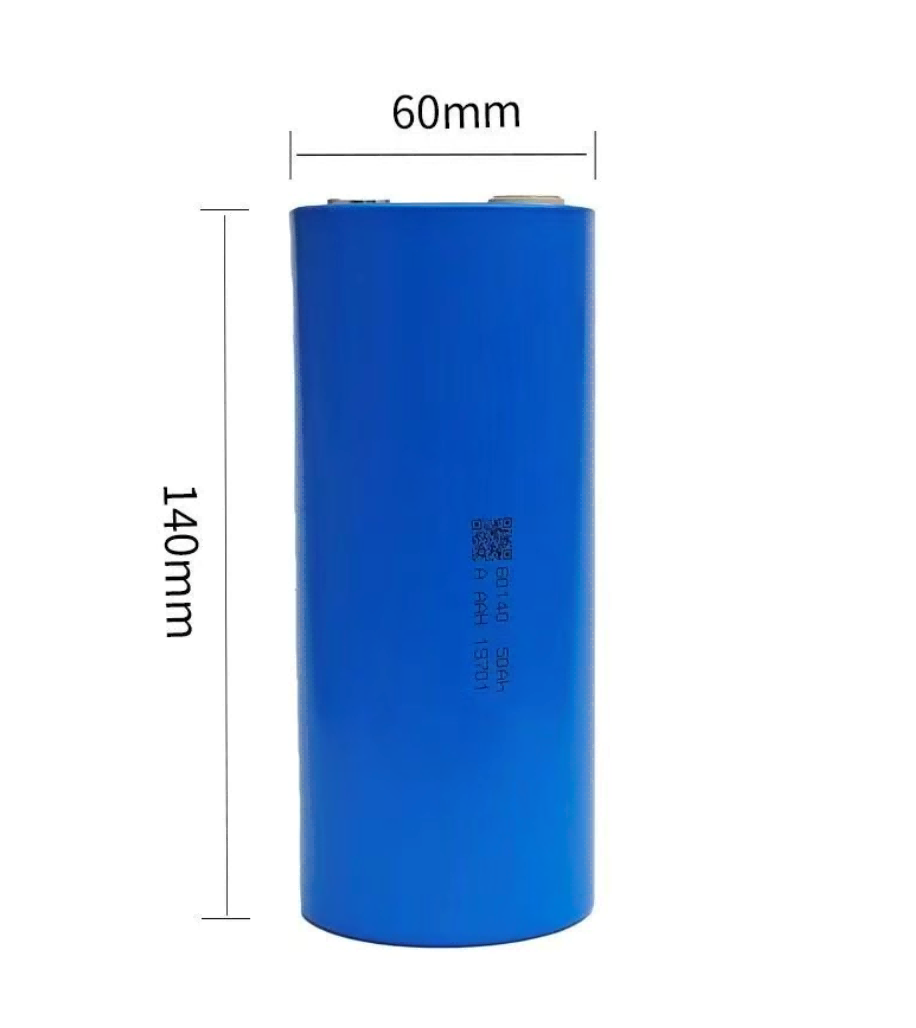

Dimension and Details
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
