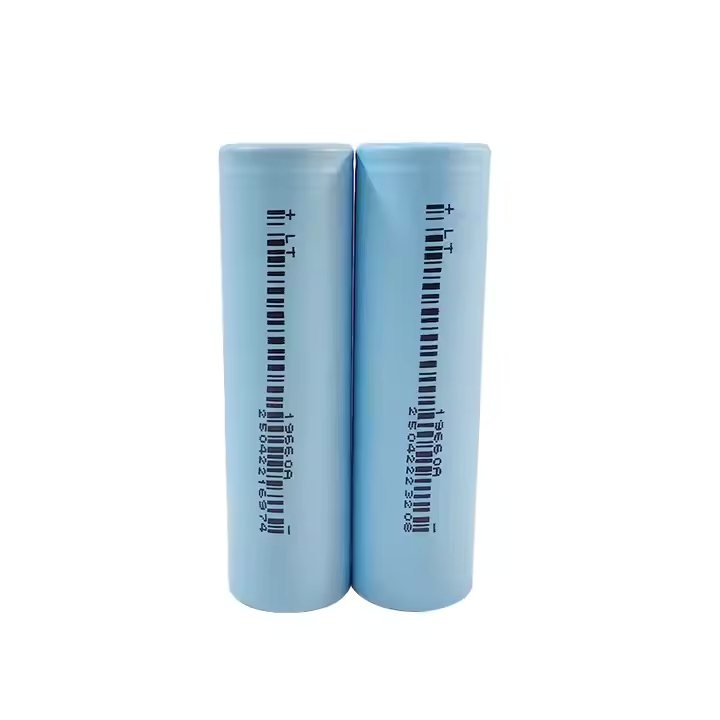

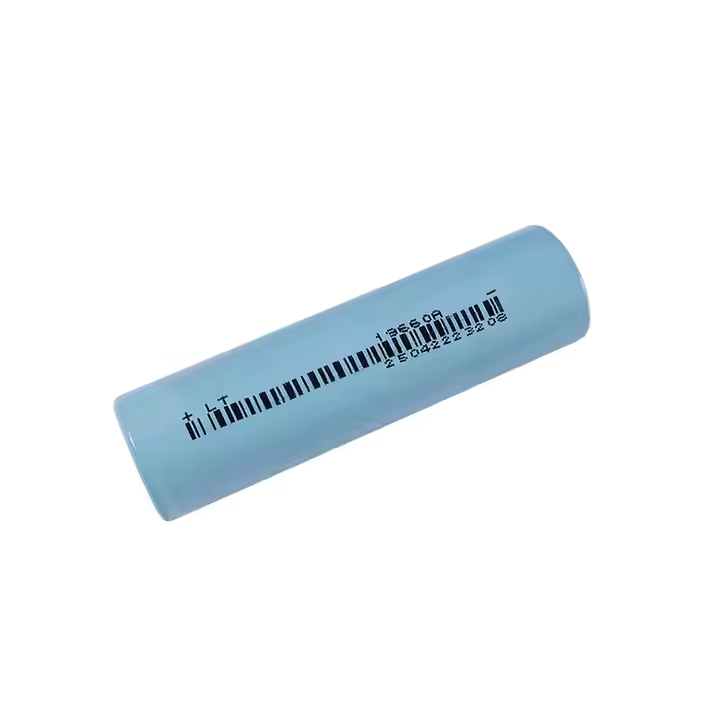

Ampace JP30 3.6V 18650 3000mah lithium ion Battery
Product Details:
Place of Origin: China
Brand Name: Ampace
Certification: CE
Model Number: JP30
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
- Nominal Capacity: 3000mAh Nominal Voltage: 3.6V
- Nominal Cycles: 1000+ cycles Charge/Discharge: 6A/20A
- Dimension: 18mm (d) * 65mm (h) Battery Weight: 45g
Product Description
The Ampace JP30 full tab 18650 cell leverages a full-tab structural design as a breakthrough. While utilizing high energy density cathode materials, the anode adopts a new fast-charging graphite and silicon-carbon composite system. Combined with a high-performance kinetic electrolyte, this design achieves comprehensive improvements across five key performance indicators: high power, long runtime, high charging efficiency, extended lifespan, and low-temperature performance. The cell has a capacity of 3000mAh and supports 3C charging and 12C continuous discharging, with a power density of up to 2100W/kg. Provides efficient and stable lithium battery solutions for power tools, drones, vacuum cleaners, general-purpose robots, and other applications.
We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!
Product Features
- Power Output: 36A continuous discharge for 5 minutes and 140A pulse discharge for 5 seconds—perfect for rebar cutting and concrete drilling.
- Battery Capacity: 3.0Ah capacity, 20% higher than traditional 2.5Ah 18650 cells, extending device runtime significantly.
- Cycle Life: 600+ cycles under 9A charge / 30A discharge conditions—tripling the life of conventional cylindrical batteries.
- Charging Speed: 80% charged in just 10 minutes—cutting downtime and improving field productivity.
- Low-Temperature Operation: Works reliably at -40°C, ideal for harsh environments.
Under conditions of 9A charging and 30A discharging, the cell can achieve 600 cycles, while under 6A charging and 20A discharging, it can reach 1000 cycles. It also offers 140A pulse discharge capability. In addition, this cell supports normal discharge at ultra-low temperatures down to -40°C, further expanding its range of applications.
Specification
| Item | Parameter |
|---|---|
| Model | JP30 |
| Manufacturer | Ampace |
| Size | 18650 |
| Nominal Capacity | 3000mAh (Typical), 2900mAh (Minimum) |
| Nominal Voltage | 3.7V |
| Energy | 11.1Wh |
| Standard Charge | 0.5C (1.5A) CC to 4.2V, CV to 75mA |
| Maximum Charge Current | 14.5A |
| Charge Cut-off Voltage | 4.20V |
| Charge Upper Limit Voltage | 4.25V |
| Discharge Cut-off Voltage | 2.5V (Down-limit 2.0V) |
| Continuous Discharge Current | 36A (No 80°C cut) / 56A (with 80°C cut) |
| Pulse Discharge (5 sec) | 140A @ 25°C |
| Cycle Life | ≥600 cycles @ 6A/20A (to 60% capacity) ≥400 cycles @ 6A/30A ≥300 cycles @ 9A/30A |
| Retention Characteristics | ≥80% after 30 days @ 60°C; recovery ≥90% |
| Initial Impedance | ≤5mΩ @ 1kHz |
| Operating Temperature (Surface) | Charge: -10°C ~ 60°C (recommend <45°C) Discharge: -20°C ~ 80°C (cut @ 80°C, resume <60°C) |
| Storage Conditions | 1 month: 0~60°C 3 months: 0~45°C 12 months: 0~25°C Humidity ≤75% RH |
| Dimensions (with sleeve) | Height ≤65.23mm, Diameter ≤18.56mm |
| Approximate Weight | ≤50g |
| Chemistry | NMC (Lithium Nickel Manganese Cobalt) |

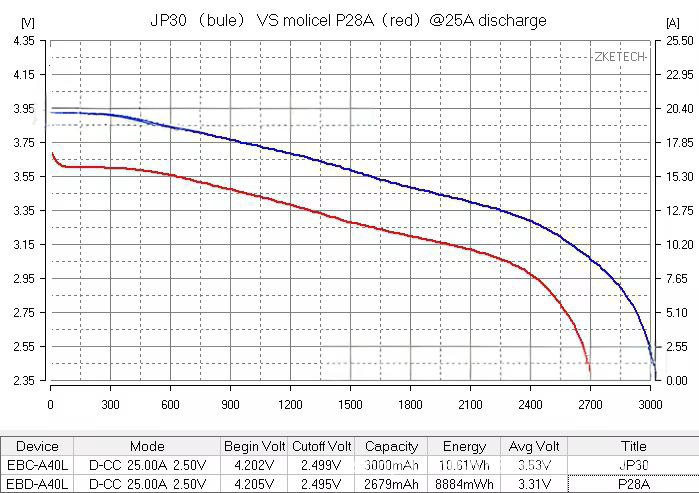

JP30(bule)VS molicel P28A(red)@25A discharge

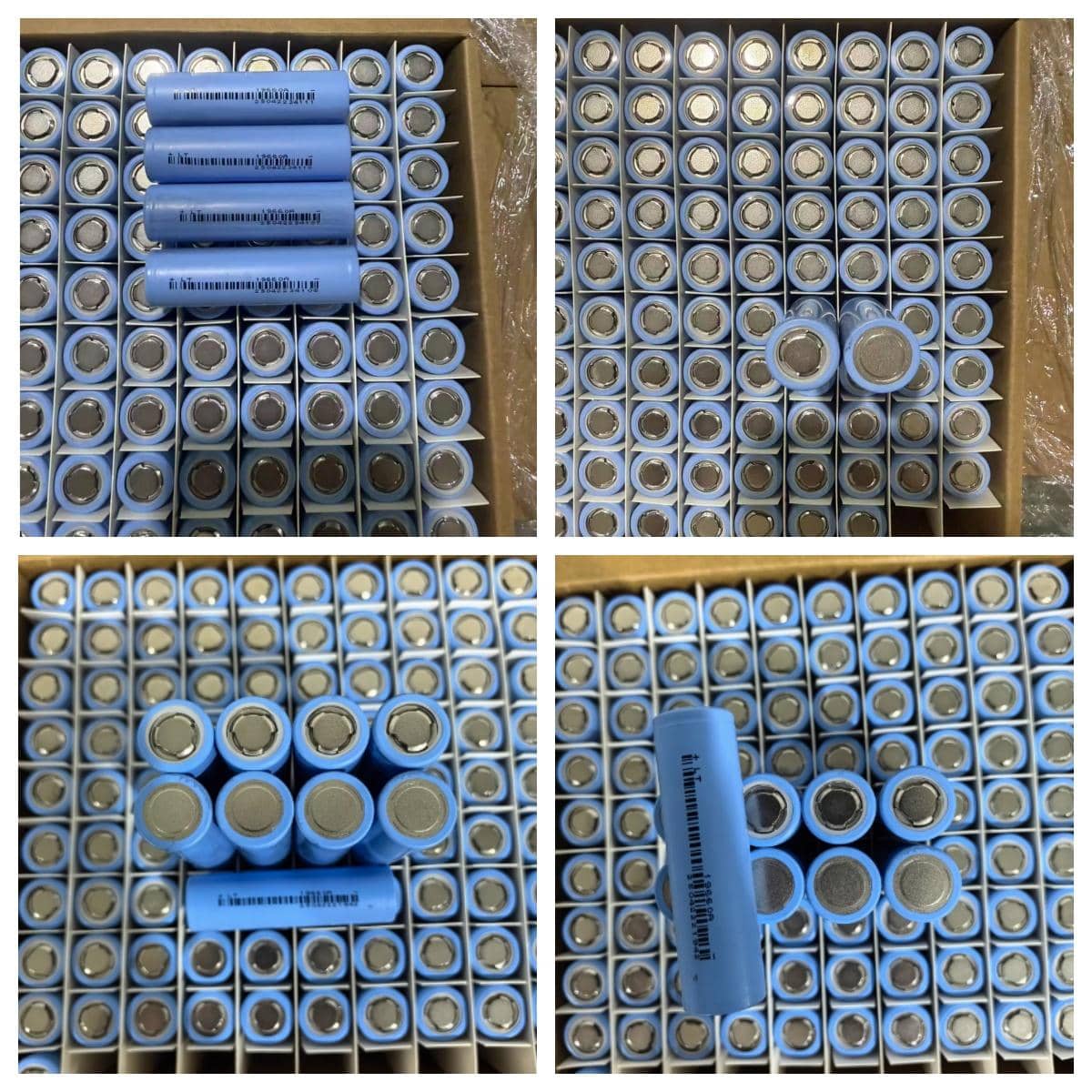

A Large Number of Spot, Offered at Highly Competitive Prices
Note
1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.
2.We will test all battery voltage, internal resistance and capacity before delivery.
3.100% Eco-friendly, will not cause pollution pressure to the environment
