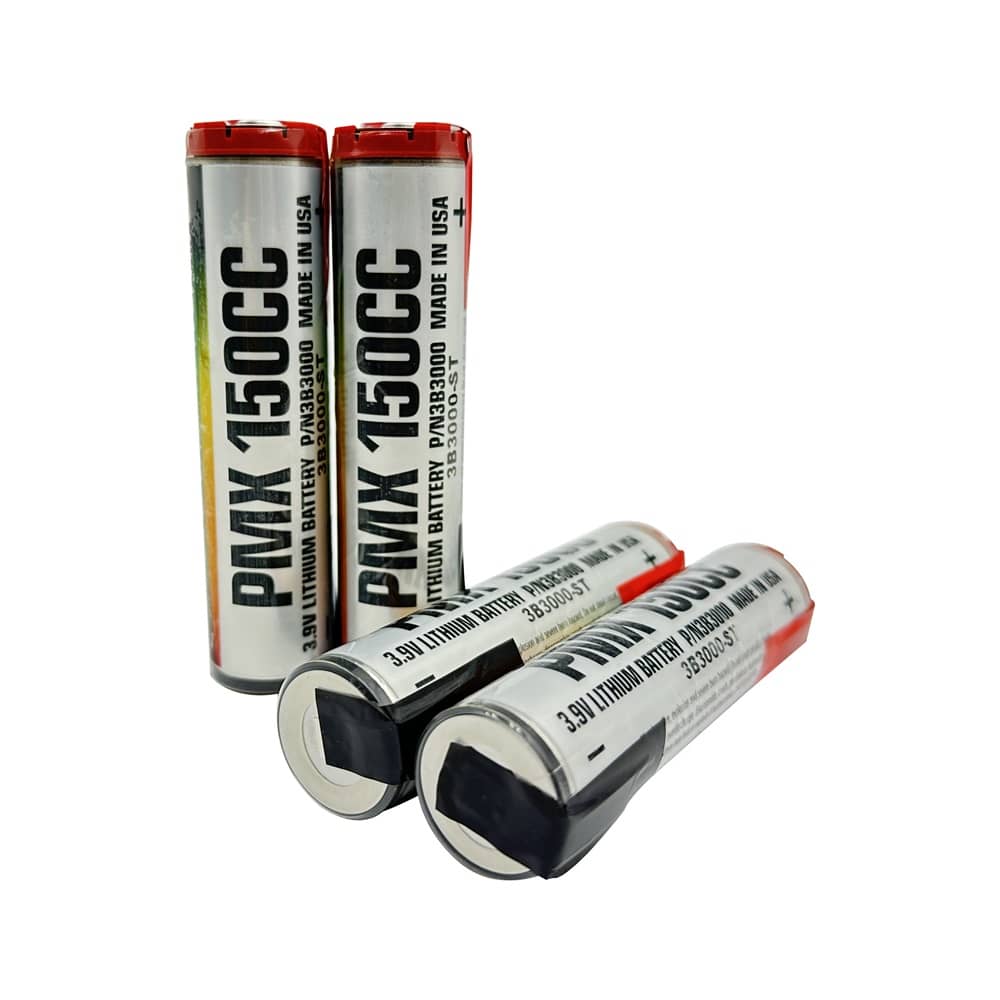

3.9 v lithium battery 13Ah High Rate lithium sulfuryl chloride primary

PMX150CC 3B3000 3.9 v 13Ah High Rate lithium sulfuryl chloride primary are engineered for mission-critical applications requiring extreme power delivery under the harshest conditions. Leveraging spiral wound technology, these primary cells are optimized for high-discharge performance, making them ideal for sectors such as military, industrial, and environmental monitoring. Their design ensures stability, reliability, and responsiveness even in dynamic or extreme environments.

Product performance

• The temperature range can reach -55 ℃, up to 200℃
• Withstand mechanical impact up to 3000g
• Resistant to vibrations up to 20grms
• High energy density 15 watts. Per cubic inch per hour
• Capacity up to 40Ah
• Current The rated current of a single battery can reach 4A, and the peak current can reach 7A

Key Features

• Primary chemistry (non-rechargeable)
• High rate capability
• Advanced spiral-wound technology
• Stainless steel container
• Hermetic glass-to-metal sealing
• Wide operating temperature range as low as -20oC and up to +150oC
• Low self-discharge rate (3% per year at 25oC)
• Restricted for transportation (Class 9)
• Custom terminations available

Specification

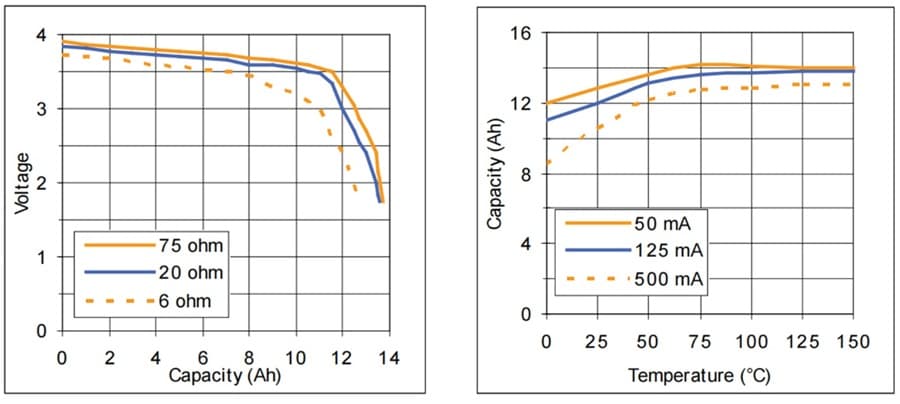

Product Curve Graph

150℃ discharge
※ Capacity as a function of current and temperature

Main Applications

• Military communications
• Oceanographic buoys and gliders
• Tracking systems
• Sensor systems
• Pipeline inspection gauges
• Beacons, transponders and receivers
• Seismic surveying birds
