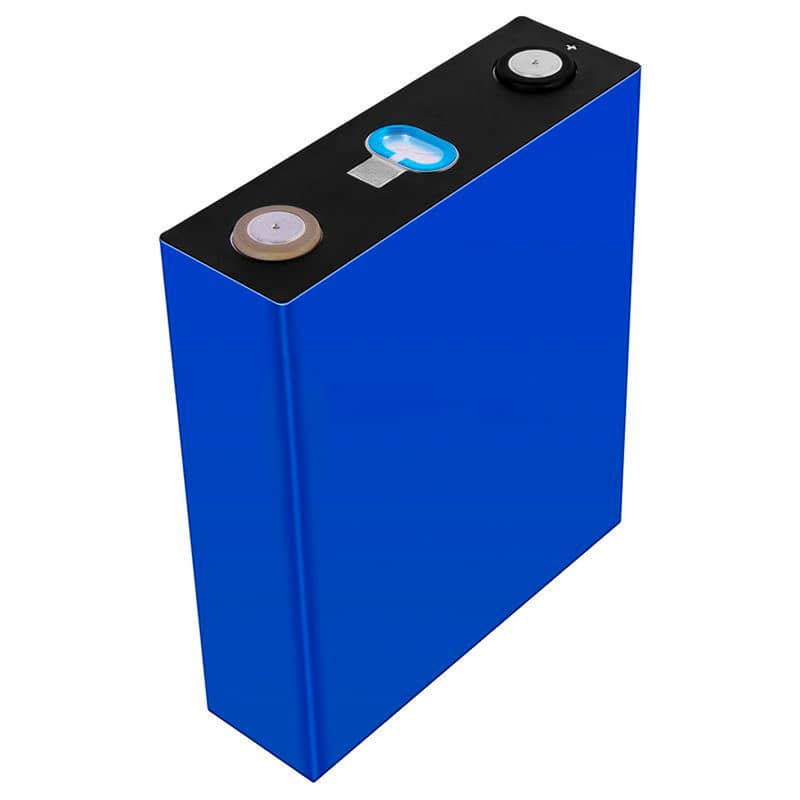

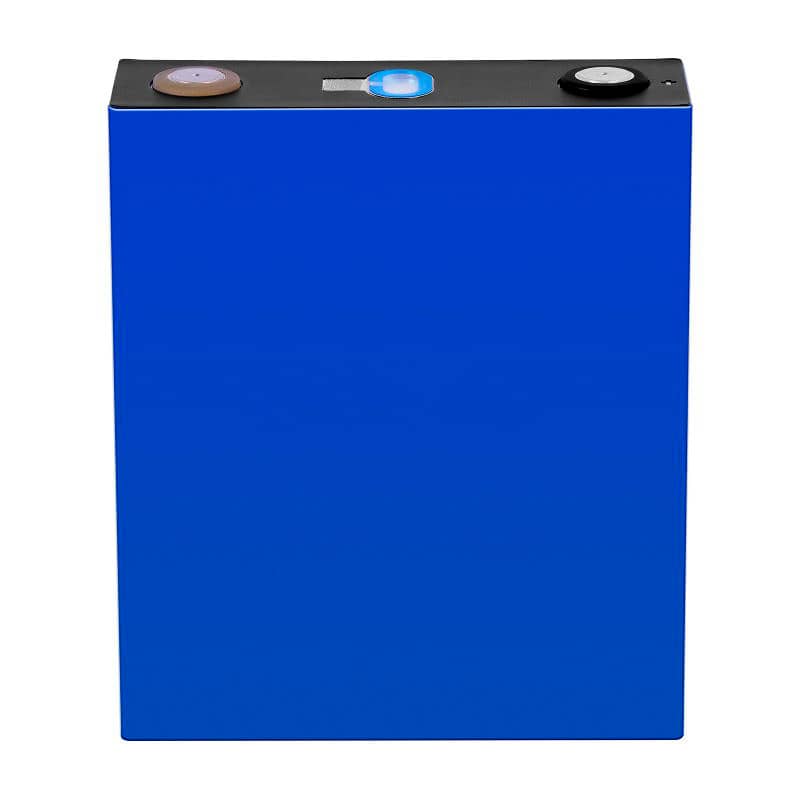

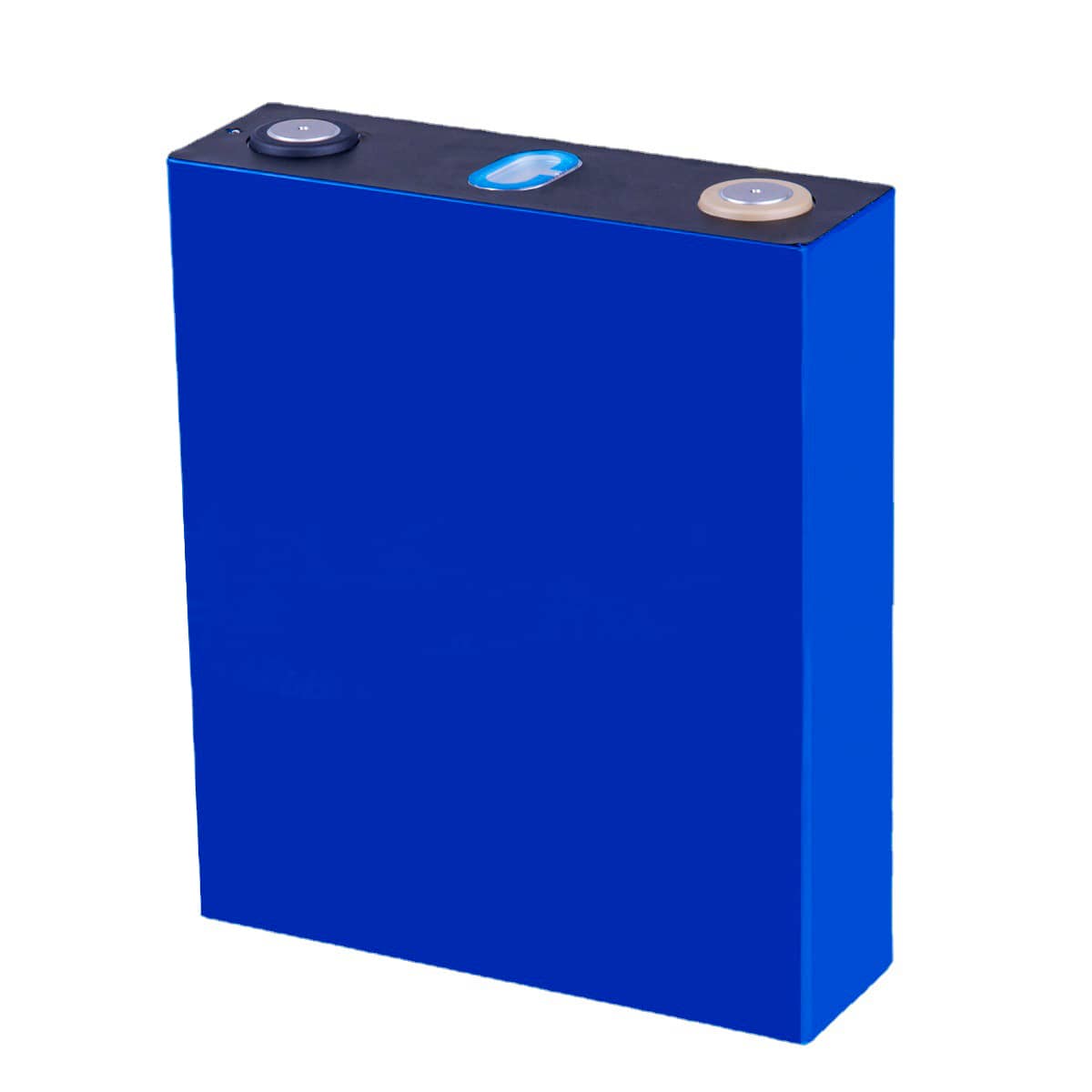

CATL MHH3L7 3.2V 228Ah LiFePO4 Prismatic Battery Cell Grade A

Product Details:

Place of Origin: China

Brand Name: CATL

Certification: CE

Model Number: MHH3L7

Payment & Shipping Terms:

Retail Price: /

Wholesale Price: Negotiable

Packaging Details: cartons or plywoods

Payment Terms: T/T

  • Nominal Capacity: 228Ah Nominal Voltage: 3.2V
  • Internal Impedence: / Operating Votage: /
  • Dimension: 173.93*207.2*53.72mm Battery Weight: ≤4.22Kg

Product Description

CATL MHH3L7 3.2V 228AH LiFePO4 Battery, offers a long cycle life, high energy density, and a wide operating temperature range, for electric vehicles, electric forklifts, golf carts, boats, electric power systems, and solar energy storage systems.

We are committed to providing comprehensive solutions to help our customers optimize energy management and enhance business efficiency. Contact us our team of experts is here to support you!

Specification

Items Parameters
Model MHH3L7
Battery Type Lithium Iron Phosphate(LiFePO4 or LFP)
Nominal voltage 3.2V
Operational voltage 2.5V – 3.65V
Nominal capacity 228Ah
Impedance (1KHz) 0.22±0.05mΩ
Shipment capacity 87~93Ah
Self-discharge rate ≤3.5%
Operating temperature range:  Charge: 0~65℃, Discharge: -35~65℃
Standard charge/discharge current 0.5C
Max. continuous charge current 1C
Cycle life ≥4000 cycles
Dimension 173.93*207.2*53.72mm
Weight ≤4.22Kg

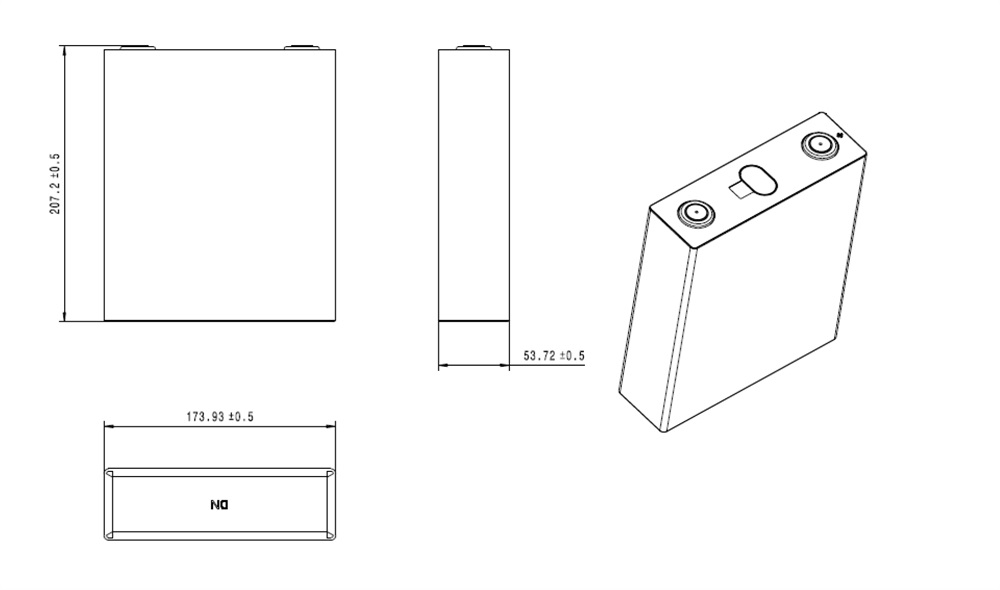

Dimension and Details

dimension of CATL 228ah

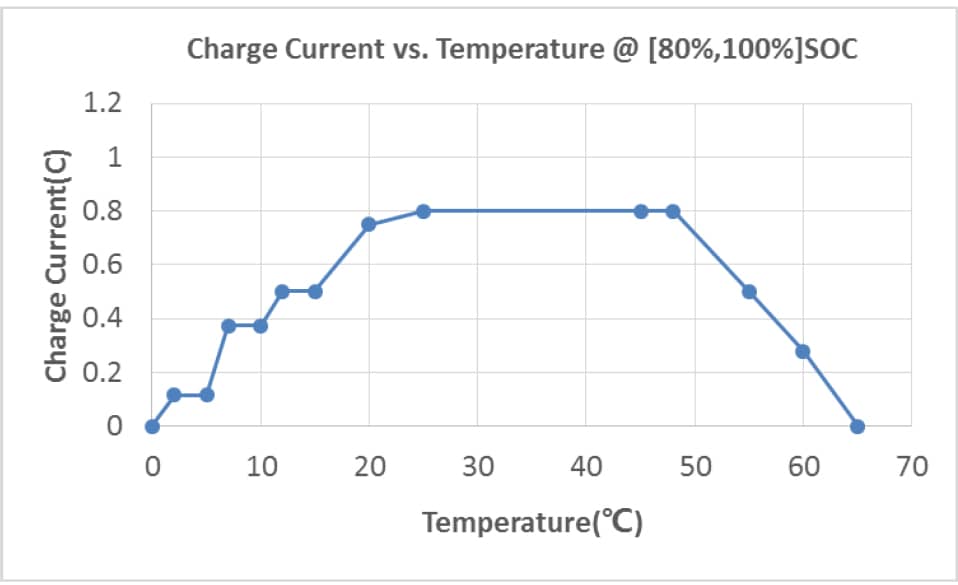

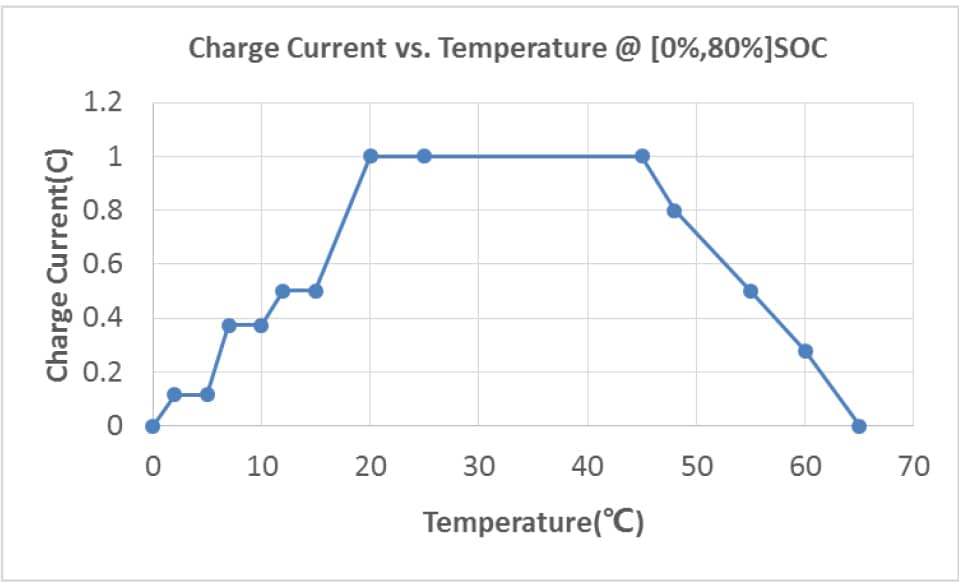

Electrical Performance Diagram

CATL 228ah Electrical Performance Diagram
CATL 228ah Electrical Performance Diagram

Note

1.We battery is brand new and of Grade A quality. It comes with a QR code serial number and a factory inspection report that allows you to trace its origin.If you require Check a data report, please feel free to contact us.

2.We will test all battery voltage, internal resistance and capacity before delivery.

3.The price comes with busbars and bolts, a battery will come with a busbar and bolt set (for example, if you buy a 4-piece battery, we will send you 4-piece cells with 4-piece busbars and nuts and bolts 8 pieces studs) If you need more, please contact us online Thank you!

4.100% Eco-friendly, will not cause pollution pressure to the environment
